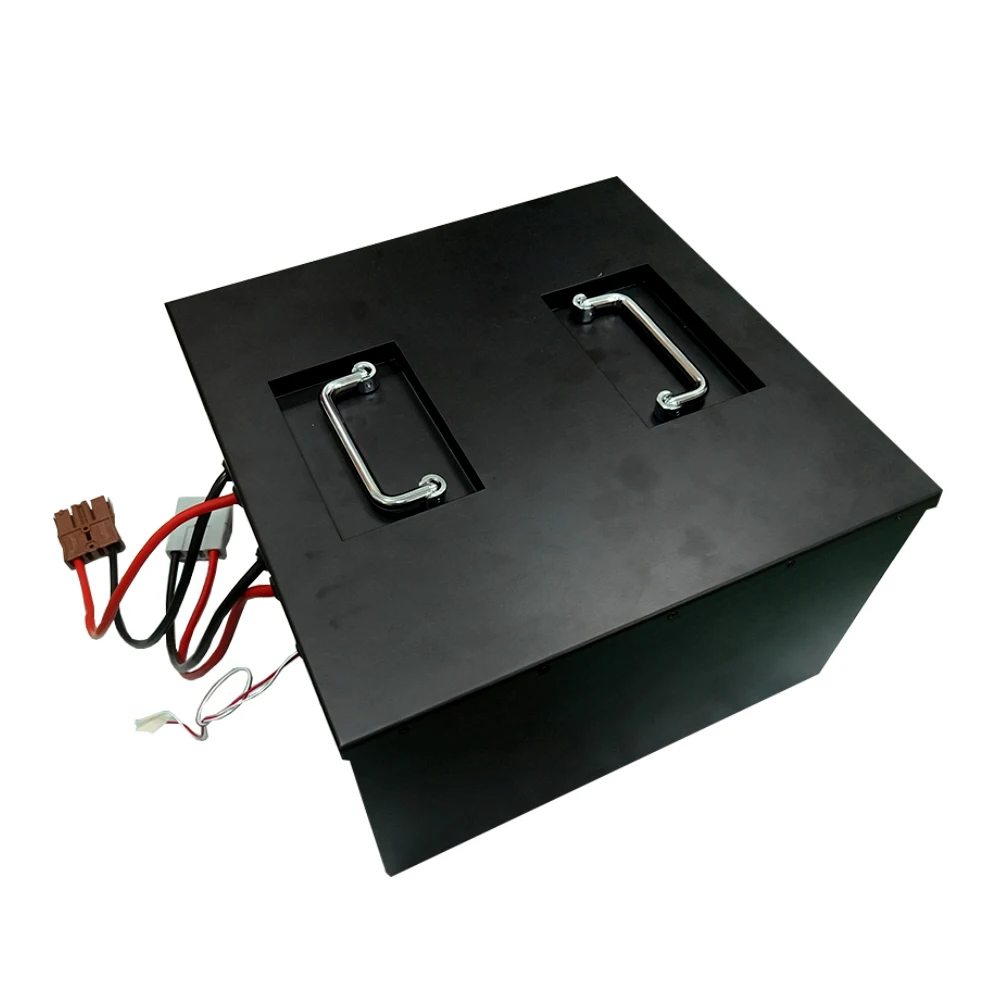

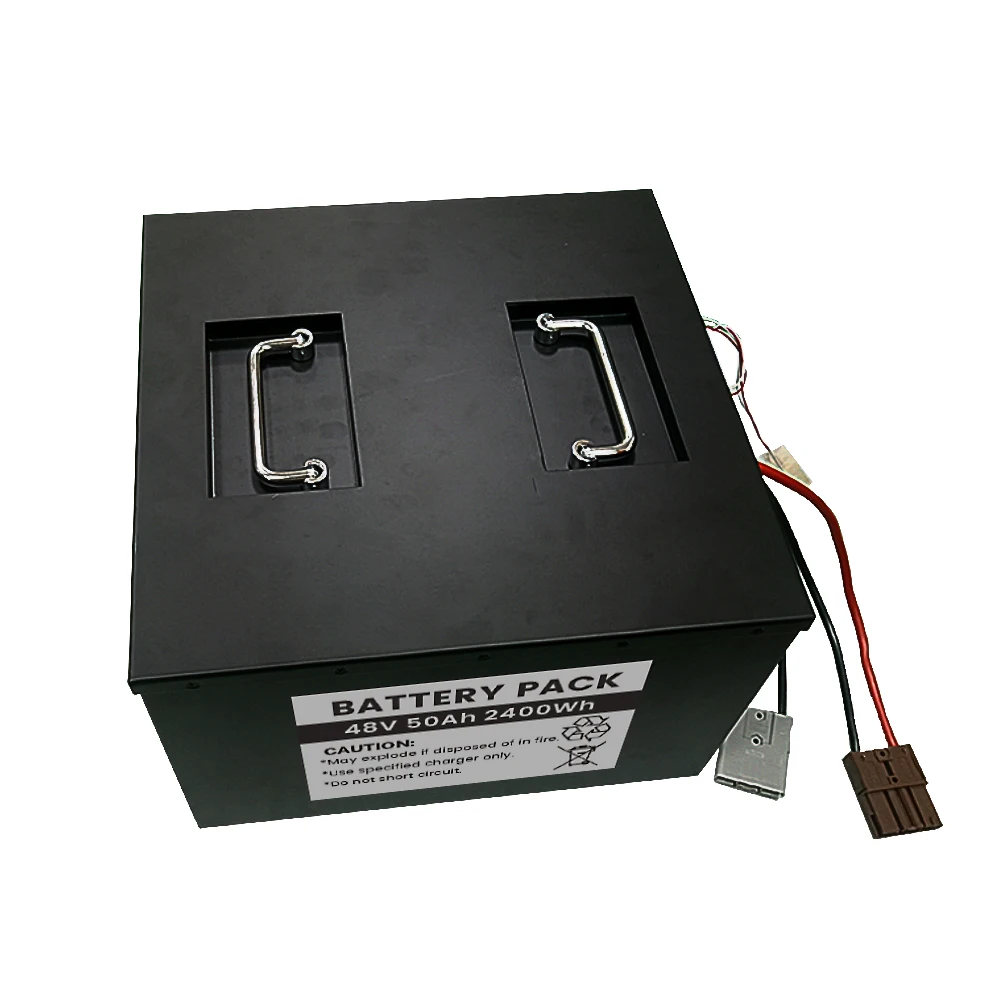

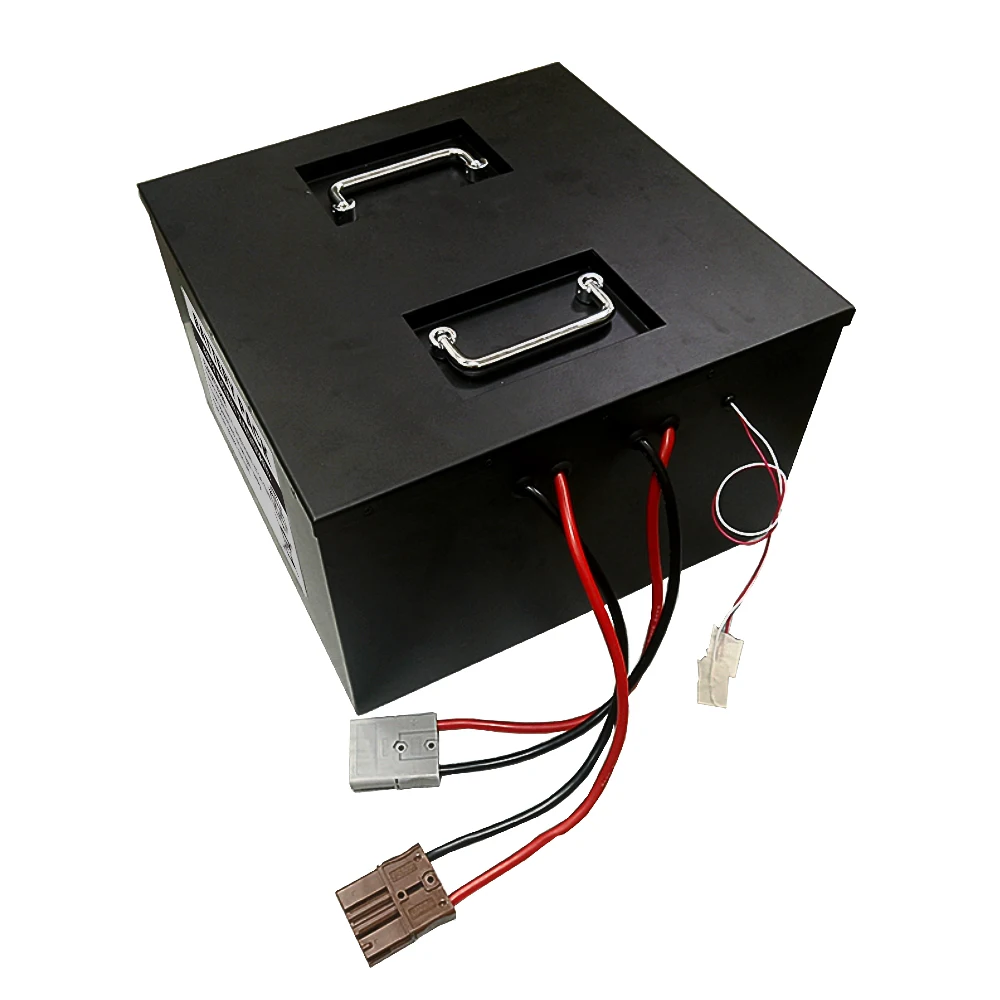

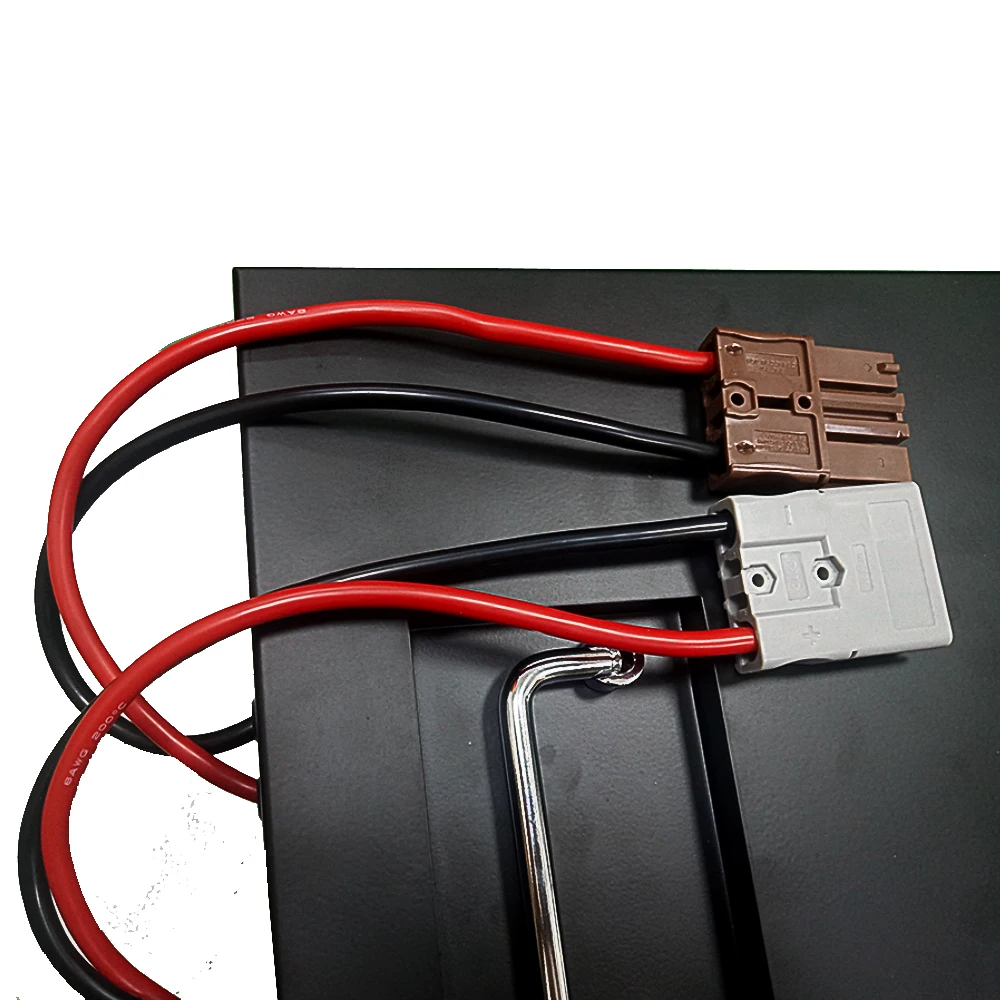

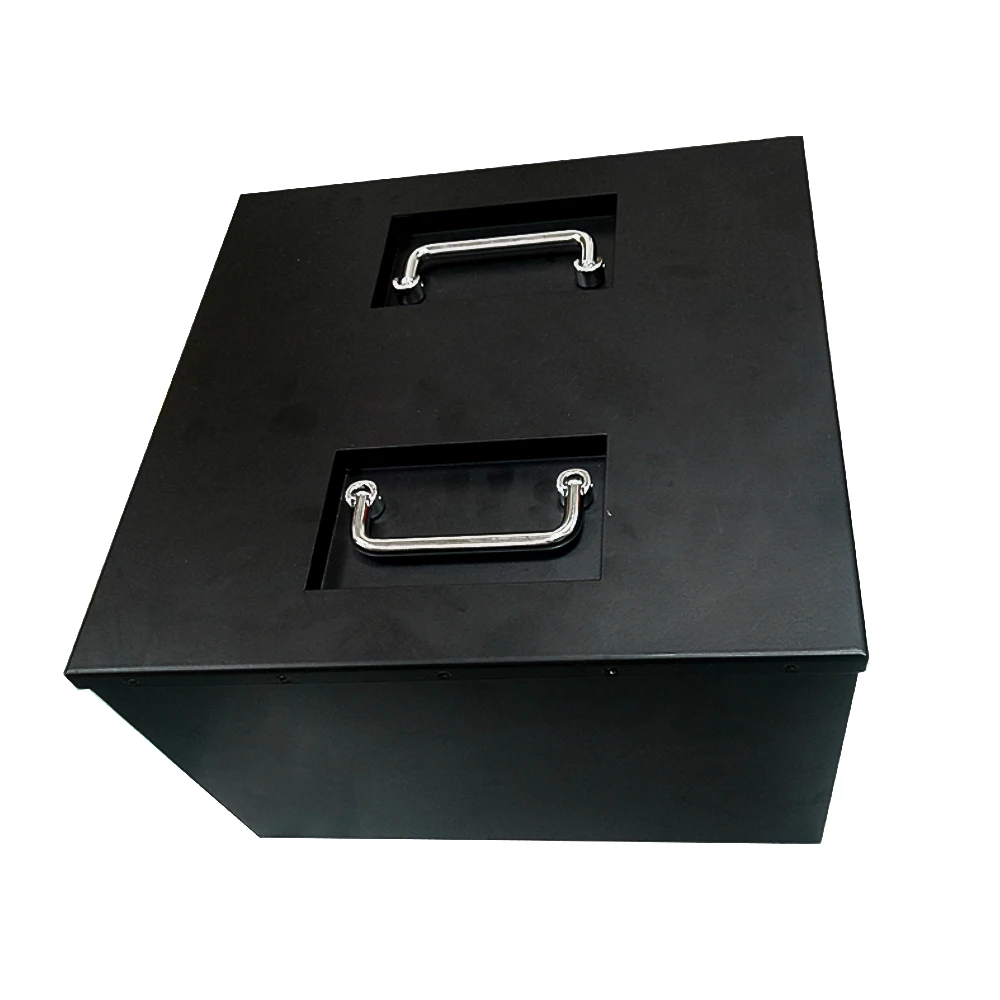

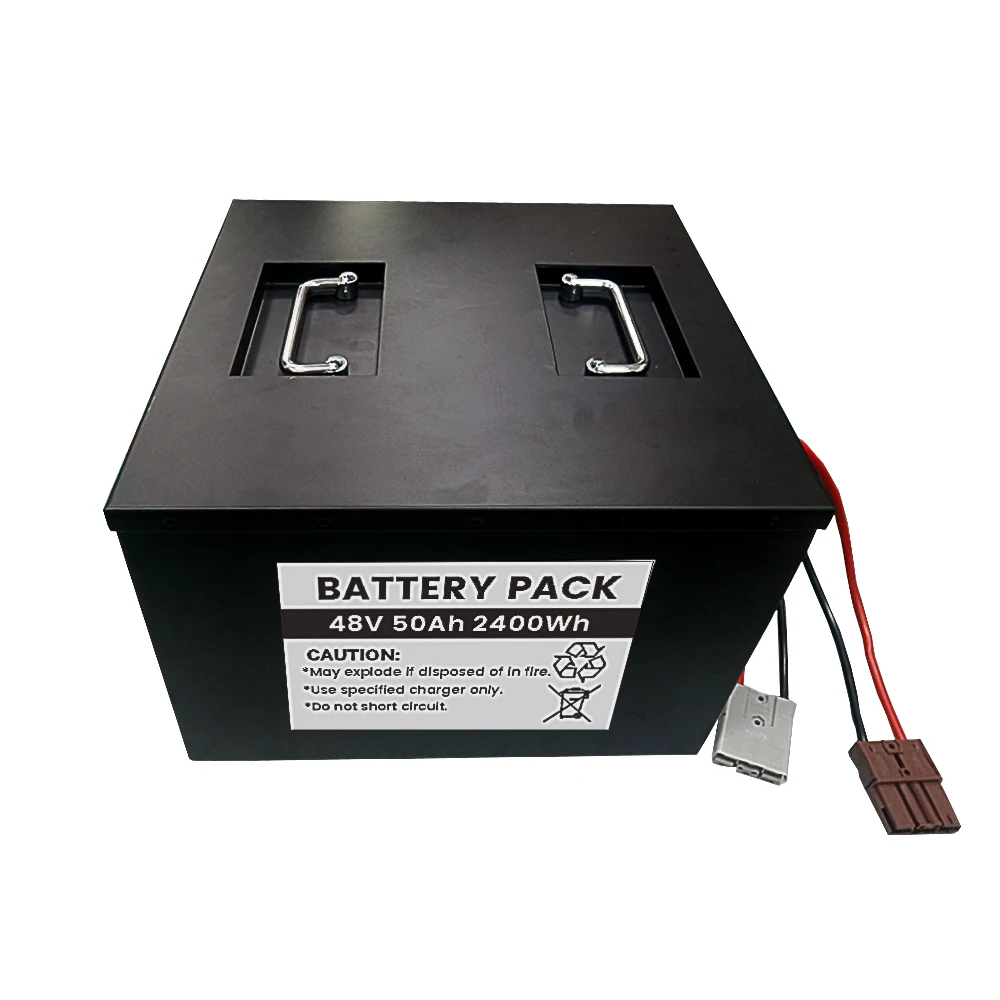

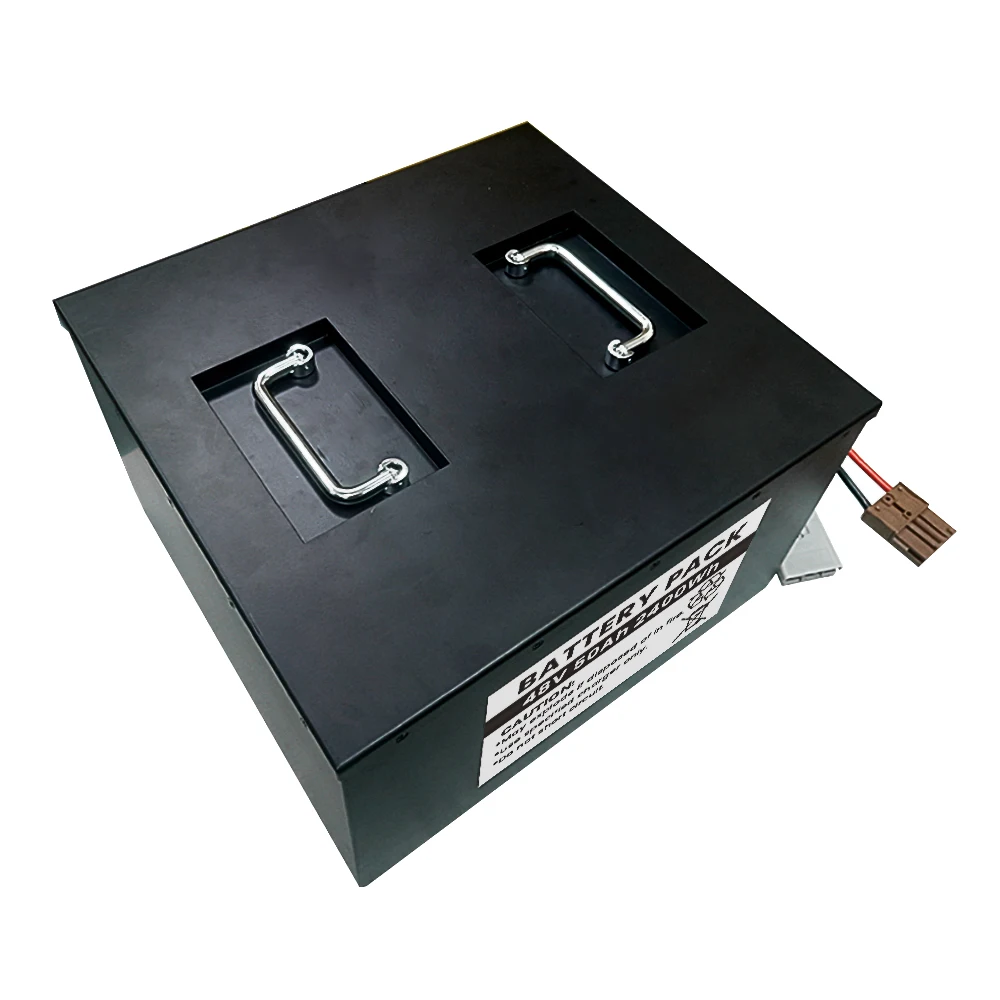

Lead Acid Replacement Deep cycle 48 volt Solar Batteries PACK 3.2v lifepo4 cell Lithium iron phoshate 48v 50ah Features: 1.Built-in automatic protection for over-charge,over-discharge and over-temperature conditions 2.Maintenance free 3.Internal cell balancing 4.Communication of monitored data via Battery Management System (BMS) 5.Thousands of cycles,100% DOD,under normal conditions 6.Can be charged using most standard lead-acid chargers (set for AGM/GEL cells) 7.Flame retardant plastics
Application : 1. Large-scale electric vehicles: electric bus, electric car, E-Tour Car 2. Light electric car: e-bike, e-scooter,e-motorcycle, electric golf cart, e-wheelchair 3. E-tool: electric drill, electric saw, lawn mower and so on 4. Remote control cars, boat, aircraft, toys 5. Solar and wind power generation energy storage devices, Telecom base Station 6. Small medical equipment and portable equipment
Specification
NO.
Name名称
Condition条件
Parameter参数
unit
1
Norminal capacity标称容量
标准充放电（0.2C充放电）
50
Ah
Minimum capacity最小容量
47.5
2
Norminal voltage标称电压
＼
48
V
3
Rated Power额定功率
＼
2400
Wh
4
Standard Charge（CC/CV） 标准充电方式（CC/CV）
CC恒流
Standard charge 标准充电电流0.2ItA 截止电流 0.02ItA
20
A
Fast charge 快速充电电流0.5ItA 截止电流 0.02ItA
20
A
CV恒压（3.65V*n)
54.75
V
5
Charge time 充电时间
Standard charge time 标准充电0.2ItA
≤8
h
Fast charge time 快速充电0.5ItA
≤6
h
6
Standard discharge current标准放电电流
0.2ItA
20
A
7
Maximum discharge current 最大放电电流
1ItA
100
A
8
Discharge cut-off voltage 放电截止电压
2.50V*n(n=串联数)
37.5
V
9
low voltage for discharge protection 欠压过放保护电压
详见保护板规格
2.5
V
10
Discharge over-current 放电过电流保护电流
＼
105-115
A
11
Lithium battery (group) working temperature 电池（组）工作温度
充电温度（环境）
0～45
℃
放电温度（环境）
-20～45
℃
12
Internal resistance内阻值
AC 1KHz
90
mΩ
13
Storage temperature 贮存温度
1月内 Within a months
-20～45
℃
6月内 Within 6 months
-20～35
℃
14
Shipment voltage出货电压
\
48-49.5V
V
15
Weight重量
\
/
g
Application
E-bike
RV
Golf-cart
Forklift
Solar light
Solar system
UPS
Telecom base station
Outdoor mini UPS
Recommend Products
Company Profile
Manufacturing Technique
Packing & Delivery
FAQ
Q: Areyou manufacturer? A: Yes, we are. You are warmly welcome to visit our factory if you have interest!
Q: Could you provide a solution for our grid battery storge developments in our country? A: Yes, we can. What's more, our R&D team aims to provide full solution of battery system for ups power supply, solar storage,grid developments, medical equipments, LED lighting, e-bikes, consumer electronics, portable power banks, hand-held Terminaldevices, etc.
Q: Is OEM/ODM available? A: Yes, it is. Please feel free to tell us your application and your basic battery requirements. Our R&D team will provide a full solution to your with these factors taken into consideration: working temperature, dimension,compound mode, power, capacity, peak current, PCM, fuse, motion control ICs, plug, etc.
Q: Can you provide samples for testing use? A: Yes, we can. After discousion and designing with our sales and engineer, we encourage client to order samples first to test ourbattery quality and stability first.
Q: What’s the differences between li-ion cylindrical battery and Lithium polymer pouch cell? Which one is better? A: Li-ion cylindrical battery18650 battery cells can be easily assemblied to large capacity batttery pack or individually used forconsumer electronics etc.Lithium polymer pouch cell Lithium polymer battery has higher safety factor. It can be designed into ultra thin battery(paperbattery) or anti-low/high-temperature battery. Each type has different merits.
Q: What safety protection function does the PCM have? A: Short circuit protection, over-current protection,over-load protection, over-discharge protection, inversely-connection protection, temperature control, balance, fuse, thermistor, etc. Our engineer will choose particular function to use for your battery pack in accordance with your specific situation.
Q: Are there related certificates about battery? A: If required, we could apply CE, ROHS, CB(IEC62133), UL, KC, PSE, BIS, UN38.3 etc.
Q: How long for the warranty? A: Usually 1 - 3 year.
Q: Which payment methods do you accept? A: Usually, we will do Western Union, TT, LC .etc.
