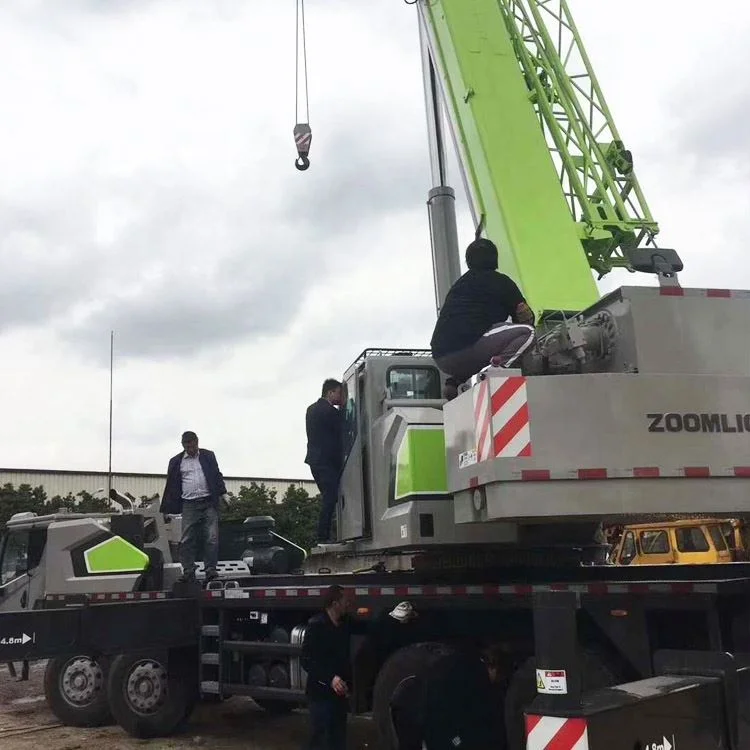

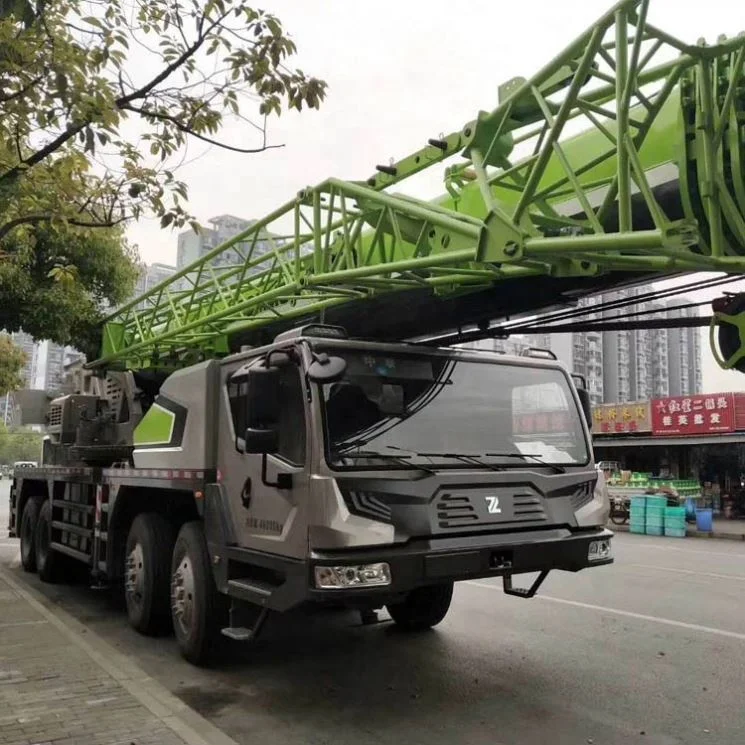

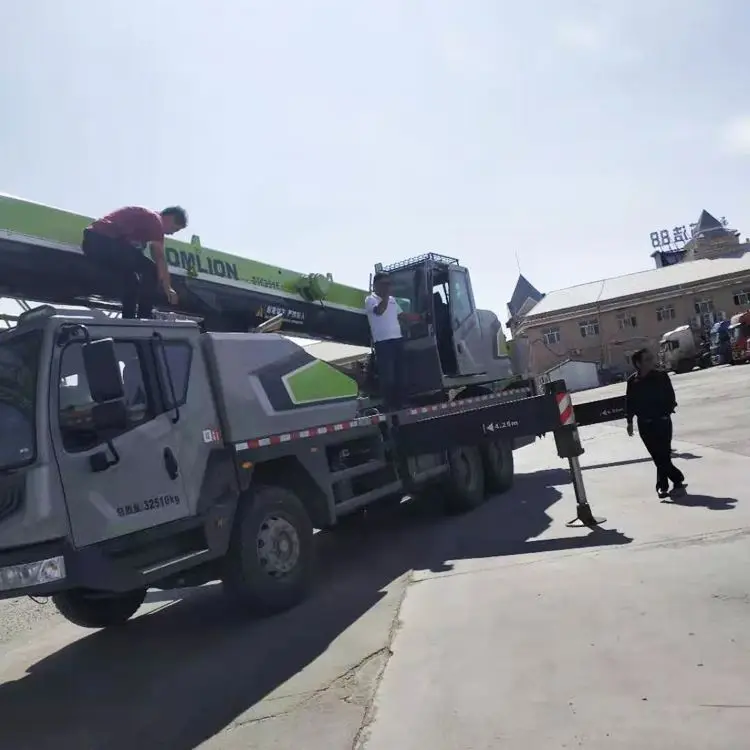

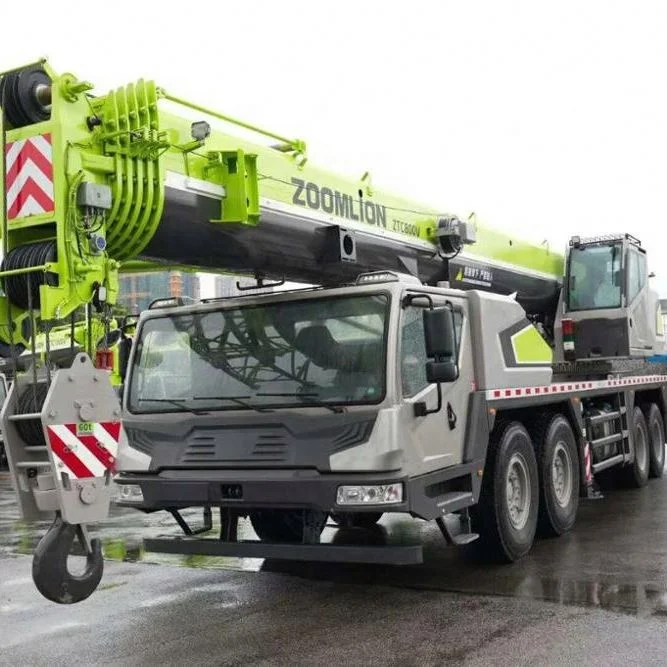

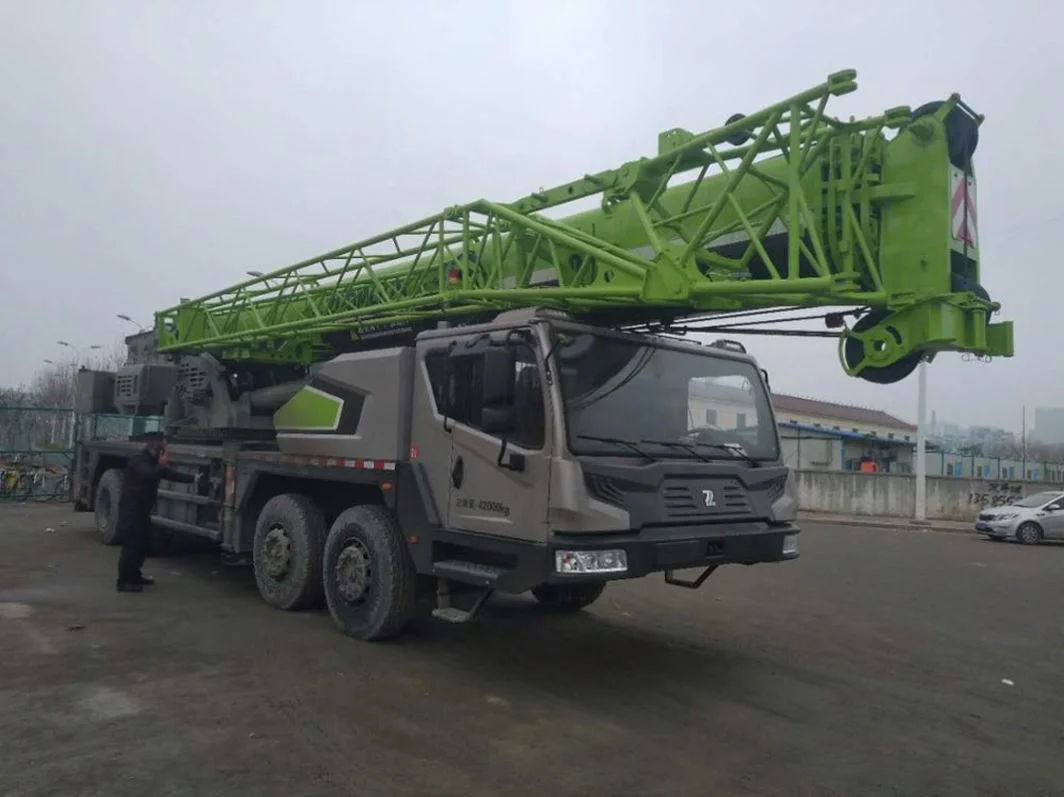

zoomlion Truck With Hiab Crane 4 Arm Cargo truck crane

Item

Value

Remarks

Working performance

Max. rated lifting capacitykg

25000

Max. load moment of basic boom

kN.m

980

Max. load moment of max. boom lengthkN.m

573

Max. lifting height of basic boom m

11.5

Max. lifting height of boom m

33.8

Deformation of the boom is not taken into consideration.

Max. lifting height of jib m

41.6

Working speed

Max. hoist rope speed (main winch) m/min

120

At 4th layer

Max. hoist rope speed(auxiliary winch) m/min

100

At 2nd layer

Boom derricking times

40

Boom extending times

60

Slewing speed r/min

0~2.2

Traveling specifications

Max. traveling speed km/h

78

Max. gradeability %

37

Min. turning diameter m

≤22

Min. ground clearance mm

220

Limits for exhaust pollutants and smoke

Meet with related standards

GB3847-2005

GB17691-2005

(National stage III)

Oil consumption per hundred kilometers L

45

Weights

Deadweight in traveling condition

kg

30000

Complete vehicle kerb mass kg

29870

Front axle load kg

6800

Rear axle loadkg

23200

Dimensions

Overall dimensions (L×W×H) mm

12800×2500×3430

Longitudinal distance between outriggersm

5.36

Transversal distance between outriggers m

6.1

Boom length m

10.5~33.3

Boom angle°

-2~80

Jib length m

8

Offset °

0, 30

Chassis

Model

ZLJ5325

Code: ZLJ5325V3

Class

II

Engine

Model

WP10.270

Rated powerkW/r/min

199/2200

Max. output torqueN.m/r/min

1100/1300~1600

Manufacturer

Changsha Zoomlion Heavy Industry Science & Technology Development Co., Ltd.
