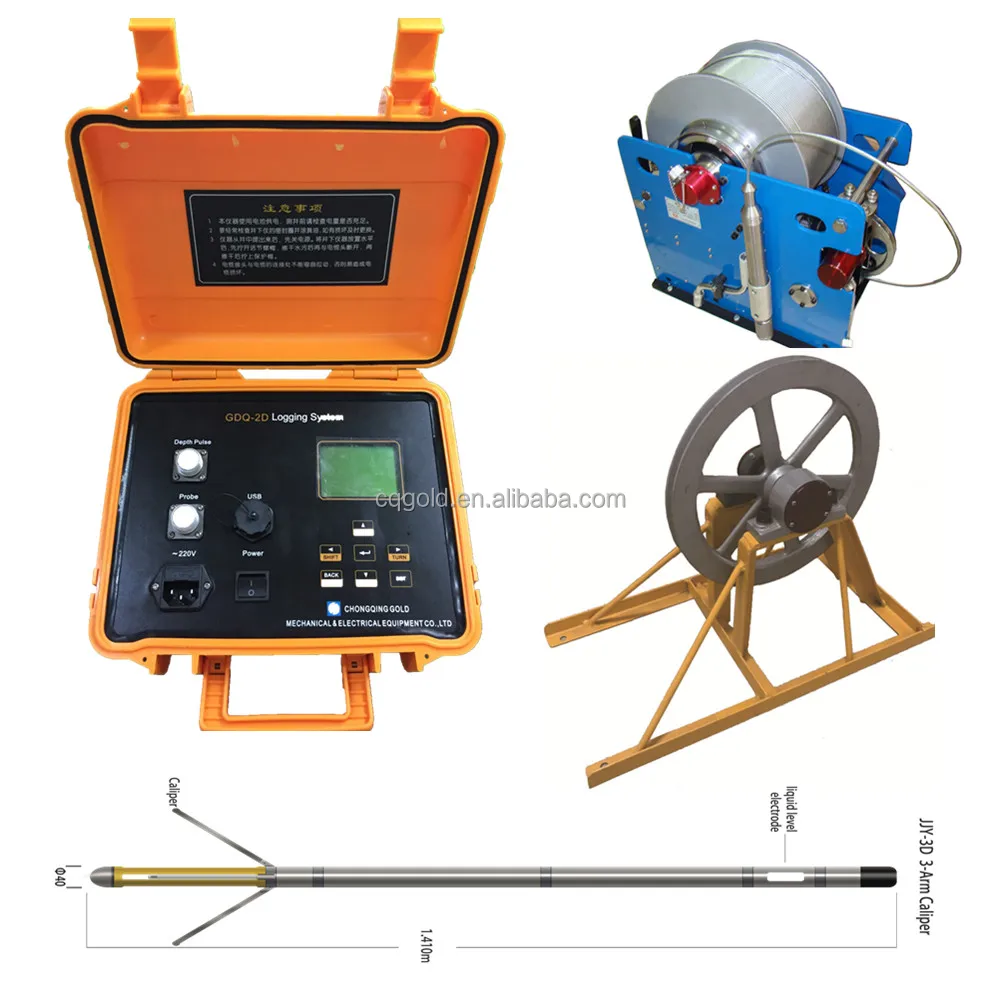

Geophysical Logger Water Well Record Equipment with Multi Parameters Logging Tool well logging caliper

Product Overview

Description

Geophysical Logger Studies Water Well Record Equipment with Multi Parameters Logging Tool









Gamma-ray logging has evolved from a qualitative estimation of the variation of natural radioactivity with depth in a borehole, using a Geiger-Müller detector, to a sophisticated quantitative logging technique which yields information on the identification and amount of the radioelements present, as well as data on the likely geologic history of mobilisation of these radioelements in the rock. To extract this additional information, a keener appreciation of the natural radioactive decay series, the isotopes involved, their half-lives, the energies of their gamma-rays and the interaction of these gamma-rays with the rock through which they travel is necessary. This has led to the development of improved data acquisition systems (digital logging systems), new methods of data processing (application of digital time series analysis—inverse filtering), the introduction of gamma-ray spectral logging, and improvements in variety and type of detectors to enhance the logging measurements and facilitate the new data processing techniques. Many of the new developments relate primarily to uranium exploration problems but they also have ramifications in other geologic applications of gamma-ray logging.







Natural Gamma & Electrical Resistivity Probe
Description
The Natural Gamma & Electrical Resistivity Probe measures natural gamma,16” Normal & 64”Normal Resistivity,Spontaneous Potential (SP),Single Point Resistance(SPR),Temperature. Users can log resistivity profiles with different depths of investigation and gain information about permeability, porosity, water quality and geological formation properties.
Operating Conditions:Uncased;Borehole Fluid:Water or Mud.




1. Instrument Power Supply:DC200V±20%,Electricity≤40mA

2. Electrode Array: AM 16”;AM 64”

3. Natural Gamma Sensor:NaI Crystal

4. Temperature Sensor::Platinum Resistance (pt100)

5. Measuring Range:

resistivity:1~4000Ωm(customize10000Ωm)

Spontaneous Potential (SP):±1200mV

Natural Gamma:0~32768cps

Temperature Range:  0℃~100℃, Resolution:0.025℃

6. Measurement Accuracy:2%(10~4000Ωm)or ±1Ωm
