NEMA 23 Planetary Gearbox Stepper Motor with Gear Ratio 47/55/65/77
NEMA 23 Planetary Gearbox Stepper Motor with Gear Ratio 47/55/65/77
NEMA 23 Planetary Gearbox Stepper Motor with Gear Ratio 47/55/65/77
NEMA 23 Planetary Gearbox Stepper Motor with Gear Ratio 47/55/65/77

NEMA 23 Planetary Gearbox Stepper Motor with Gear Ratio 47/55/65/77

Share on (1600186147141):


Price:$40.00 - $57.00

Quantity:


Product Overview

Description



Product information

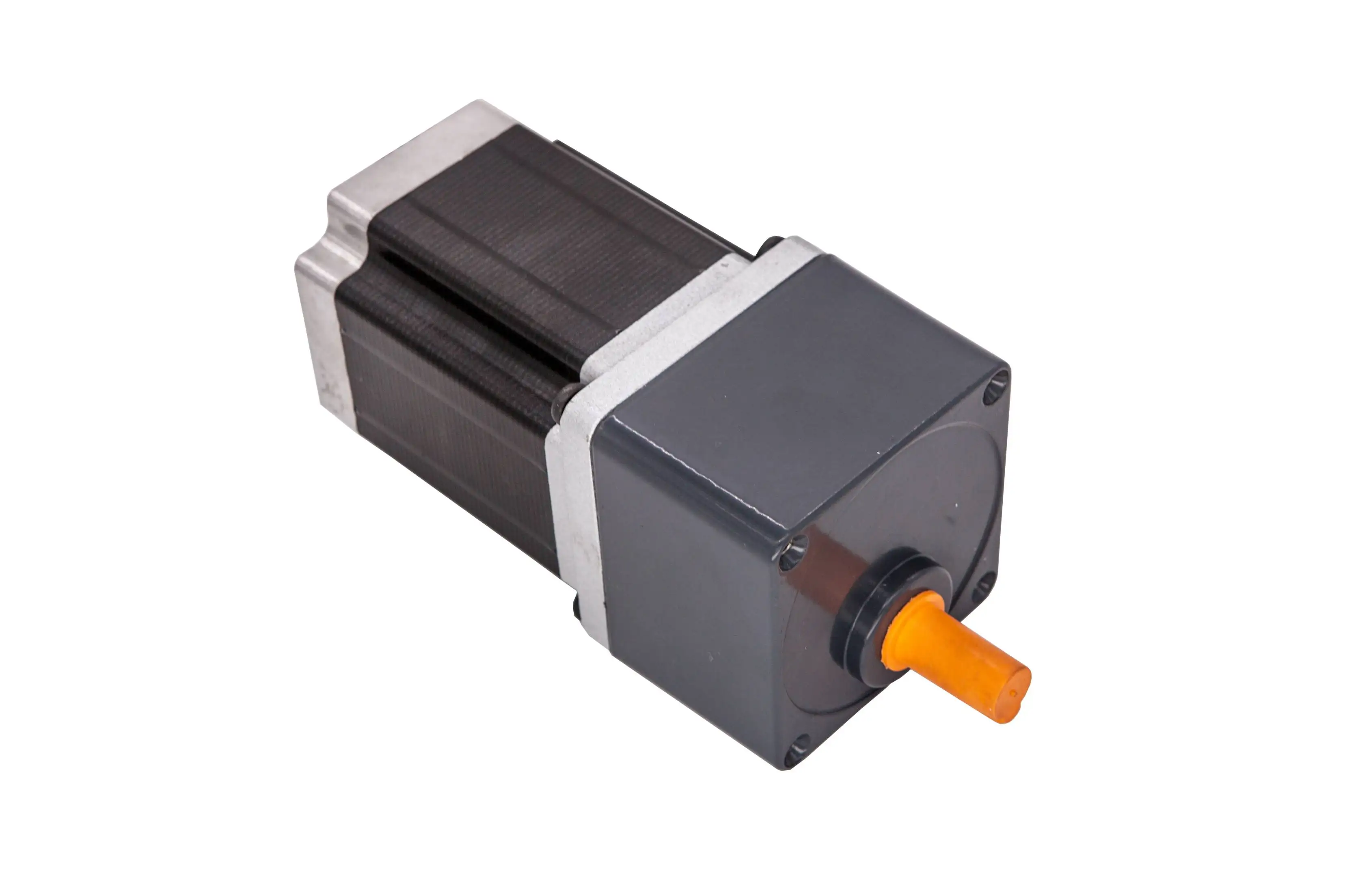

NEMA 23 Planetary Geared Stepper Motor
Specifications
1st Stage
2nd Stage
3rd Stage
Gear Ratio
3.6; 4.25
13; m15; 18
47; 55; 65; 77
Length (mm)
40.5
51.8
63.1
Rated Load (N.m)
9
15
24
Max Load (N.m)
26
44
71
Effiency (%)
90
81
73
Blancklash (acr min)
≤60
≤75
≤90
Weight (kg)
0.7
0.8
0.9
Rated Input Speed (RPM)
3000
3000
3000
Max Input Speed (RPM)
5000
5000
5000
Protection Class(IP)
65
65
65
Lubrication
Grease
Grease
Grease
Noise (dB)
≤45
≤45
≤45
Lifaspan (h)
20000
20000
20000
Remark: L1 is Stepper motor Length, L2 is gearbox length.




Company profile




Partner




Product transport




FAQ




1. Are you factory?
Yes, we are facotry, and we produce stepper motor/driver, Servo motor/driver.
2. How to select models?
Before purchasing, please contact us to confirm model No. and specifications to avoid any misunderstanding.
3. How do you ship the goods?
Sea and by air, also accept customer appointed.
4. Can I test sample?
Yes, sample charged can be offered for testing.
5. Can we be agent or distributor?
Yes, welcome and we will support you.
6. Can you do OEM or ODM service?
Yes, we have R&D department and accept OEM and ODM service.
