Low Price Perlove X-Ray Machine Price X-Ray Machine 500 Kv

working condition

Ambient temperature:+100C~+400C

Relative humidity:30%~75%

Atmospheric pressure:70Kpa~106Kpa

Transportation and storage conditions

Ambient temperature:-200C~+700C

Relative humidity:10%~1-100%(including condensation)

Atmospheric pressure:50Kpa~106Kpa

Main technical parameters

Function:radiography

X-ray machine maximum output power

Intermittent mode 100Kv,200ma,20kw

adjusting range of x-ray machine tube current and tube voltage

Range of x- ray tube current:16ma~200ma

Rang of x-ray tube voltage:40kv~125kv

exposure time :0.0025s~6.4s

Nominal working frequency>=30khz

Power supply:three-phase five wires 380v+-38v

main configuration

high frequency high voltage generator (including control console)

X-ray tube: focus:

1. focus:small focus:1.0mm large focus:2.0mm
2. anode speed:2800r/min
3.anode thermal capacity:140khu

collimator power supply:ac24v

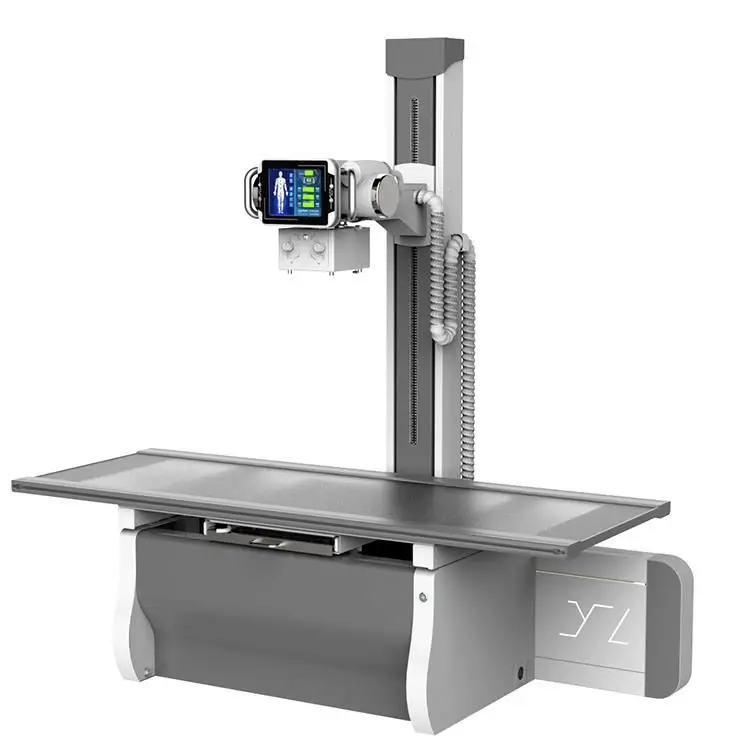

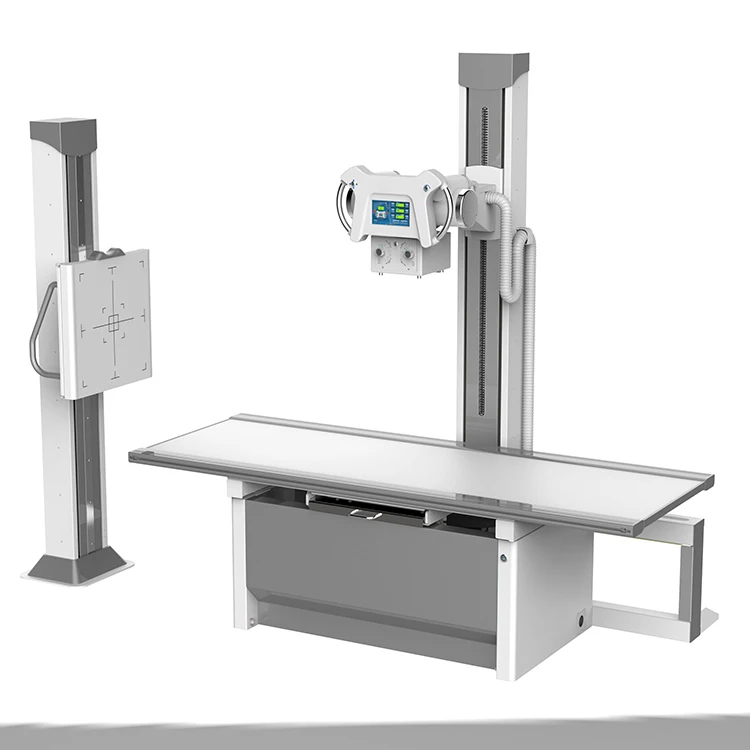

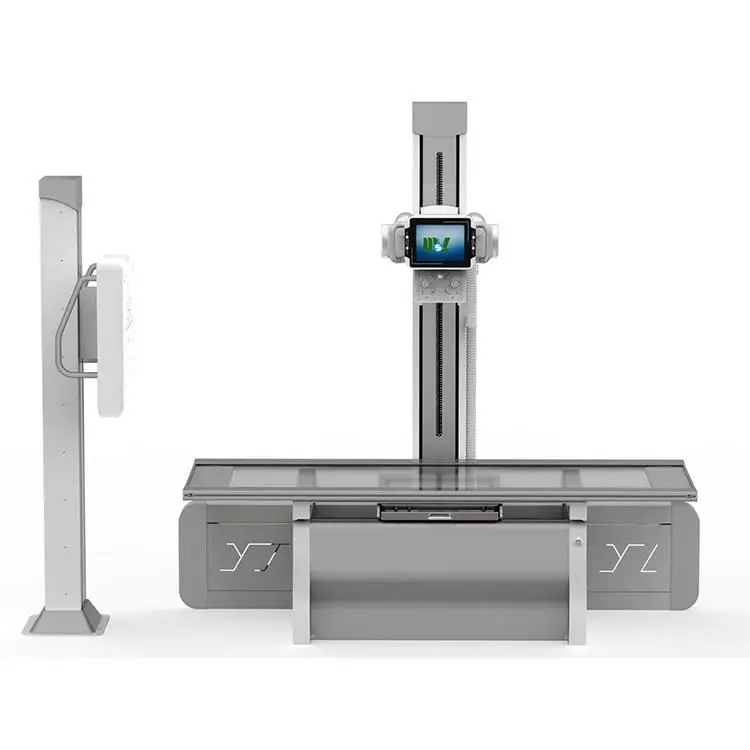

Radiography bed:
1. single phase 220v+-22v,50Hz+-1Hz

2. x-ray components supporting frame
Braking mode:elecrtomagnetic brake,braking force>=98N,
button operation filter:N40,r10,110,stationary type,size:14"*17"

3.bed size:L2000mm*w760mm*H685mm
Vertical moving range:>=825mm
Horizontal moving range:>=250mm
