Mini home solar power system home station 500w power station portable solar generator
- Category: Solar Energy Products >>>
- Supplier: Shenzhen,Smartkey,Power,Co.,Ltd.
Share on:
Product Overview
Description
Mini home solar power system home station 500w power station portable solar generator
Product Description
| MODEL | SK-500W | |
| Power | 500w | |
Input | AC Input | 220 VAC 50Hz |
Solar input(Optional) | 15V or 18V ≤100W | |
Output
| Inverter Output | 220V±10% |
DC Output(Type-C Port) | 5V/2.4A 9V/2A 18W Max | |
| DC Output(USB-A blue) | 5V/2.4A 9V/2A 18W Max | |
DC Output(USB-A white) | 5V/2.4A*2 | |
| DC interface | 12V/4A*2 | |
| Cigarette lighter interface | 12V/8A*1 | |

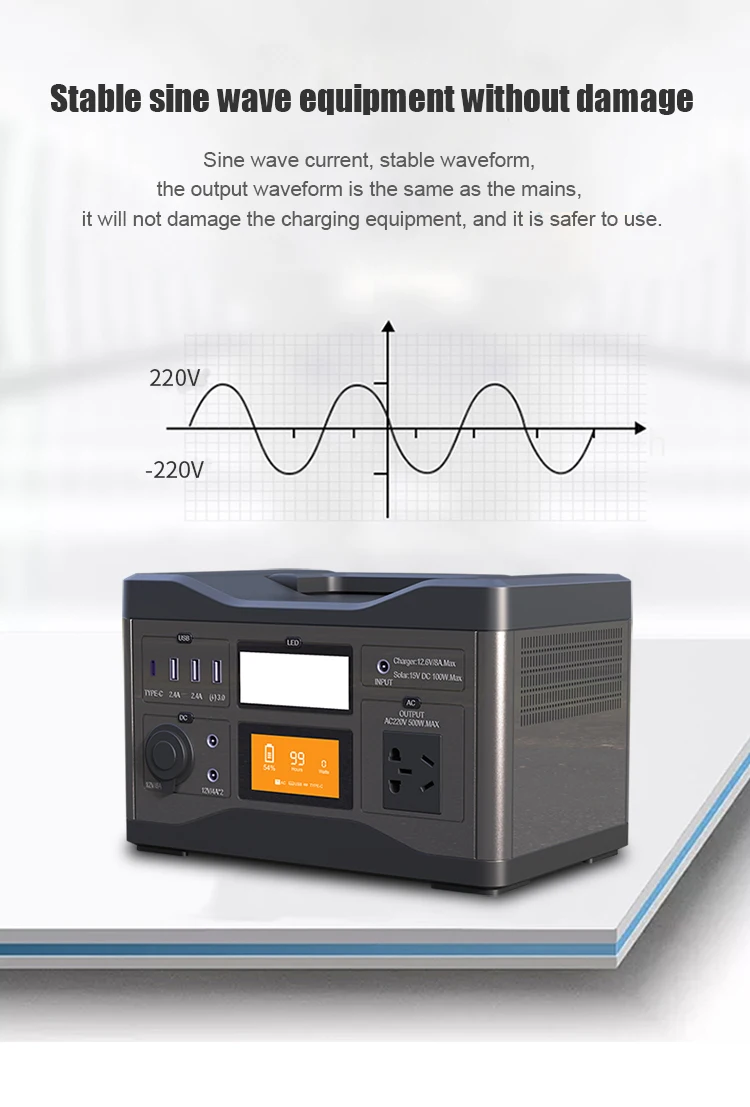

| Waveform | Pure sine wava | |
| Peak power | 1000w | |
| Display | LCD Display | Battery remaining capacity Estimate discharge time Battery fault Corresponding output function Overtemperature Output power |
| Battery | Lithium battery | 50AH/550Wh |
Protection | Overload protaction | 500W±50W |
| Under-voltage protection | 9V±0.5V | |
| Overvoltage protection | 12.8V±0.2V | |
| Overheating protection | Charge 50°C Discharge 75°C | |
| Short circuit protection | Yes | |
Physical | Size(D*W*H mm) | 265*165*167 |
| Weight(Kg) | 5.5KG | |
| Other | Fuse | 6*20A |
| Cooling fan | Temperature control fan | |
| LED Linght | 5W(Three levels are adjustable) | |
1.Measurement by High precision current integral,digital tube accurattely display the battery power.
2. AC charging circuit built-in,you don’t have to worry about forget to carry the big size charger.
3.Foldaway ultra thin solar charger,recharging by nature,convinient for long term outdoors use.
4.AC220V/500W inverter output (modified waveform), for a variety of digital product adapter,electrical power supply.
5.5V 9.6A power output in 4 ports ,charge for 4 mobiles the same time.
6.Priority support electric supply ,charge&discharge meantime,strengthened the high usage of the battery.
7.Cigarette lighter port output DC12V8A power supply.
Our Services
1. OEM&ODM services acceptable.
2. 1% pcb board provided .
3. Lots of cooperated agent for shipping by sea or by air.
4. 1year warrenty , if it is quality problem , we will provide the parts for free.
Little hint:
1.In the warranty period the machine has a problem, please contact the sales staff, we will be responsible for customer service.
2.Exceed the warranty period, improper operation and man-made damage, we will still give help and support,We will provide spare parts at a cost price.
3.According to the customer's needs, we can provide unconventional, but the cost may be slightly higher than the traditional machine.
Company Information
Exhibitions
Trade Shows
Packaging & Shipping
1,The product manuals, technical documents, CE, ROHS and other certificates (if necessary) will be issued with the goods.
2,invoices, bills of lading, certificate of origin, fumigation certificate (if needed) will confirm with you, through DHL or other means to send.
FAQ
Q1: What devices can CN- 500W?
A: Please note that the AC output port can charge devices less than 500W. Once exceeding, the 500W will be in protection mode. We
need to charge it by wall charger to reset it.
Q2: How to calculate the working time for your devices?
A: 1. AC output working time=500wh * 0.85/the power of your device
For example, assume your power of device is 50W, working time will be 500wh * 0.85/50w=8.5 hrs ( rough calculated)
This is the theoretical value calculated: charge it without using it. Actual working time may varies on how you use the device, pls inquiry seller for details.
2. DC and USB output working time=500wh * 0.95/the power of your device.
Q3:How to choose the solar panel?
A: we suggest 15V & 18V solar panel.Kindly note solar panels and power station can expand capacity in parallel.
Q4: How long does it take to fully charge this power station?
A: This depends on the power source used to deliver the charge. 10-12 hours if using home wall AC outlet power, or 18-24 hours if
using 15V/18V 100W solar panels.
A: Please note that the AC output port can charge devices less than 500W. Once exceeding, the 500W will be in protection mode. We
need to charge it by wall charger to reset it.
Q2: How to calculate the working time for your devices?
A: 1. AC output working time=500wh * 0.85/the power of your device
For example, assume your power of device is 50W, working time will be 500wh * 0.85/50w=8.5 hrs ( rough calculated)
This is the theoretical value calculated: charge it without using it. Actual working time may varies on how you use the device, pls inquiry seller for details.
2. DC and USB output working time=500wh * 0.95/the power of your device.
Q3:How to choose the solar panel?
A: we suggest 15V & 18V solar panel.Kindly note solar panels and power station can expand capacity in parallel.
Q4: How long does it take to fully charge this power station?
A: This depends on the power source used to deliver the charge. 10-12 hours if using home wall AC outlet power, or 18-24 hours if
using 15V/18V 100W solar panels.
Q5: What’s the payment terms?
A: We accept T/T, Paypal, credit card, western union and alipay.
A: We accept T/T, Paypal, credit card, western union and alipay.
Q6: Why Choose Our Products?
A: 1. High Quality.
2.Factory price.
3.Small MOQ.
4. With professional test standards, inspected by professional QC team 5. Various colors for preference, and OEM is available.
A: 1. High Quality.
2.Factory price.
3.Small MOQ.
4. With professional test standards, inspected by professional QC team 5. Various colors for preference, and OEM is available.
Please feel free to contact us if you have any other questions, we will answer your questions in 12 hours.
