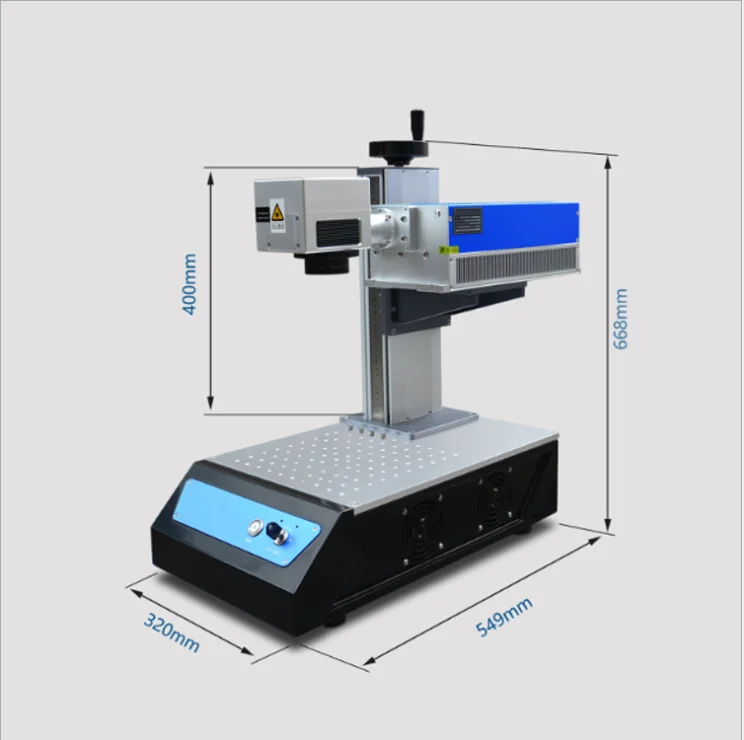

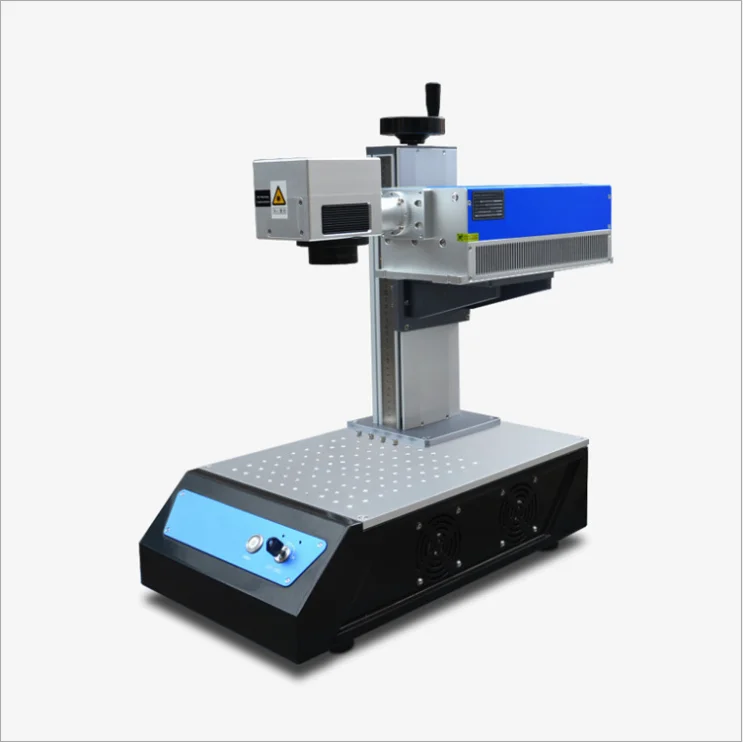

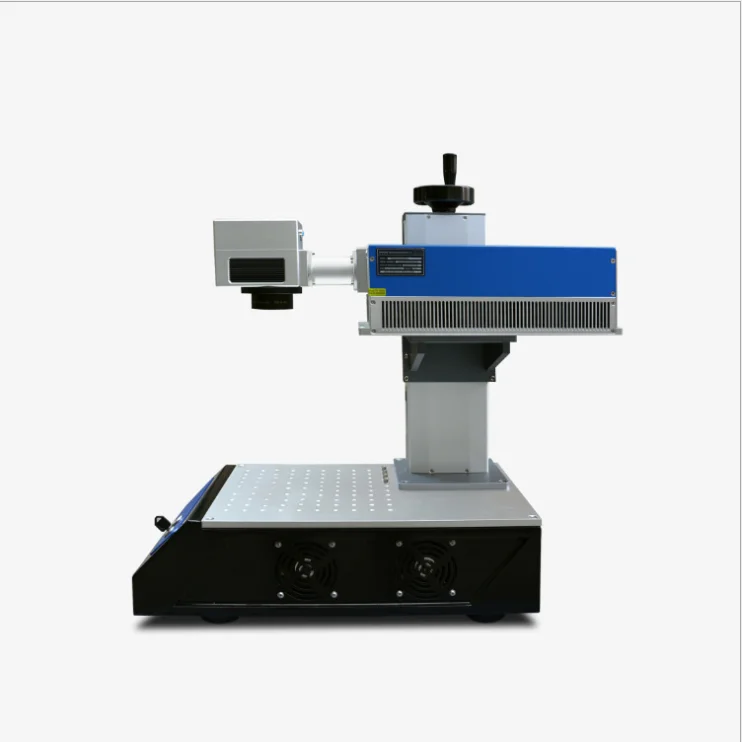

Air-cooled UV lasers can provide 355nm UV lasers with an average output power of 1-5W at a repetition rate of 30Khz to meet the requirements of customers for UV laser output power in different processing applications. At the same time, customers can choose not to The same laser crystal to achieve the final process requirements. The air-cooled UV laser has a small laser spot and narrow pulse width, which can Get a more refined marking effect. Through structural optimization, the laser head of the air-cooled ultraviolet laser can be separated from the power box. Small size and easy to integrate. At the same time, the laser head air-cooled heat-dissipating aluminum profile is integrated into the laser head, which has strong heat dissipation capacity and exciting The optical device has good stability.
Specification
型号
TR-A-UV03
TR-A-UV05
波长Wavelength
355nm
355nm
输出功率Output power
>3W@30KHz
>5W@40KHz
最大单脉冲能量Maximum pulse energy
0.1mJ@30KHz
0.12mJ@40KHz
脉冲重复频率Pulse Repetition Frequency
1-150KHz
1-150KHz
脉冲宽度Pulse duration
<15ns@30Hz
<18ns@30Hz
平均功率稳定性Average power stability
<3%
<3%
空间模式Spatial mode
TEM00 (M²< 1.5)
TEM00 (M²< 1.5)
偏振度Polarization ratio
>100:1 Horizontal
>100:1 Horizontal
光斑圆度Beam circularity
>90%
>90%
输出口光斑大小1/e2 beam diameter at output
0.7mm
0.8mm
