LILLIPUT 31 дюйм 12G SDI HDMI 4K видео трансляции монитор 3D LUT HDR директор монитор
- Category: LCD Monitors >>>
- Supplier: Zhangzhou,Lilliput,Electronic,Technology,Co.,Ltd.
Share on:
Product Overview
Description
- Overview -

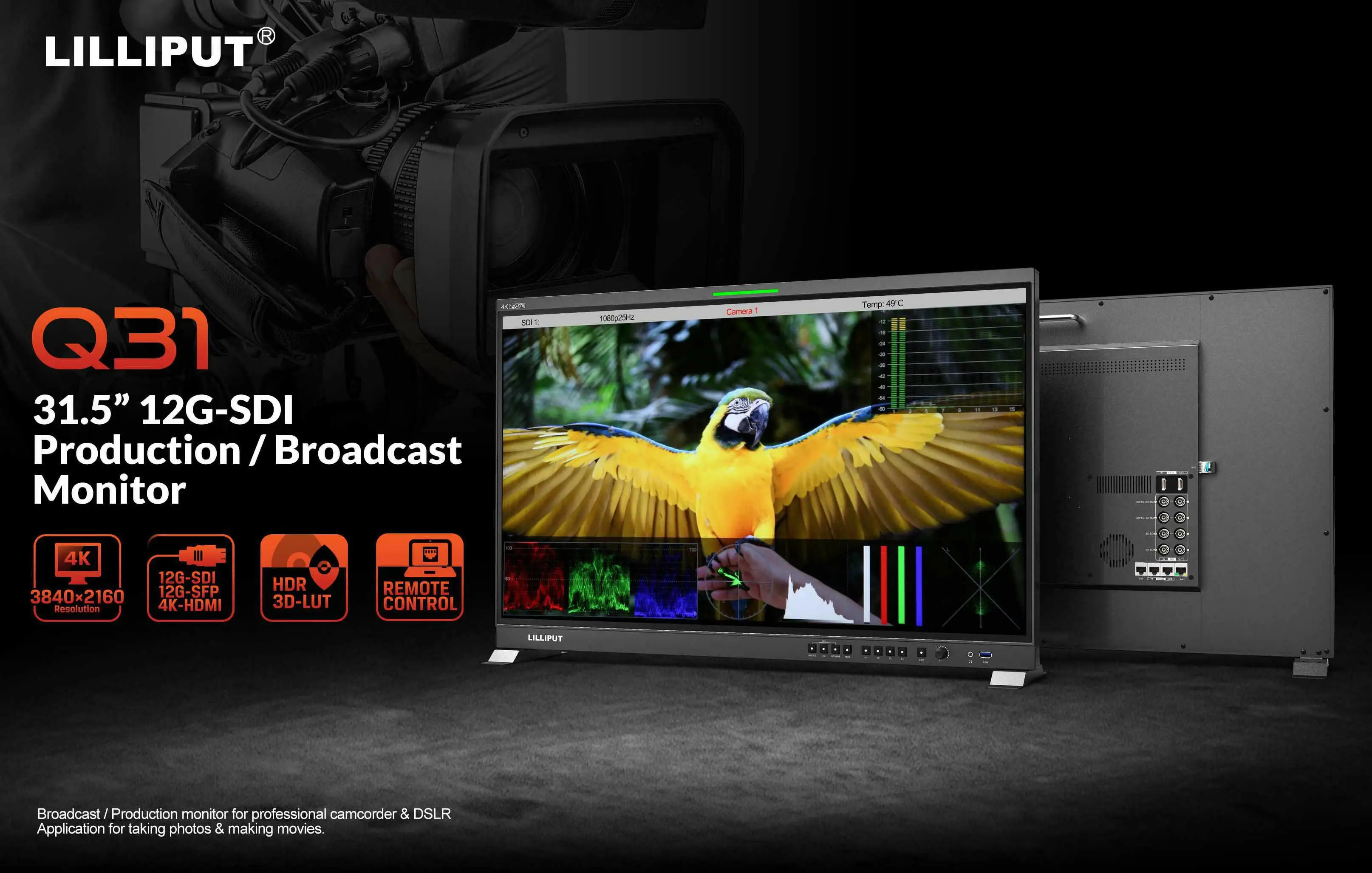

LILLIPUT Q31
· 31.5 inch panel with 3840x2160 resolution
· 350cd/m² brightness, 1300:1 contrast, 178°/178° viewing angle

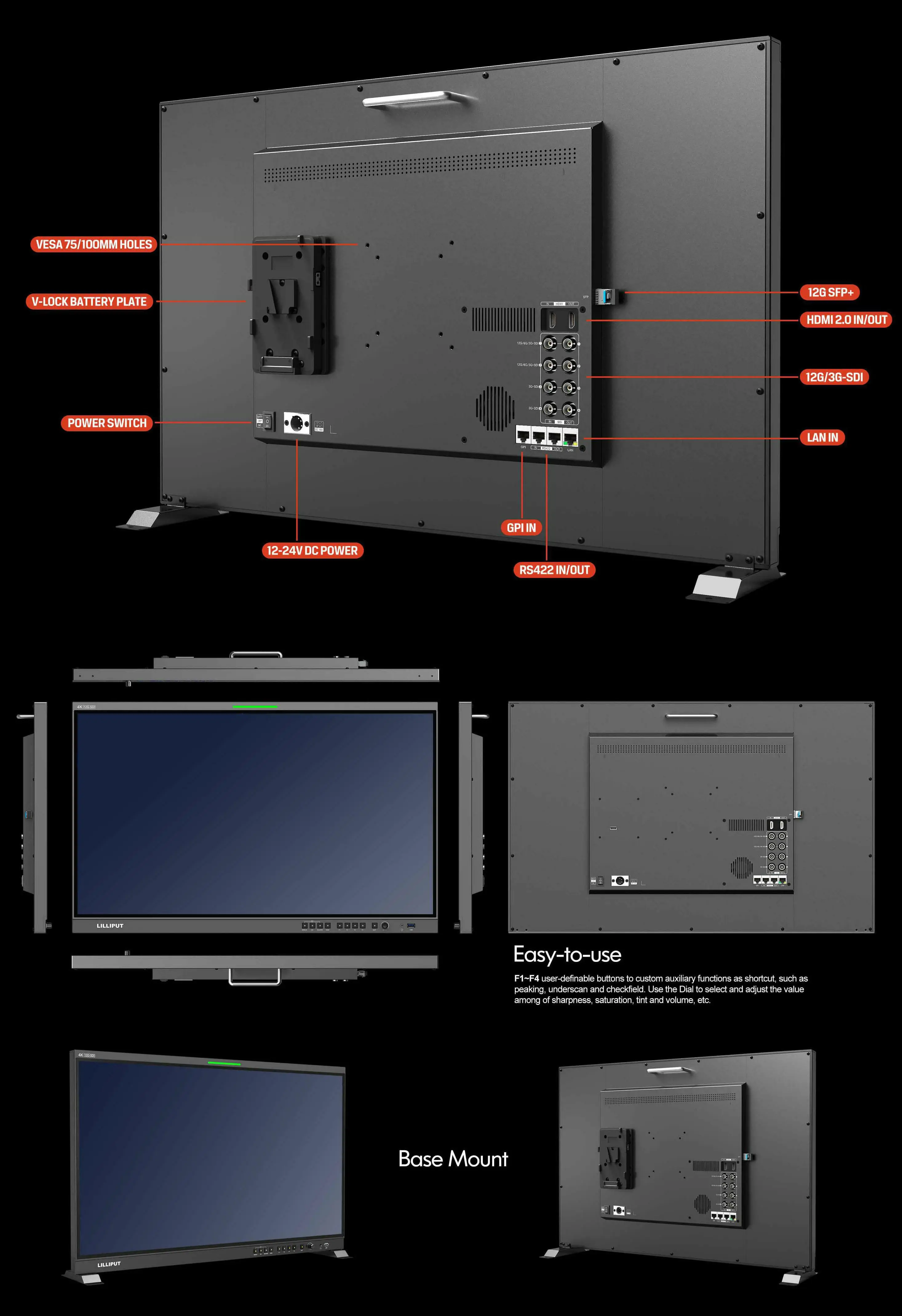

· Input Ports: 2x12G-SDI, 2x3G-SDI, HDMI 2.0, 12G SFP+, GPI, RS422, LAN, USB, DC (XLR)
· Ourput Ports: 2x12G-SDI, 2x3G-SDI, HDMI 2.0, RS422, earphone jack
· 12G-SDI supporting Single/Dual/Quad Link and supporting backward compatibility
· 1xHDMI 2.0 supporting up to 4K 60Hz
· GPI, RS422, LAN remote control, HDMI wireless for optional
· Supporting 3D-LUT load, with 17 default logs and 6 user logs
· HDR, audio vector, waveform, vector scope, column, time code, etc.
· VESA 75mm & 100mm
· Desktop mounting
· 350cd/m² brightness, 1300:1 contrast, 178°/178° viewing angle
· Input Ports: 2x12G-SDI, 2x3G-SDI, HDMI 2.0, 12G SFP+, GPI, RS422, LAN, USB, DC (XLR)
· Ourput Ports: 2x12G-SDI, 2x3G-SDI, HDMI 2.0, RS422, earphone jack
· 12G-SDI supporting Single/Dual/Quad Link and supporting backward compatibility
· 1xHDMI 2.0 supporting up to 4K 60Hz
· GPI, RS422, LAN remote control, HDMI wireless for optional
· Supporting 3D-LUT load, with 17 default logs and 6 user logs
· HDR, audio vector, waveform, vector scope, column, time code, etc.
· VESA 75mm & 100mm
· Desktop mounting
- Details Images -

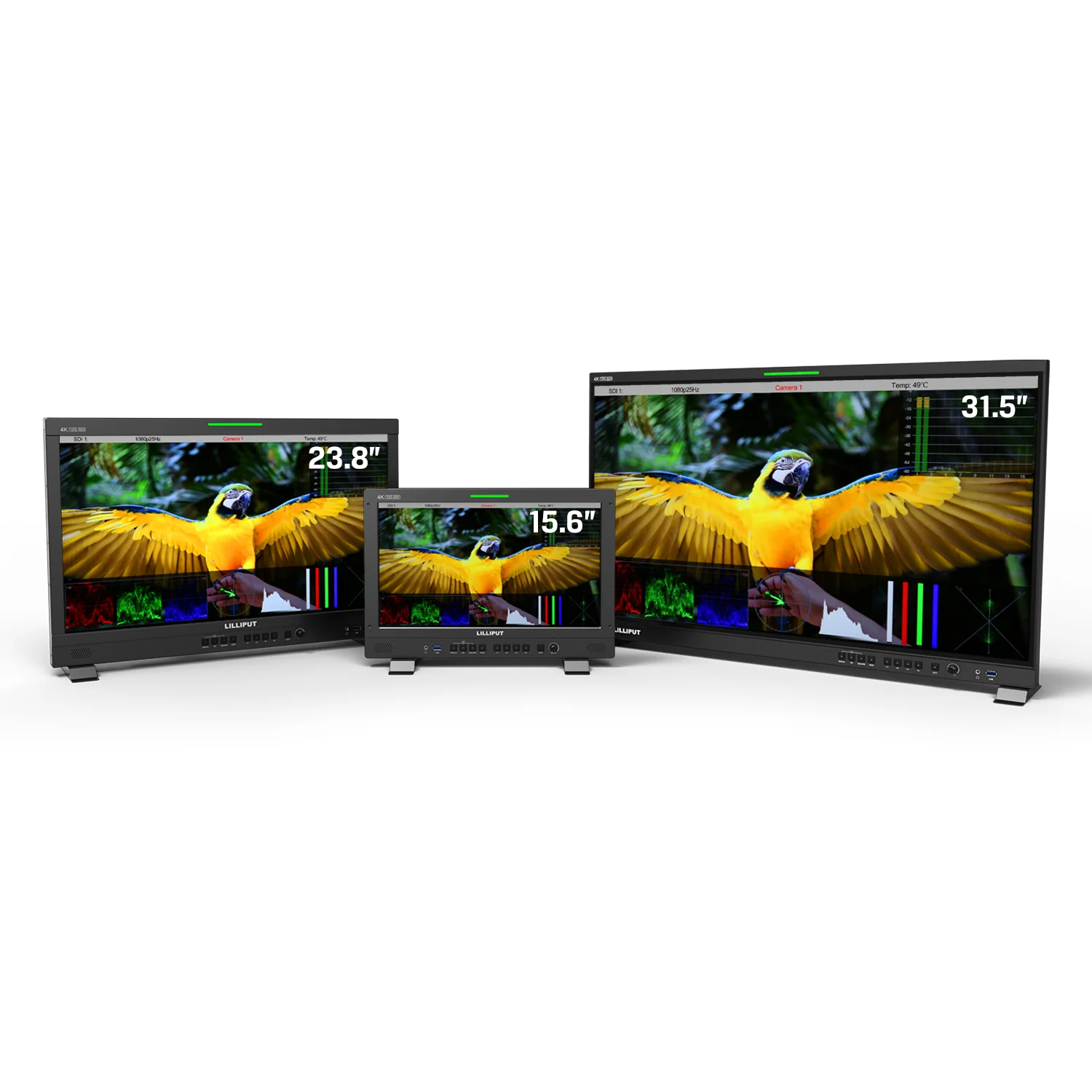

Q Series Video Production Monitor - Q15 (15.6") / Q23 (23.8") / Q31 (31.5")
- Specification -
DISPLAY | Panel | 31.5" |
Physical Resolution | 3840×2160 | |
Aspect Ratio | 16:9 | |
Brightness | 350cd/m2 | |
Contrast | 1300:1 | |
Viewing Angle | 178°/ 178°(H/V) | |
HDR | ST2084 300/1000/10000/HLG | |
Supported Log formats | SLog2 / SLog3 / CLog / NLog / ArriLog / JLog or User… | |
Look up table (LUT) support | 3D LUT (.cube format) | |
Technology | Calibration to Rec.709 with optional calibration unit | |
VIDEO INPUT | SDI | 2×12G, 2×3G (Supported 4K-SDI Formats Single/Dual/Quad Link) |
SFP | 1×12G SFP+ (Fiber module for optional) | |
HDMI | 1×HDMI 2.0 | |
VIDEO LOOP OUTPUT | SDI | 2×12G, 2×3G (Supported 4K-SDI Formats Single/Dual/Quad Link) |
HDMI | 1×HDMI 2.0 | |
SUPPORTED FORMATS | SDI | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60... |
SFP | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60... | |
HDMI | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60... | |
Audio In/Out (48kHz PCM Audio) | SDI | 16ch 48kHz 24-bit |
HDMI | 8ch 24-bit | |
Ear Jack | 3.5mm | |
Built-in Speakers | 2 | |
REMOTE CONTROL | RS422 | In/out |
GPI | 1 | |
LAN | 1 | |
POWER | Input Voltage | DC 12-24V |
Power Consumption | ≤65W (15V) | |
Compatible batteries | V-Lock or Anton Bauer Mount | |
Input voltage (battery) | 14.8V nominal | |
ENVIRONMENT | Operating Temperature | 0℃~40℃ |
Storage Temperature | -20℃~60℃ | |
OTHER | Dimension(LWD) | 717.5mm × 454.7mm × 47.4mm |
Weight | 12kg |

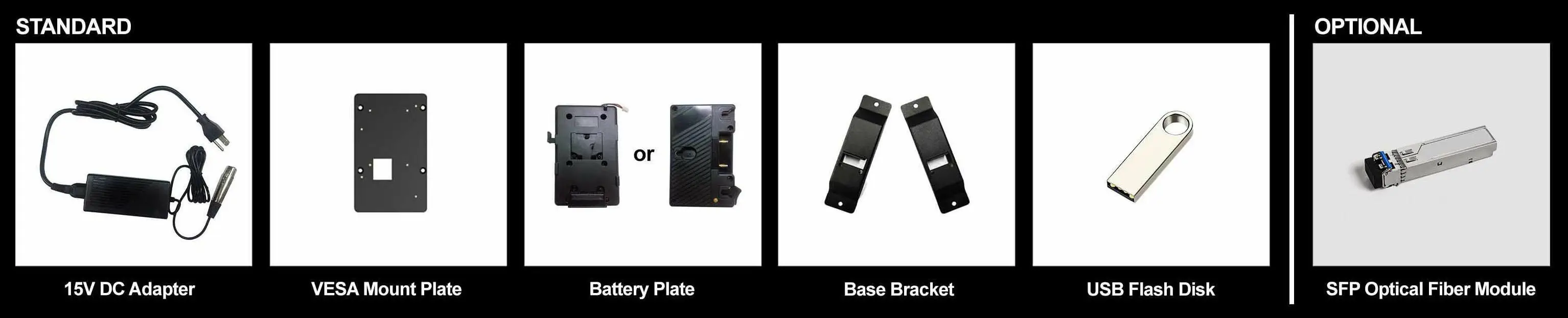

- Accessories -
- Logistics -

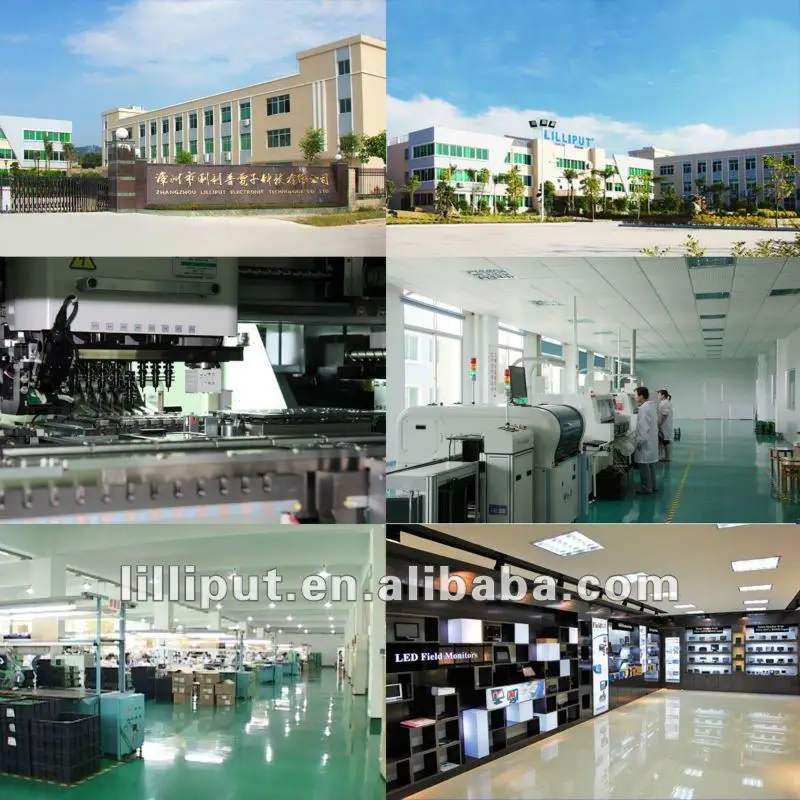

- Company Profile -
- Certifications -
Product Default Certification: CE, FCC, RoHS
Support additional customizations for another certifications
- FAQ -
Q1: Are you factory?
A: Yes, we've been in professional monitors and tablet pc for over 20 years. We also offer many ODM and OEM services.
Q2: How do you arrange shipping?
A: Shipping is usually arranged within a week after we receive payment. If the quantity is larger, kindly please contact us tonegotiate the lead time.
A: Yes, we've been in professional monitors and tablet pc for over 20 years. We also offer many ODM and OEM services.
Q2: How do you arrange shipping?
A: Shipping is usually arranged within a week after we receive payment. If the quantity is larger, kindly please contact us tonegotiate the lead time.
Q3: What are the supported formats for HDMI, 12G-SDI and 12G-SFP?
A: They all support up to 4K 60Hz video format.
Q4: How do I mount it?
A: It comes with VESA 75/100mm screw points on the back to support all types of VESA mounts.
Q5: What if my monitor doesn't work properly?
A: Lilliput has a strict QR testing system that will reduce the probability of failure. If you encounter any problem, please
contact us to request an after-sales service
A: They all support up to 4K 60Hz video format.
Q4: How do I mount it?
A: It comes with VESA 75/100mm screw points on the back to support all types of VESA mounts.
Q5: What if my monitor doesn't work properly?
A: Lilliput has a strict QR testing system that will reduce the probability of failure. If you encounter any problem, please
contact us to request an after-sales service
