China ERW Tube Mill Line Making Machine
- Category: >>>
- Supplier: Hebei Tubo Machinery Co. Ltd.
Share on (1600186555958):
Product Overview
Description
Product Specifications
Raw Material | Coil Material | Low Carbon Steel, Q235, Q195 | |
Width | 105mm~240mm | ||
Thickness: | 1.2~4.0mm | ||
Coil ID | Φ480-φ520mm | ||
Coil OD | Max φ1600mm | ||
Coil Weight | 2.5~3.0tons | ||
Production Capacity | Round Pipe | 32~76mm | |
Square & Rectangular Pipe | 25*25mm - 60*60mm | ||
Wall Thickness | 1.2~4.0mm (Round Pipe) 1.2~3.0mm(Square Pipe) | ||
Speed | Max. 120m/min | ||
Pipe Length | 36m – 12m | ||
Workshop Condition | Dynamic Power | 380V, 3-phase, 50Hz (depends on local facilities) | |
Control Power | 220V, single-phase, 50 Hz | ||
Size of the whole line | 65m*6m （L*W） | ||

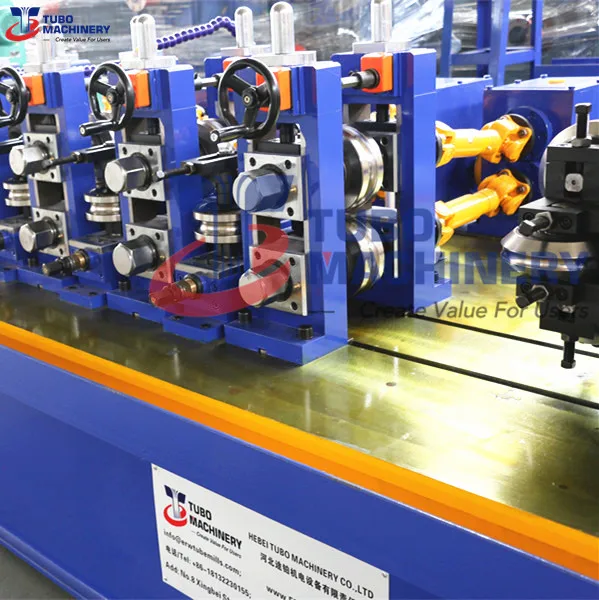

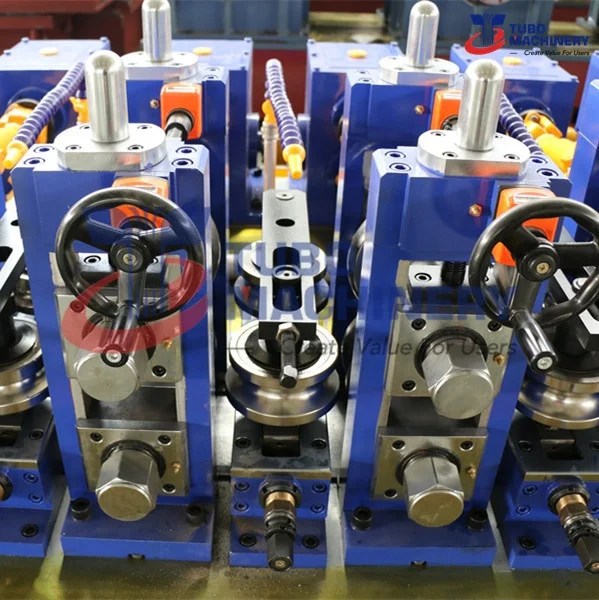

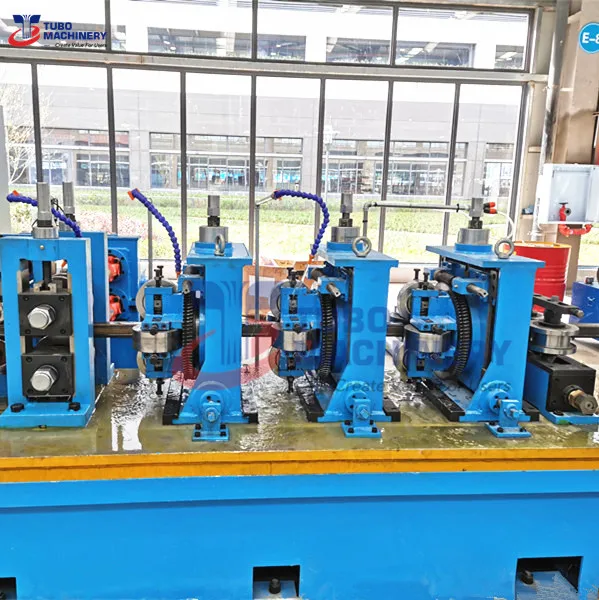

Product display
Product Advantages
1.1.High Precision
2.High Production efficiency,Line speed can be up to 120m/min
3.High Strength,The machine works stably at a high speed, which improves product quality.
4.High Good product rate, reach to 96.5%5.Low wastage, Low unit wastage and low production cost.
Product description
ERW76 Tube mill/pipe mill/welded pipe production/Pipe making machine is used to Produce steel pipes of 32mm~76mm in OD and 1.2~4mm in wall thickness,as well as corresponding square and rerctangular pipe.
Application:
GI,Construction,Automotive,General Mechanical tubing,Furniture, Agriculture,Chemistry,Oil,Gas, Conduit,Contructure.
Process Flow
Steel Coil → Double-arm Uncoiler → Shear and End Cutting & Welding → Coil Accumulator → Forming (Flattening Unit + Main Driving Unit + Forming Unit + Guide Unit + High Frequency Induction Welding Unit + Squeeze Roller) → Deburring → Water Cooling → Sizing & Straightening → Flying Saw Cutting → Pipe Conveyor → Packaging → Warehouse Storage
Main Products
Company Profile
Packing&Shipping
FAQ
1. Q : Are you manufacturer ?
A: Yes, We are manufacturer . More than 15 years R&D and Manufacturing Experience. We use more than 130 CNC machining equipments to guarantee our products perfect.
2. Q: What payment terms do you accept?
A: We are flexible on payment terms, please contact us for details.
3. Q:What information do you need to supply a quotation?
A: 1. Maximum Yield Strength of the material,
2.All pipe sizes needed (in mm), 3. Wall thickness (min-max)
5. Customized According to Customer Requirements.
4. Q: What is your advantages?
A: 1. Advanced mould share-use technology (FFX, Direct Forming Square). It saves a lot of invest amount.
2. Latest quick change technology to increase the output and reduce labor intensity. 4. 130 CNC machining equipments to guarantee our products perfect.
3. More than 15 years R&D and Manufacturing Experience.5. Customized According to Customer Requirements.
5. Q: Do you have after sales support?
A: Yes,we have. We have a 10-person -professional and strong installation team.
6.Q: How about your service?
A:(1) One year’s warranty.
(2) Providing spare parts for life time at cost price.
(3) Providing Video technical support, Field installation, commissioning and training, online support, Engineers available to service machinery overseas.
(4) Provide technical service for facility reforming, refurbishment.
