FROGBRO rechargeable DIY mini usb portable adjustable temperature Electric Welding Cordless Soldering Irons
- Category: Soldering Irons >>>
- Supplier: Hangzhou,Frankever,Imp.,&,Exp.,Co.,Ltd.
Share on:
Product Overview
Description
Product Overview
Cordless Soldering Iron with Rechargeable Lithium-Ion Battery
FEATURES AT A GLANCE

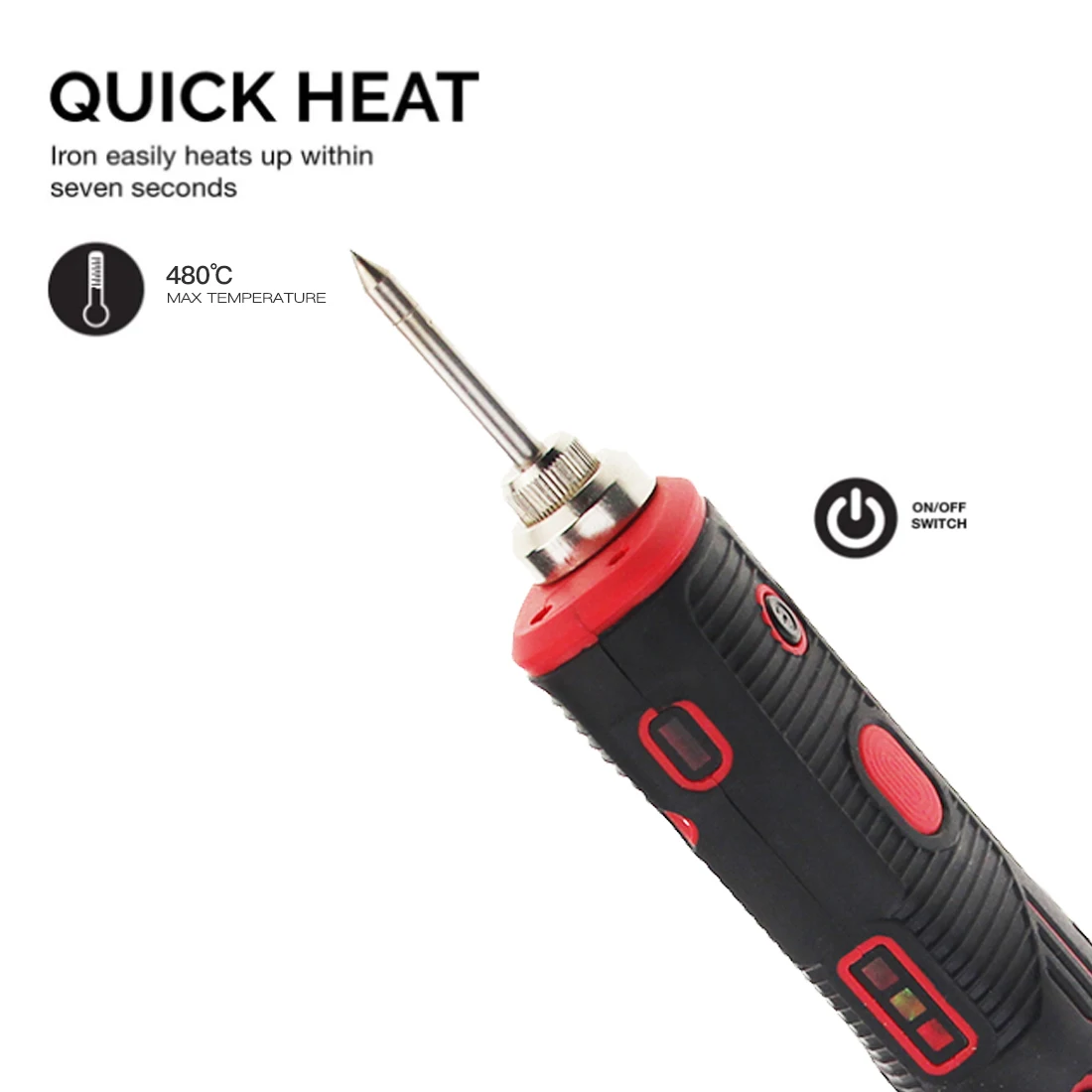

2. Temperature range: 200-480 degree
3. Heating time: 7 seconds
4. Power: 8W

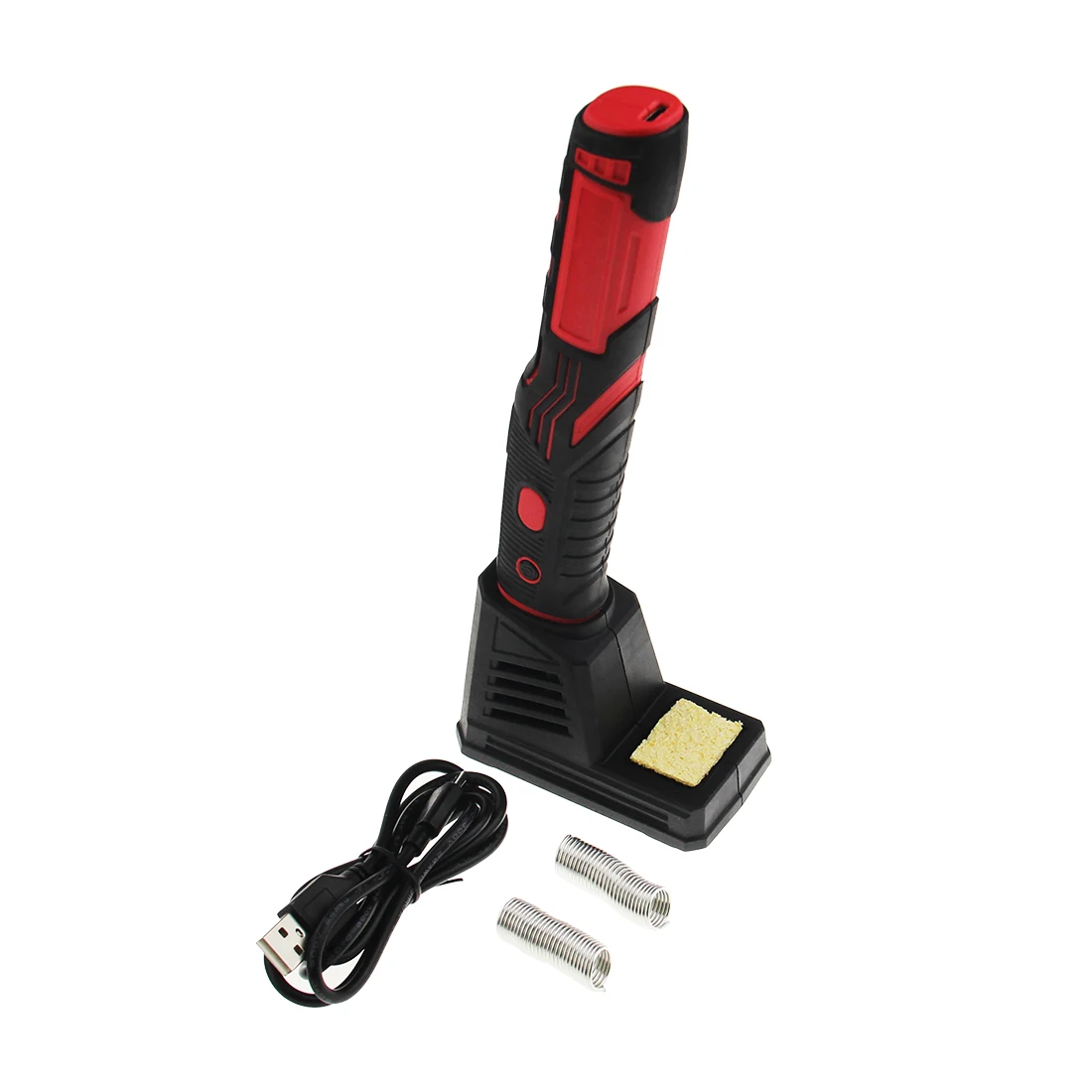

5. Including: USB cable, one tip, 2 solder wire, one stand, user manual
6. Package: color box
Technical parameter：
1. Lithium battery: 3.7V 1800 mAH
2. Power equipment: 5V
3. Charging limit current 1.6A (full charge takes 1.5 to 2 hours)
4. When the charging voltage is higher than 6V, it will stop charging, and the power indicator flashes red.
5. Battery level indicator:
Red indicator light: 30% power;
Green indicator light 1 is on: 60% power;
Green indicator light 2 is on: 100% power;
6. During charging, the corresponding indicator light flashes. After the battery is fully charged, all three indicators are always on.
7. When the battery voltage is lower than 3V, the battery will be charged with a small current and the red indicator light will flash.
8. When the battery voltage is lower than 3V, it needs to be recharged.
9. The product does not work when charging
2. Power equipment: 5V
3. Charging limit current 1.6A (full charge takes 1.5 to 2 hours)
4. When the charging voltage is higher than 6V, it will stop charging, and the power indicator flashes red.
5. Battery level indicator:
Red indicator light: 30% power;
Green indicator light 1 is on: 60% power;
Green indicator light 2 is on: 100% power;
6. During charging, the corresponding indicator light flashes. After the battery is fully charged, all three indicators are always on.
7. When the battery voltage is lower than 3V, the battery will be charged with a small current and the red indicator light will flash.
8. When the battery voltage is lower than 3V, it needs to be recharged.
9. The product does not work when charging
Key Function:
1. The touch function needs to be activated for the first time. Press the power button 3 times continuously, the work indicator flashes red, and the touch function is turned on.
2. Touch reset function:
Press the power button six times continuously, the green light of the work indicator flashes, and the reset of the touch function is completed. Touch reset is a function to readjust the environment when the touch fails due to external interference (when touching to open or reset, do not put your finger on the touch button, otherwise it will not work)
3. Turn off the touch function:
Press the power button 8 times in succession. When the indicator light on the work indicator is red, the touch function will be turned off.
4. Power on, press and hold the power button for 3 seconds to turn on the power indicator
Turn off the power, press and hold the power button for 0.3 seconds to turn off the power indicator
When not in use, the lithium battery will automatically turn off after 120 seconds
2. Touch reset function:
Press the power button six times continuously, the green light of the work indicator flashes, and the reset of the touch function is completed. Touch reset is a function to readjust the environment when the touch fails due to external interference (when touching to open or reset, do not put your finger on the touch button, otherwise it will not work)
3. Turn off the touch function:
Press the power button 8 times in succession. When the indicator light on the work indicator is red, the touch function will be turned off.
4. Power on, press and hold the power button for 3 seconds to turn on the power indicator
Turn off the power, press and hold the power button for 0.3 seconds to turn off the power indicator
When not in use, the lithium battery will automatically turn off after 120 seconds
Working indicator:
1. During operation, when the soldering iron tip is short-circuited or there is no output, the red indicator light will flash.

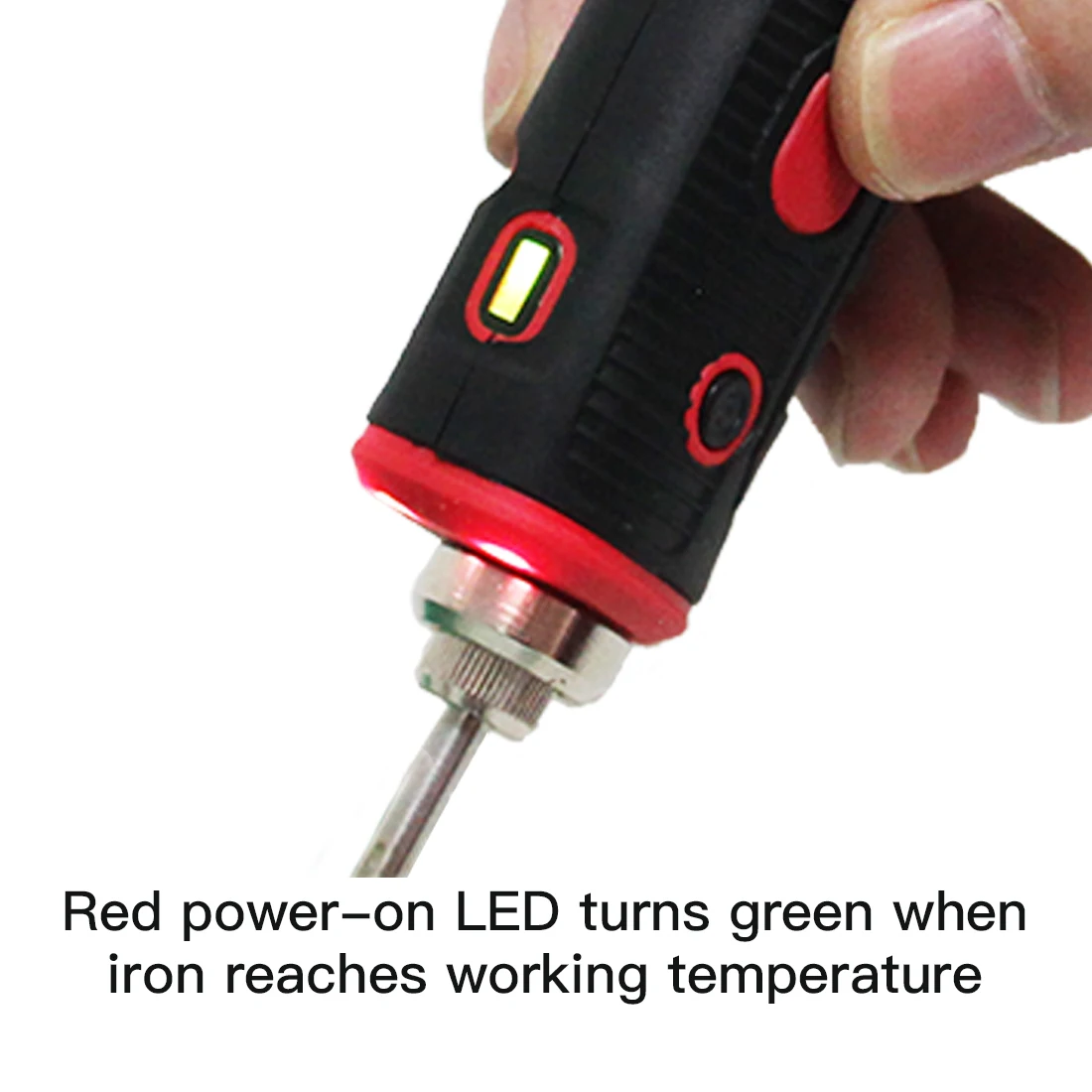

2. Heating process: First, after 12 seconds, the red light is on, the red light is off, and the green light is on, the user can operate.
3. It will stop working when the voltage is lower than 2.8V.
4. When there is no operation, the self-discharge is lower than 25uA
2. Heating process: First, after 12 seconds, the red light is on, the red light is off, and the green light is on, the user can operate.
3. It will stop working when the voltage is lower than 2.8V.
4. When there is no operation, the self-discharge is lower than 25uA

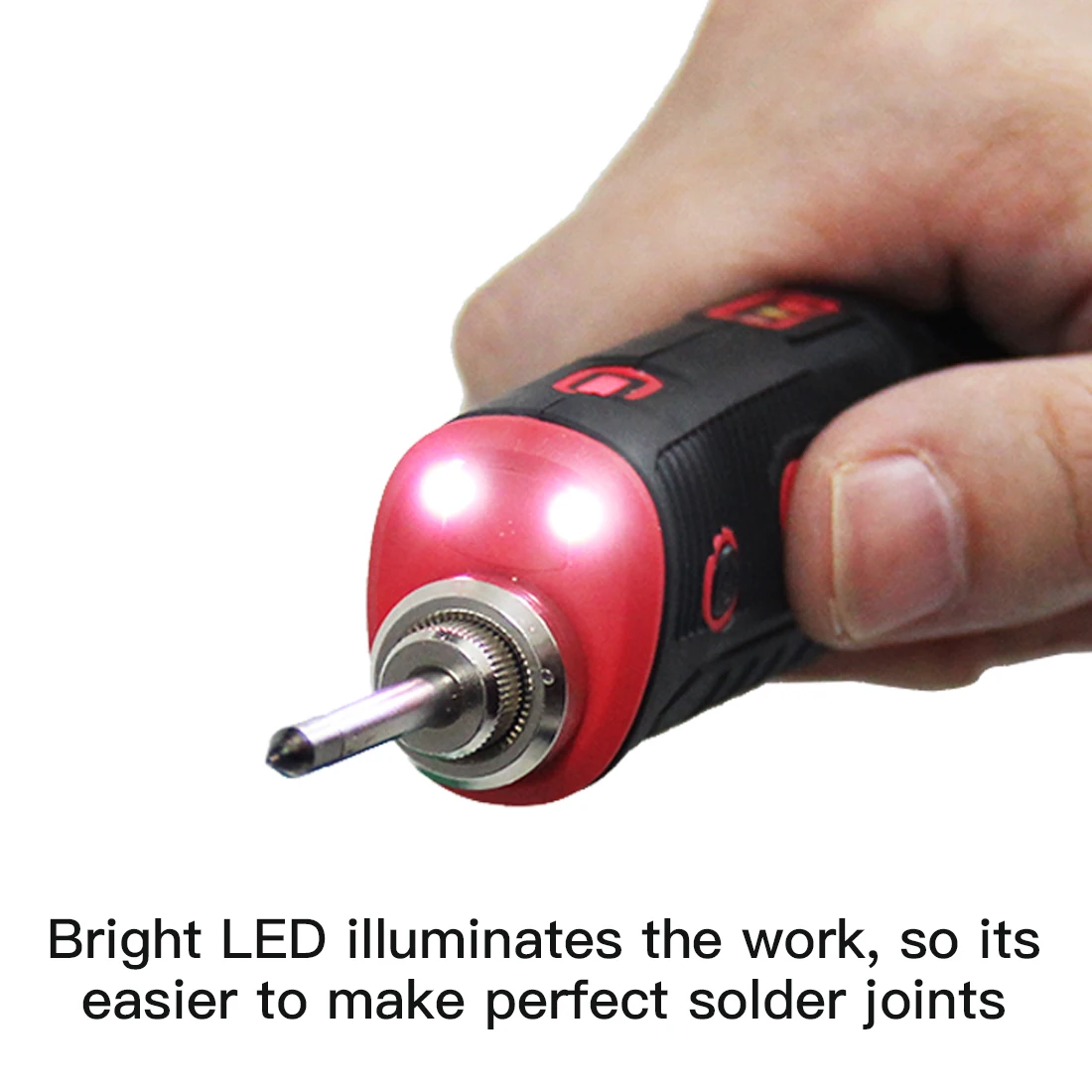

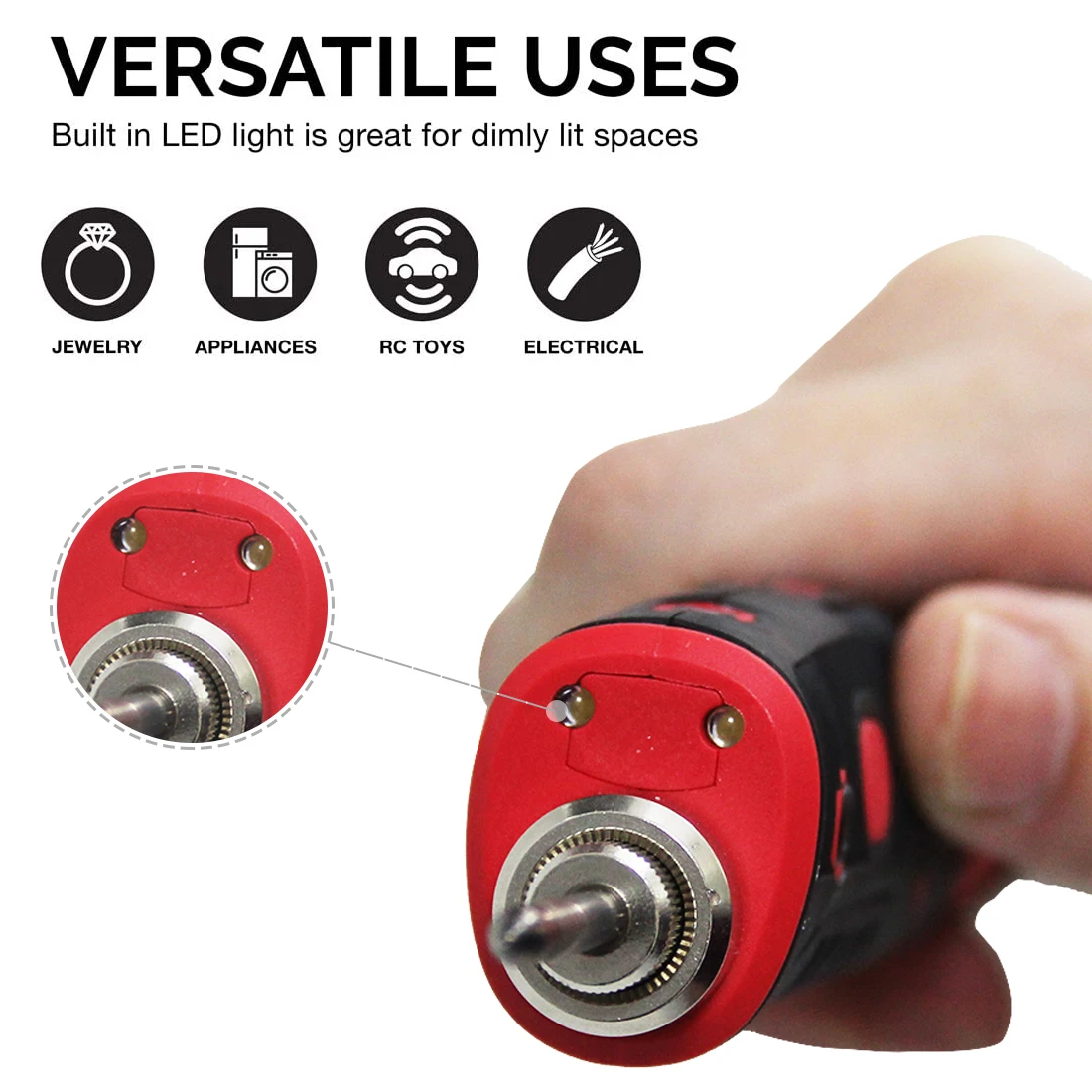

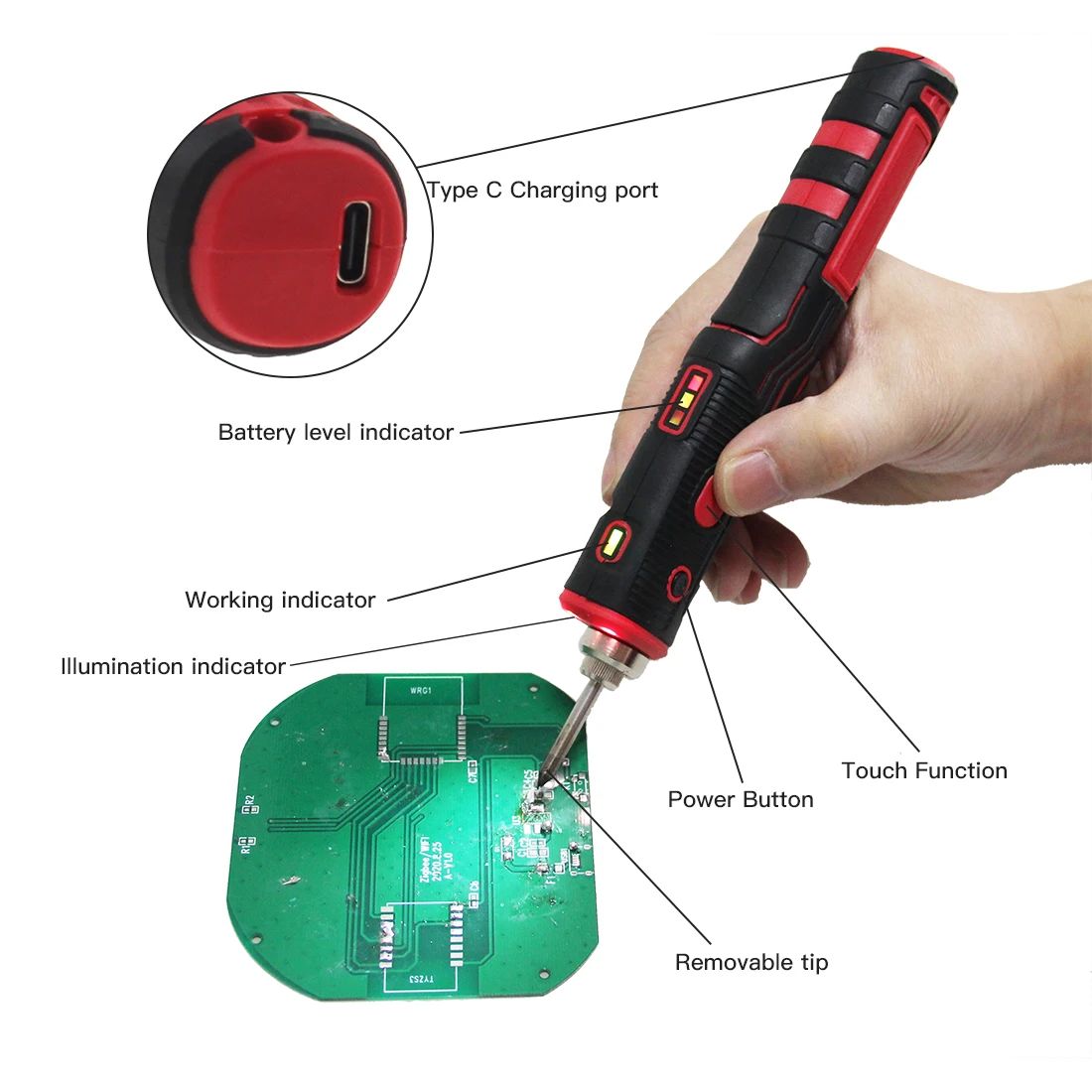

LED Illumination indicator
Type C Charging port
Working indicator
