OEM 1D Laser Wireless Barcode Scanner Handheld android USB RS232 Automatic Scanning With Memory
- Category: >>>
- Supplier: Shenzhen Yuhengda Technology Co. Ltd.
Share on (1600187570337):
Product Overview
Description

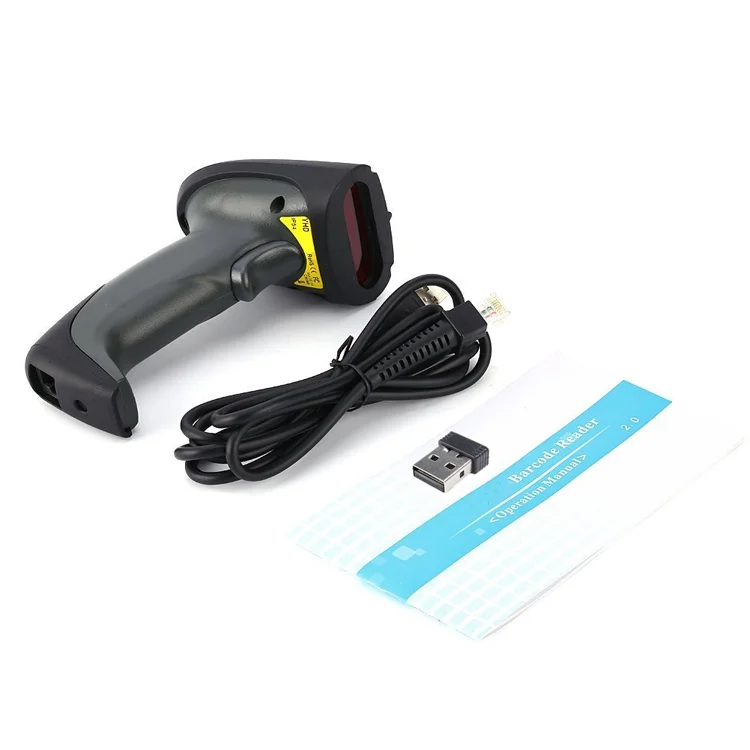

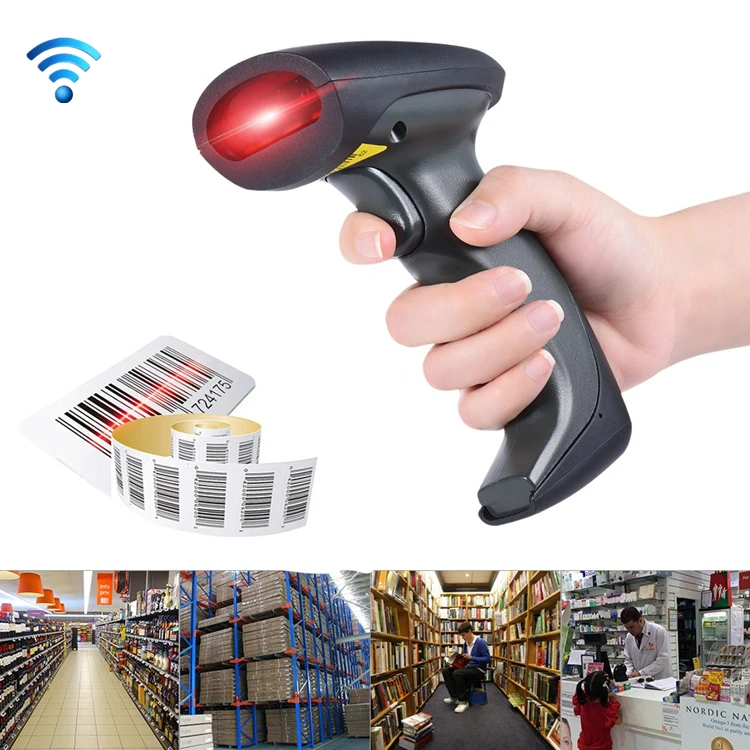

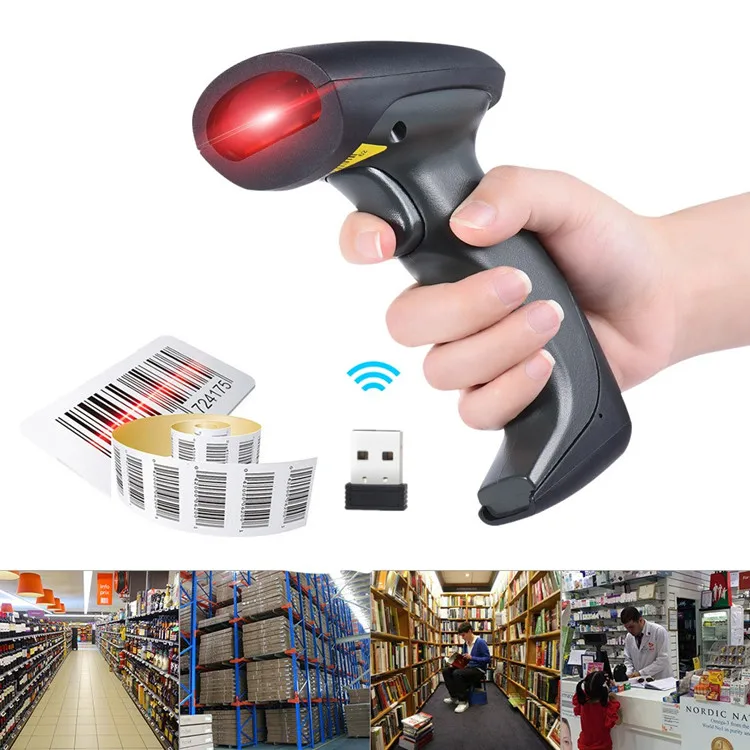

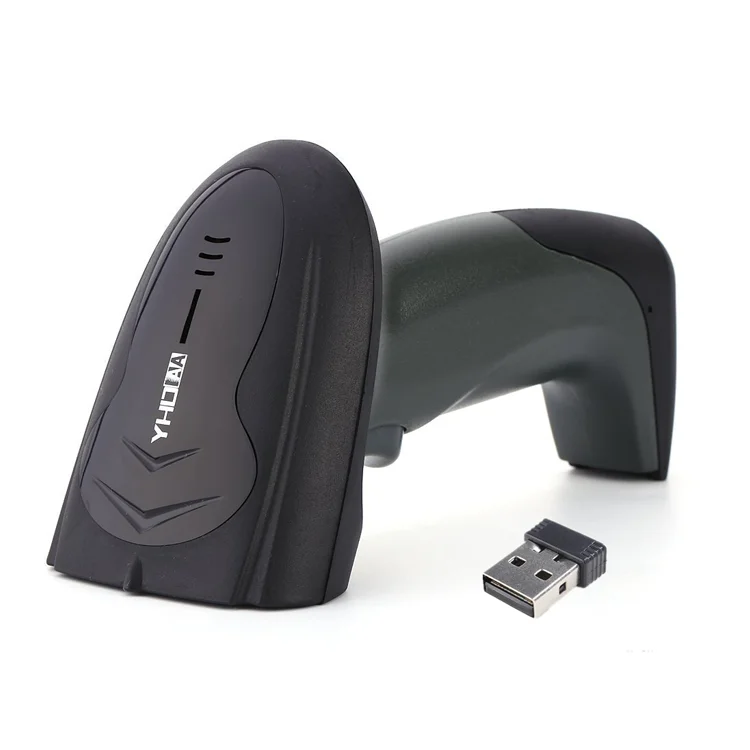

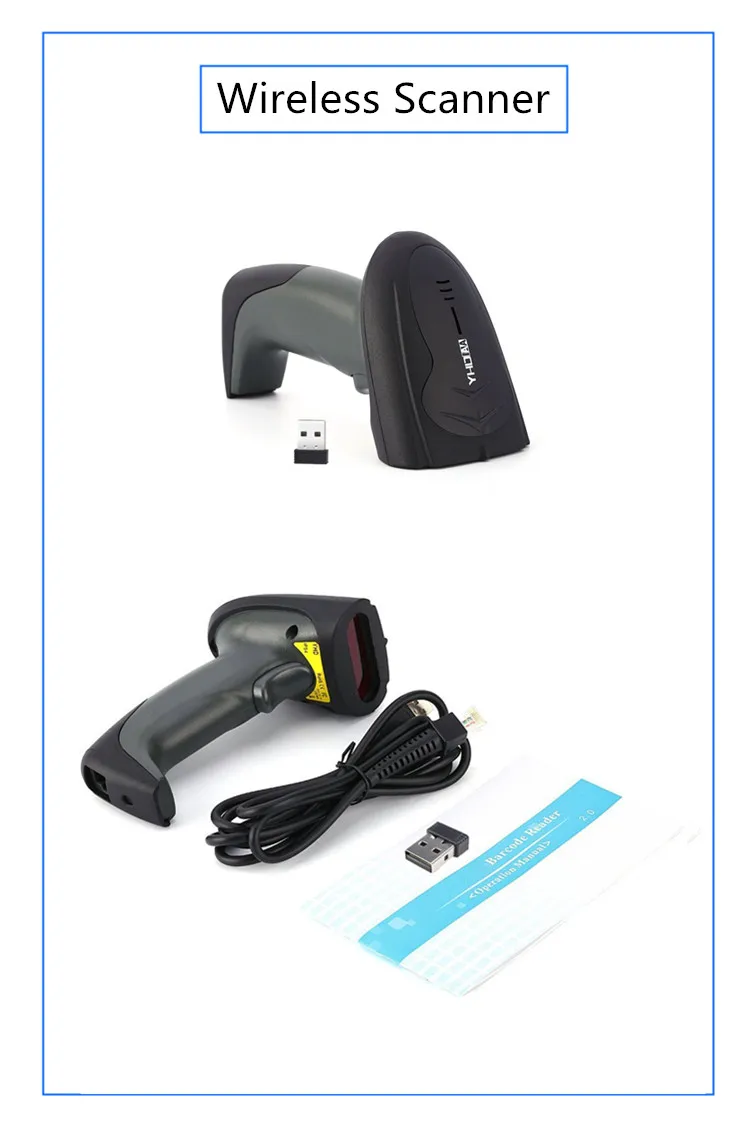

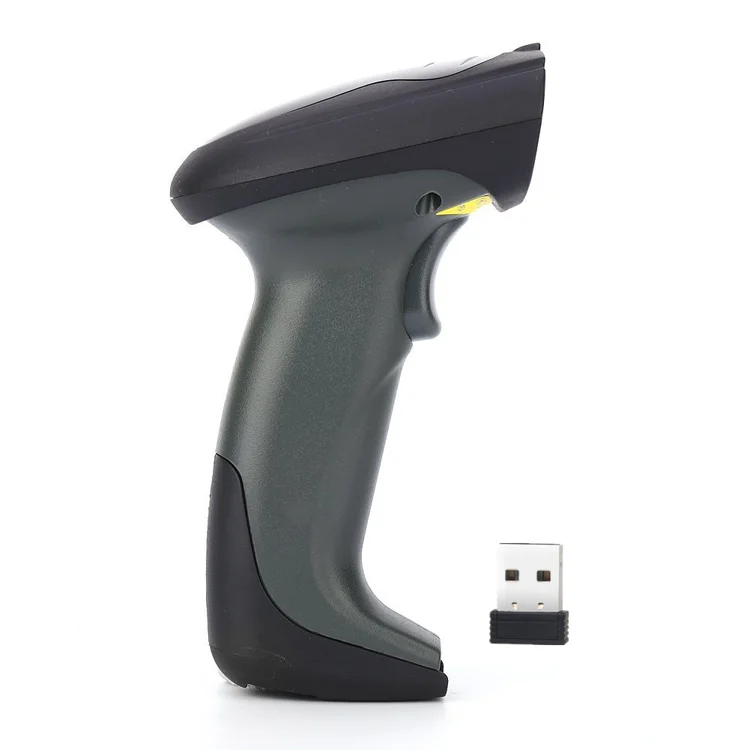

YHD-1200LW 1D Laser Wireless Barcode Scanner
Features
* Plug and play, not need install any procedure.
* 2.4GHz wireless and USB wired connection,2modes for option.
* Large capacity battery,2600MAH Li-ion battery.
* 2.4G Wireless communication distance outdoor 100m,indoor 80m.
* Supports instant upload mode and storage mode.
* The checking mode is simple and can be used easily ,and can storage 10000 bar code.
* Support to put prefix or suffix before or after scanned data.

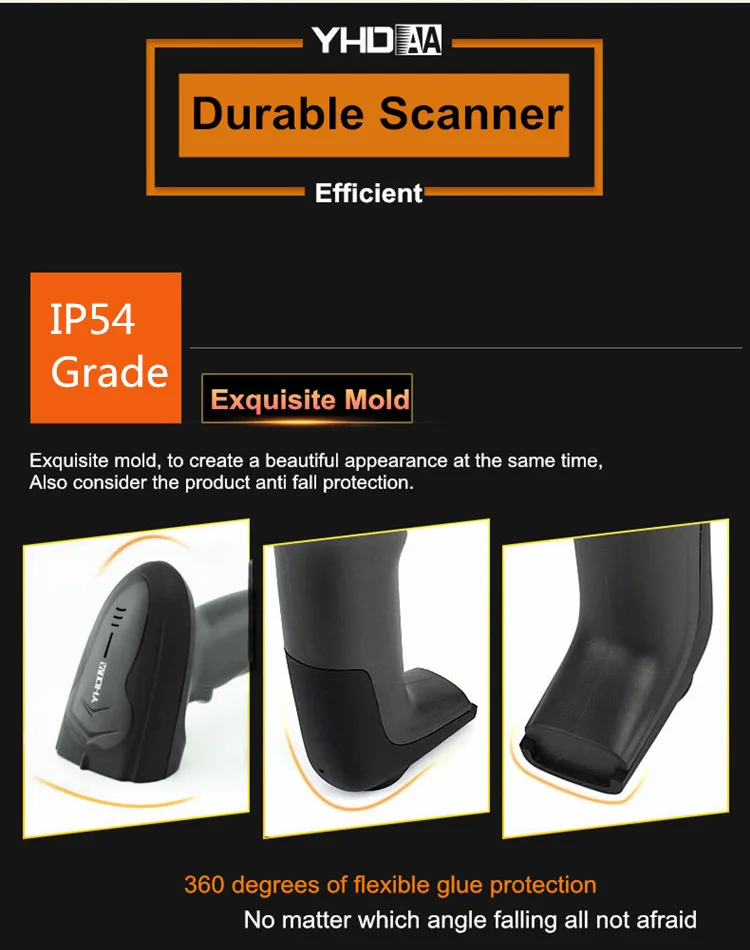

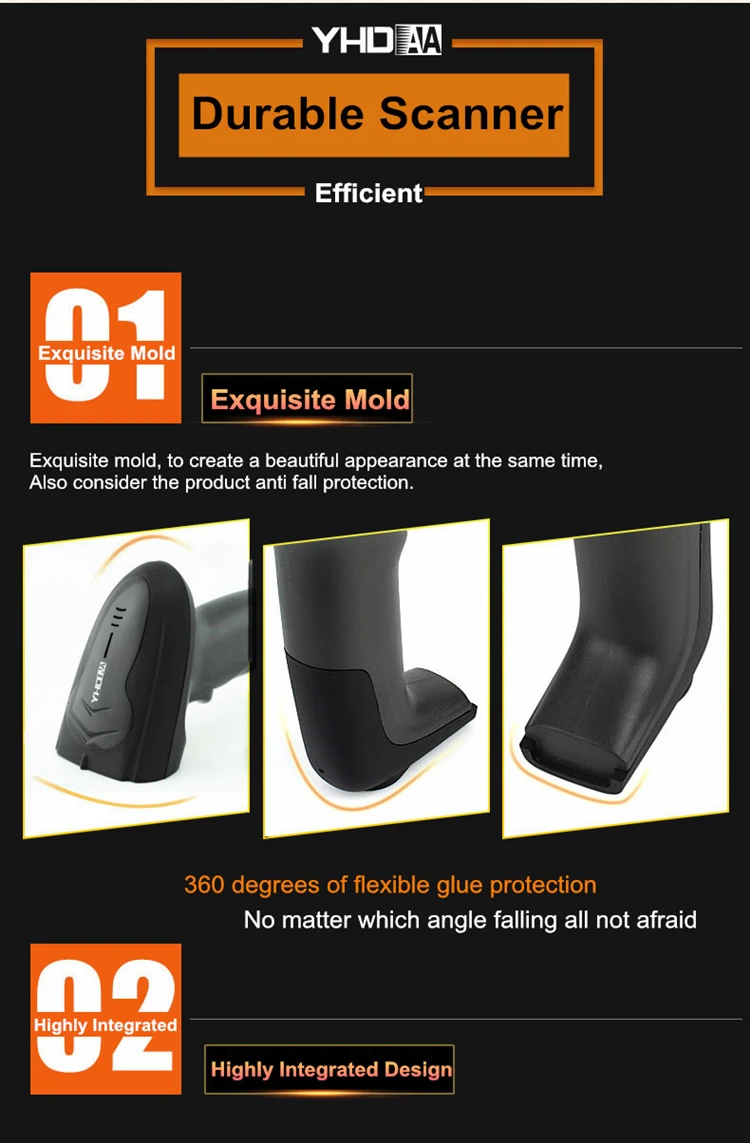

* The head of the scanner, the handle and the base are protected by rubber, Antiknock, full quakeproof design, withstand 3m drops.
* Application fields:Supermarket, Retail, Warehouse,Logistic,Library, Medical etc.
* Can be customized according to customer demand.
Product Description
Technical Parameters
Product Specification: YHD-1200LW 1D Laser Wireless Barcode Scanner | |
Performance Parameters | |
Light Source Type | Visual lasing diode; the wave length is 650mm. |
Trigger mode | Button,Continuous |
Scanning Pattern | Single-line scanning |
Scanning speed | 300 scans/sec |
Resolution | 3.3mil |
Type | 2.4G/Wired |
Distance | 100m/1.5m |
Hull material | ABS+Rubber |
Printing Contrast Ratio | ≥ 20% |
Bit error rate | 1/50 million |
Charging input voltage | 5VDC±0.25V |
Storage | 100000 bar code |
Battery | 2600mAh |
Standby current | <20mA |
Light intensity | 3000-12000Lux |
Working time | 7 to 10 days |
Scanning angle | ±60°±65°±42° (Left and right, front and back, rotation) |
Decoding capacity | Code 39 Full ASCII, Code 39 TriOptic, Code 128, Code 128Full ASCII, Codabar,Code93, Discrete2of5, IATA,RSSvariants, Codabar, Chinese2of5,International general dimensional barcodes, e.g. Inteleaved2/5, Interleaved2of5 and China postal service code. |
Promotion pattern | Buzzer and LED indicator |
Temperature | -20℃ to 50 ℃ (work): -40 ℃ to 60 ℃ (storage) |
Safety Regulations | |
Laser safety class | EN60825-1, Class 1, state level-I laser safety standard |
EMC | EN55022, EN55024 |
Electrical safety | EN60950-1 |
Current | Max. : 212mA Working : 156mA~212mA Stand-by : 156mA |
Drop test | 3.0m |
Certificate | CE,FCC,RoHS,IP54 |
