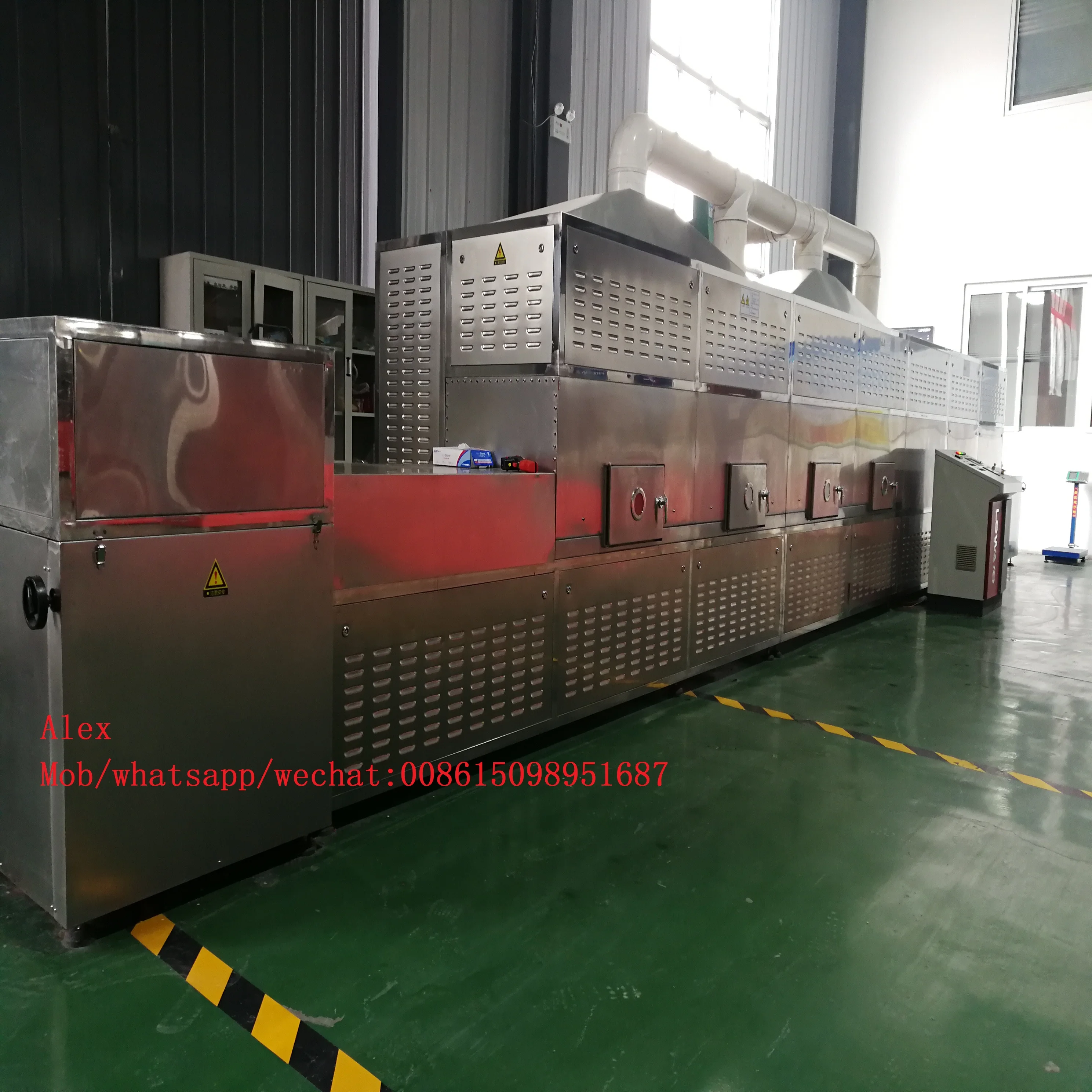

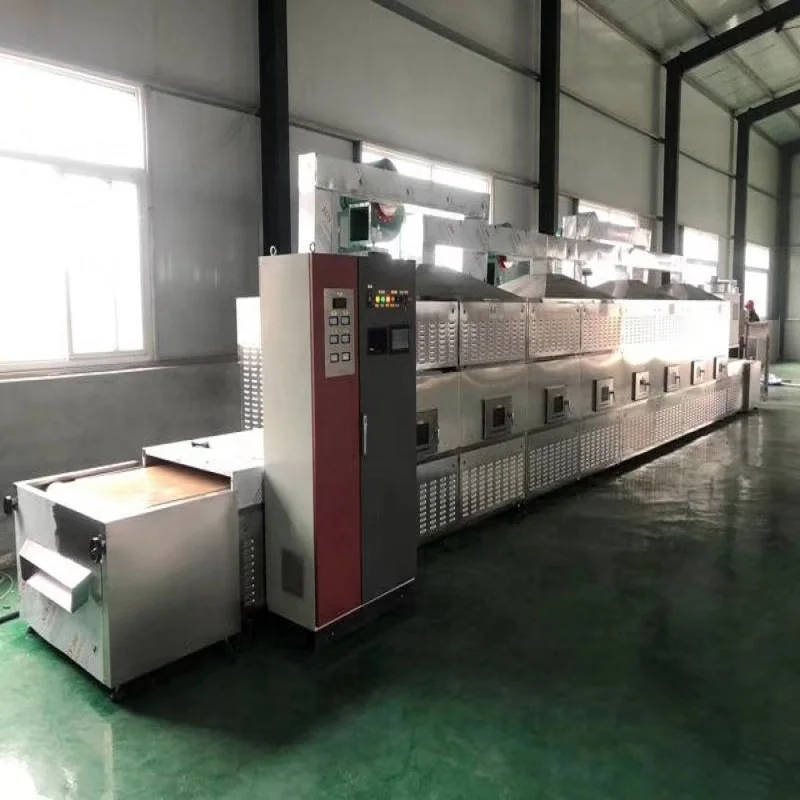

Stainless steel tunnel microwave dryer sterilizer for Tea powder

Product Overview

Description

Stainless steel tunnel microwave dryer sterilizer for Tea powder

the reason for choosing microwave dryer

 Advantage

   1,continue produce

   2,keep original color and nutration

   3,easy to control

   4,save energy

   5, save labours

   6 ,improve the quality of products, increase income.

Specifications

Application:

Microwave industrial tunnel baking&puffing equipment are widely used in the peanuts,wheat,corn,filbert and dried fruit etc;and for puffing of leisure food,pachyrhizus chips,potato chips,dried shrimps,fish maw and so on.Compared with the traditional production methods,microwave baking foods are crispy and delicious,puffed full of particles,natural color, beautiful appearance,and has insecticidal sterilization effect.



Main technical parameters:

Power supply	380V±10%  50HZ±1% three-phase five-wire
Microwave Output Frequency	2450±50MHz
Microwave input apparent power	≤28KVA
Microwave output power	≥20KW
Microwave power adjustment range	0-20KW(adjustable)
Ambient temperature	-5-40C
Relative humidity	80%, Surrounding environment:no corrosive gas,  conductive dust and explosive gas
Overall dimension(L*W*H)	9400*840*1750 mm
Transmission speed	0-10m/min(adjustable)
Height of the inlet and outlet	60 mm
Microwave leak	accord with a country GB10436-89 standards(<5 mw/cm^2)
Equipment safety	accord with GB-5226Electrical safety standard accord with a country GB16798-1997 Food machinery health security  index
NOTE	WE CAN DESIGN ACCORDING TO YOUR REQUIREMENTS!




NOTE: we can design according to your requirements!



Please contact me to talk more details!
