Proper Price Top Quality Housing 10 Micron Water Cartridge Filter
- Category: Water Filter >>>
- Supplier: Shanghai Pullner Filtration Technology Co. Ltd.
Share on (1600188099742):
Product Overview
Description
Product Description

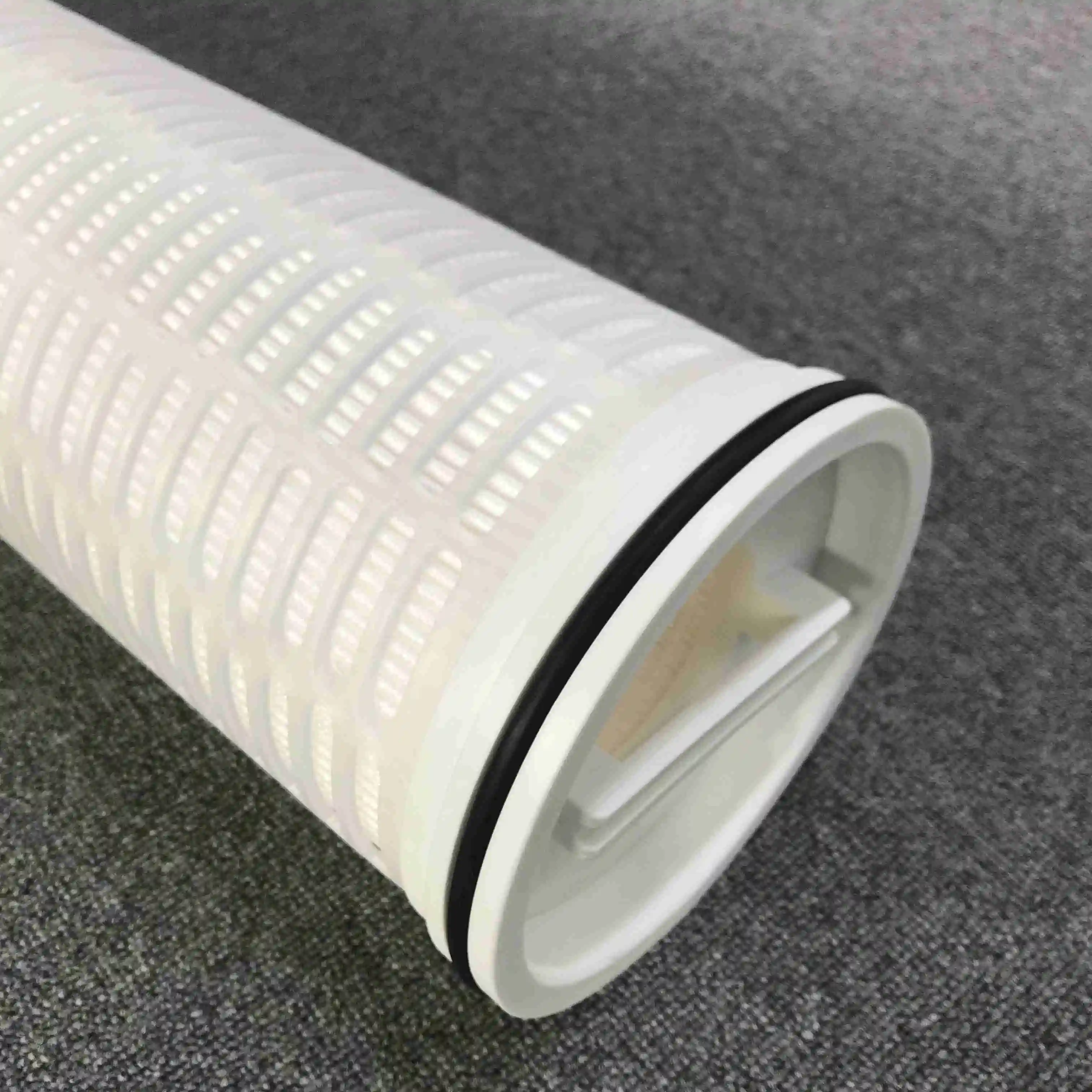

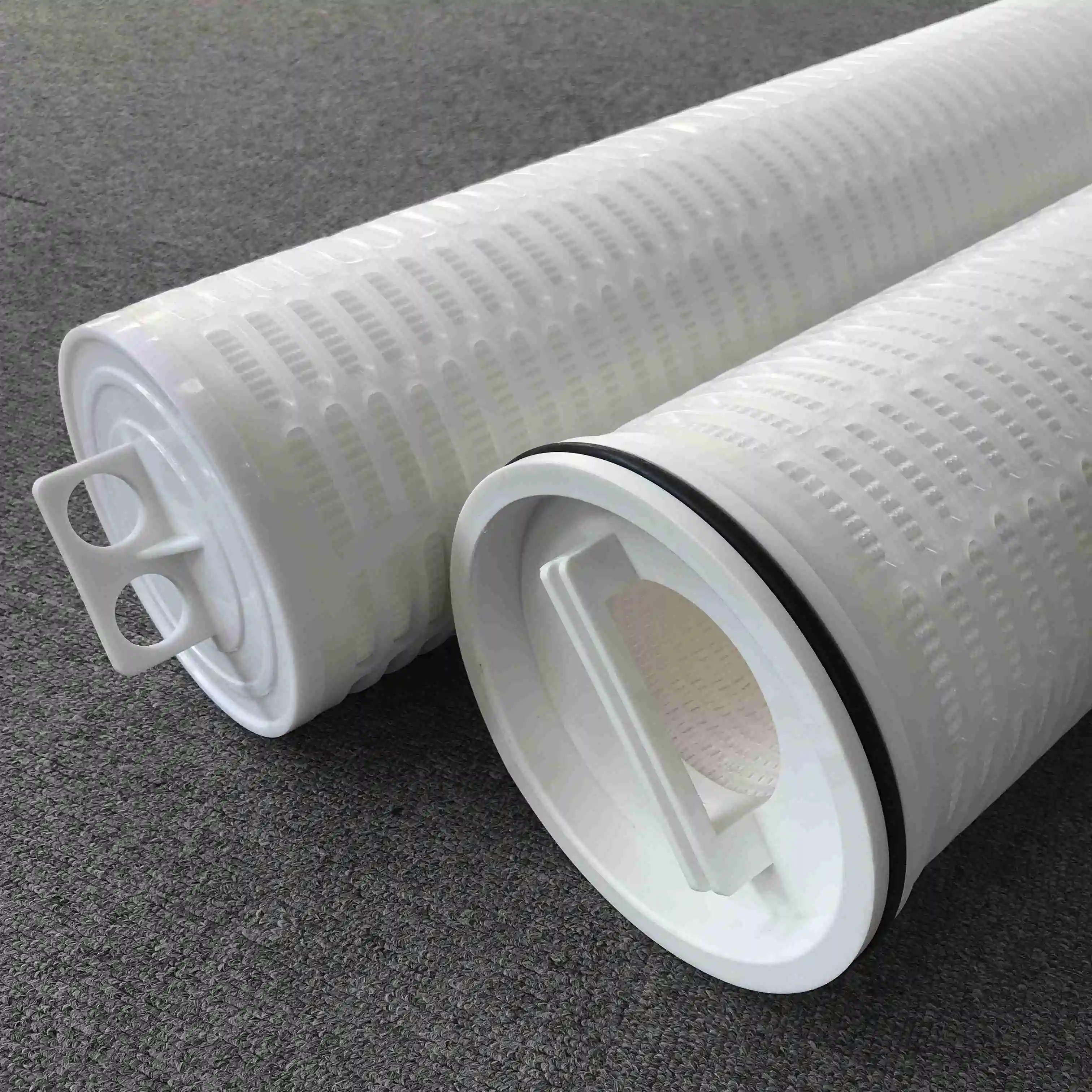

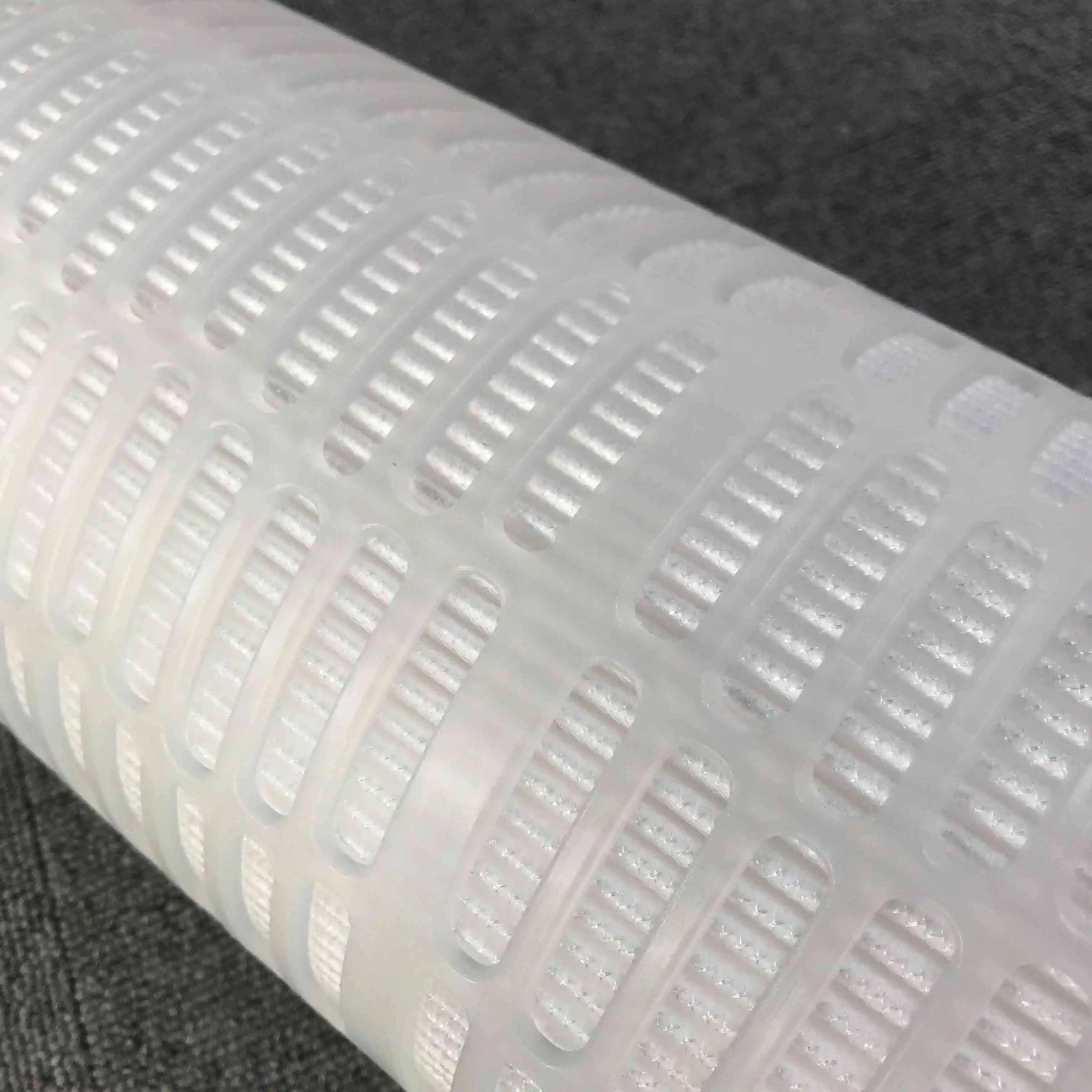

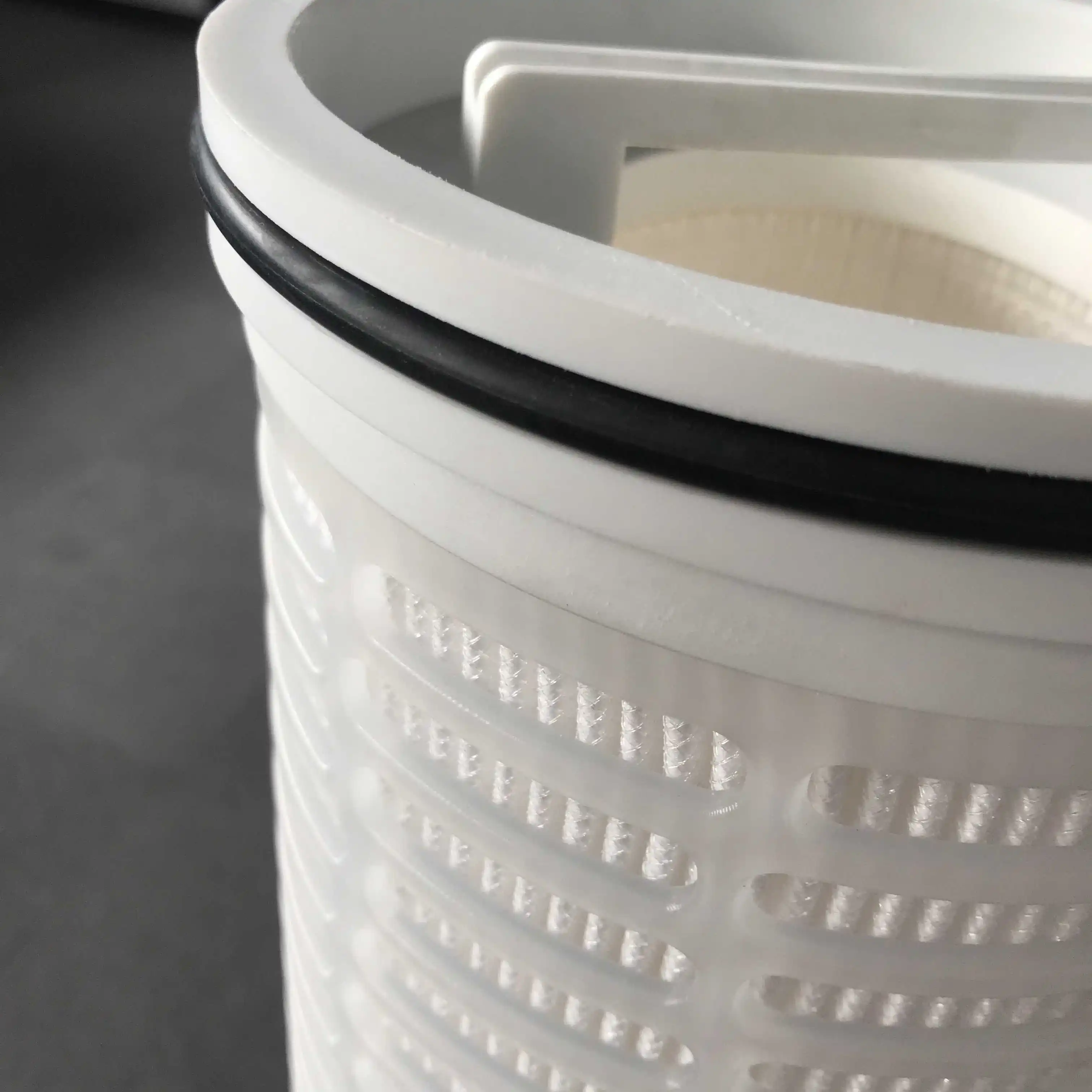

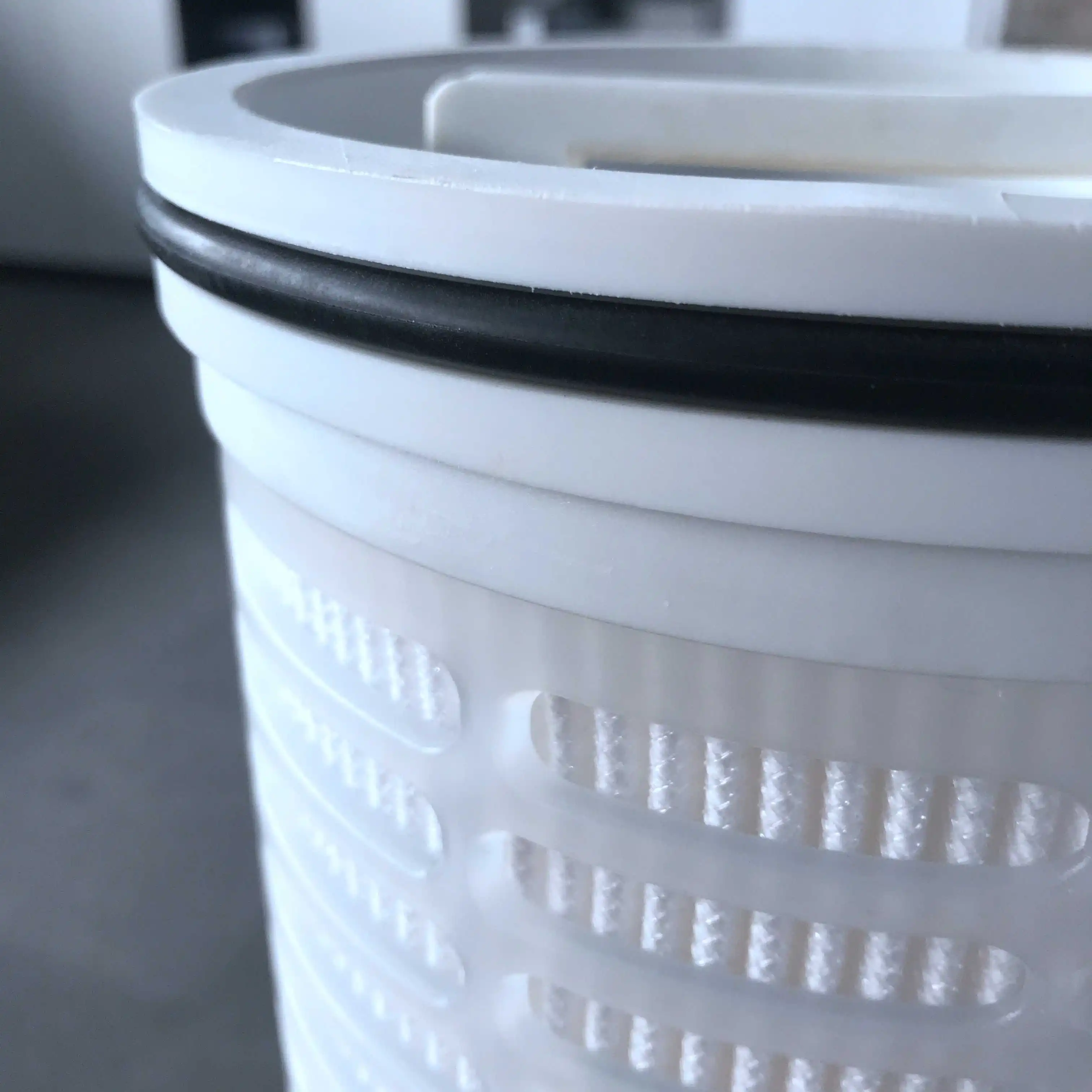

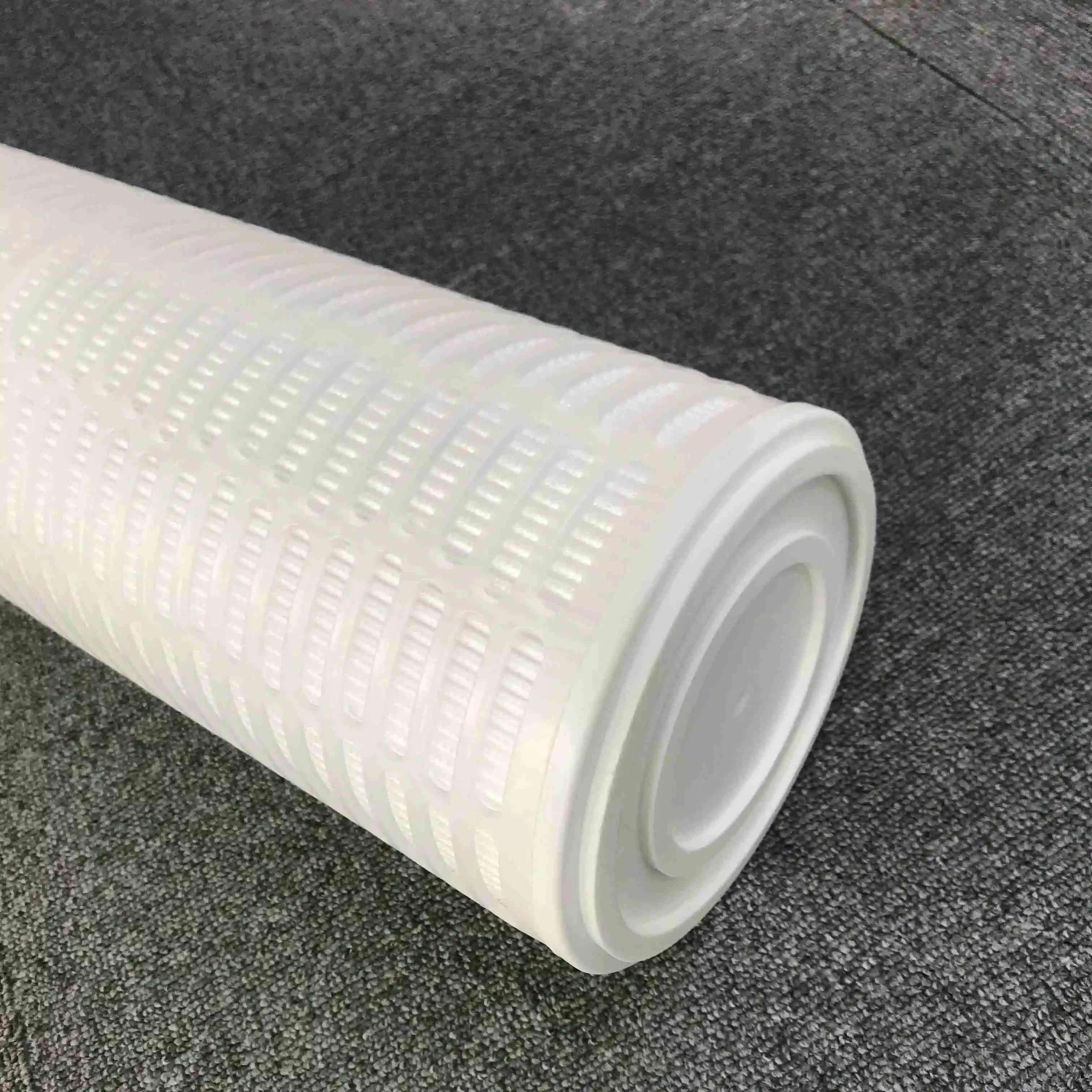

High Flow Water Filter Element Replace PALL Ultipleat
PHFL series high flow water filter is made of large diameter 6" (152mm), single open end, coreless, and pleated cartridge with inside to outside flow pattern. Advance pleat technology, combined with its large diameter and wide range of micron rating from 1 micron to 150 micron, allows customer to use fewer filters and smaller housing dimension for high flow rate applications. It can absolutely replace PALL Ultipleat original filters: HFU640UY045 series.
Features and Benefits
1. High flow rate reach 110m³/h per filter cartridge (60inch).
2. Micron rating from 1 micron to 200 micron.
3. Available length: 20"(508mm), 40"(1016mm), 60"(1524mm)

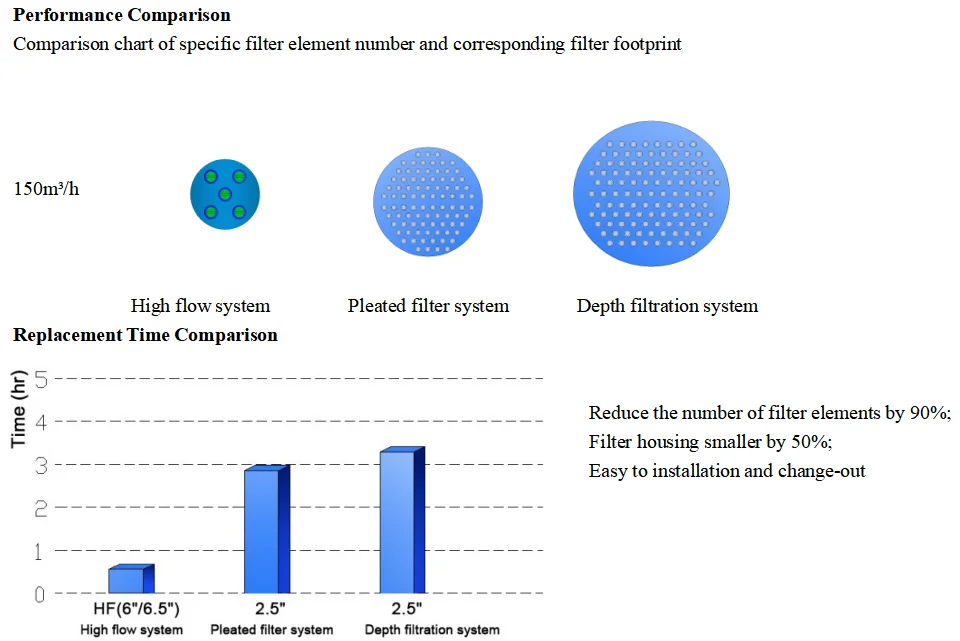

4. Fewer filters used, 50% smaller housing dimension.
5. Absolute and Nominal rating for different applications.
6. Inside to outside flow direction, all dirt be catched inside the filters.
7. Long service life, save filtration cost.
Applications:
1. Seawater Desalination RO System
2. Power Generation Condensate system
3. Municipal water
4. Petrochemicals
5. Electronics Industry
6. Food & Beverage
7. Waster Water
Multiple Membrane Material Options
Membrane materials: Polypropylene (PP), Polyester (PET), Glass fiber (GF). The PP membrane material adopts unique multi-layer Nano fiber pleated technology to achieve a gradient filter structure, increase the dirt holding space, and significantly extend the service life, thereby reducing the replacement frequency and system cost.
Specification:
Filter Media | Polypropylene (PP), Glass fiber (GF) | Retention Rating | 1um, 3um, 5um, 10um, 15um, 20um, 40um, 70um, 100um and others available |
Support/Drainage | Polypropylene (PP) | Length | 20"(508mm) 40"(1016mm) 60"(1524mm) |
Core/End caps | Polypropylene (PP) | O-ring/Gasket | Silicone, EPDM, BUNA-N, Viton |
Outer Cage | Hard PP Cage/Netting/Circle belt/ Stainless steel cage | Maximum Operating Temperature | 82℃ (PP) 150℃ (PET) 250℃ (GF) |
Outer Diameter | 6" (152mm) | Recommend Change-Out Differential Pressure | 2.1 Bar @ 20℃ |
Flow Characteristics:
Length (inches) | Design Flow Rate (m3/h) | Max. Flow Rate (m3/h) | Filtration Area (m2) |
20" | 15 | 30 | 3.2 |
40" | 20 | 60 | 6.5 |
60" | 45 | 90 | 9.5 |
Ordering Information
PHFL PP 0500 40 G E
Series | Media | Micron | Length | Structure | Seal Material |
PHFL | PP: Polypropylene | 0100=1.0μm 0300=3.0μm 0450=4.5μm 0500=5.0μm 1000=10μm 2000=20μm 4000=40μm 7000=70μm 9000=90μm 10000=100μm | 20=20" (254mm) 40=40" (508mm) 60=60" (1016mm) | G: Hard PP Cage S: Plastic Netting B: Circle Belt J: Stainless Steel Cage | B: BUNA-N E: EPDM S: Silicone V: Viton |
PET: Polyester | |||||
GF: Glass fiber |
MORE PRODUCTS
PRODUCT LINE
OUR COMPANY
Certifications
PACKAGING & SHIPPING
FAQ
1. Are you manufacturer or trading company?
We are manufacturer with 7500M2 factory passed ISO9001, ISO14001, ISO45001 management certification.
2. What's about the MOQ?
Small MOQ for customers, can be negotiated according to customers’ requirements.
3. What's about the sample cost?
We provide free sample, you just need to pay for the freight.
4. How about the delivery?
The goods will be sent out in 7 working days after pre-payment.
5. How is the feedback from customer?
Our high quality products and professional service have won the recognition of customers, get their good feedback and next purchase orders.
