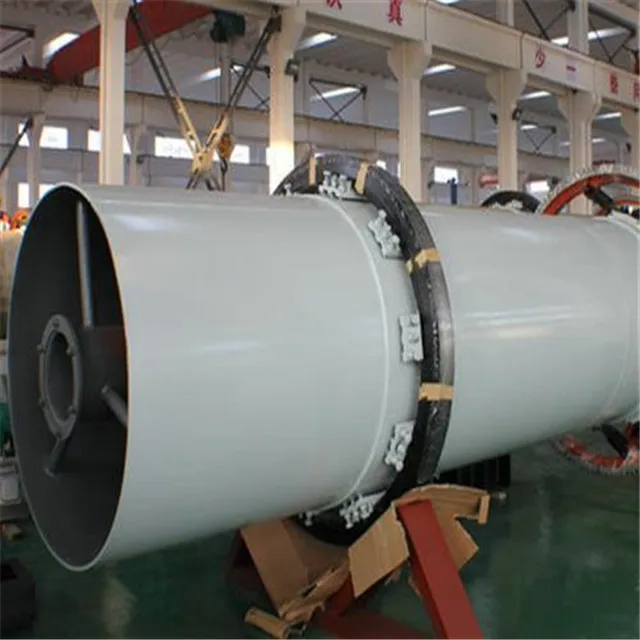

Clinker rotary kiln is the main equipment for claiming cement clinker and it can be used widely for cement industry, metallurgy industry, chemical industry, etc.
The rotary kiln is composed of the shell, the supporting device, the supporting device with thrust roller, the driving device, the movable kiln head, the sealing device at kiln tail, the combustion device, etc.
It has the simple structure and reliable operation, at the same the production process of the rotary kiln can be controlled easily.
Through the technical renovations, the rotary kiln claiming system equipment has adopted the advanced hydraulic thrust roller device,and the other national advanced technologies.
2.Features of Clinker rotary kiln
Clinker rotary kiln is used for calcinating high standard cement in cement factories, but also widely used in metallurgy, construction and chemical industry.
The rotary kiln produced by our factory has strong structure, smooth operation, and high quality products. Besides, we provide our customers with advanced and efficient shaft preheater and five stage cyclone preheater.
3.Application of Clinker rotary kiln
Clinker rotary kilnbelongs to building material equipment, which can be divided into cement kiln, metallurgy chemical kiln and lime kiln according to different materials.
Rotary kiln is used for calcimine of high aluminum vandal ochre in refractory material industry; for calcimine of calotte and aluminum hydroxide in aluminum manufacturer; for claiming of chrome sand ore and chrome powder ore in chemical plant.
4.Technical parameters of Clinker rotary kiln
Specification
Capacity(t/d)
Kiln obliquity (%)
Bearing quantity
Kiln rotation speed(r/min)
Main driving (r/min)
Motor
Reductor
Main driving
Auxiliary driving
Type
Rated power
Speed adjustment range (r/min)
Rated voltage (v)
Type
Speed ratio
(KW)
Φ2.5×40
180
3.5
3
0.98-2.94
0.036
YCT315-4B
45
132-1320
380
ZS145-1-I
49.63
Φ2.5×60
168
3.5
4
0.516-1.549
0.036
YCT355-4B
75
440-1320
380
ZS165-7-II
99.96
Φ3×48
700
3.5
3
0.726-3.63
0.1375
ZSN4-280-091B
110
200-1000
440
ZSY450-35-V
30.794
Φ3×60
3.5
4
0.492-1.476
0.034
YCT355-4B
75
440-1320
380
ZL165-7-I
99.96
Φ3×100.94
450
4
4
0.3-1.503
0.275
ZSN4-250-21B
90
100-1000
440
NZS995-90-VI-L
90
Φ3.2×46
1000
3.5
3
0.36-3.57
0.108
ZSN4-280-091B
160
100-1000
440
NZS995-40VIBR
40
Φ3.2×52
1200
3.5
3
0.343-2.34
0.102
ZSN4-280-21B
125
100-1000
440
ZSY1110-71BLVI
71.54
Φ3.3×50
1300
3.5
3
0.676-3.38
0.106
ZSN4-280-091B
160
200-1000
440
NZS1110-40VI
40
Φ3.3×52
1300
3.5
3
0.266-2.66
0.0838
ZSN4-280-11B
125
100-1000
440
NZS995-40VIBR
40
