IALA standard 6NM solar powered barge LED marine beacon lamp/built in GPS sync solar marine Led beacon lighting/marine light

Share on (1600188783711):


Price:298,00 $ - 359,00 $

Quantity:


Product Overview

Description


High brightness marine navigation lighting


1-


Model type:GS-LS/SH



Product Overviews

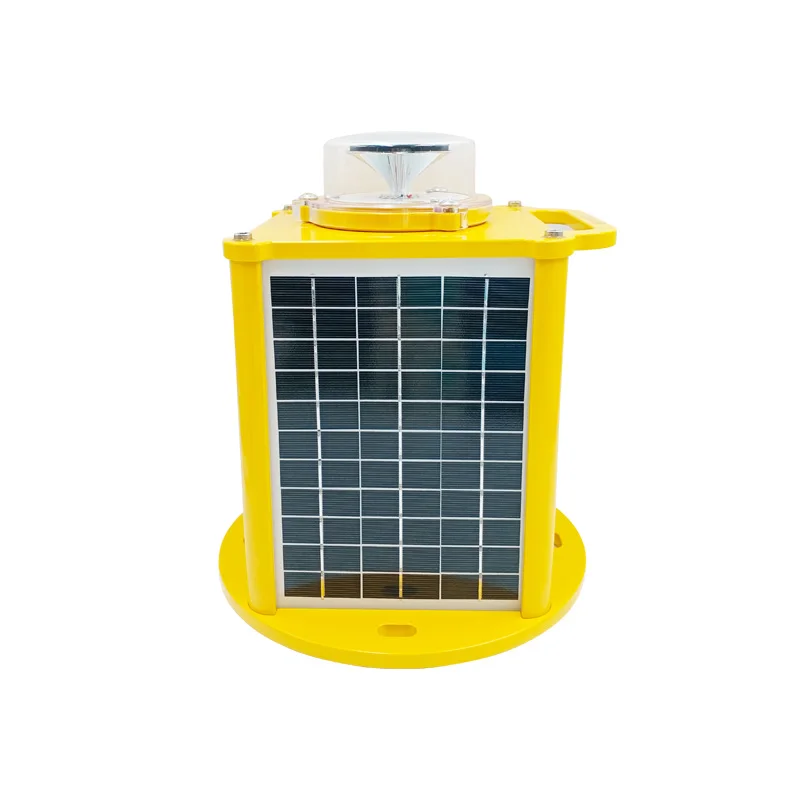

 GS-LS/SH LED Solar Powered Marine Lantern used advanced structure design, adopts 4 groups of solar panels and high efficiently, co-operate with solar dedicated battery as power supply.


Advanced power management system will be used to charge the power in a comprehensive protection. In order to save the service life of battery when it is under the condition of short-voltage or over-voltage or its temperature is too high or too low.


The control circuit adopts the micro power control chip, which effectively reduces the static power consumption of the circuit.


Its shell is die casting with aviation aluminum, this material has the specific of light weight and corrosion resistance, which can reduce the weight of light equipment, it is very convenient for installation and transportation.


Lampshade adopt with PC material, which can resist corrosion, anti-UV, anti-shock an so on.






Product Details




















































































Name



Parameter



Name



Parameter



Type



GS-LS/SH



Light Source Life



>100000 hours



Power Provider



Mono-crystalline silicon solar panel



Optional Emitting Light Colors



Red, Amber Yellow, Green, Blue, White



Battery Capacity



12V14AH



Battery Type



Sealed lead-acid battery



Solar panel power



6W x 4pcs



Solar panel voltage



16.5V



Power Consumption



15W



Vertical Divergence



>7°



Visual Range



1~6NM



Horizontal Out-put



360°



Light Source



LED



Overall Size(mm)



260×260×300 mm



Working temperature



-20℃~70



Installation Size(mm)



Pitch circle 220 mm distributed 4M12 holes



Storage temperature



-40℃~70℃



Wind-speed Ability



80m/s



Sun Switch Illumination Threshold



300LUX±100LUX



Working mode



Customer specified light characteristics



Continuous Burning Time in rainy days



>20 days


(12 hours a day)



IP Protection



IP67



Weight



8.5kg



Light Characteristics



 IALA standard 350 lights Characteristics adjustable

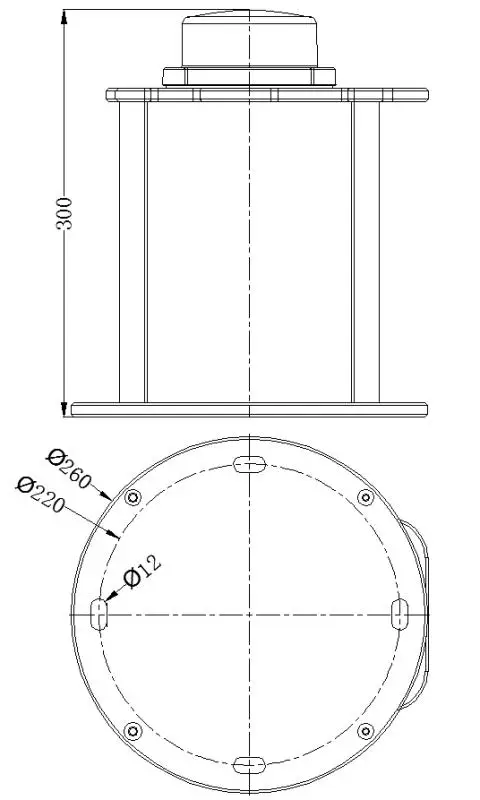

Dimension Drawing


Dimension Drawing


 _20201119152420





 _20200109165611


case











Company Information


 lvyou_04





 Feedback


 2






FAQ


FAQ


Q1:Can I have a sample order for your products?


A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q2: What about the lead time?


A:Sample needs 3~5days, mass production time needs 1~2 weeks. It is negotiable, if quantity more than 100.


Q3:Do you have any MOQ limit order?


A:No limit, 1pc for sample checking is avaiable.


Q4:How do you ship the goods and how long does it take to arrive?


A: We usually ship by DHL, UPS, FedEx or TNT worldwide Express. It usually takes 3~5days to arrive, door to door. You also could choose freight by air or by sea.


Q5:How to procced an order light?


A:Firstly let us know your requirement or appliction.


   Secondly we will quote according to your requirement or suggested appropriate products.


   Thirdly you confirm prices and check the samples.


   Fourthly you confrim order and place deposit for formal order.


   Then we will arrange the mass production for you.


Q6: is it OK to print my logo on product?


A: Yes, Please inform us formally before our production and confirm the design firstly based on our sample.


Q7:Do you offer guarantee for the products?


A:Yes. we offer 2~5years warranty on our products.


Q8:How to deal with the faulty?


A: Firstly, our products are produced under strict quality control system and the defective rate will be less than 0.2%.


    Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.


Q9:How is the packing?


 Every 1pcs marin lantern led is packed in a carton
