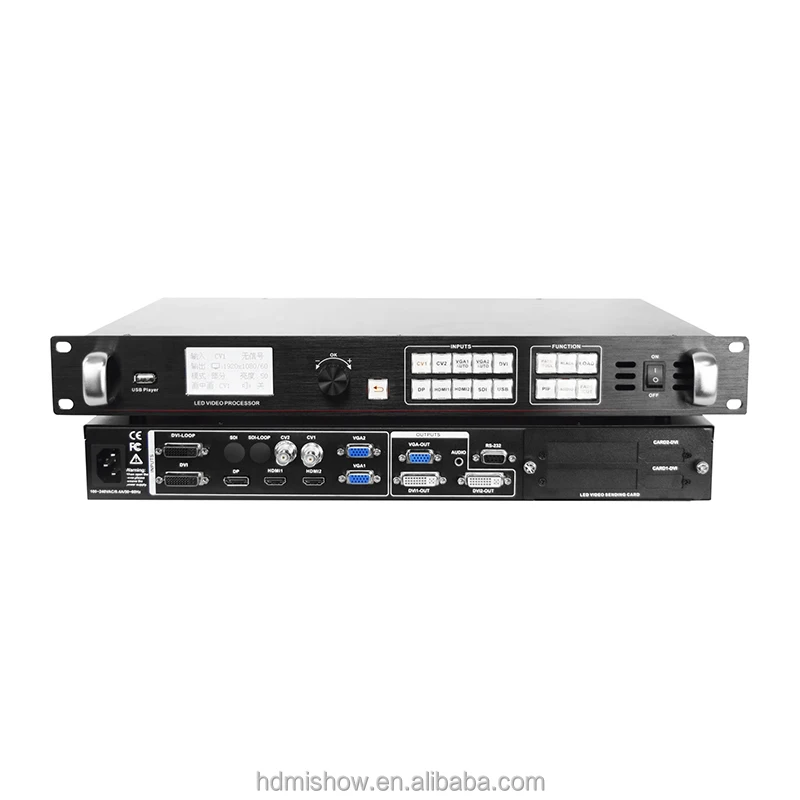

Jumbo Screen LED Display Board Video Processor Control LED Screen Display V203
- Category: Stage Equipment System >>>
- Supplier: Guangzhou Lucky Star Technology Co. Ltd.
Share on (1600188783975):
Product Overview
Description
Product Description
| NO. | PICTURE | ITEM | INSTALL MSD CARD QTY AND ITEM | PRICE(RMB) |
| 2 | V203 | NOVA MSD300 --2PCS 2.6 MILLION PIXELS | (WITHOUT MSD CARD) | |
| DVI Video input | 3G-SDI Video input(option) | |||
| Input qty | 1 | Input qty | 1 | |
| Interface form | DVI-1 Socket | Interface form | BNC | |
| Signal Standards | DVI 1.0,HDMI 1.3 backward compatible | Signal Standards | SD-SDI,HD-SDI,3G-SDI | |
| Support Resolution | VESA standard, PC to 1920x1200,HD TO 1080P | Support Resolution | 1080P 60/50/30/25/24/25(PsF) 720P 60/50/25/24 ;1080i 1035i 625/525 Line | |
| HDMI Video input | USB Players(option) | |||
| Input qty | 2 | Input qty | 1 | |
| Interface form | HDMI Socket | Interface form | USB | |
| Signal Standards | DVI 1.0,HDMI 1.3 backward compatible | Signal Standards | rm,rmvb,mp4,mov,mkv,wnv,avi,3gp | |
| Support Resolution | VESA standard, PC to 1920x1200,HD TO 1080P | Support Resolution | 1920x1080@60Hz | |
| VGA Video input | DVI Video output | |||
| Input qty | 2 | Input qty | 5 | |
| Interface form | DB15 Socket | Interface form | DVI-1 Socket | |
| Signal Standards | R.G.B. Hsync,Vsync0 to 1 Vpp +3dB(0.7V Video+0.3v Sync) 75ohm black level;300mV Sync-Tip;DV | Signal Standards | DVI Standard:DVI 1.0 VGA Standard:VESA | |
| Support Resolution | VESA standard, PC to 1920x1200 | Support Resolution | 1024x768@60Hz 2304 x1152@60Hz 1536x1536@60Hz 2560x816@60Hz | |
| Composite Video CVBS input (CV) | 1920x1080@60Hz 3840x640@60Hz 1920x1280@60Hz 1024x1920@60Hz | |||
| Input qty | 2 | Custom Resolution: 1 ways- 2.6 Million pixels @60Hz , | ||
| Interface form | BNC | Audio output | ||
| Signal Standards | PAL/NTSC | Output qty | 1 | |
| Support Resolution | 480i,576i | Interface form | 3.5-headset hold | |
| DP input | Signal Standards | Output power:80DB | ||
| Input qty | 1 | Support Resolution | Audio channel support:HDMI1,HDMI2,SDI,USB | |
| Interface form | DP | Complete machine parameters | ||
| Signal Standards | DP 1.1 | Weight | 4kgs | |
| Support Resolution | 1920x1080@60Hz | Size(mm) | Cabinet size 280*440*69 | |
| DVI-LOOP | Cabinet max size 280*483*69 | |||
| Input qty | 1 | With package size 360*520*130 | ||
| Interface form | DVI-1 Socket | Input power/Operating power | 100V-240V50/60Hz | |
| Signal Standards | DVI 1.0,HDMI 1.3 backward compatible | Operating power | 45W | |
| Support Resolution | VESA standard, PC to 1920x1200,HD TO 1080P | Operating temperature | 0℃~45 ℃ | |
| Storage temperature | 10%~90% |
Product parameter

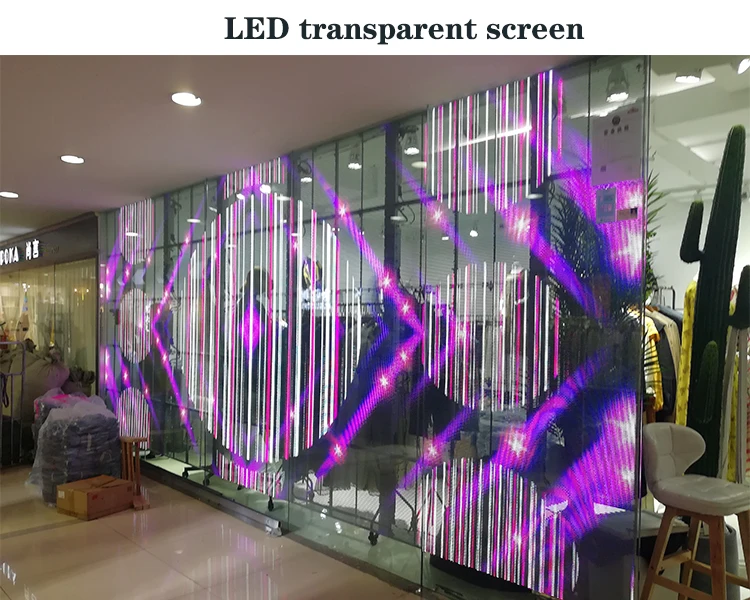

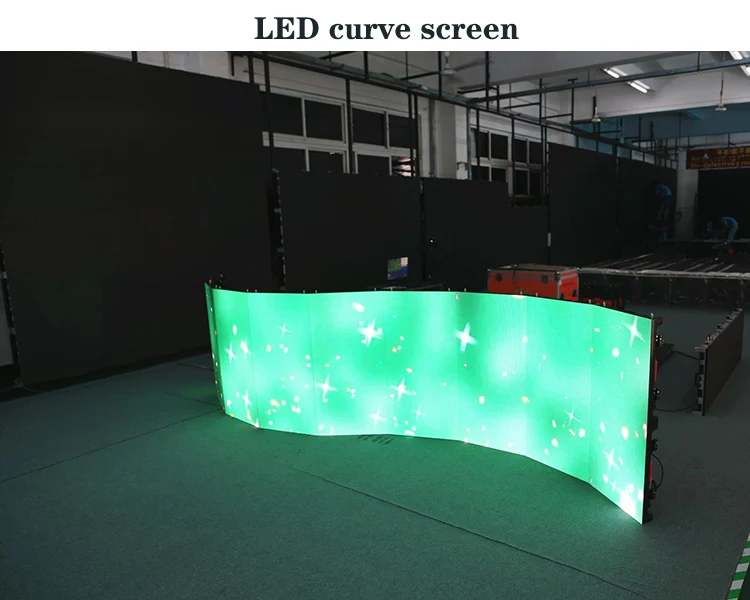

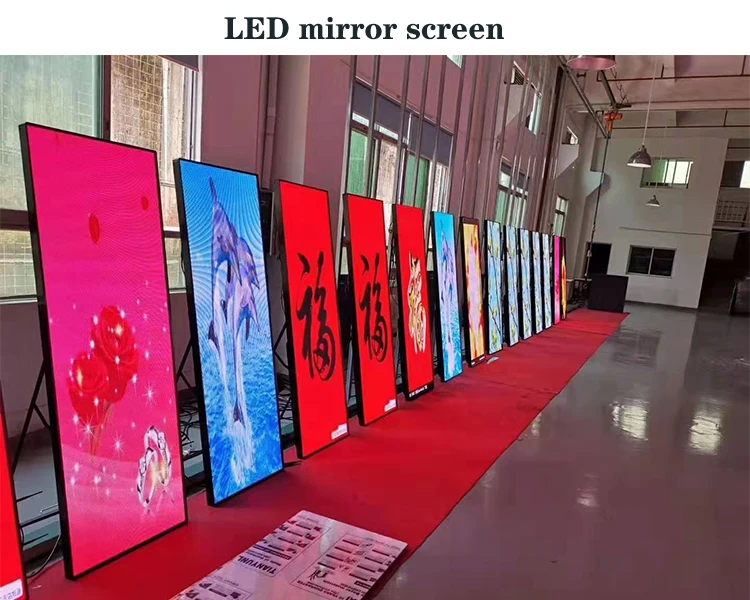

Product Range

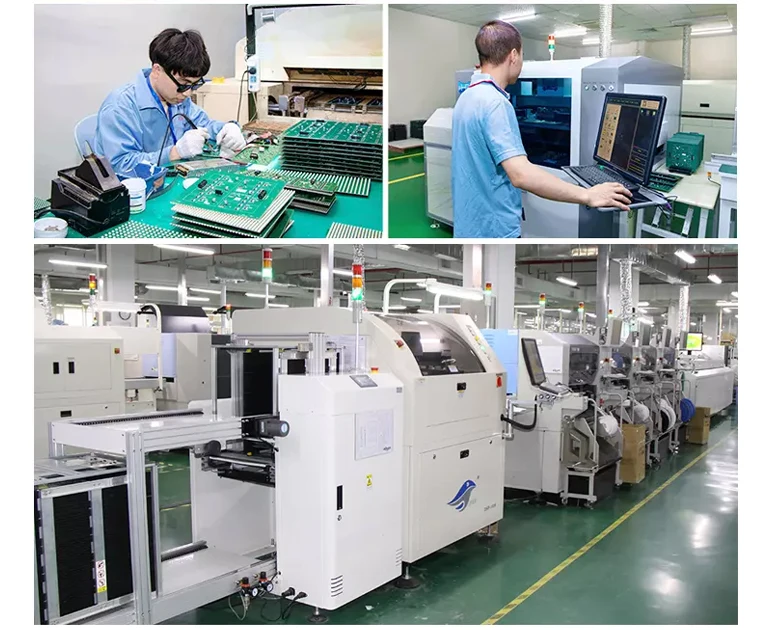

Company Information
Our Services
Remote commissioning services available
Packaging & Shipping
FAQ
1.Are you the manufacturer or trading company?
we are professional manufacturer devote in producing Led outdoor,Led indoor display,rental
display,stadium screen,advertising screen and stage screen etc.
2.Any quality warranty for your products?
our products passed strictly quality testing, and we offer 2 years warranty, during this time, we will offer free service for you.
3. What's fast delivery time?
The production can be controlled as fast as you need from 7 days to 25 days.
4. Can I just wait for the items at my door and no need to do others? Yes, items can be delivery to your specific address and you just wait for receiving the items at your door and nothing to do.
5. The display will come to me in parts?and i have to install each part together?
Yes, but it's quite easy. We will send you the instruction and also we can remote to help you to adjust the software, everything.

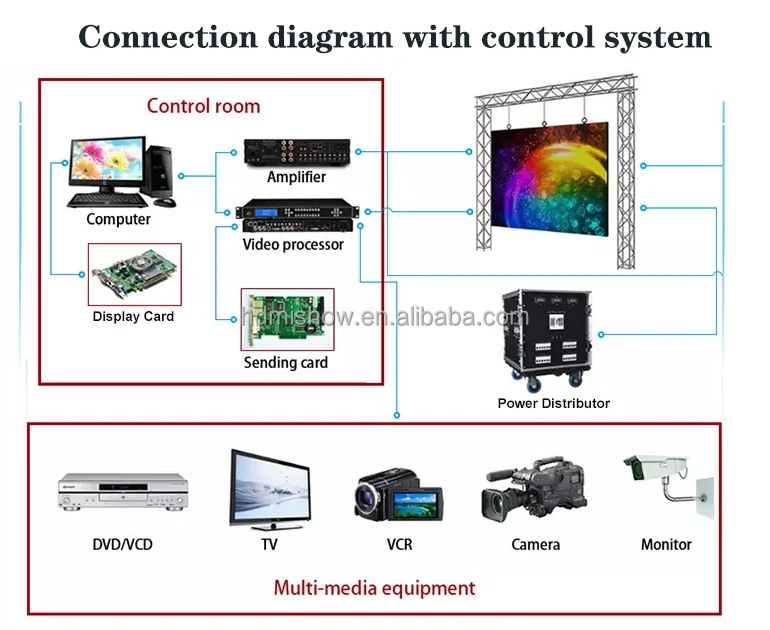

6. What's the function of video processor?
It can transfer the video source to make the screen performance more clear. Sometimes there has HD camera, so that the performance can show themselves on the screen as well. Video processor can control stage lights together.
7. How can I install the led display?
There are two options, one is hanging the display, the other is standing the display. Hanging bars and back stacking will be provided.
8.What about your pre-sale service and post-sale service?
For pre-sale service: We have a professional sales team and a 5 years technical team who are willing to answer your question 24/7. We can offer a whole complete solution for your project!
For post-sale service: We can instruct you how to use, adjust the screens, and change the broken modules with spare parts.
Also, we can send technicals to your country to solve problems. Mostly, our led display will not have big problems within warranty time!
