Fully Automatic Nitrogen Banana Potato Chips Packaging Machine For Corn Chip
- Category: >>>
- Supplier: Ruian Honetop Machinery Co. Ltd.
Share on (1600188787501):
Product Overview
Description
Product Description
SPECIFICATIONS FOR PACKAGING MACHINE HT-8GH | ||||||
Packing specification | Bag size range | L80mm - 350mm | W80mm - 220mm | |||
Packing weight | 20gr - 1500gr | |||||
Packing speed | 30 - 60 bags/min | |||||
Main performance parameters | Total power | 4.5 kw | Kw/Hr | |||
Compressed air Consumption | 0.6 | m3/min | ||||
Air pressure | 0.65 | mpa | ||||

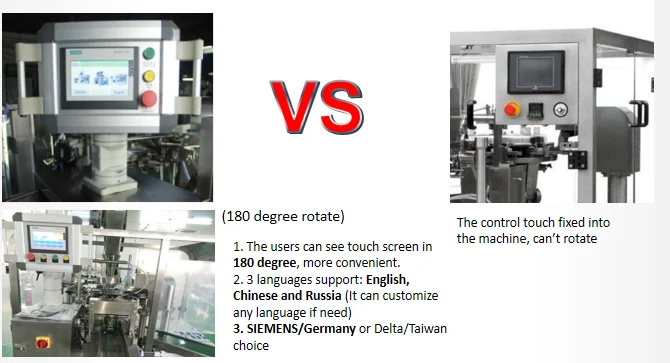

Main Control System | PLC | SIEMENS | Germany | |||
HMI | SIEMENS | Germany | ||||
SERVO MOTOR | MITSUBISHI | Japan | ||||
Machine Dimensions | (L)5200*(W)3500*(H)4000mm | |||||
Machine Weight | 2500kg | |||||

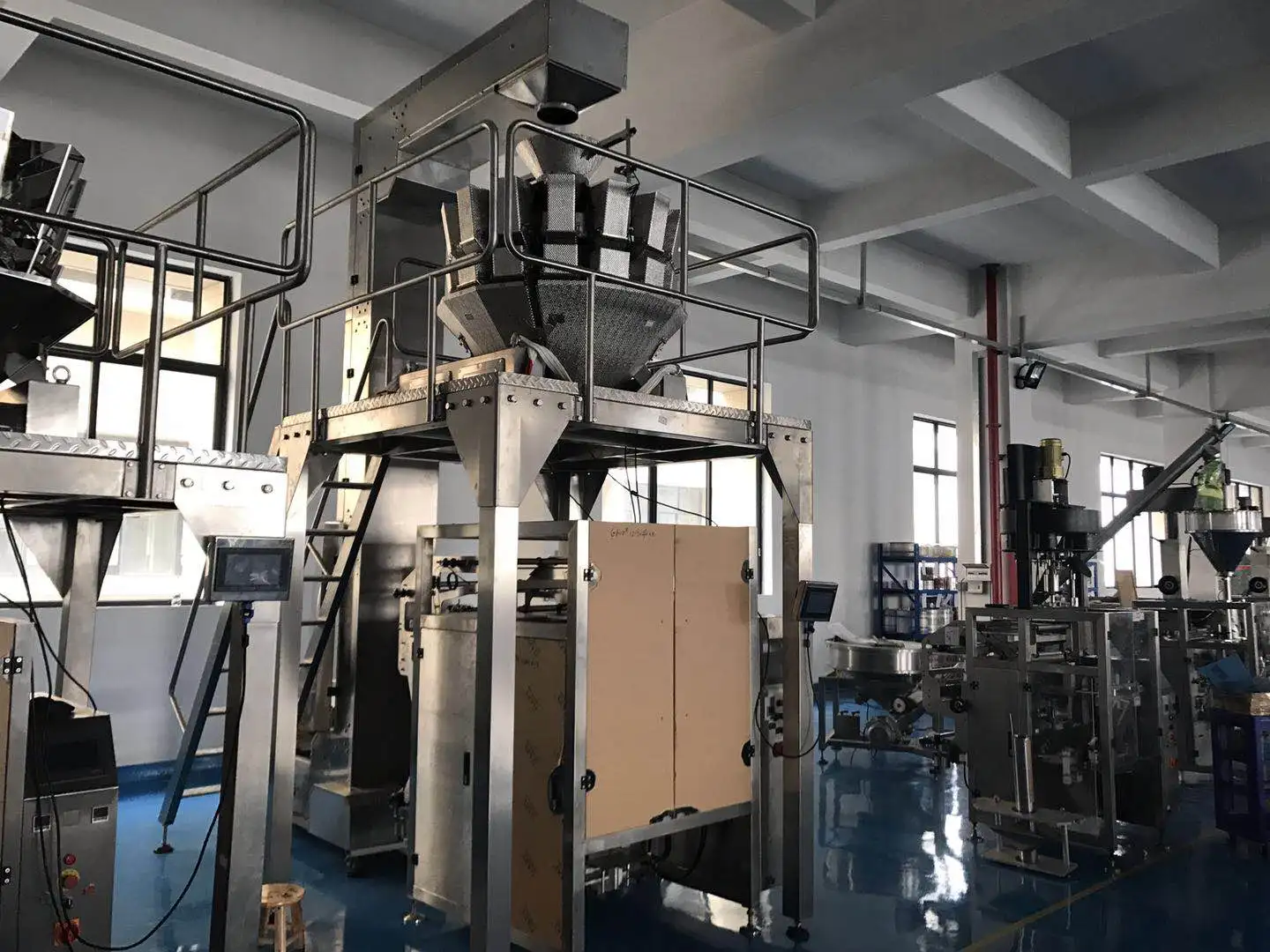

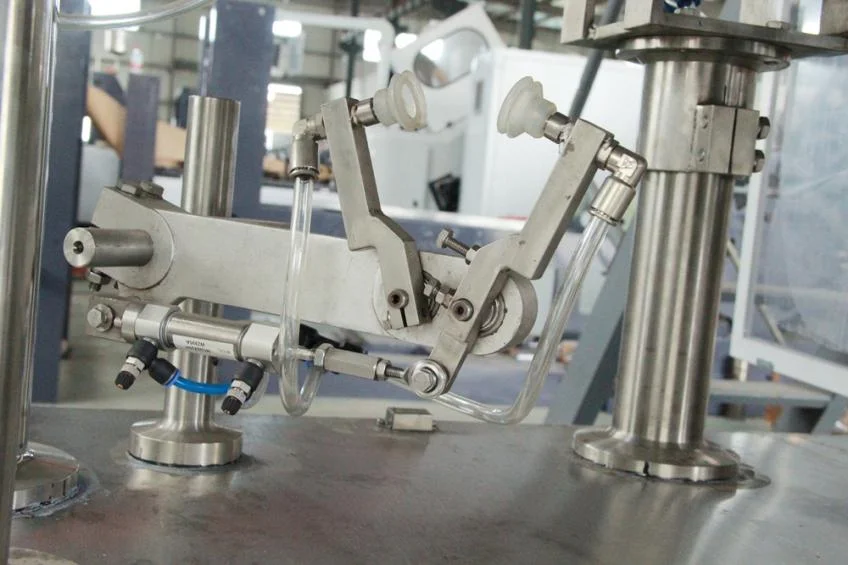

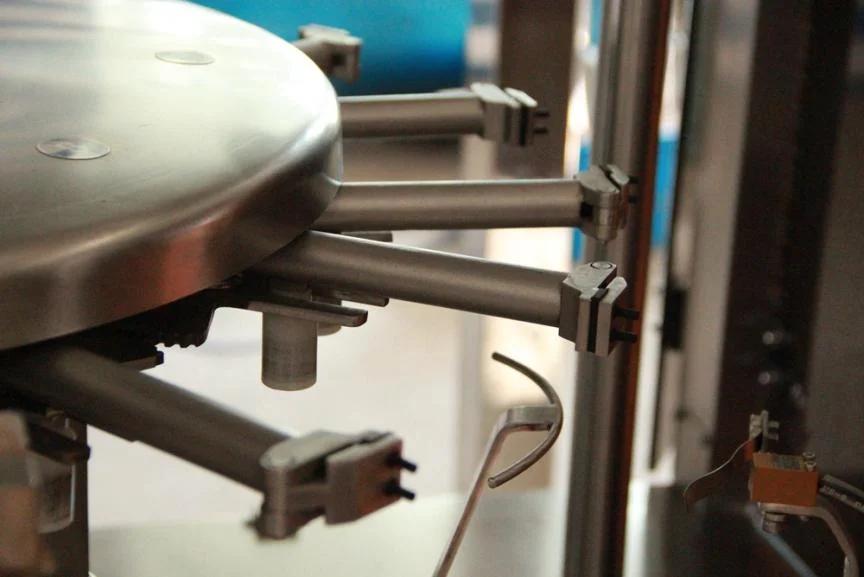

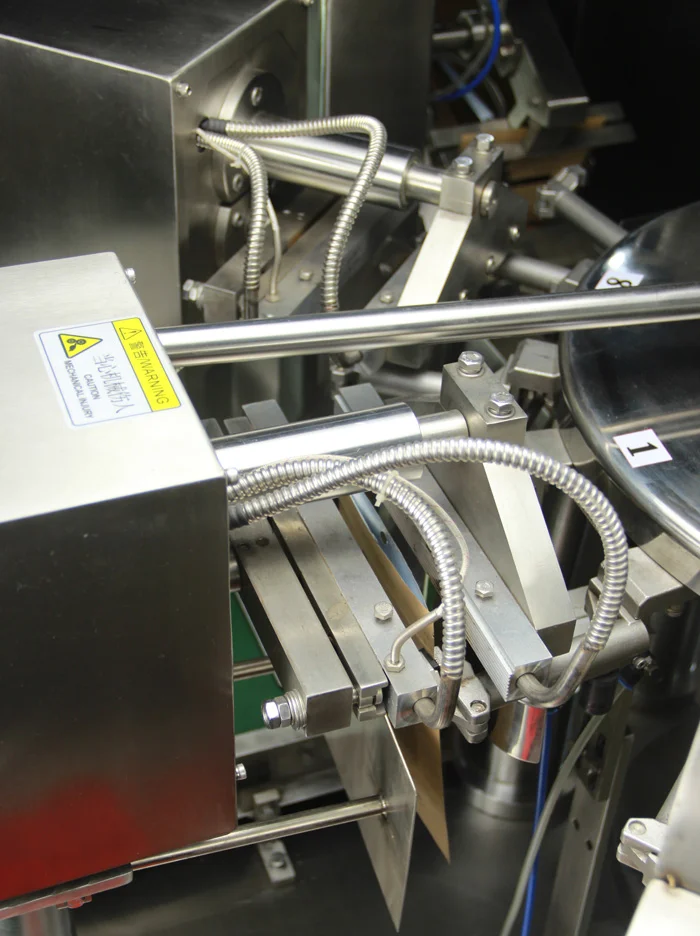

2.Detailed Images
Main Features
1. It uses stainless steel 304 shell for food grade required.
2. Automatic detection. No pouch or pouch is not opened completely, no filling, no sealing.

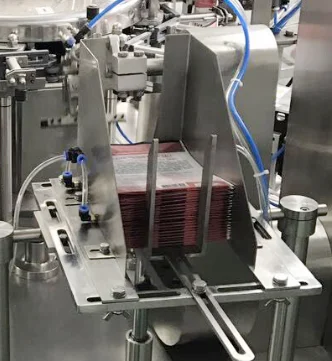

3. Horizontal Infeed conveyor suits for bags with zipper, max. put 300pcs each time.
4. Zipper Openner System: Servo motor (Yaskawa / Japan) controlled.
5. Independent temperature control system (Omron/Japan).
6. PLC adjust bag width clamping: Only needs 2mins by auto PLC for adjust different bag width sizes.
7. Automatic lubrication system: PLC control the lubrication time,automatically lubricate the machine parts instead of by manual.
8. It includes ribbon type date code: 3 lines * 17 characters.
9. Guarding: Glass Door Alarm / Air Pressure Abnormal
10. Internal grooved cam design: The technology with high precision, suits for max. packing
speed: 50 cycles/min with stable running.
11. Use free oil vacuum pump, avoid polluting the environment in the production.
Product Applications
Kinds of Solid & Granule Packing
Suits to pack candy, tea, nuts, sugar, dates, biscuit, frozen food, rice, cookies, coffee beans, cereals, dried fruit, chocolate, expanded food, microwave popcorn, grain, snack food, vegetable, salad, all kinds of nuts and pet food etc.
Kinds of Premade Pouches
Stand up pouches, doypack with zipper, 3 side
seal bags, 4 side seal bags, flat bags, pouch with hole, spout pouch etc
Related Products
Quality Control
1.Our factory has Strictly control the source of raw materials, stable and reliable raw material supplier
2.How we test
3.Our Certificate
Why Choose Us
1.Our company
Ruian Honetop Machinery Co., Ltd.
HONETOP MACHINERY has 17 experience years since 2002 in the packing industry, led to food flexible packaging machinery, is
aprofessionaldesign,development, production, trade integration in the packaging machine.
aprofessionaldesign,development, production, trade integration in the packaging machine.
2.Our Clients
Shanghai China 2012
Shanghai China 2013
Shanghai China 2013
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging for Rotary Packing Machine | ||
Size (mm) | 1850 (L) * 1800 (W) * 1650 (H) | |
Weight | 1300KGS | |
Packaging Details | 1st. Use PE film for packing machine first 2nd. Use wooden box packed finaly. Note: All wooden box will be fumigated for exporting to any country. | |
Packaging for 10 head weigher | ||
Size (mm) | 1100 (L) * 1100 (W) * 1500 (H) | |
Weight | 430kgs | |
Packaging Details | 1st. Use PE film for packing machine first 2nd. Use wooden box packed finaly. Note: All wooden box will be fumigated for exporting to any country. | |
FAQ
Q: Can you send me the video to show how the machine works? A: Certainly, we have made video of every machine and uploaded them
toYoutube.
Q: How can I know your machine works well?
A: Before delivery, we shall test the machine working condition for you.
Q:How can I know your machine is designed for my product?
A: You can send us samples of your product and we test it on machine.
Q:Do you have a CE certificate?
A: For every model of machine, it has a CE certificate.
toYoutube.
Q: How can I know your machine works well?
A: Before delivery, we shall test the machine working condition for you.
Q:How can I know your machine is designed for my product?
A: You can send us samples of your product and we test it on machine.
Q:Do you have a CE certificate?
A: For every model of machine, it has a CE certificate.
