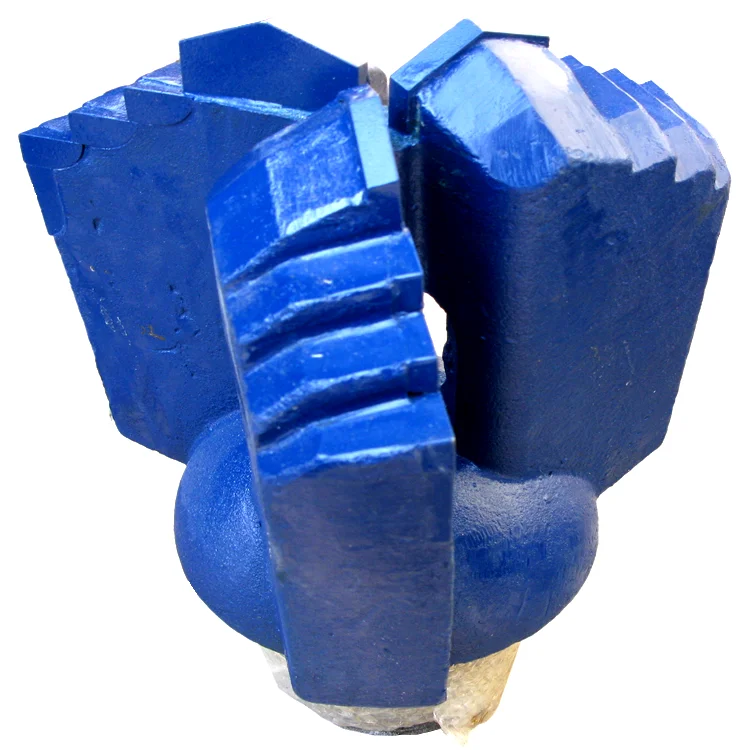

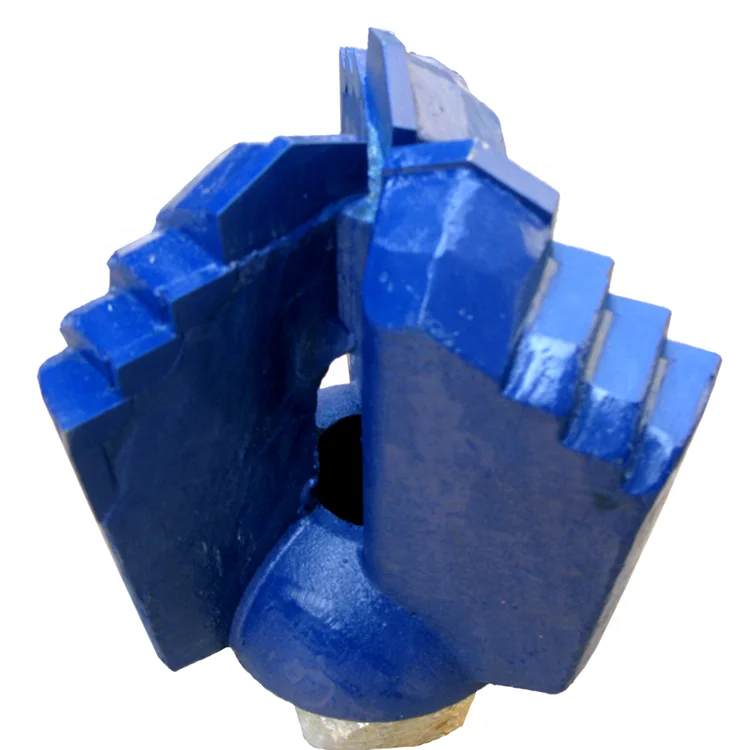

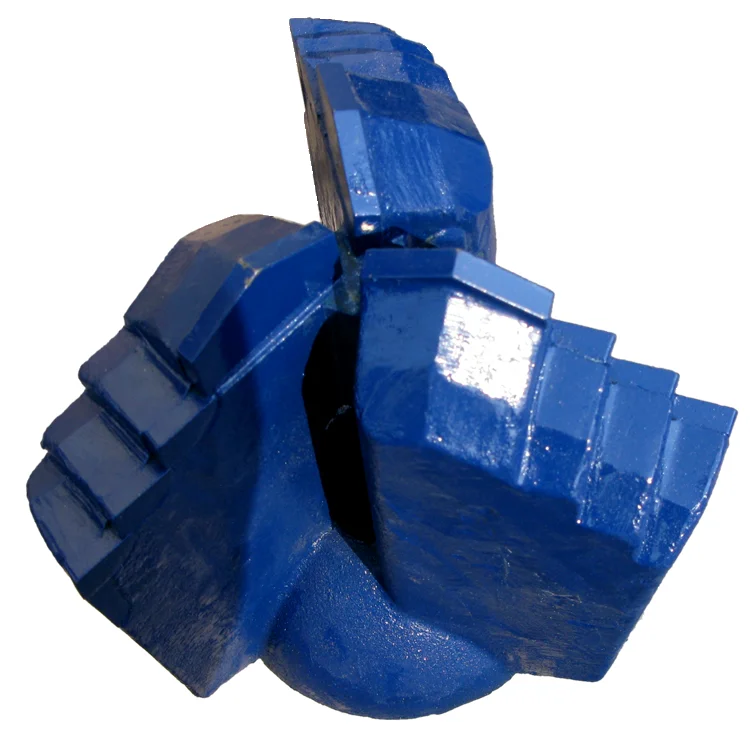

7 7/8" Or 200mm Stepped Crown Blade Drilling Drag Bit with 3 1/2" API REG for Hard Limestone Rock

Product Overview

Description

7 7/8" Or 200mm Stepped Crown Blade Drilling Drag Bit with 3 1/2" API REG for Hard Limestone Rock



Drag Bits: Acedrills supplies a variety of drag bits for many types of projects drilling needs, including 3-wing type bits for soft and medium formations, 4-wing, especially 4-wing chevron type for harder formations. Each of our bits is machined from a forging to exacting standards and then tipped with tungsten carbide. Mining grade tungsten carbide tips are brazed to the bit wing face for heavy duty bits. The pin threads are CNC manufactured and wings surfaces hardening subsequently.

	Bits Type
	3-wing Step/ Chevron
	4-wing Step/ Chevron
	Drag Bit Blades
Dimension
51~445mm
67~445mm
140~4445mm
	Thread  Connection
	N Rod, 2 3/8” ~ 6 5/8” API REG/IF
	3 1/2” ~ 6 5/8” API REG/IF



PRODUCT SPECIFICATION

Type	Dimension		Thread Connection
	inch	mm
3-wing Step Type	2 ~ 17 1/2	51~445	N Rod, 2 3/8” ~ 6 5/8” API REG/IF
3-wing Chevron Type	2 1/2 ~ 8	64~203	N Rod, 2 3/8” ~ 4 1/2” API REG/IF
4-wing Step Type	7 7/8 ~ 17 1/2	200~445	3 1/2” ~ 6 5/8” API REG/IF
4-wing Chevron Type	2 5/8 ~ 6 1/2	67~165	N Rod, 2 3/8” ~ 3 1/2” API REG/IF
Drag Bit Blades	5 1/2 ~ 17 1/2	140~4445



Specification Notice



Notes:     1. Special size is available by given sample or drawings.        How to order? Drag Bits: Diameter + Type(s) + Connection Thread Drag Bit Blades: Bit Size + Pin Connection Thread     For brochure and more product information, please click here  to tell us the detail.

Drag Bits are the perfect solutions for soil, sand, sticky clay, and grouting drilling. They are designed for higher penetration rates in softer unconsolidated formations, provide lower costs per foot. Drag Bits are more aggressive than tricone bits, and have higher speed while lower cutting action.



Drag Bit Blades

Drag Bit Blades are replacement blades for replaceable step type drag bits.
