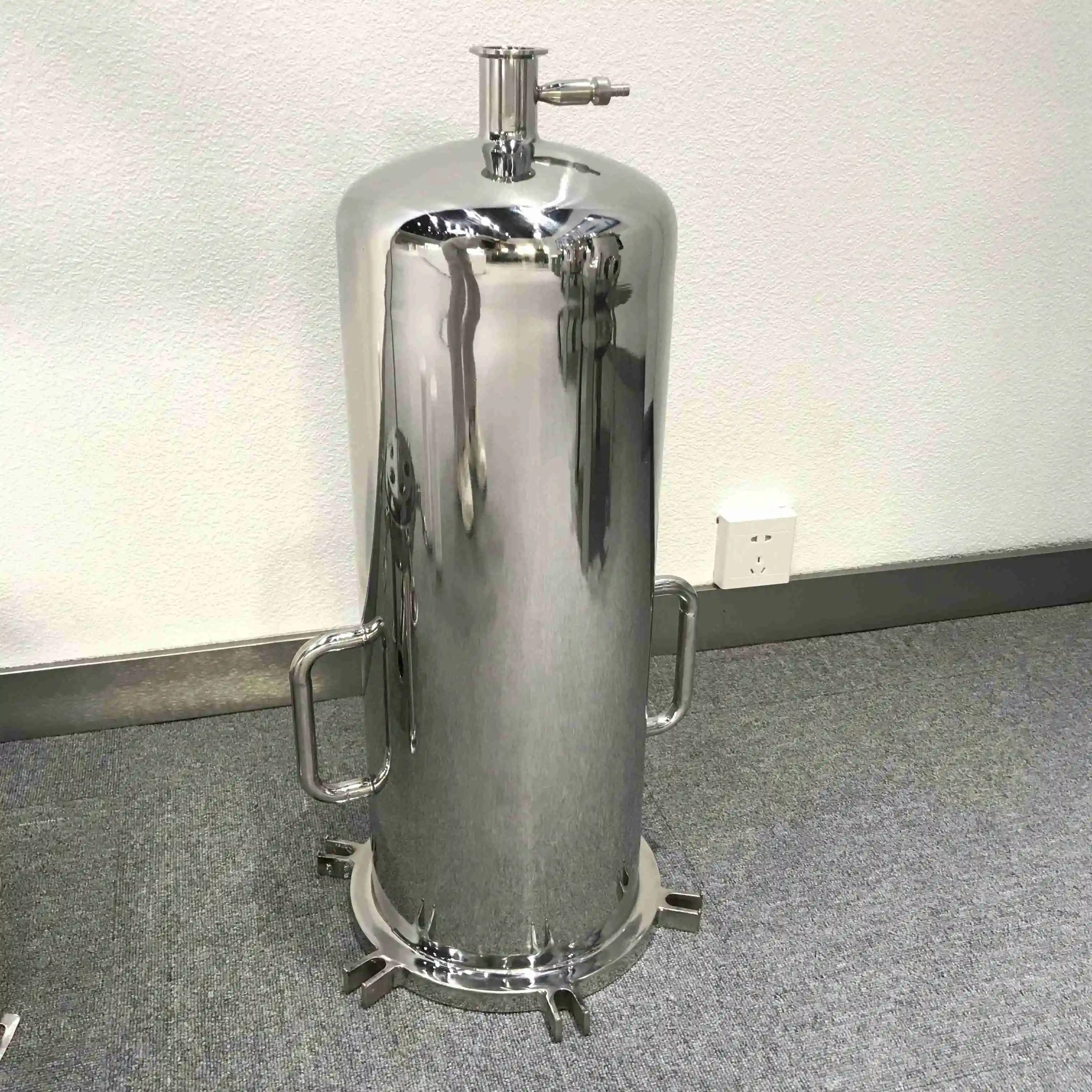

Single Pleated Filter Cartridge Stainless Steel Filter Housing

Single Pleated Filter Cartridge Stainless Steel Filter Housing is a small flow high quality sanitary grade filter. With excellent surface and maximum corrosion resistance, filter meet the quality standards for preventing bacterial contamination. The unique structure of the sanitary filter cartridge ensures there is no dead corner on the inner and outer surface. The Filter housing can be completely disassembled and washed, easy to operate.

Features advantages

1. Ultra-high polishing level, inner wall 0.3UM, outer wall 0.4UM, absolutely sanitary polishing;

2. Powerful fast loading, design pressure 0.6MPA;

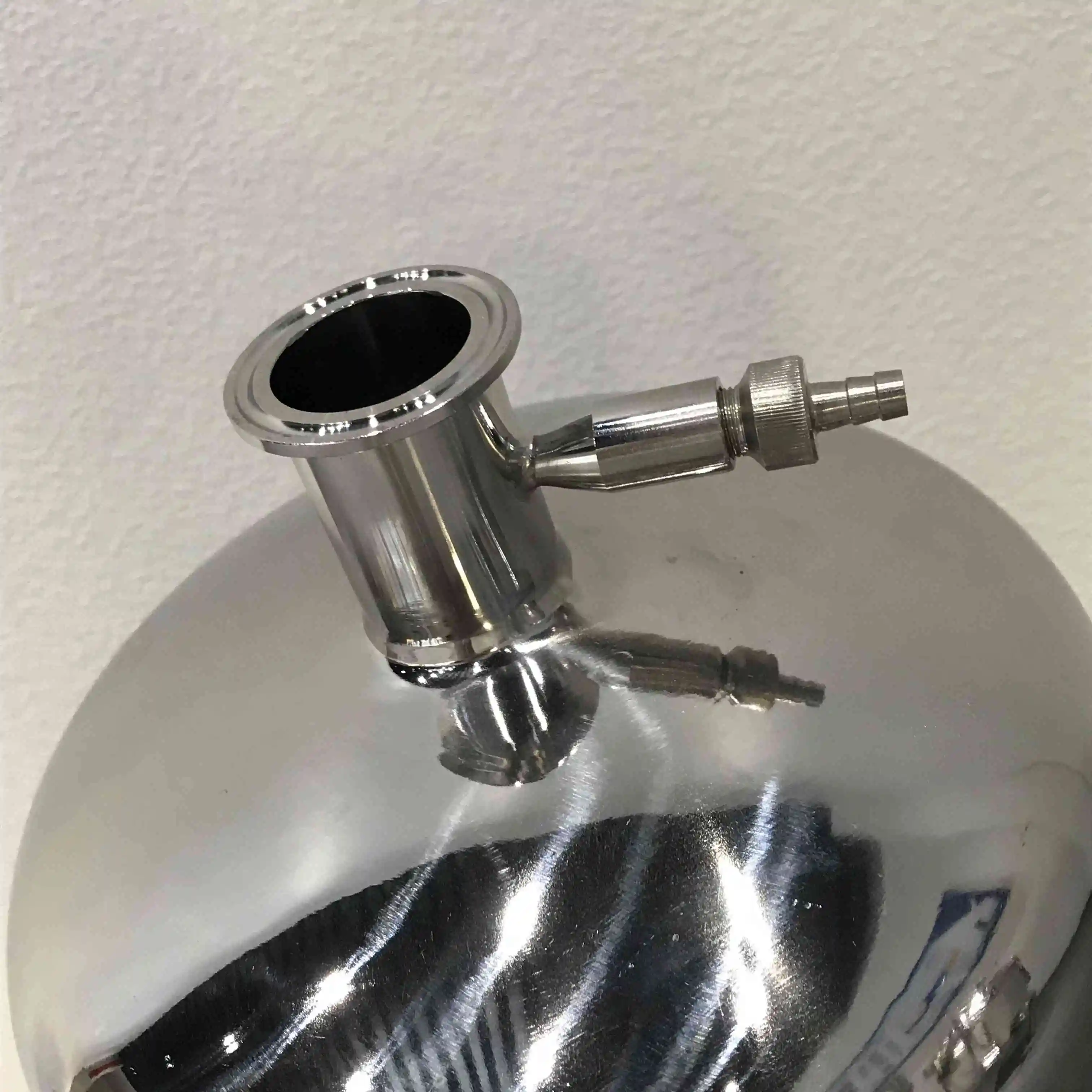

3. Exhaust valve and drain valve: the threaded sleeve is disconnected from the pagoda joint, and the connected hose will no longer rotate at will during deflation and draining.

4. The feet of the filter use reinforced threads, which is not easy to regenerate and more durable; adjustment nut can be installed at the bottom of the foot to adjust the height of the filter for easy use.

Applications

1. Pharmaceutical industry: pre-filtration of carious antibiotics and other liquids

2. Food and beverage industry: filtration of alcohol, mineral water, drinking water

3. Petroleum industry: oilfield water injection filtration

4. Electronics industry: high-purity water pre-filtration

5. Chemical industry: filtration of various organic solvents, acids and alkalis.

Surface Treatment

Polishing type: Mirror polish or Internal Electro-polished

Surface Option: Internal rating: 0.3μm or External rating: 0.4μm

Operating Conditions

Maximum Operating Pressure: 0.6Mpa (6bar)

Maximum Operating Temperature: 135℃ (275℉)/Design Temperature: 140℃

Steam Sterilization: In-situ/Autoclave@121℃/30min

Material Construction

Connection

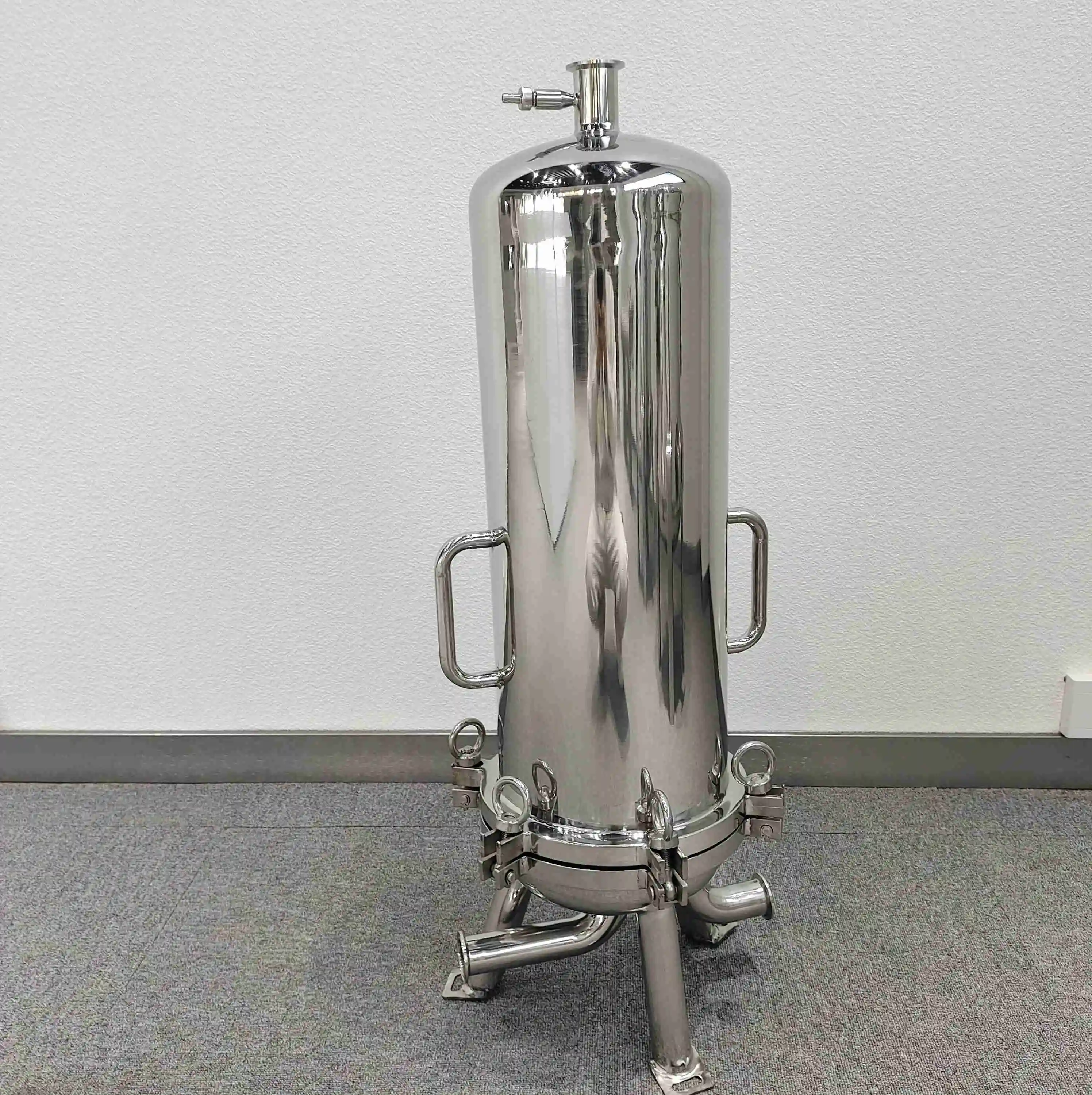

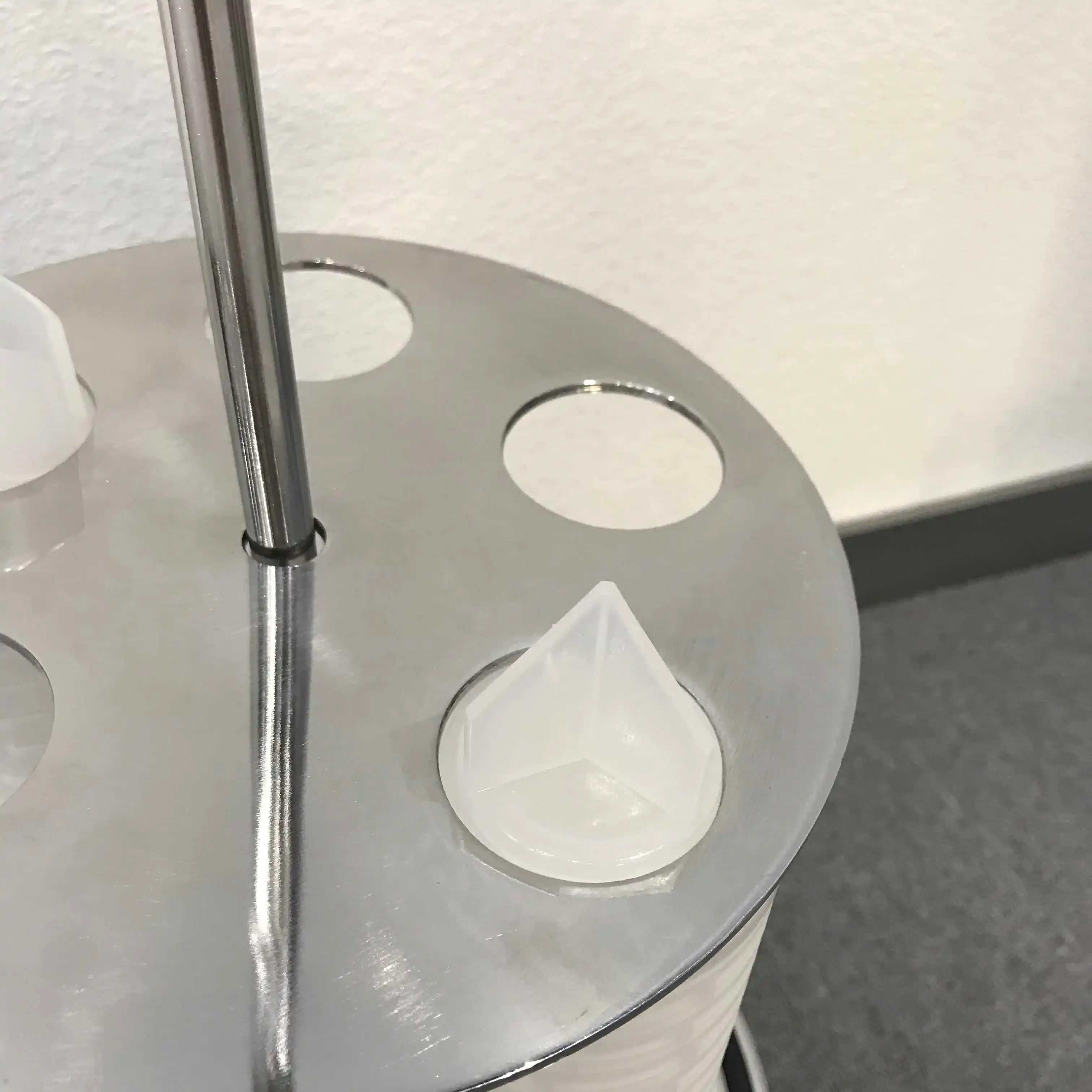

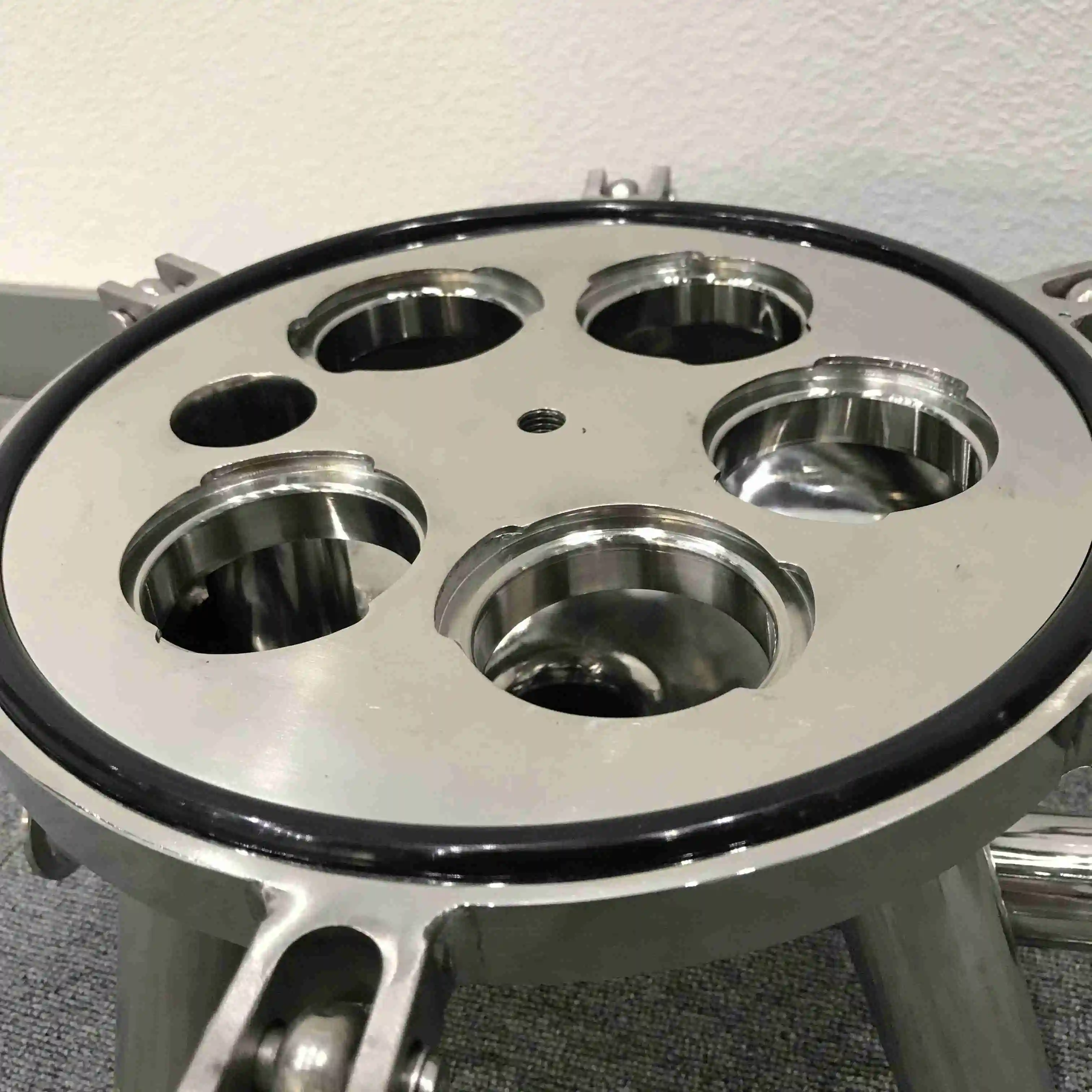

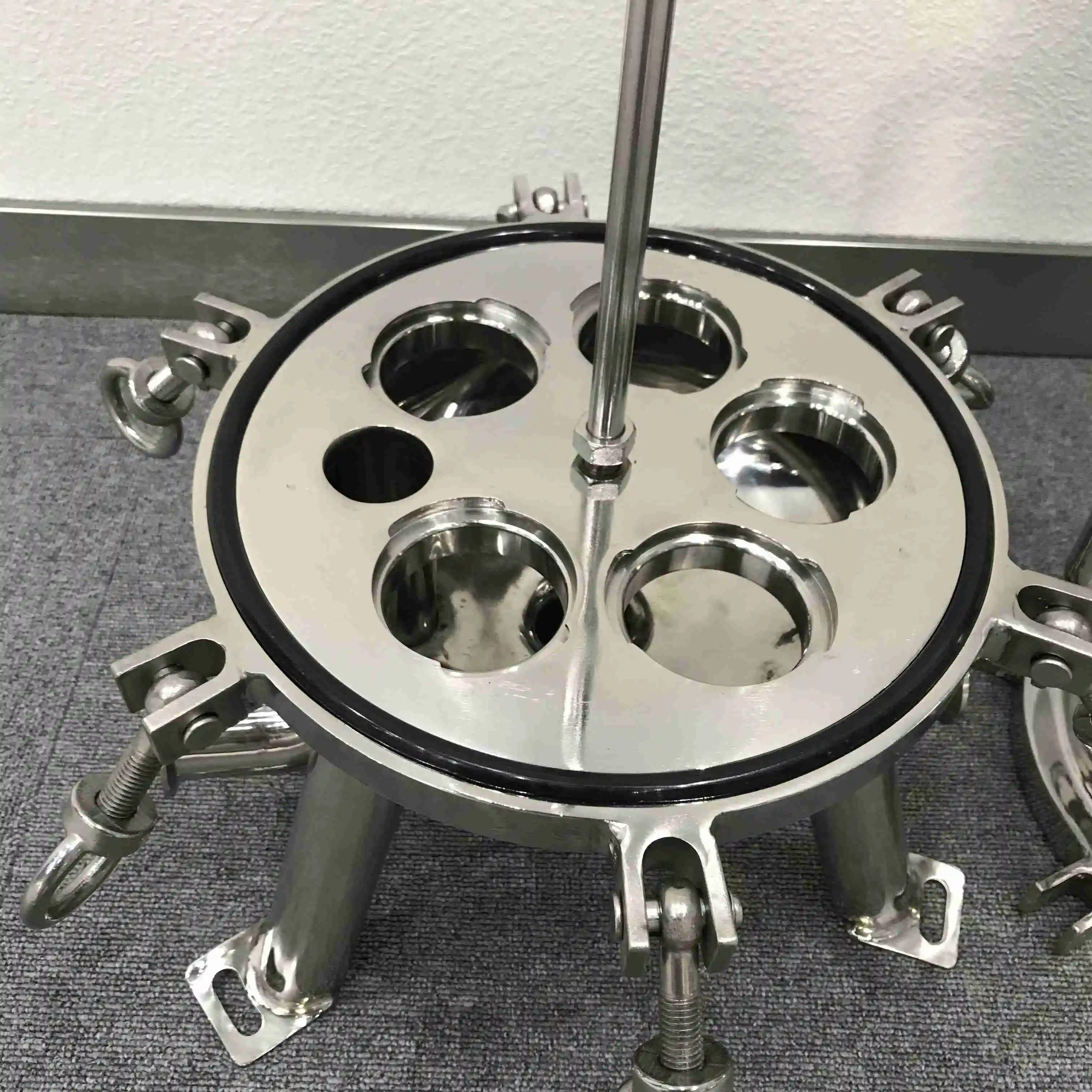

Multi Pleated Filter Cartridge Stainless Steel Filter Housing

Multi Pleated Filter Cartridge Stainless Steel Filter Housing is designed for liquid filtration with different flow rates. It meets sanitary requirements. Filter connection size, connection type, seal material can be customized according to customers’ requirements and different applications.

Features advantages

Ultra high polishing accuracy, inner wall up to 0.2 μm, outer wall up to 0.4μm m, the whole series can choose electrolytic polishing;

Fully disassembled structure for easy cleaning;

Can be customized according to customer requirements;

In the case of particularly high pressure requirements, high pressure clamp can be selected to seal the PTFE sealing ring perfectly, with the maximum pressure up to 1.0MPa;

Surface Treatment

Polishing type: Mirror polish or Internal Electro-polished

Surface Option: Internal rating: 0.3μm or External rating: 0.4μm

Operating Conditions

Maximum Operating Pressure: 1.0Mpa (10bar)

Maximum Operating Temperature: 130℃ (266℉)

Steam Sterilization: In-situ/Autoclave@121℃/30min

Material Construction

Connection
