Product Overview
Description
Product Description

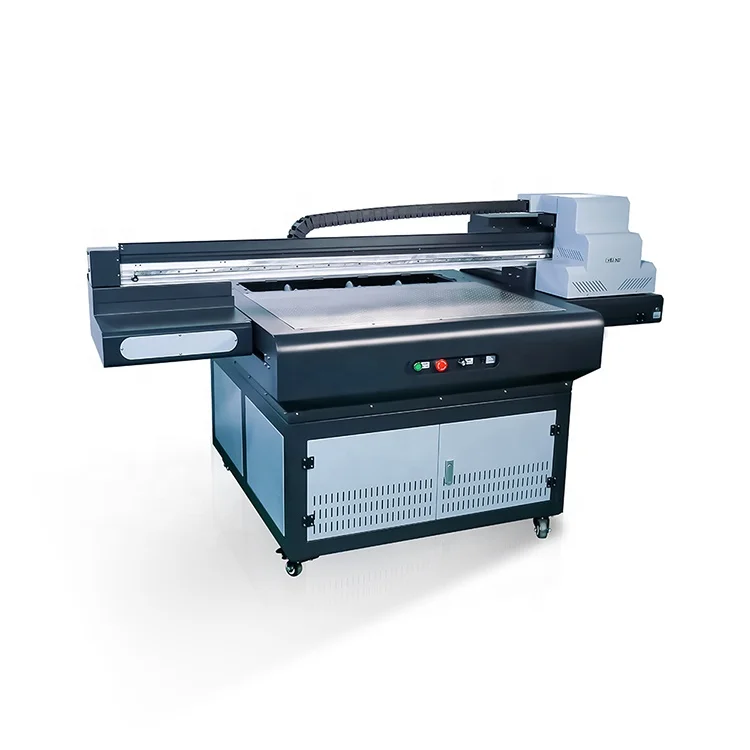

RB-10075 large size uv flatbed printer can print on rotary and flat material by one printer,It can print colors , white and varnish at same time.It also support on mirror printing and back printing which means it can work on all kinds of industry production.The Max printing size is 100*75cm.
Printhead number | 3* TX800 printheads/ 4720 printheads |
Max printing height | 3mm to 8cm adjustable |
Optional printing color | 4 color+white+varnish 4 color+ varnish 4 color+ white 4 color |
Production mode speed | 15m2/h |
Precision mode speed | 10m2/h |
High quality speed | 7m2/h |
Printing material | Glass, Tile, Acrylic, PP, Metal, Wood, Stone, Rotary material and so on. |
Maximum Resolution | 720*4320 DPI |
Max Printing Size | 100*75cm |
Environment | 25-30℃, 40-60% humidity, clean |
Computer system | Window 8/ Windows 7/ Window 10 |
Machine size | 2120mm*1500mm*1220mm |
Machine weight | Net.380KG/Gross.430KG |
The RB-10075 A1 size UV Flatbed phone case printing

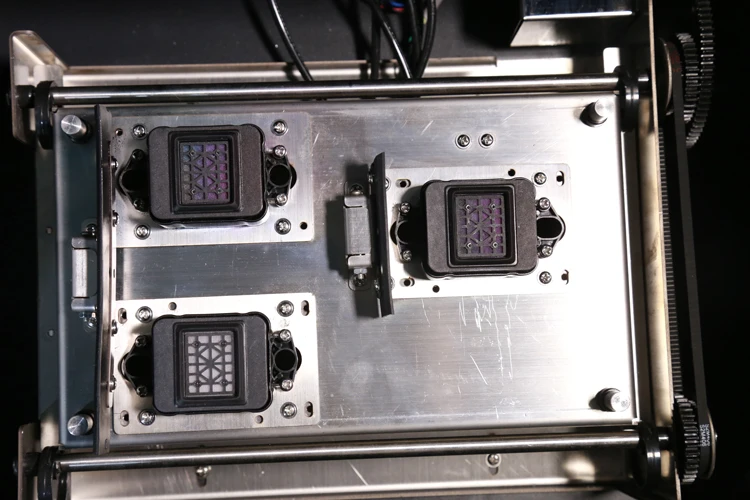

1. Three heads can print white, color and vanish together, with high speed and high precision.
The Rainbow RB-10075 UV flatbed printing machine

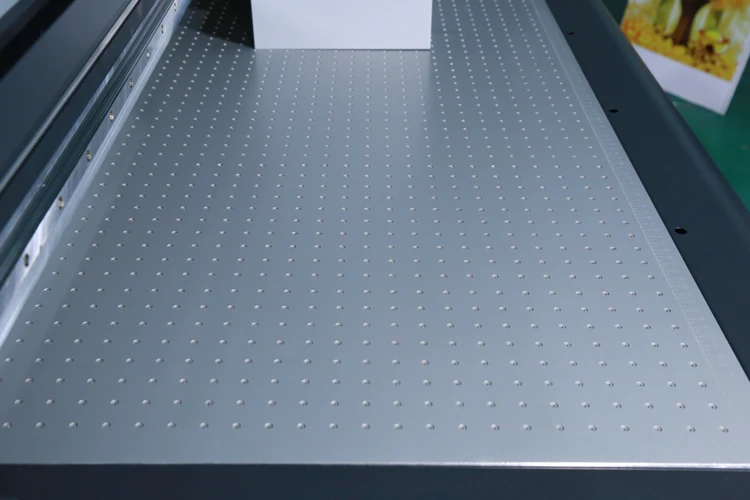

2. Free vacuum adsorption platform is ready to print as soon as it opens, to print the material in roll.
A smart design for Rainbow printer only

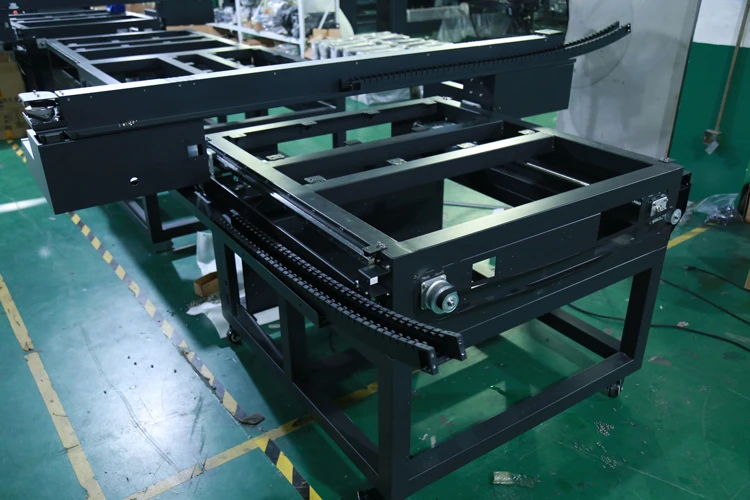

3. All-steel structure frame, gantry milling process manufacturing, no deformation, no distortion, high-precision printing after many years of use
The A1 UV flatbed printer is far more powerful

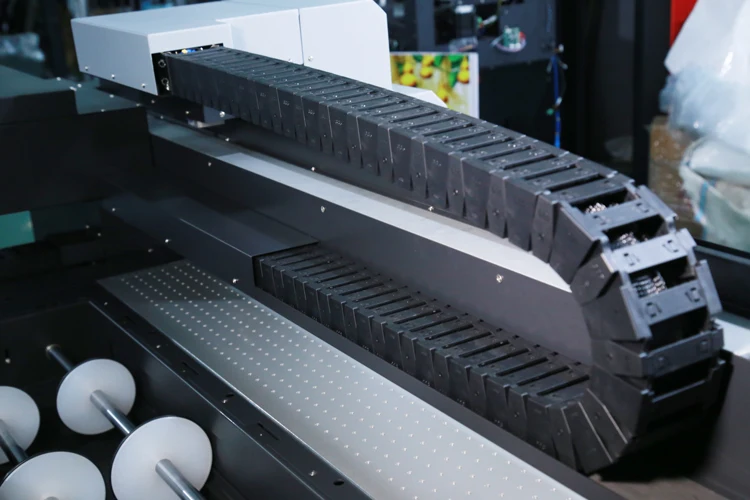

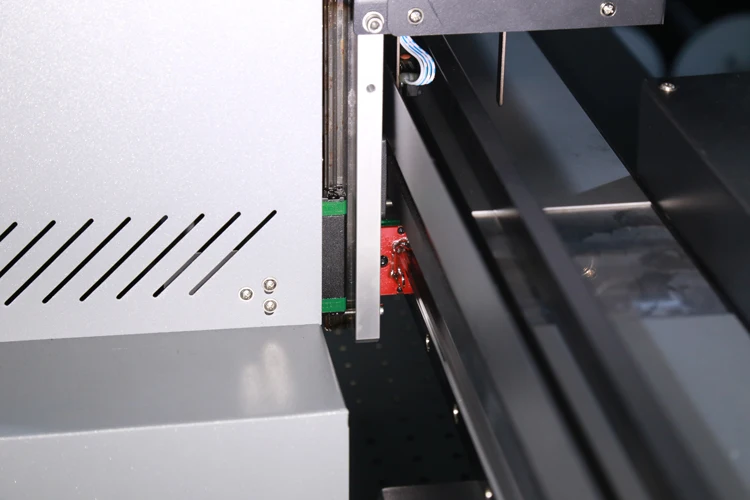

4. Metal trolley slider, low noise, ensuring the smooth running of the carriage.
Rotary printing device for mug and bottle
8. The rotary printing device driven by the motor realizes accurate printing; it is directly installed inside the machine, does not take up space, ready to print as soon as it opens; it can be printed flat without covering the cover.
RB-10075 UV Flatbed Printer equipped with firm ball screw
9. The carriage lifting replaces the platform lifting, the printing process is more stable, avoiding the platform shaking when printing; the rail system uses the ball screw , which is high-mute, accurate and long-lived.
10. Waste ink switch to prevent the waste ink from flowing back when the machine is not in use.
11. The water cooling circulation system ensures that the LED lamp maintains a constant temperature, and extends the LED lamp lifetime to 50,000 hours while avoiding high-temperature blocking of the nozzle.
