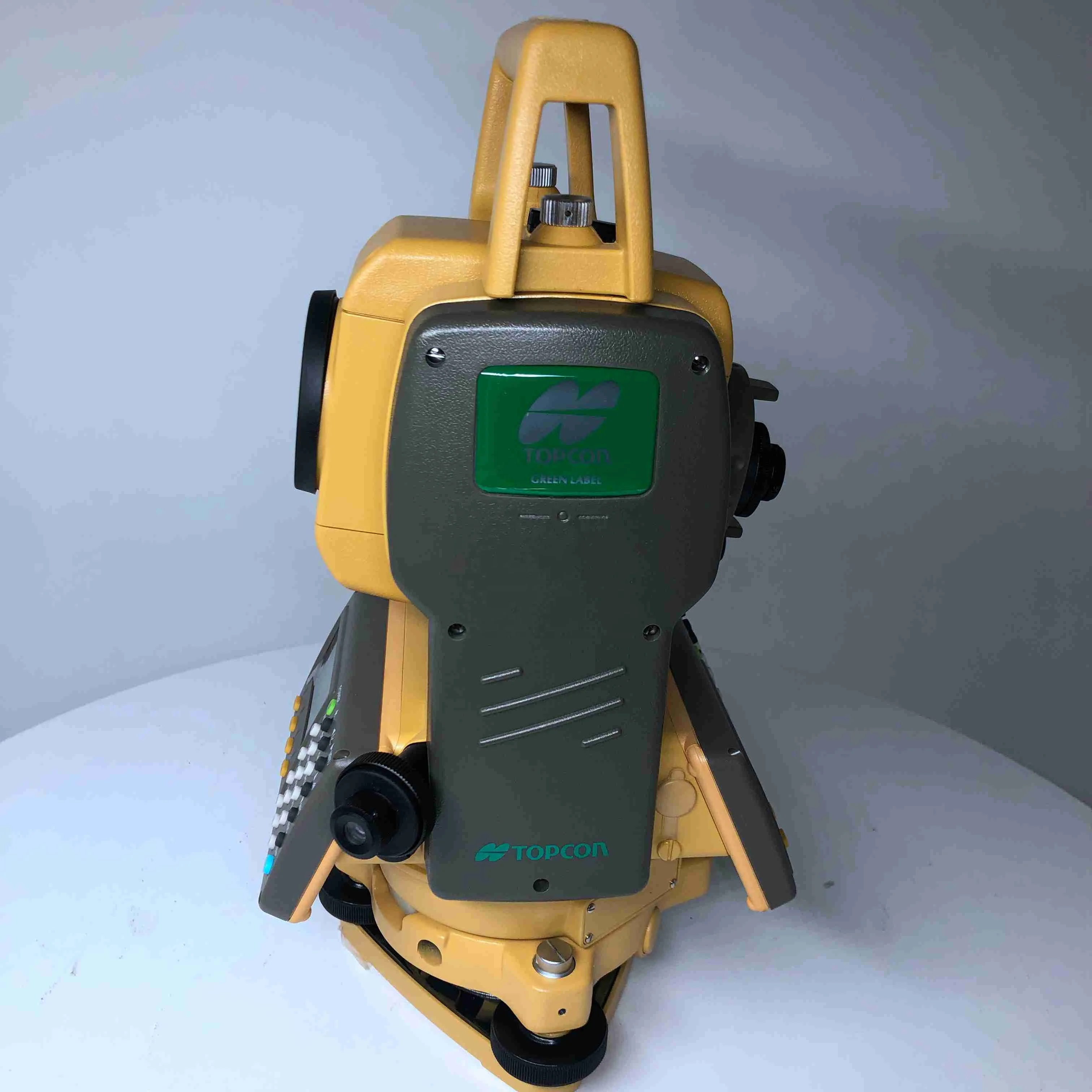

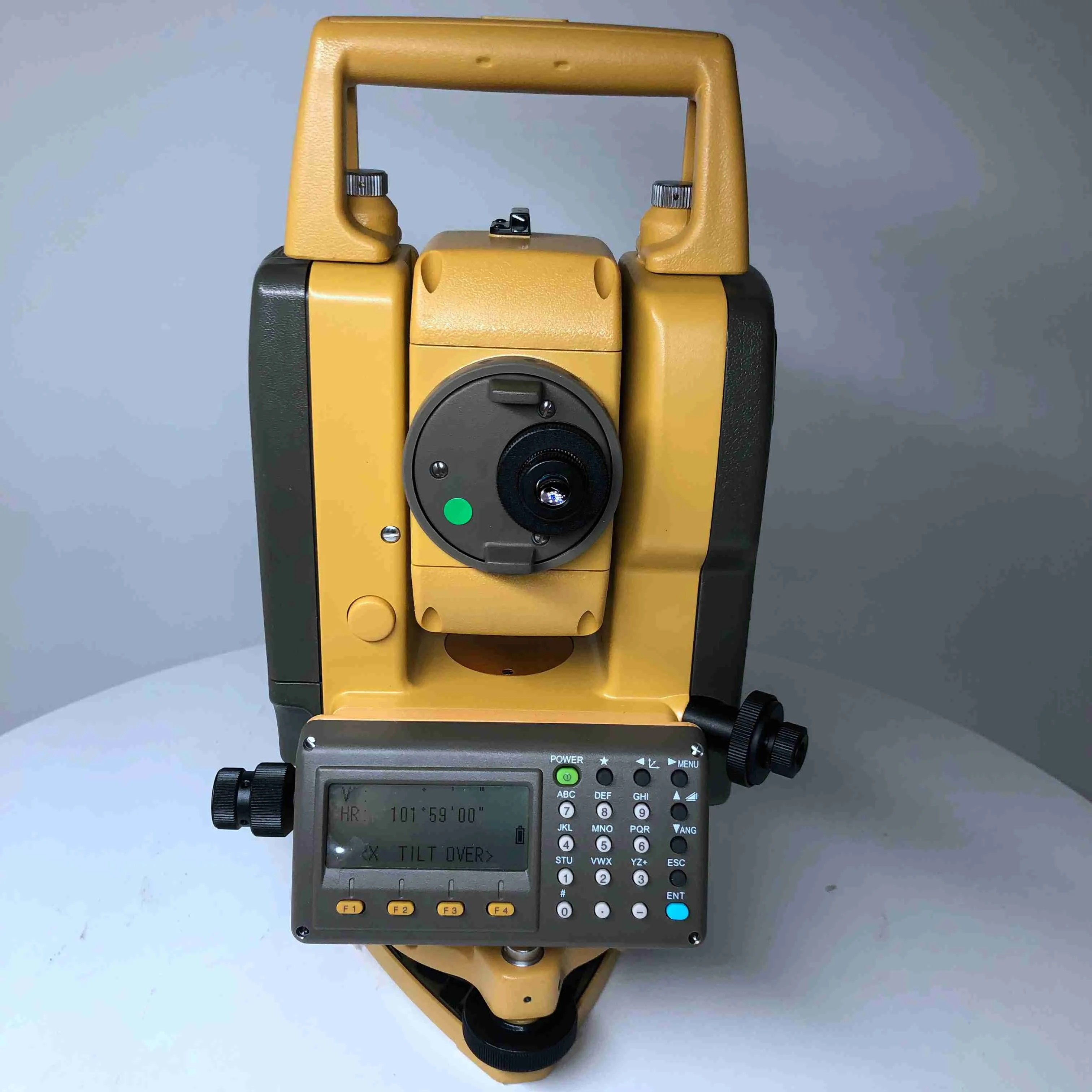

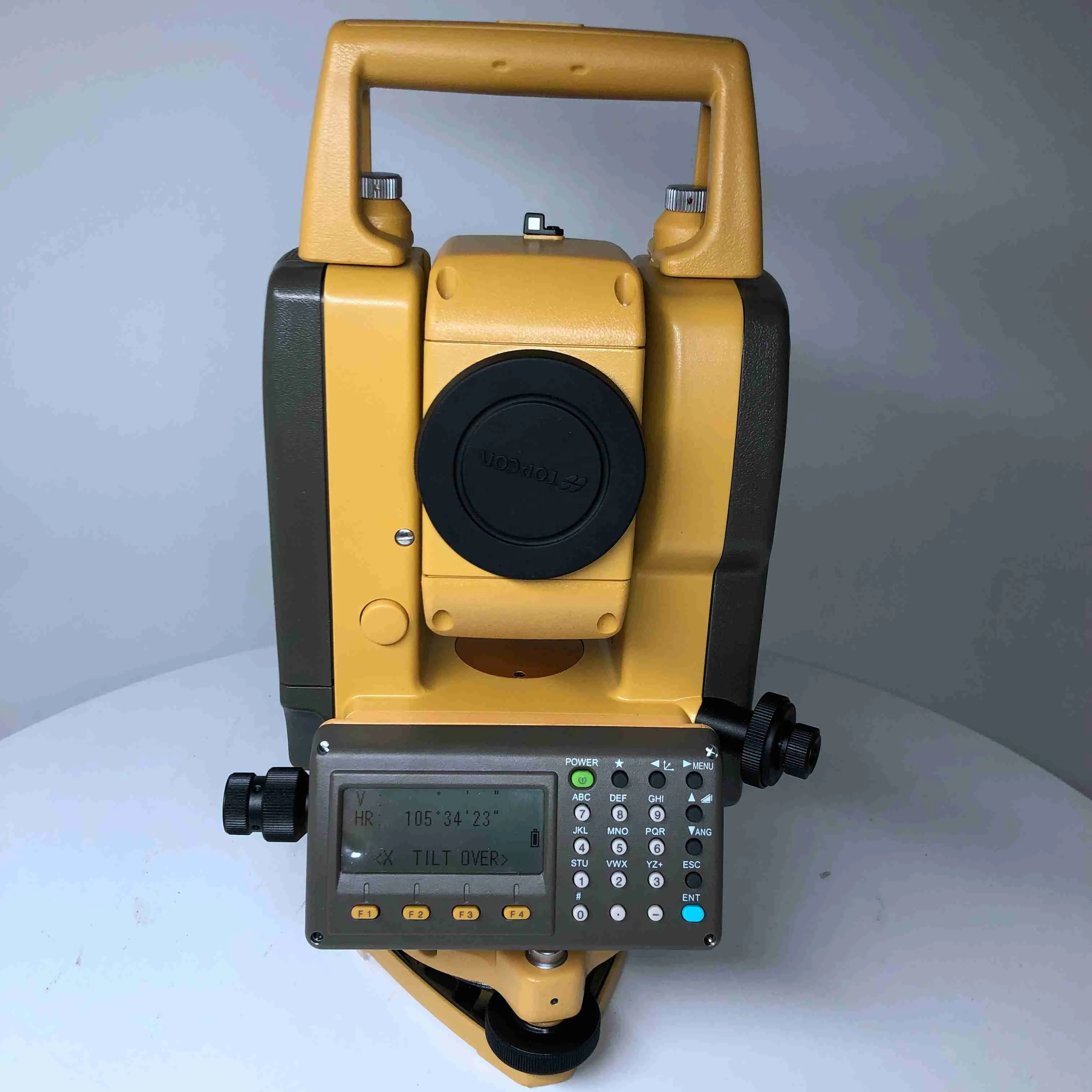

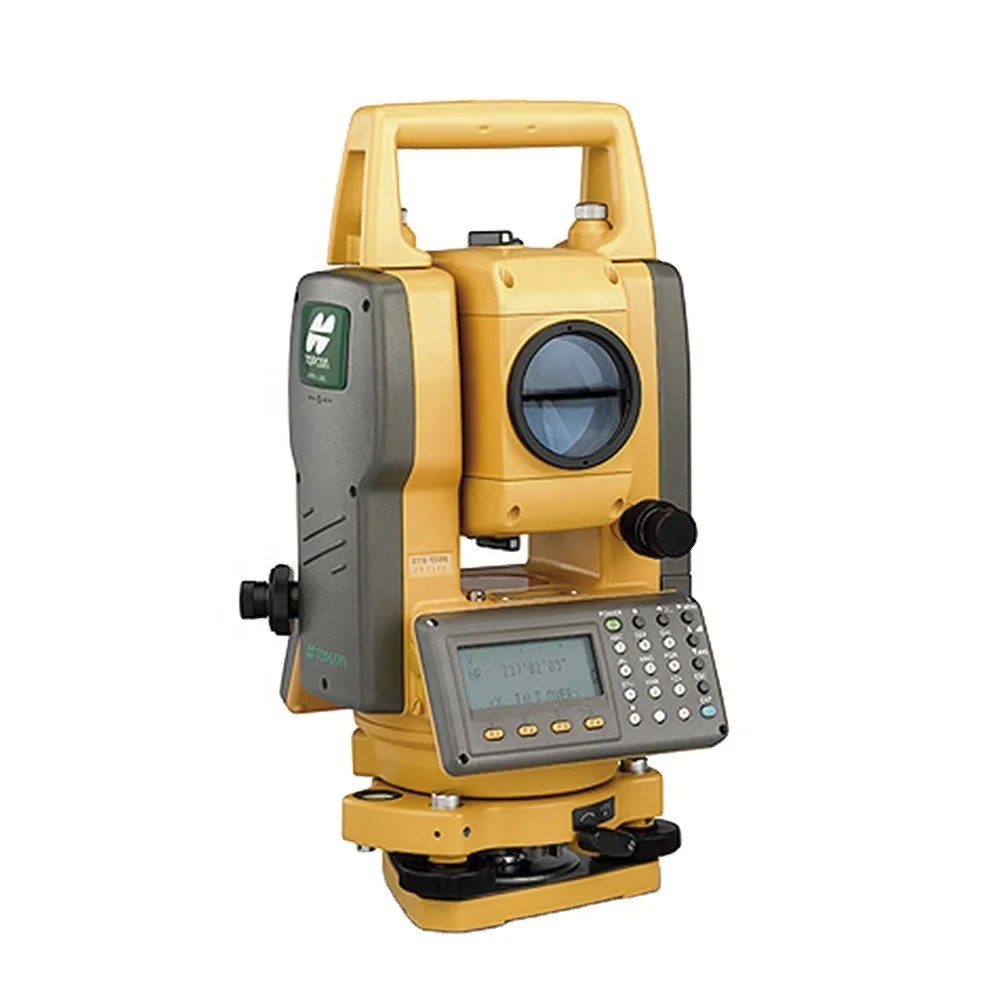

new topcon japan GTS102N GTS105N types of estacion total station Reflectorless price
- Category: >>>
- Supplier: Suzhou Super Gis Technology Co. Ltd.
Share on (1600189459342):
Product Overview
Description
Product Description
Onboard Software
The GTS-100N Series come with onboard software as standard. Powerful and func-tional enough to enable setting
The GTS-100N Series come with onboard software as standard. Powerful and func-tional enough to enable setting
out and surveying for all of your site tasks. Internal memory storage capacity of up to 24.000 points!

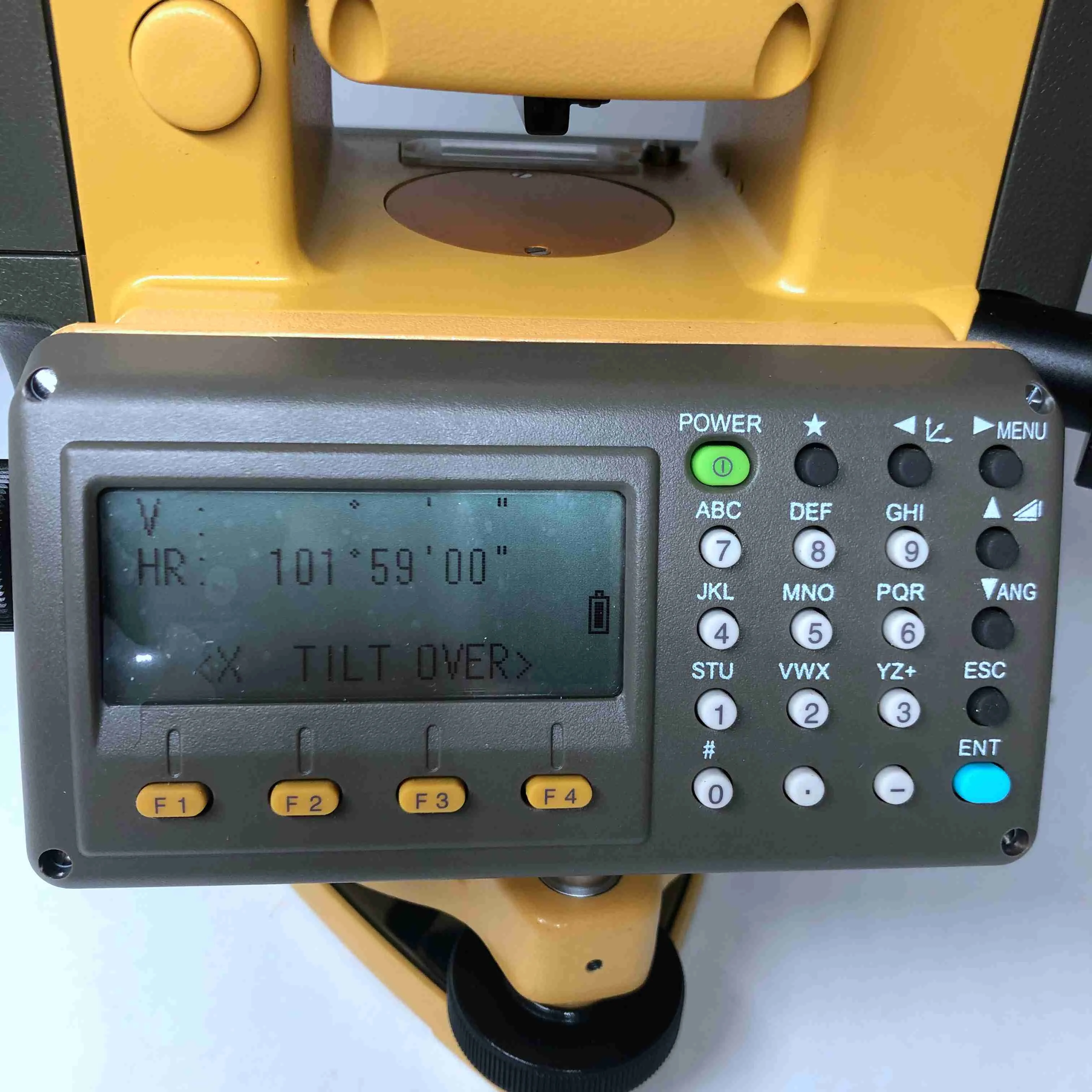

Expanded full numeric keypad
The GTS-100N provides an expanded numeric keypad for simple and assured input of points and layout information,
including calculations. Backlit LCD and user definable display parameters in-cluded as standard.
Jobsite tough
The GTS-100N provides Topcon's exact-ing standards for accuracy and advanced technology in a light, compact
The GTS-100N provides Topcon's exact-ing standards for accuracy and advanced technology in a light, compact
package that is built specifically for the rigors of an active jobsite. With environment proof-ing to IP54, it's ready to
work when you need it and not only when environmental conditions are perfect!
Compatible with Topcon Field Controllers FC-250
Topcon’s latest 806MHz Intel Xscale processor, Windows CE Mobile 6.5 based,
Bluetooth wireless technology Field Controller — 1GB storage memory — 806MHz Intel XScale Processor — SD and
Bluetooth wireless technology Field Controller — 1GB storage memory — 806MHz Intel XScale Processor — SD and
CF card slots — USB type A and B — Internal Bluetooth® technology — Removable, Rechargeable Lithium-Ion
camcorder battery — Integrated 802.11b/g WiFi connectivity
Specification
GTS-102N | GTS-105N | |||||||||||||
TELESCOPE | ||||||||||||||
Accuracy | 0.6 mgon/ 2” | 1.5 mgon/ 5” | ||||||||||||
Min. reading | 0.2 mgon/ 1” | 0.2 mgon/ 1” | ||||||||||||
Length | 150 mm | |||||||||||||
Objective lens diameter | 45 mm (EDM: 50 mm) | |||||||||||||
Magnification | 30x | |||||||||||||
Resolving power | 3’’ | |||||||||||||
Minimum focusing distance | 1.3 m | |||||||||||||
DISTANCE MEASUREMENT | ||||||||||||||
1 prism / 3 prism | 2.000 m / 2.700 m | |||||||||||||
Accuracy | ±(2 mm + 2 ppm x D) m.s.e. | |||||||||||||
Measuring time Fine mode Coarse mode / Tracking mode | 1 mm : 1.2 sec (Initial 4 sec), 0.2 mm : 2.8 sec (Initial 5 sec) 0.7 sec. (Initial 3 sec) / 0.4 sec. (Initial 3 sec) | |||||||||||||
TILT CORRECTION | ||||||||||||||
Tilt sensor | Single axis | |||||||||||||
Method | Liquid type | |||||||||||||
Compensating range | ±3’ | |||||||||||||
Correction unit | 1’’ | |||||||||||||
DISPLAY | ||||||||||||||
Display Unit / Keyboard | 2 side, Dot Matrix LCD (160 x 64 dot) / 24 keys | |||||||||||||
BATTERY LIFE | ||||||||||||||
Angle & distance measurement | 9 hours / 40 hours (Angle measurement only) | |||||||||||||
OTHERS | ||||||||||||||
Connectivity | RS232 Serial Connection | |||||||||||||
Environmental Protection | IP54 | |||||||||||||
Internal Data memory | 24,000 pts | |||||||||||||
Ambient temperature range | –20°C to +50°C (–4°F to +122°F) | |||||||||||||
Plummet | Optical Only | |||||||||||||
