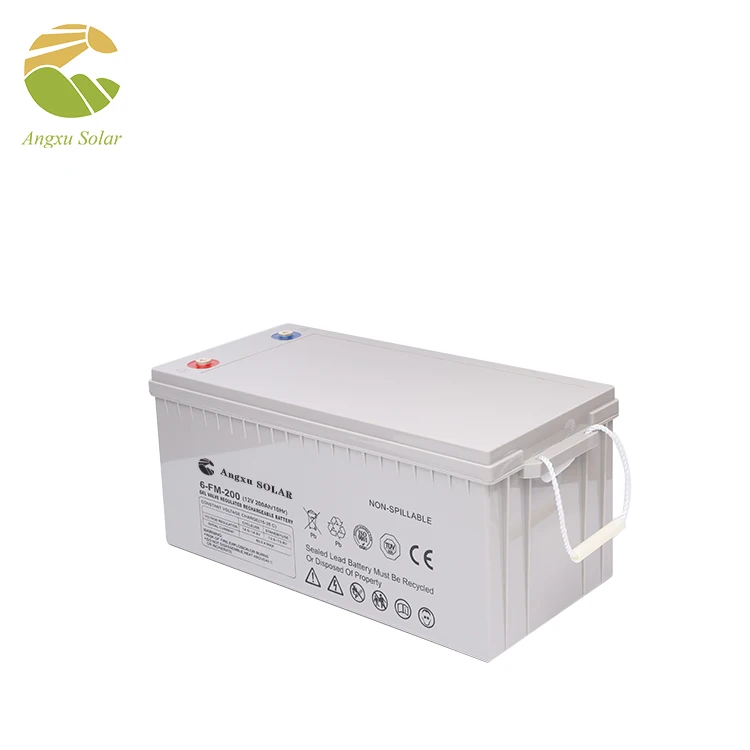

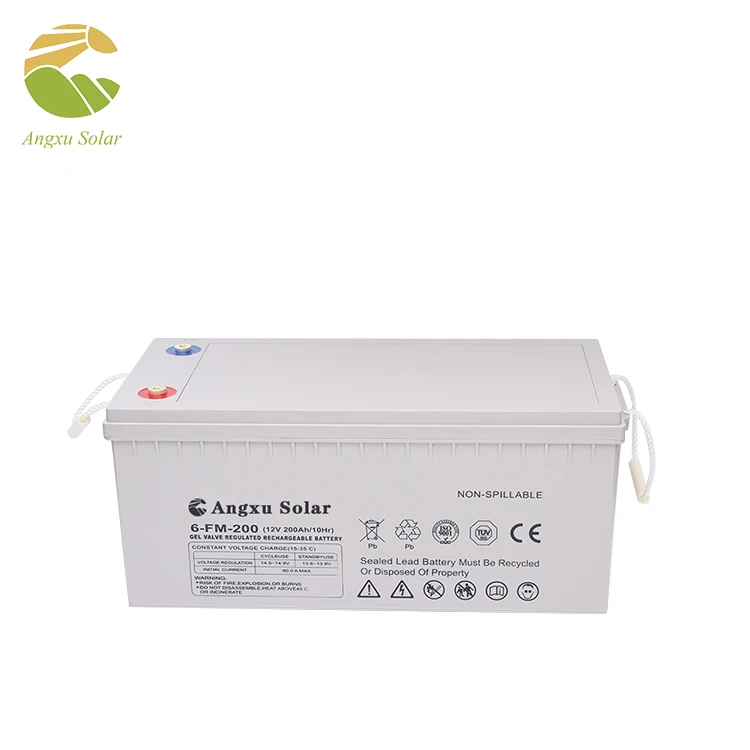

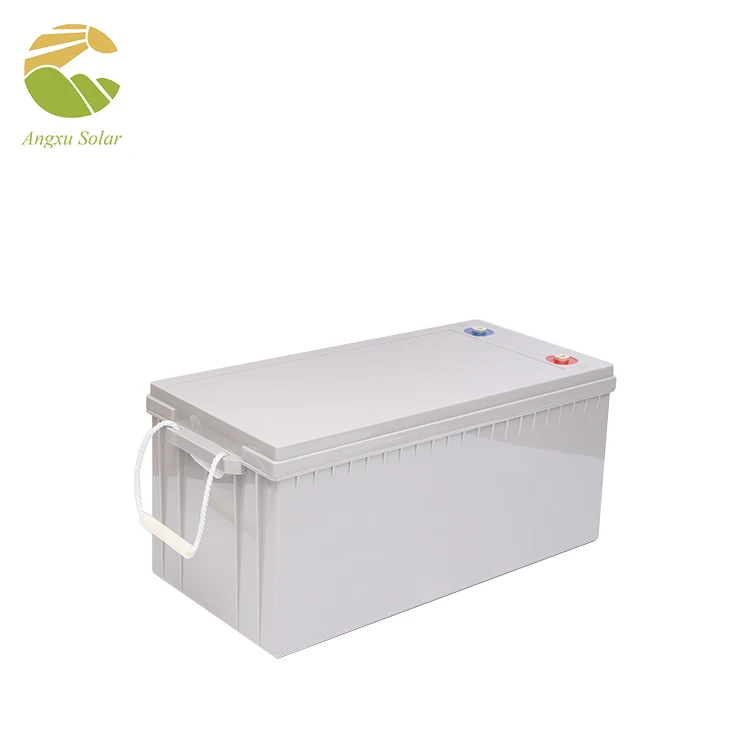

12v 150ah 200ah 250ah Lead Acid Batteries Lead Acid AGM/GEL Solar Kit Batteries
- Category: >>>
- Supplier: Hefei Angxu Solar Energy Tech. Co. Ltd.
Share on (1600189527770):
Product Overview
Description
Specification
Key Features
♦ High corrosion resistant performance: Pb-Ca multi-alloy grid
♦ High energy density and power density
♦ Optimized capability of instant high-current discharging
♦ Excellent charge acceptance ability
♦ Excellent deep cycle discharge capability,Maintenance-Free
♦ Strong high and low temperature performance
♦ Precision sealing technology
♦ Long life span
Applications
♦ UPS/EPS
♦ Power systems
♦ Telecommunications system
♦ Emergency lighting、Autocontrol system
♦ Solar/wind generating storage cyclic
♦ Other general purpose
Nominal Voltage | 12v | ||||||
Nominal Capacity | 250Ah | ||||||
Design life | 10 years | ||||||
Terminal | M8 | ||||||
Approx. Weight | Approx68.0kg (150lbs) | ||||||
Container Material | ABS | ||||||
Rated Capacity | 250Ah 10HR (25.0A to 10.8V) 201Ah 3HR (67.1A to 10.8V) 164Ah 1HR (164A to 10.5V) | ||||||
Internal resistance | Full charged at 25°C: 2.8 mΩ | ||||||
Max. Discharge Current | 3000A(5S) | ||||||
Discharge: -20 ~50℃(-4~ 122°F) Charge : -20 ~50℃(-4~ 122°F) Storage: -20 ~50℃(-4~ 122°F) | |||||||
Charge Method (25 °C) | Charge current: Max. 62.5A; Recom.25.0A Float charge:13.5-13.8V, Recom.13.5V(-18mV/ °C) Equalize charge:13.8-14.1V, Recom.14.1V(-24mV/ °C) Cycle charge:14.4-15.0V, Recom.14.4V(-30mV/ °C) | ||||||
Self discharge | 3%/month at 25°C | ||||||
Our Factory

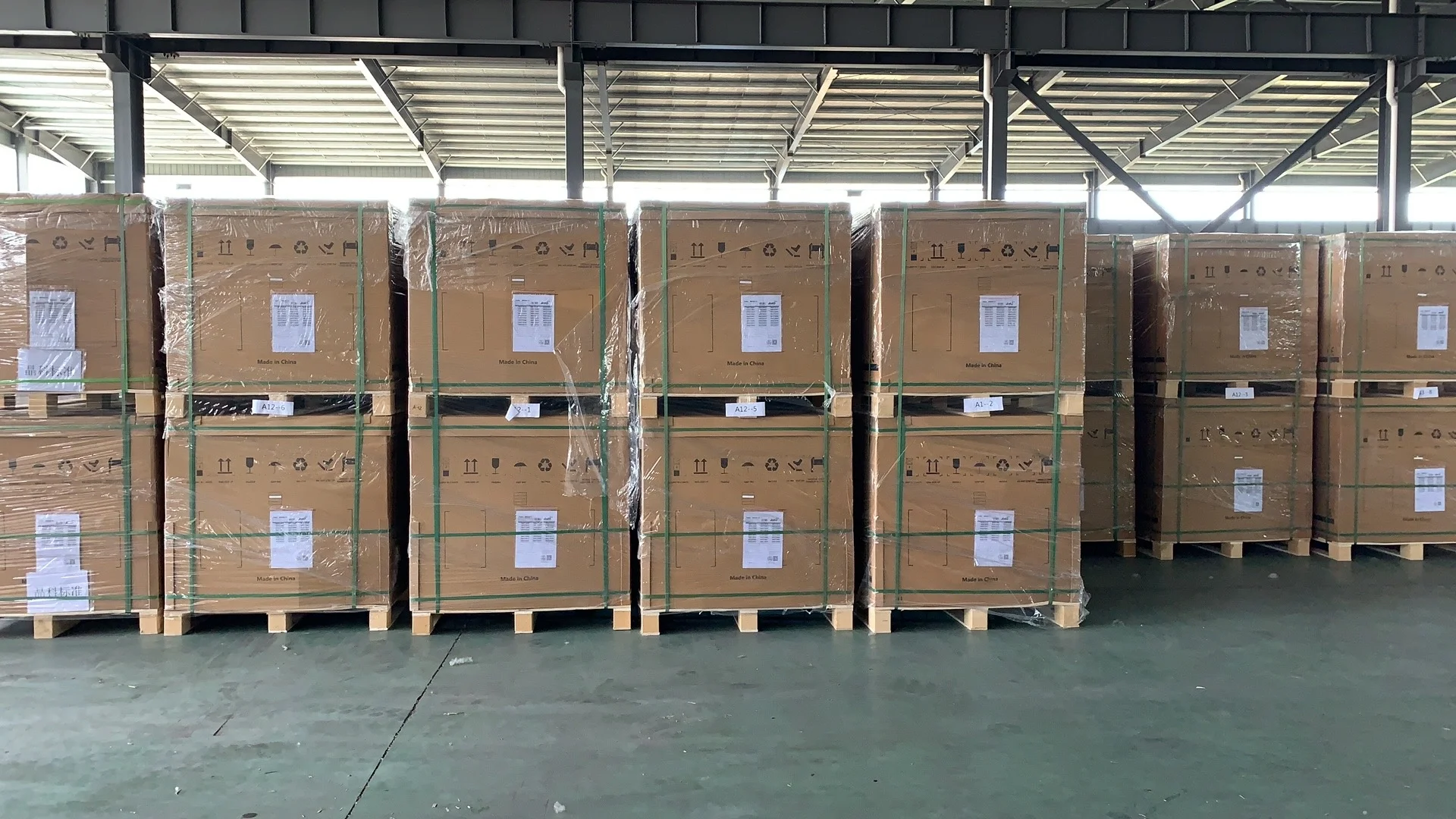

Packing&Shipping
By sea
Delivered from Shanghai/Ningbo seaport and so on
By express
Delivered by TNT,UPS,DHL
By air
Delivered from Shanghai Pudong Airport
Certificates
CE
ISO9001
Safety certificate
MSDS
Rohs
