Industrial Bio Fermentor / Fermenter/Industrial Stainless Steel Fermentation Tank

Product Overview

Description

Automatic stainless steel bioreactor/fermenter

Introduction

Rotech has been engaged in the research, development, design and manufacture of bioreactors for more than 20 years.which is engaged in R&D, design, manufacturing, installation, commissioning and technical services of various microorganisms, plant cells and animal cell reactors (fermenters); providing customers with turnkey projects like fermentative biological projects that meet GMP requirements.

Application: human vaccines, veterinary vaccines, monoclonal antibodies, recombinant proteins, cell therapy, new drug development and production, etc.

Fermenters/Reactor specifications: 5L----6000L.



Main description

Stainless steel fermentation tank use for test project of yeast, enzymes, microorganisms such as fungi and bacteria culture test.it is made by stainless steel. equipment exquisite, beautiful imported equipment can be rivaled.

Three major components including tank, piping and control system.

Tank is SUS316L stainless,jacket is made by SUS304. Stainless steel polished precision Ra≤0.4 inside, Ra≤0.6 outside, equipment design, manufacture in accordance with GMP standards.

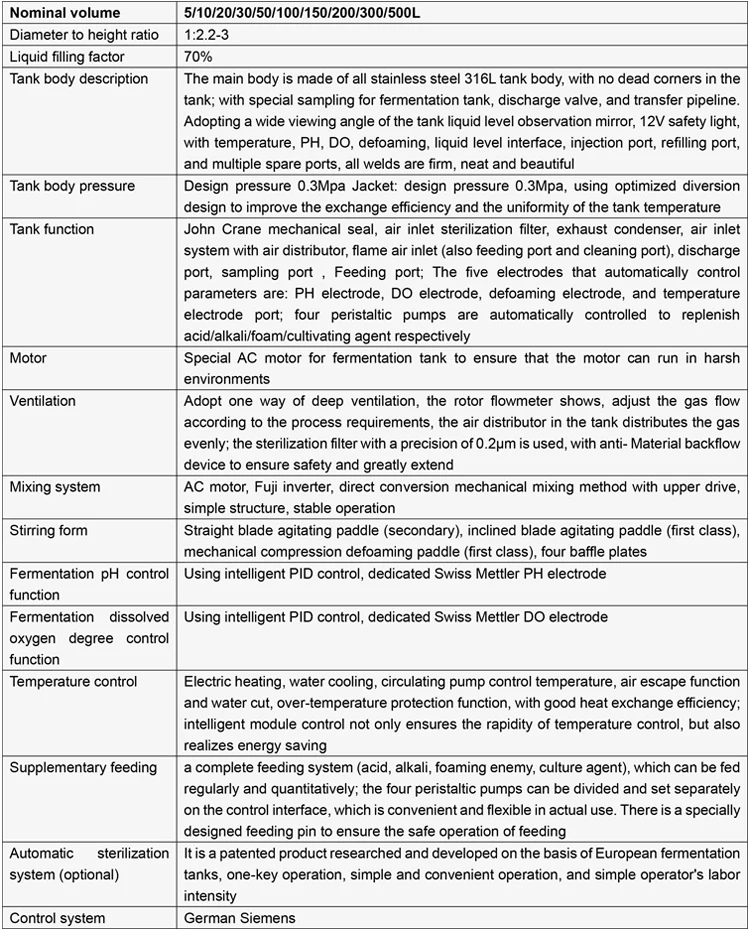

Technical parameters

Optional function

A: Tank weighing

B: Weighing with replenishing balance

C: Automatic control of air flow

D: Online detection and control of methyl alcohol content

E: Bypass pure oxygen

F: Online detection of redox potential

G: Tank pressure detection

H: Online detection of O2 and CO2 content in tail gas

I: Automatic tank cleaning function

J: Automatic sterilization function

K: Tank cover automatic lifting function
