Деревообрабатывающая Автоматическая фанера MDF PLC контроль CNC скользящая резка режущая панель пильный станок
- Category: Wood Saw Machines >>>
- Supplier: Qingdao Haozhonghao Woodworking Machinery Co. Ltd.
Share on (1600190077698):
Product Overview
Description
Product Description
Product Application
Apply to processing all kinds of density boards, shaving boards, wood-based panels, ABS panels, PVC panels, MDF board, organic glass plates and solid wood and others with wood structure and similar hardness.
Model | F45-320EA | F45-380EA |
Dimensions of sliding table | 3200*430mm | 3800*430mm |
Max sawing thickness | 90mm | 90mm |
Power of main saw spindle | 5.5kw | 5.5kw |
Rotary speed of main saw spindle | 4400/5600r/min | 4400/5600r/min |
Diameter of main saw | 350mm | 350mm |
Diameter of main saw spindle | 30mm | 30mm |
Power of grooving saw | 0.75kw | 0.75kw |
Rotary speed of grooving saw | 8500r/min | 8500r/min |
Diameter of grooving saw | 120mm | 120mm |
Diameter of grooving saw spindle | 22mm | 22mm |
Tilting saw blade | 45° | 45° |
Dimension | 3200*1100*840mmm | 3800*1100*840mmm |
Weight | 820kg | 900kg |
Detailed Images
Main Features
1 Apply to processing all kinds of density boards, shaving boards, wood-based panels, ABS panels, PVC panels, MDF board, organic
glass plates and solid wood and others with wood structure and similar hardness.
2Round steel bar sliding table is with solid double T-slot and multi-point locking system makes it more convenient
3 Made of high-strength extruded aluminum alloy; movable table is high in strength and won’t bend. Aluminum alloy material for
square tube of rotary arm
4 With oxidation treatment, movable table surface is beautiful and hardwearing
5 Saw blade is covered by big Dust Hood

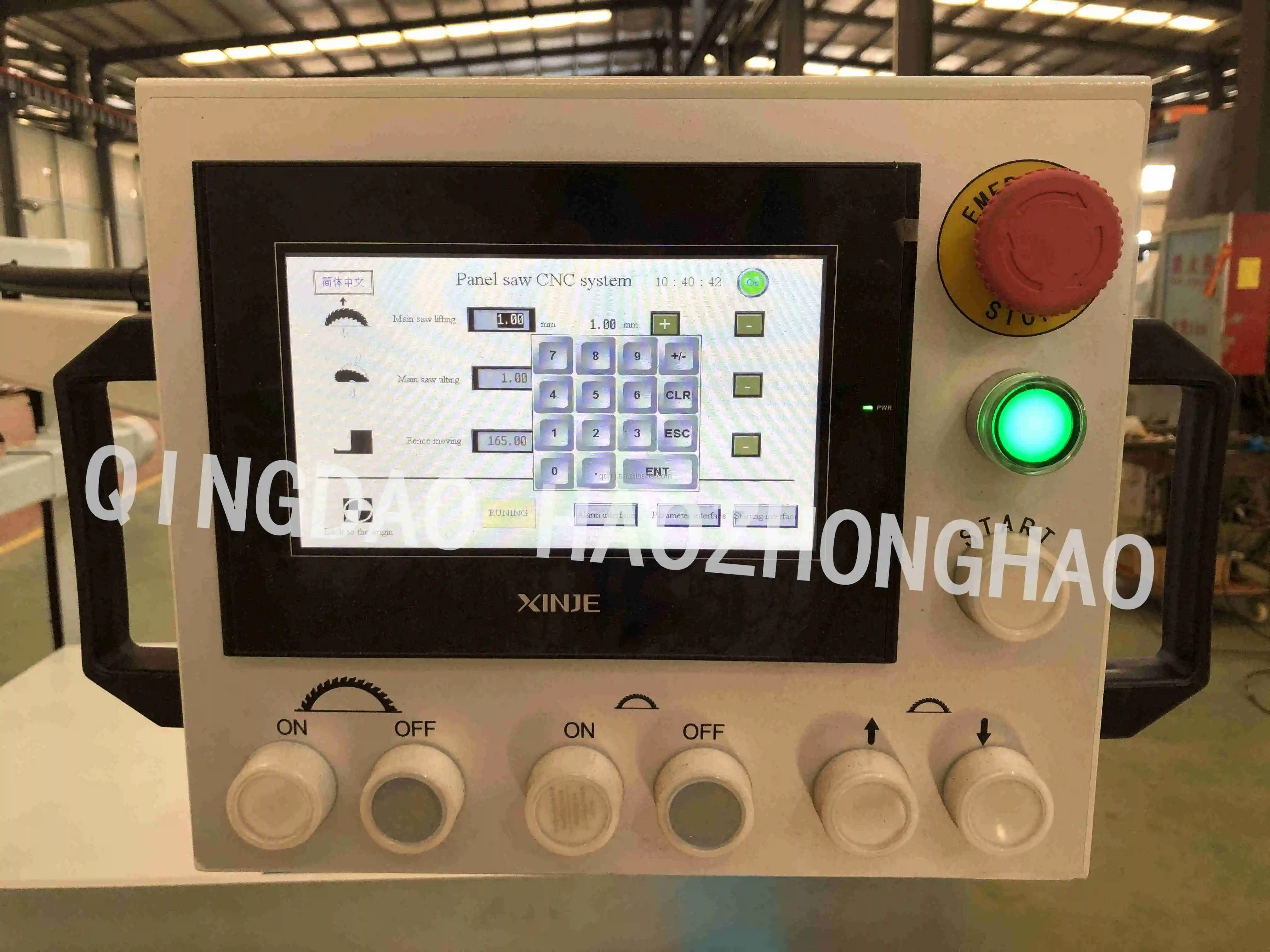

6 automatic control with touch screen for main saw blade up and down.
7 automatic control with touch screen for saw blade tilt.
8 automatic control with touch screen for rip fence
glass plates and solid wood and others with wood structure and similar hardness.
2Round steel bar sliding table is with solid double T-slot and multi-point locking system makes it more convenient
3 Made of high-strength extruded aluminum alloy; movable table is high in strength and won’t bend. Aluminum alloy material for
square tube of rotary arm
4 With oxidation treatment, movable table surface is beautiful and hardwearing
5 Saw blade is covered by big Dust Hood
6 automatic control with touch screen for main saw blade up and down.
7 automatic control with touch screen for saw blade tilt.
8 automatic control with touch screen for rip fence

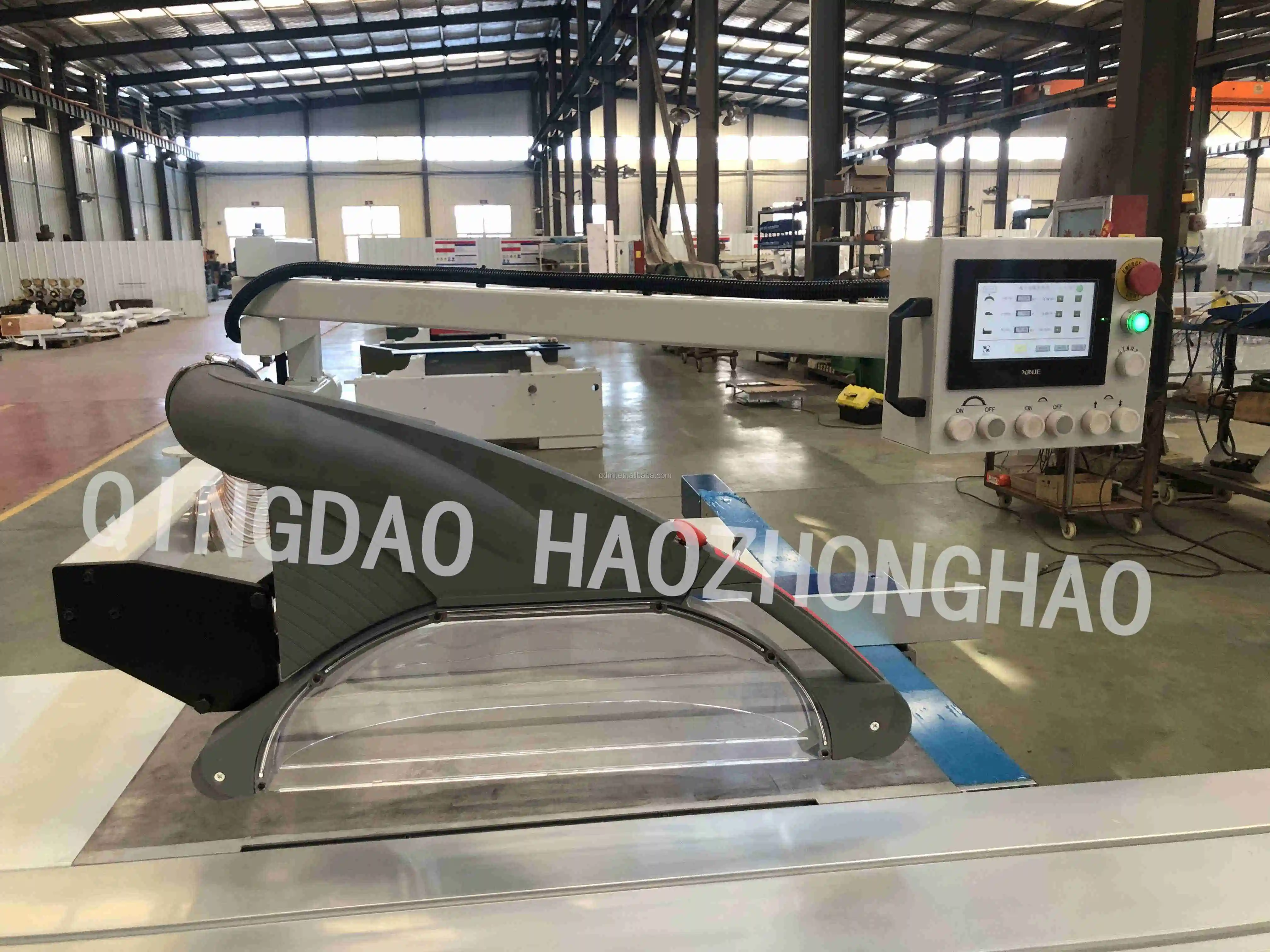

Big dust hood

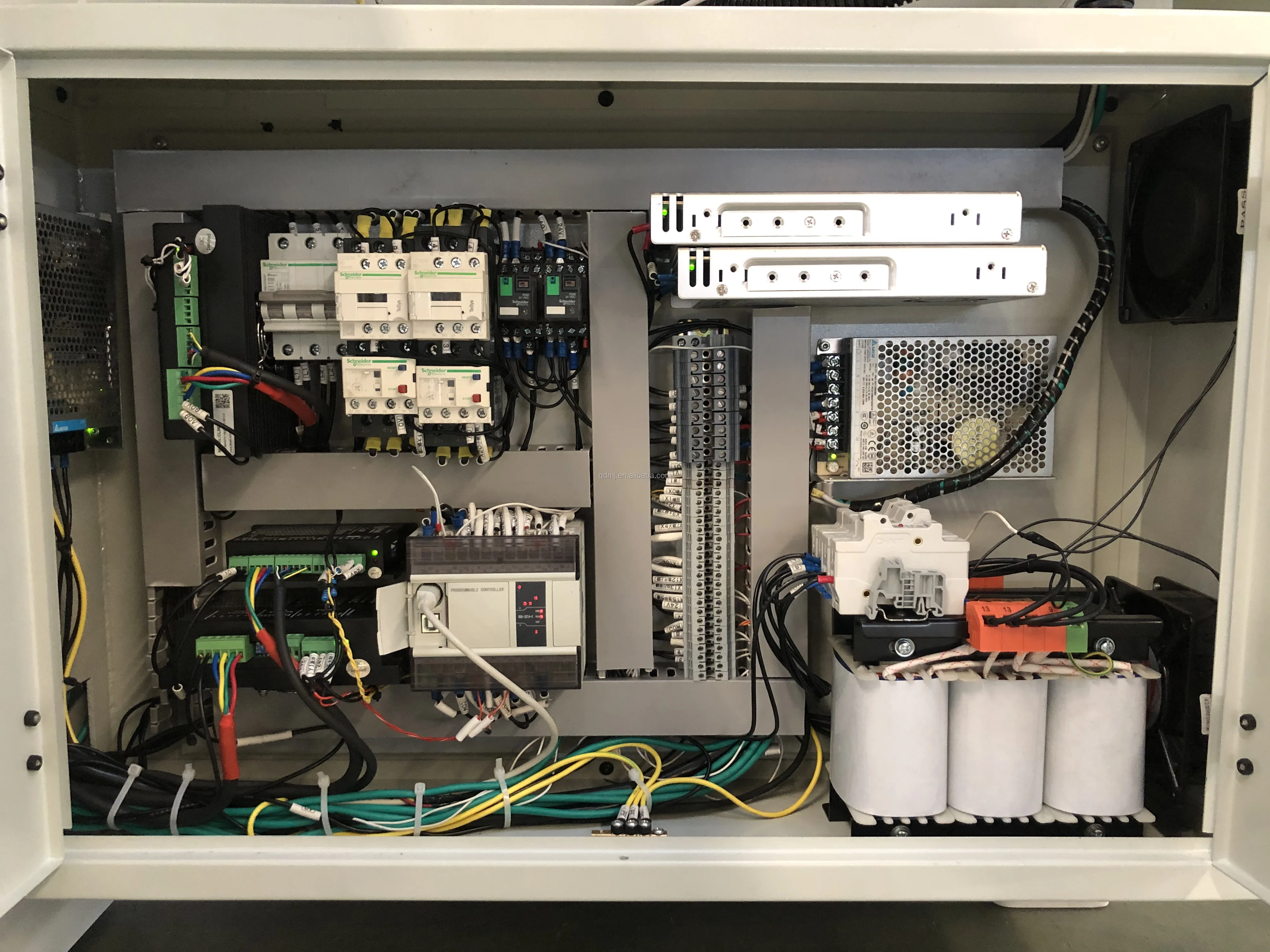

Electrical control box with frequency device

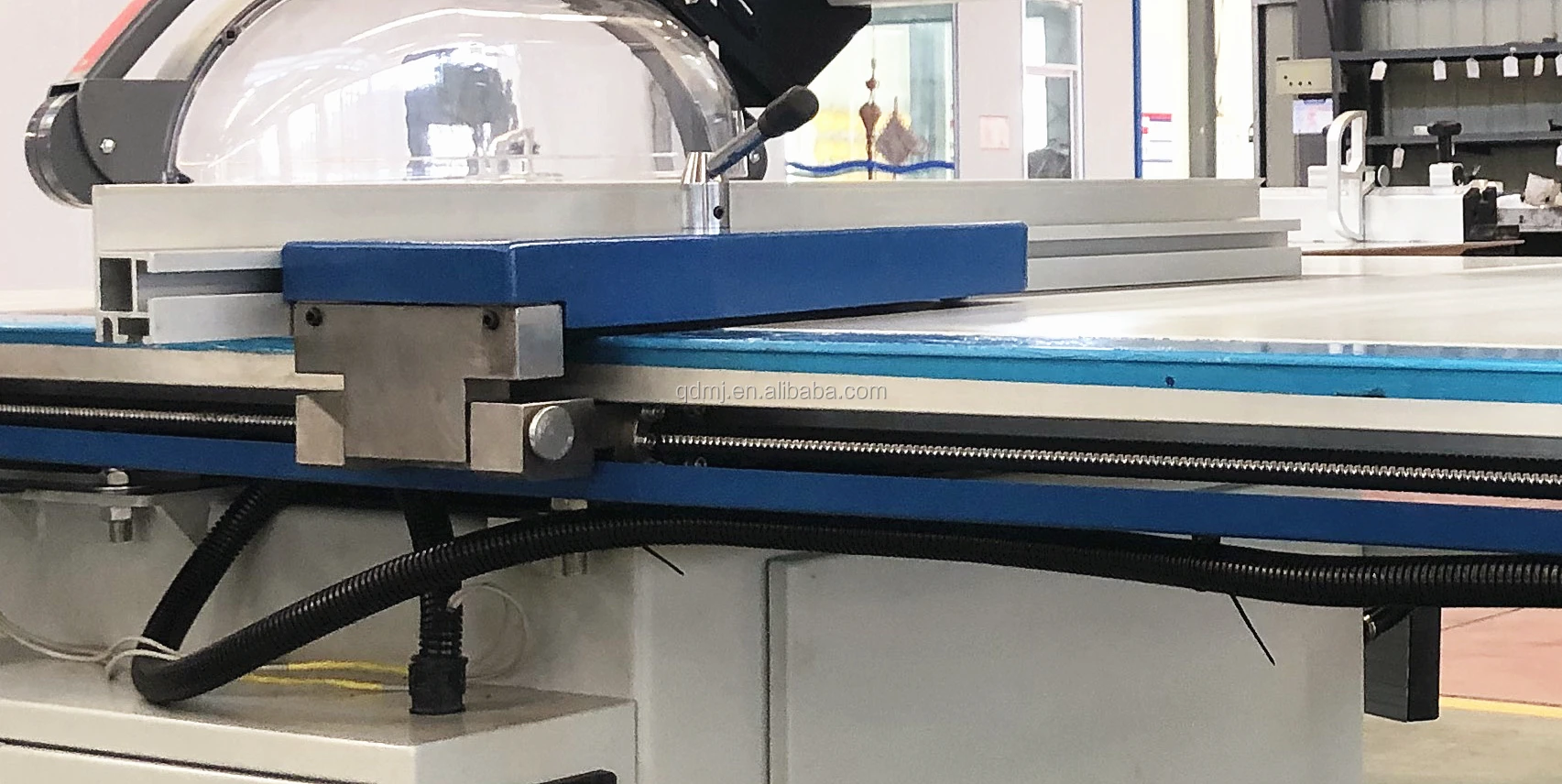

servo motor control rip fence

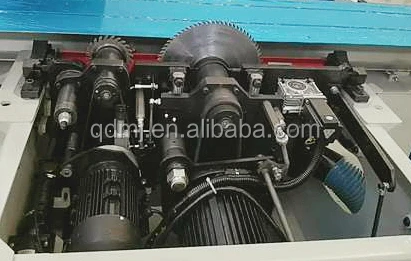

Internal structure:the whole finished assembly spondle is adopted dynamic balance processing.The case reinforce iron parts provide as powerful guarantee for the quiet operation
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery

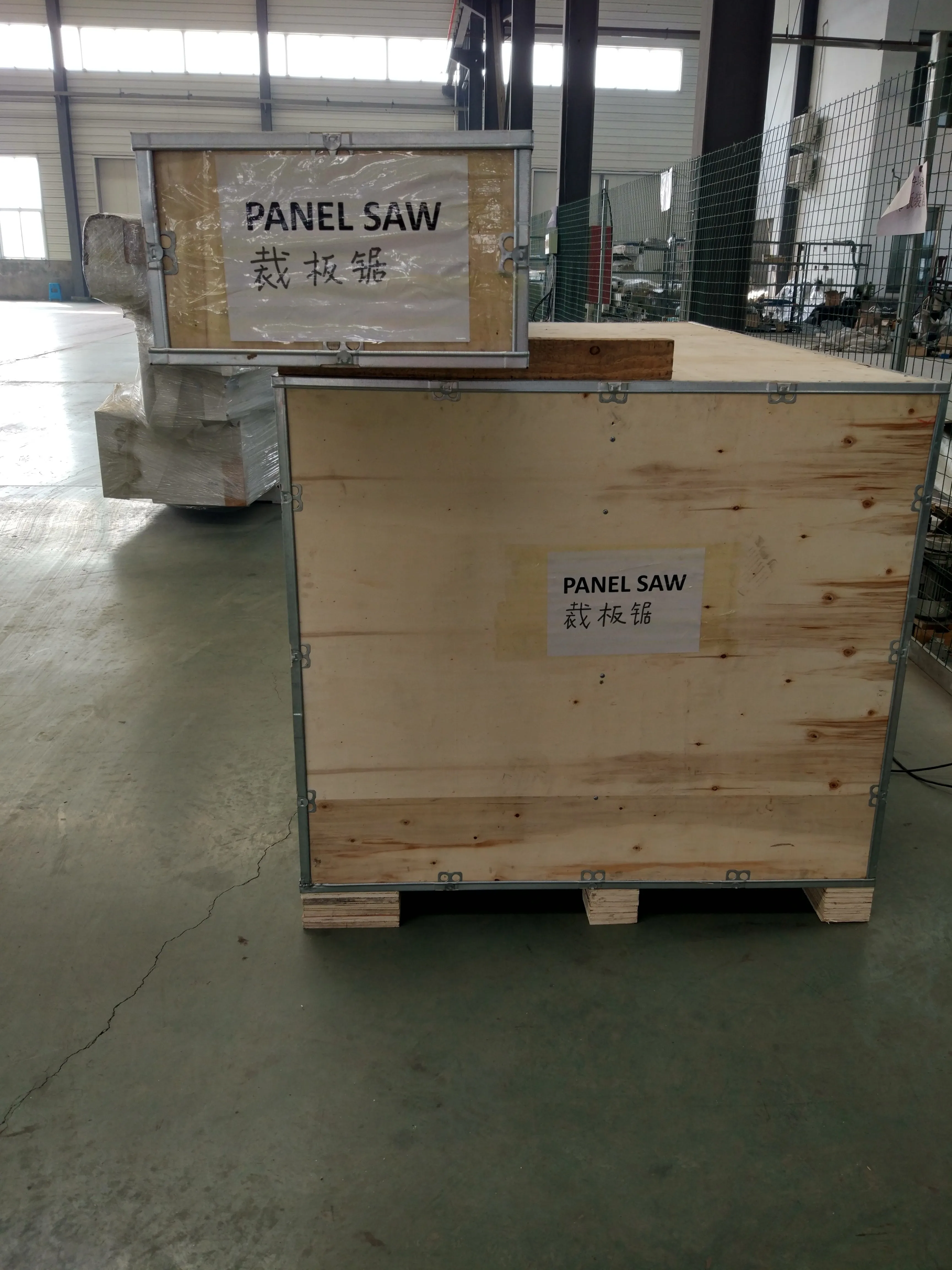

Wooden box package, one is sliding table and one is machine body
Related Products
Company Profile
FAQ
What is the Warranty of machine?
What is the working table length of panel saw?
Usually is 1600-3800mm. Also It is changeable according to clients requests.
Why choose HAOZHONGHAO?
1,Professional: We have more than ten years experiences in exporting high quality woodworking machinery, especially Sanding Machine, Panel Saw, Veneer Slicer and Grinder.
2,Excellent: Established in 1958, ISO9001 certificated, CE certificate
3,Economial: We offer the good price with great quality because we do high-volume production manufacturer.
4 Location: One hour reach Qingdao sea port
