High Efficiency automatic sugar tablet coating machine

Product Overview

Description

BG Automatic tablet film coating machine

The BG coating machine is ideal for organic, water-soluble film and sugar coating of tablets, pills and sweets in the pharmaceutical and food stuff industries.

Scope of application

This machine is widely used in the fields of pharmacy, food, biological products, etc. It can package various organic films, water-soluble films and sugar coatings for various tablets, pills, candies, etc. (in terms of drugs, it can achieve slow and controlled release effects). The whole machine has the advantages of beautiful appearance, high efficiency, low energy consumption and small occupation.

The coating process has no dust scattering and no slurry splashing, which improves the working environment and reduces cross-contamination of tablets; the tablet coating process is simple, which greatly shortens the coating time and improves production efficiency.



Basic working principle:

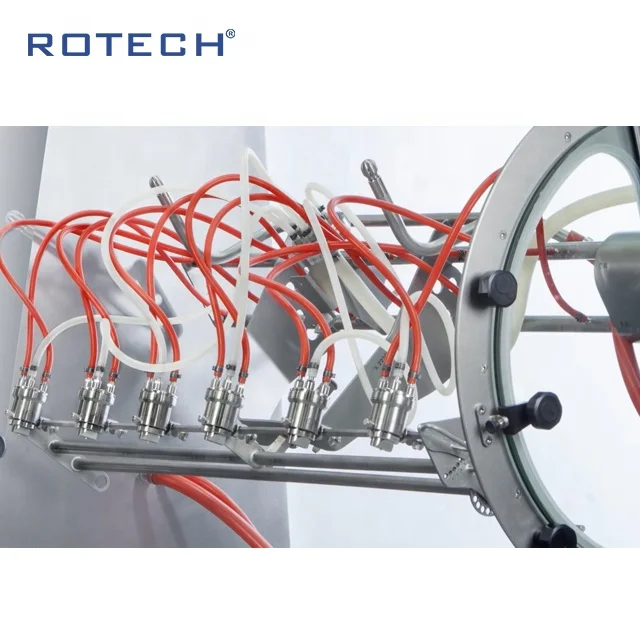

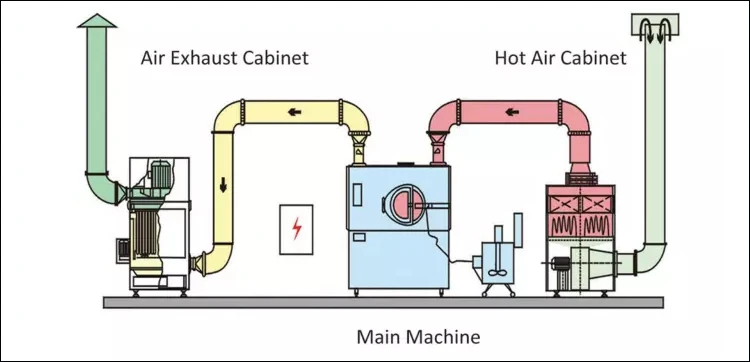

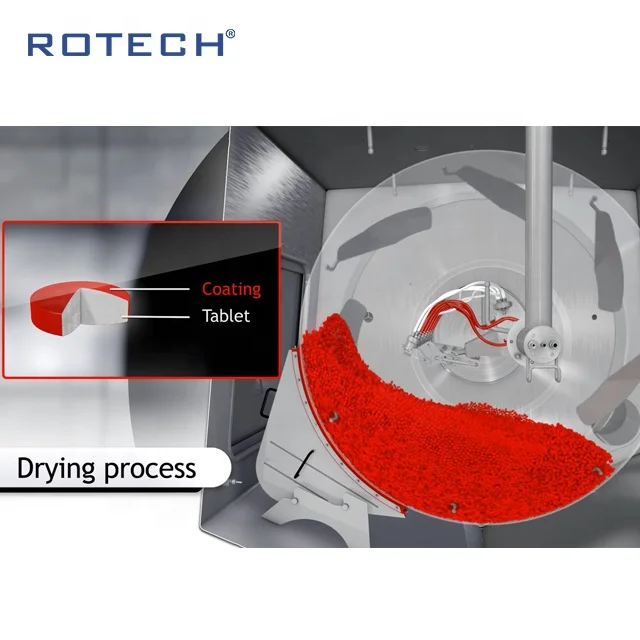

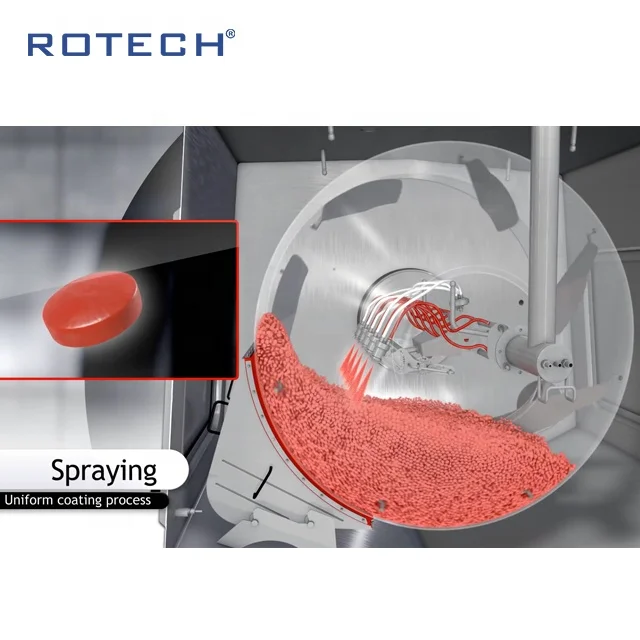

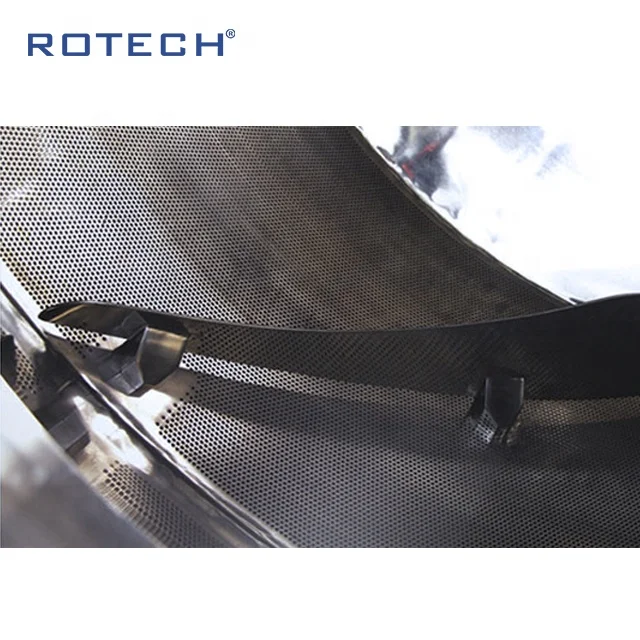

The tablet core is in the clean and airtight rotating drum of the coating machine, constantly making complex trajectories, turning smoothly, and frequently exchanges. The coating medium stirred by the constant temperature mixing barrel is sprayed from the spray gun to the tablet core through the action of the peristaltic pump. At the same time, under the action of hot air and negative pressure, the 100,000-grade clean hot air supplied by the hot air cabinet passes through the tablet core, passes through the bottom sieve, and is discharged from the air door, so that the coating medium is quickly dried on the surface of the tablet core to form a firm and dense , Smooth surface film, the whole process is automatically completed under PLC control.

Technical parameters

							Model	BG600E	BG400E	BG150E	BG80E	BG40E	BG10E	BG20H	BG5H
							Load capacity (L)	600L	400L	150L	80L	40L	10L	20L	5L
							Rotating speed of coating pan(RPM)	1-12	1-13	1-16	1-19	1-21	1-25	1-25	1-30
							Power of main machine (Kw)	5.5	3	2.2	1.5	1.1	0.55	0.75	0.37
							Diameter of coating pan(mm)	1580	1580	1200	930	750	500	680	480
							Motor of air exhaust cabinet(Kw)	11	7.5	5.5	3	2.2	0.75	2.2	1.1
							Air exhaust flow(m3/h)	15450	10000	7419	5268	3517	1285	3517	2500
							Motor power of hot air cabinet(Kw)	5.5	3	1.5	1.1	0.75	0.37	0.75	0.25
							Hot air flow(m3/h)	7419	5200	2356	1685	1285	816	1200	504
							Weight of main machine (Kg)	2800	1562	1020	684	500	200	625	750
							Clean air pressure (Mpa)	0.4	0.4	0.4	0.4	0.4	0.4	0.4	0.4
							Clean air consumption (m3/min)	2	1.5	1	0.4	0.4	0.3	0.6	0.6
							Main machine (mm)	2000*2277* 2660	2000*1670* 2660	1570*1260* 2250	1210*1000* 1900	1000*800* 1900	900*620* 1800	1050* 960* 1800	1250* 900* 1700
							Hot air cabinet(mm)	1600*1100* 2350	1000*900* 2300	900*800* 2050	900*800* 2050	900*800* 2050	800*650* 1600
							Air exhaust cabinet (mm)	1050*1000* 2470	1050*1050* 2300	950*950* 2245	900*820* 2130	820*720* 1750		650*600* 1000
