Suitable for overall far infrared radiation heat transfer germination seed starter tray with heating aluminum foil mat
Suitable for overall far infrared radiation heat transfer germination seed starter tray with heating aluminum foil mat
Suitable for overall far infrared radiation heat transfer germination seed starter tray with heating aluminum foil mat
Suitable for overall far infrared radiation heat transfer germination seed starter tray with heating aluminum foil mat
Suitable for overall far infrared radiation heat transfer germination seed starter tray with heating aluminum foil mat
Suitable for overall far infrared radiation heat transfer germination seed starter tray with heating aluminum foil mat
Suitable for overall far infrared radiation heat transfer germination seed starter tray with heating aluminum foil mat

Suitable for overall far infrared radiation heat transfer germination seed starter tray with heating aluminum foil mat

Share on (1600190417596):


Price:$11.00

Quantity:


Product Overview

Description








SUMMARY

Underfloor Heating Mat is a good heating system. It is easy to install for a variety of floor coverings, whether concrete, wood or old tile or terrazzo. It is installed with tile adhesive and has almost no effect on the ground elevation. Heating mat can also be laid directly on the original ground without the need for other treatment of the original ground. In addition, the thin,pre-heated layer gives you the desired floor temperature in 20-30 minutes after starting the system, so this fast heating system is the best choice for home. Heating mat used for overall heating, comfortable heating, wall heating, Indoor high-level demanding and the second decoration. Heating mat are divided into single-conductor electric underfloor heating mat and twin conductor electric underfloor heating mat.

INSTALLATION


Step 1
Laying the insulation board on the ground, keep the ground dry before install.
Step 2
A special reflective film is placed on the insulating board to reflect heat.

Step 3

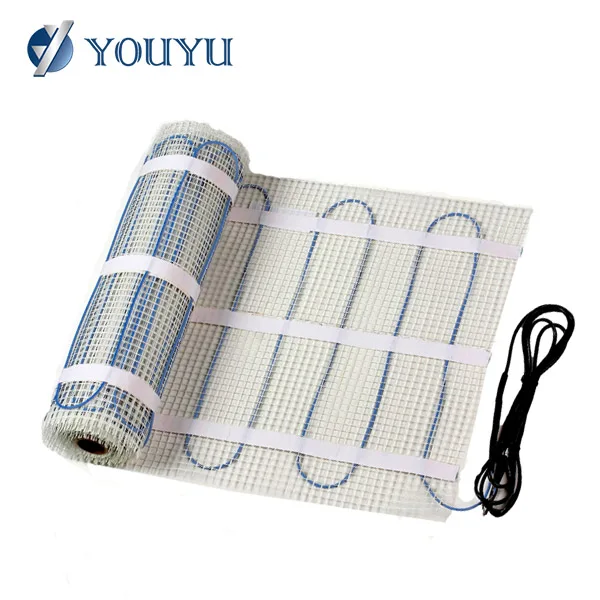

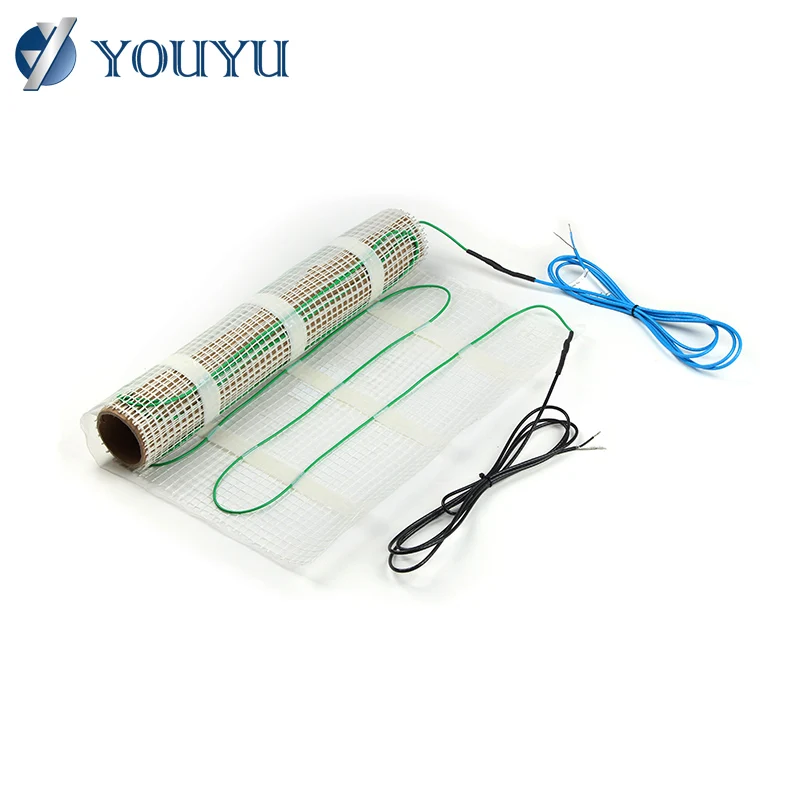

Put on the heating mat, and there is adhesive on the back of the heating mat, which can be attached to the ground material. The whole installation process is much easier and faster. The underfloor heating mat is only 3-5mm thick, and has little influence on
the height of the floor. The position such as toilet or platform basin can avoid.
Step 4
Uniformly covered with concrete materials, the thickness of the cover shall refer to the heating standards, and the construction can be carried out with professional tools.
Step 5
Install the thermostat and finally place floor or ceramic tile and other floor decoration materials.




Data Sheet of 110V Underfloor Heating Mat




Model
Mat Size
Voltage
Output Power
Cold Lead
1m2
0.5*2m
110~120V
150W
2~3m
1.5m2
0.5*3m
110~120V
225W
2~3m
2m2
0.5*4m
110~120V
300W
2~3m
2.5m2
0.5*5m
110~120V
375W
2~3m
3m2
0.5*6m
110~120V
450W
2~3m
3.5m2
0.5*7m
110~120V
525W
2~3m
4m2
0.5*8m
110~120V
600W
2~3m
4.5m2
0.5*9m
110~120V
675W
2~3m
5m2
0.5*10m
110~120V
750W
2~3m
6m2
0.5*12m
110~120V
900W
2~3m


Data Sheet of 220V Underfloor Heating Mat




Model
Mat Size
Voltage
Output Power
Cold Lead
1m2
0.5*2m
220~240V
150W
2~3m
1.5m2
0.5*3m
220~240V
225W
2~3m
2m2
0.5*4m
220~240V
300W
2~3m
2.5m2
0.5*5m
220~240V
375W
2~3m
3m2
0.5*6m
220~240V
450W
2~3m
3.5m2
0.5*7m
220~240V
525W
2~3m
4m2
0.5*8m
220~240V
600W
2~3m
4.5m2
0.5*9m
220~240V
675W
2~3m
5m2
0.5*10m
220~240V
750W
2~3m
6m2
0.5*12m
220~240V
900W
2~3m
7m2
0.5*14m
220~240V
1050W
2~3m
8m2
0.5*16m
220~240V
1200W
2~3m
9m2
0.5*18m
220~240V
1350W
2~3m
10m2
0.5*20m
220~240V
1500W
2~3m
11m2
0.5*22m
220~240V
1650W
2~3m
12m2
0.5*24m
220~240V
1800W
2~3m
















1. Are you manufacturer or trading company?
We are professional heating cable manufacturer founded in 2012, located in Wuhu city, Anhui Province, China. Welcome to visit our factory!


2. What's the Minimum Order Quantity?
There is no MOQ requirement for standard product.
And the MOQ for customized product is 10pcs.


3. What is your delivery time?
Normally within 7~15 days, The specific delivery time is determined according to the product model and quantity you ordered.


4. What's the payment term?
T/T, L/C, Western Union, Paypal, Alibaba secure payment, D/P.


5. Can you provide samples for testing before placing orders?
Yes, we can provide samples to check quality and testing its performance.


6. What is warranty of your product?
25 years free warranty for underfloor heating cable & mat.


7. Can you do OEM and ODM for us?
Yes, we can provide professional OEM and ODM services. We have an experienced R&D technical team that can provide you with standard and customized products, and can also put your logo on the heating mat.


8.If your heating cable eco-friendly?
Our heating mat is all in accordance with ROHS, you can buy and use freely.


9.Do you offer or supply room thermostat compatible to your electric underfloor heating system?
Yes, we have mechanical, LCD digital display, WIFI and other types of thermostats for your choice.


10.Which floor decoration materials are suitable for installing the underfloor heating system?
Tile, marble, wood floor, laminate, vinyl board, concrete and other floor decoration materials.


11.Does each room require its own thermostat?
We recommend that each room be equipped with a thermostat to control the temperature independently,
which will save energy and make temperature control simpler and more accurate.
