Products Description




DESCRIPTION

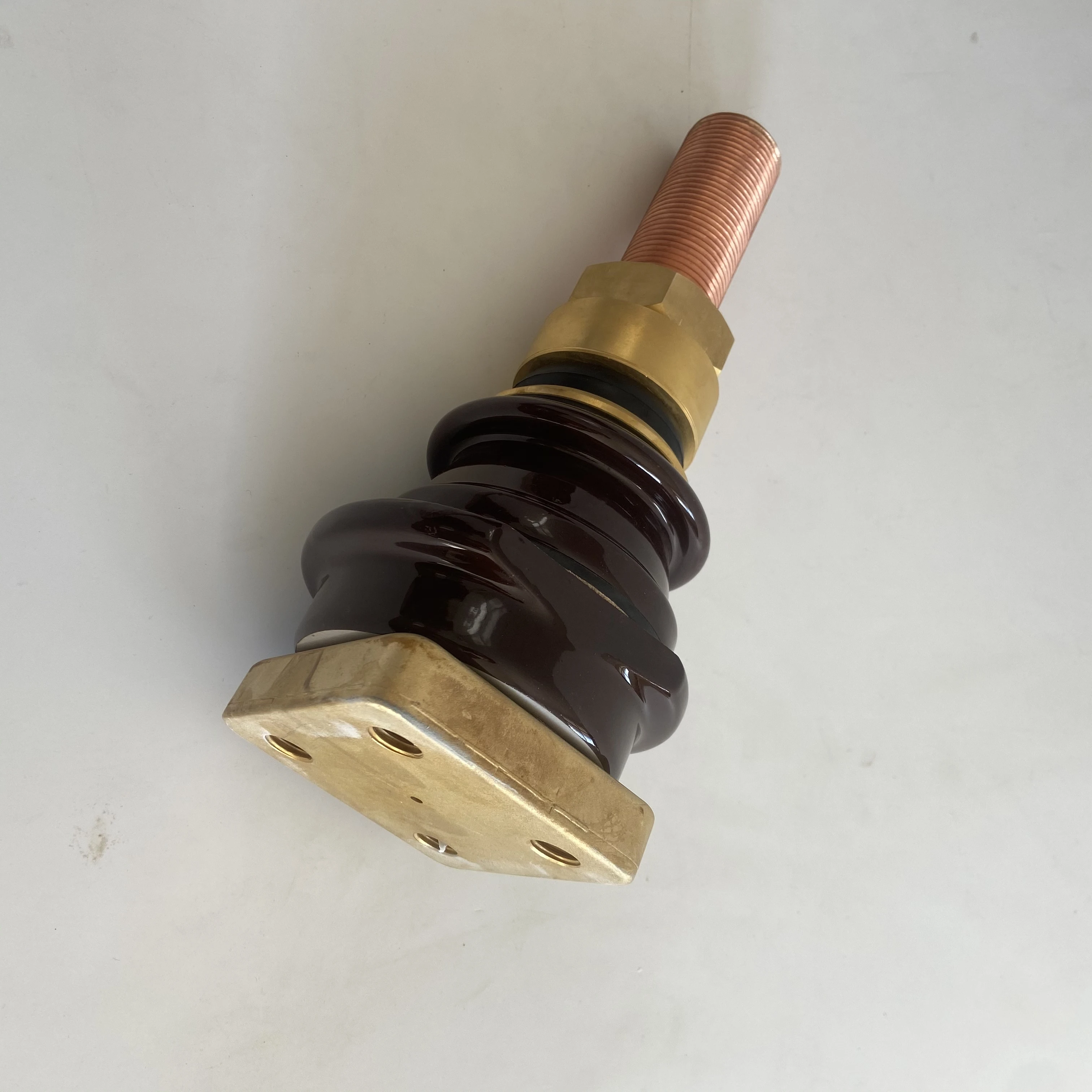

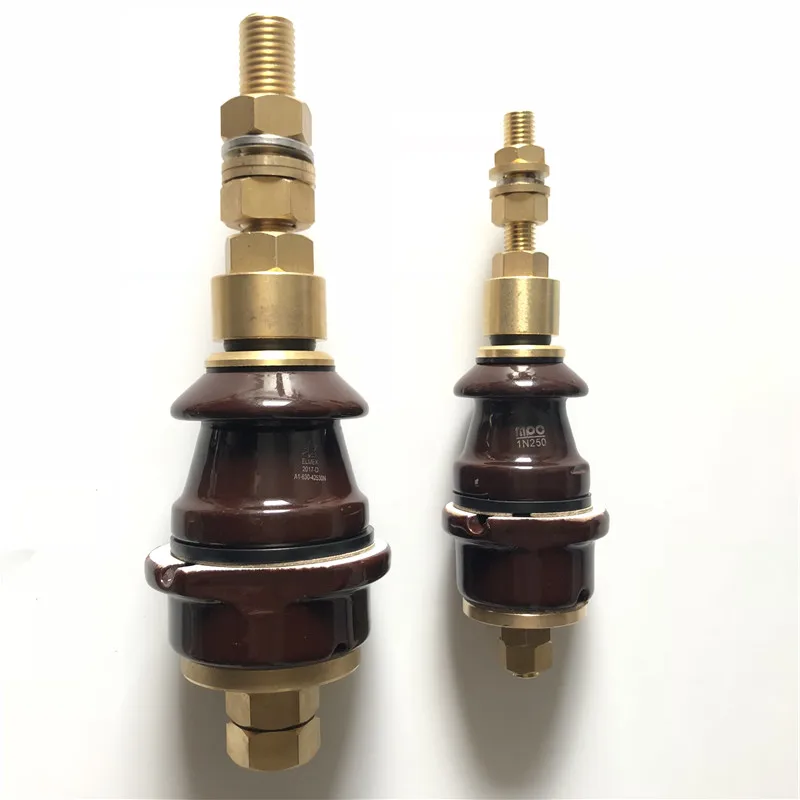

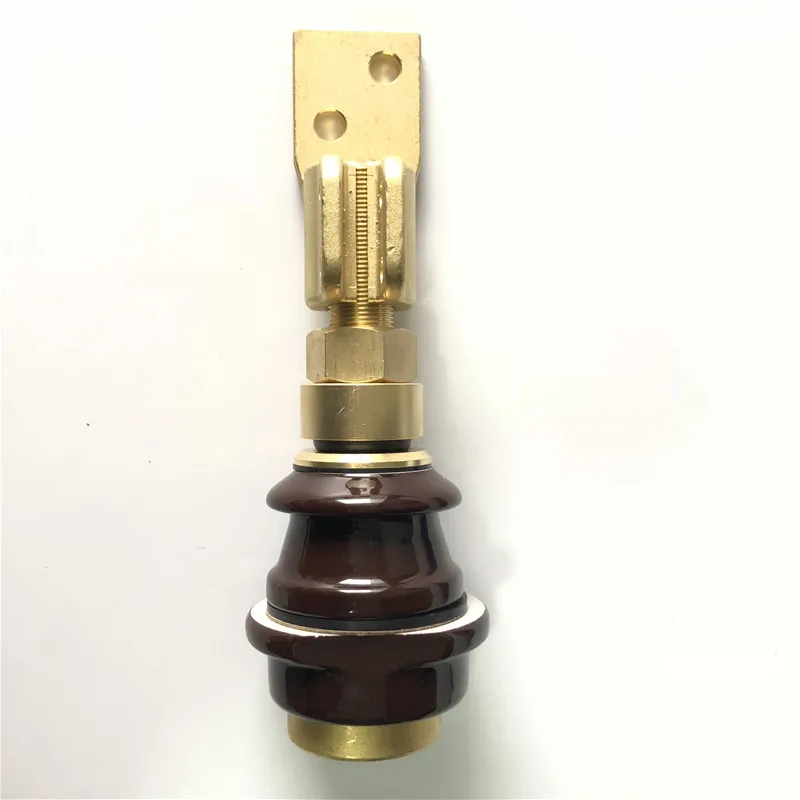

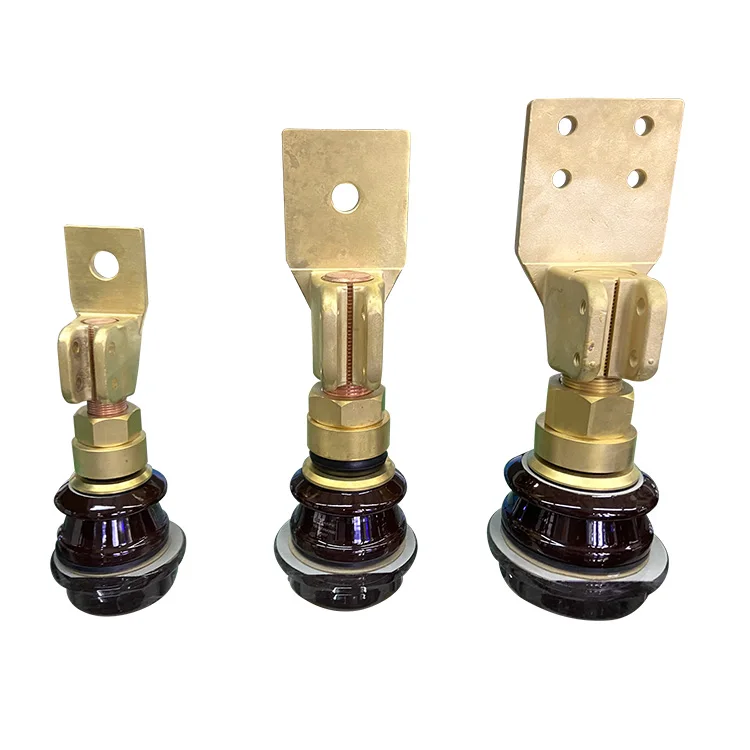

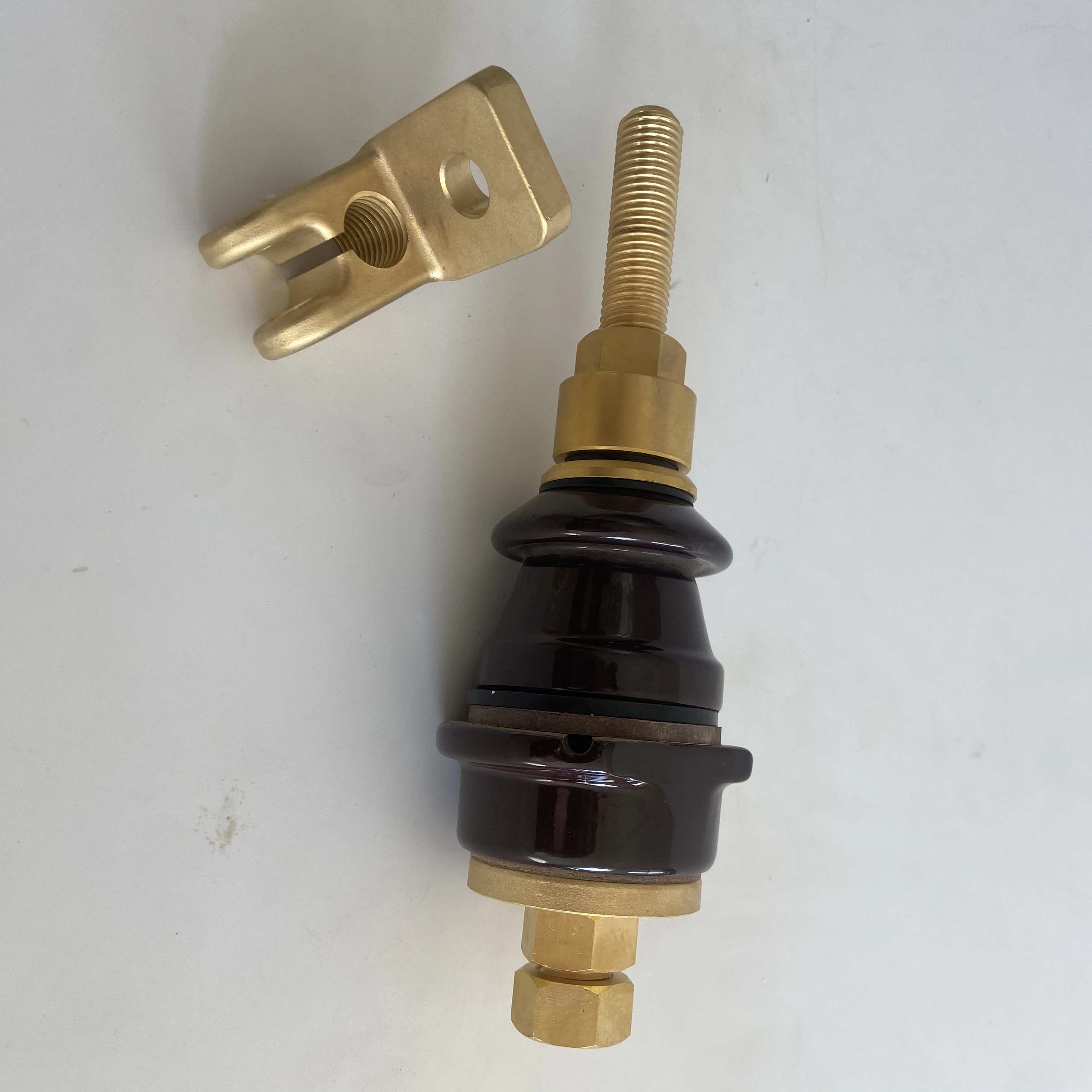

Solid porcelain open type bushings designed in accordance with the standard DIN 42539.Primarily used for indoor and outdoor applications in the field of distribution transformers, these bushings are available in several designs and can be customized to fit almost any kind of customer requirement upon request (i.e. tin plating, special drillings, special connectors, etc.). LV series features a porcelain insulating body on the oil side; in addition, rods are available both in copper or brass.




Technical Parameters


TECHNICAL DATA
Maximum rated voltage
3 kV
Maximum rated current
From 250 A up to 6300 A
Nominal creepage distance
From 120 mm up to 130 mm
Porcelain bottom insulating body
Rod design
Rigid stem
Rod material
Copper / Brass
Special finishing
Tinplating / Silverplating
Most used rod executions
Bottom base or threaded with nuts
