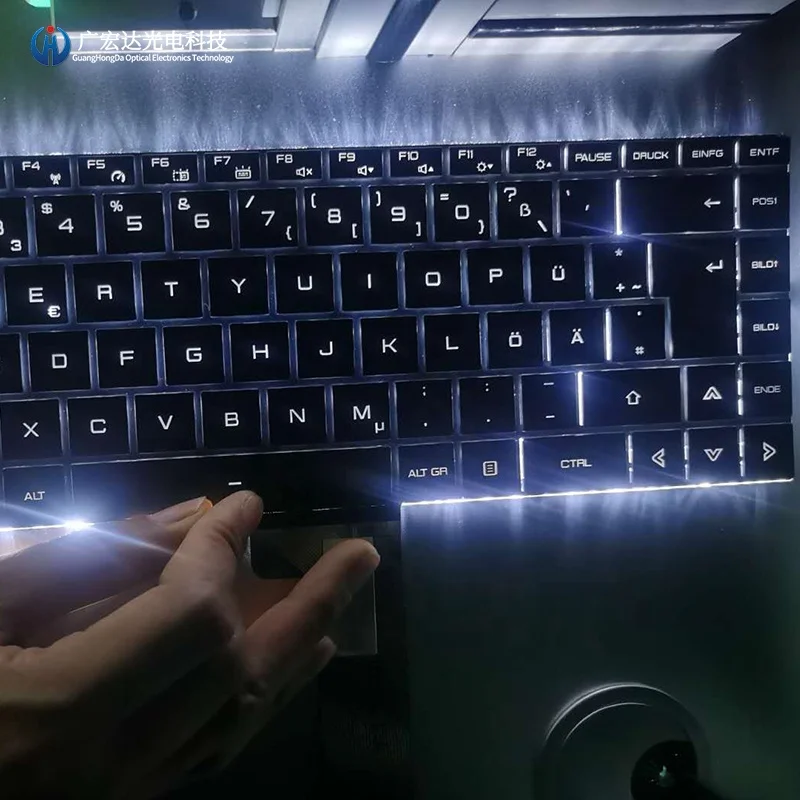

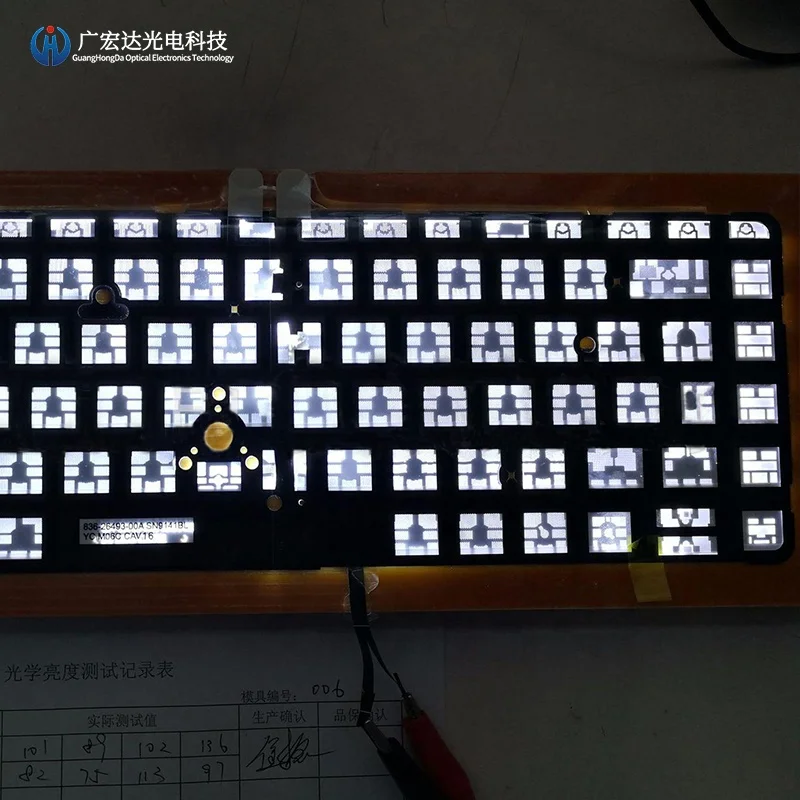

The Keyboard Light Guide Film Module Made Of High quality PC Materials Can Be Customized For All Kinds Of Luminous Keyboards

Product Overview

Description



• Backlight-guide-board is the primary component of keyboard display, its brightness is related to the display effect of the whole keyboard.

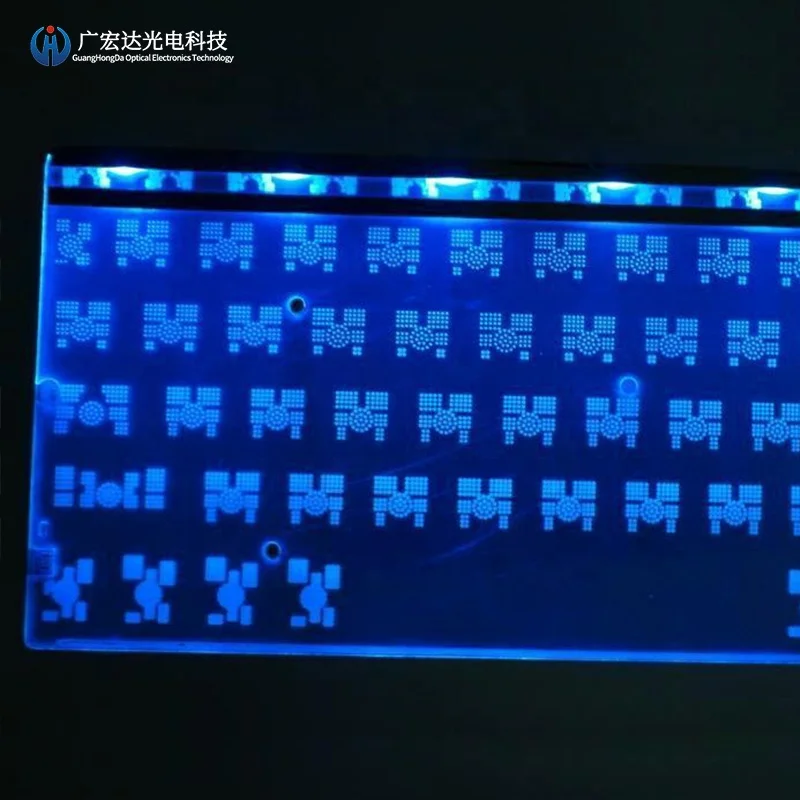

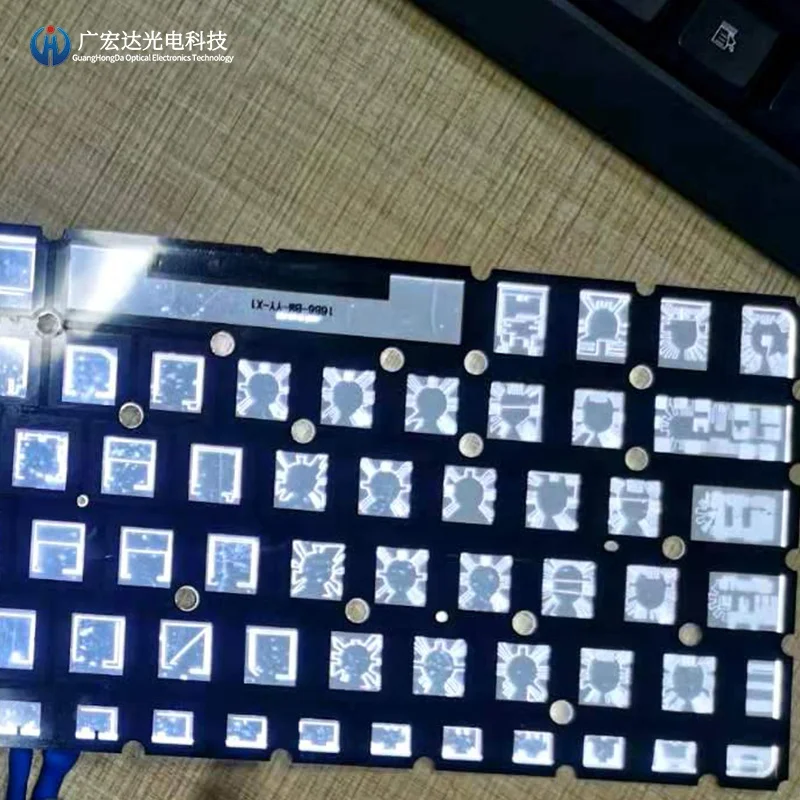

• LGF Module is composed by Guide-film , Diffusion film and Reflection Film .


• The uniformity of backlight is mainly related to the dot of the LGF , which is located at the bottom of the LGF. Because of the direct LED light , the single-side backlight emitting  gradually increases from the nearby position to the opposite side, becomes larger and larger, which is conducive to the reflection of light in a large area

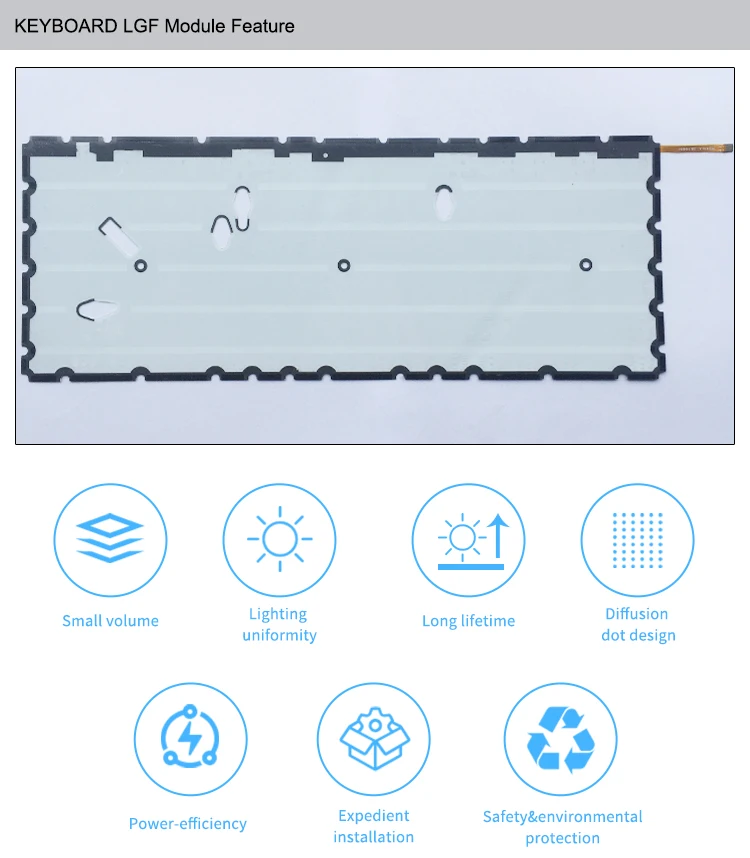

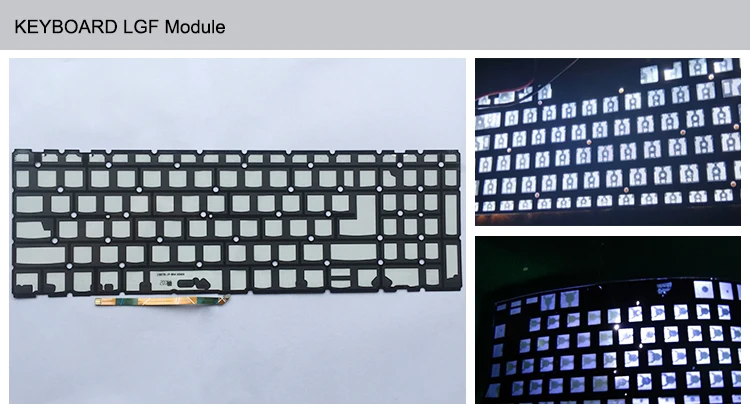

KEYBOARD LGF Module Feature :

• a) Good Luminous Effect, Uniform Brightness, High Light Intensity


• b) Light Weight ,Thinner Thickness and Small Volume


• c) Save LED lamps ,Save Power Consumption


• d)Good Stability , Long life-time

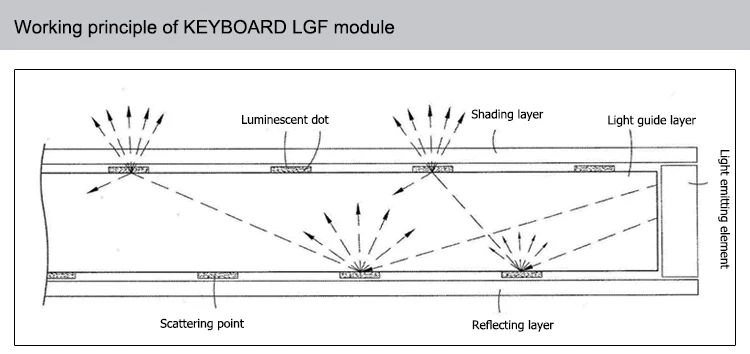

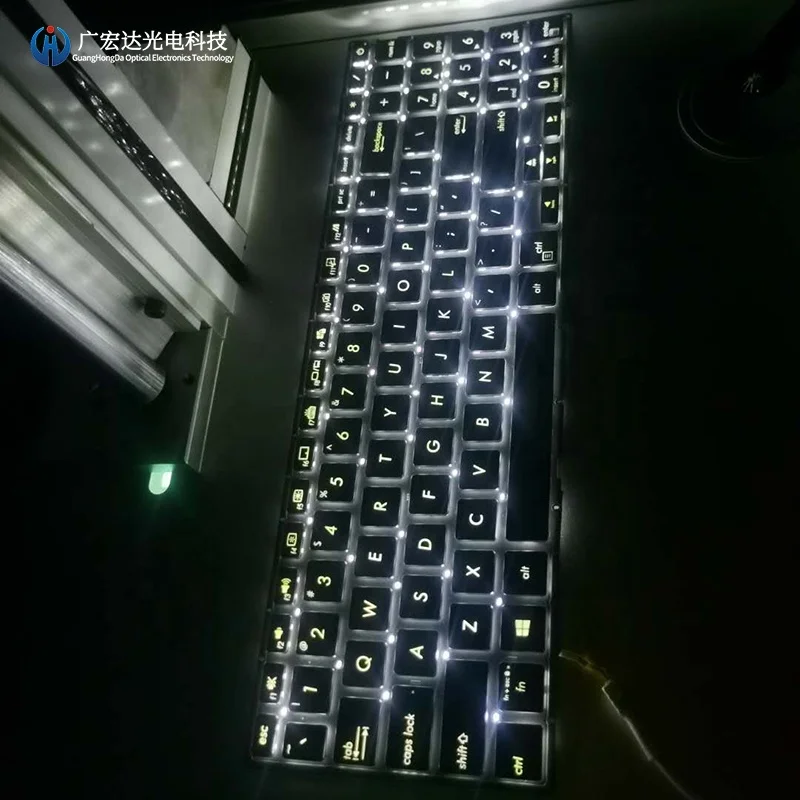

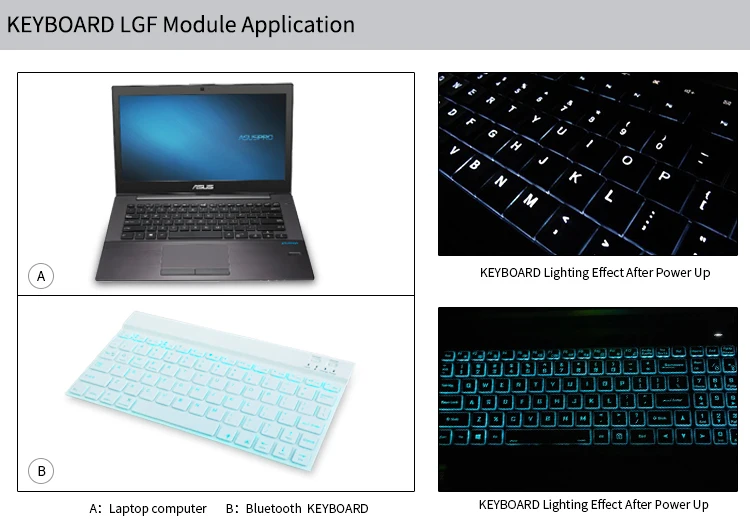

KEYBOARD LGF Module Working Principle

• The LED lamp will turn on after switch on , the light emit to every area through the dot of LGF ,  Using the principle of light reflection and refraction, combined with special optical software design, to make "dot light source" enlarge "plane light source".

The light emitted by the light source enters the light guide film, some of which will act directly on the surface of the light guide film, while the other part will be reflected by the fine convex light-emitting dot on the lower surface of the light guide film, and then act on the reflected light through the uniform light of the lower diffusion layer. Based on the principle of light reflection and refraction, combined with the design of special optical software, it is transformed into high brightness and uniform distribution surface light Source, so as to achieve the best effect of uniform luminescence

Major Technical Parameters & Advantages of Metal Dome Array
Item	Description	TECHNICAL  INDEX
1	LONG LIFE-TIME	Round ,Oval, four - legged, triangular,  rectangular, three - point side, irregular
		Stainless Steel ,Nickel Plating ,  Silver Plating & gold Plating
		Dimple Numbers : 0/1/3/4/5 dimple
		LIFE-TIME : 300 ~3000 Thousand Times
		In compare of initial value ,   The change rate <30% after 1M press-test
2	Click %	Force:100gf~450gf, Tolerance : ±20gf
		Normal Condition
3	Stroke	Customize in accordance with Customer ‘s requirement
		0.12~0.6mm ,Spec. various by different METAL DOME
4	Dimension Tolerance	Position dimension tolerance : + /- 0.1mm
5	Good Weatherproof Resistance	Under the conditions of 55±2℃,R.H.95% , Replacement 24H ,  and then resume 2H under the normal room temperature
6	Good Corrosion Resistance	High Temperature can bear : +70℃   Lower Temperature can bear : -40℃
7	Tape Adhesive Test	0.6↑(Unit:kgf/inch)
8	Stable Tape Shrinkage rate	MD(%):0.5 ↓ CD(%):0.3 ↓
		(Unit:100℃*40mins)
9	Small Instantaneous  Contact Resistance	(Nickel Plating ) <1Ω, ( Stainless Steel )<3Ω
10	Total Thickness of  Base materials	0.05mm,0.075mm,0.1mm,0.125mm,0.15mm;  Normal Thickness Spec.
11	Light-Guide-film Uniformity	>75%
