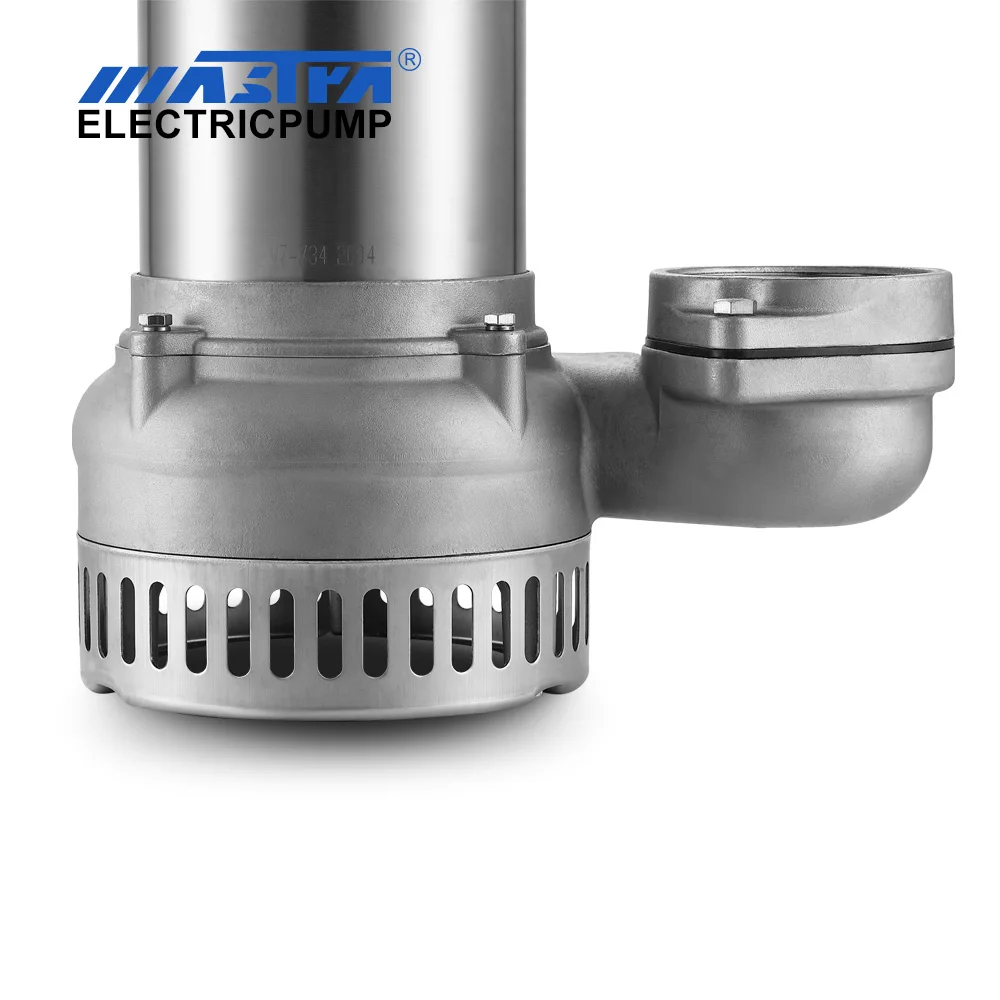

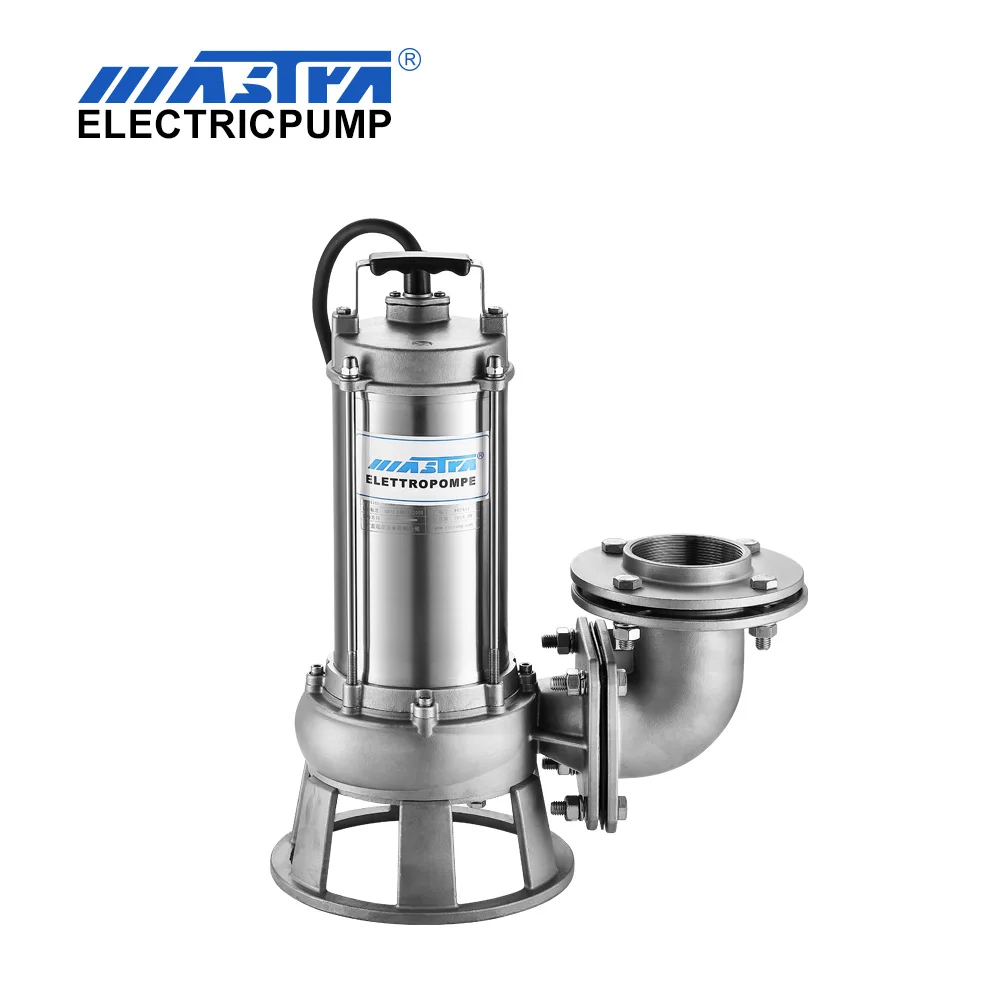

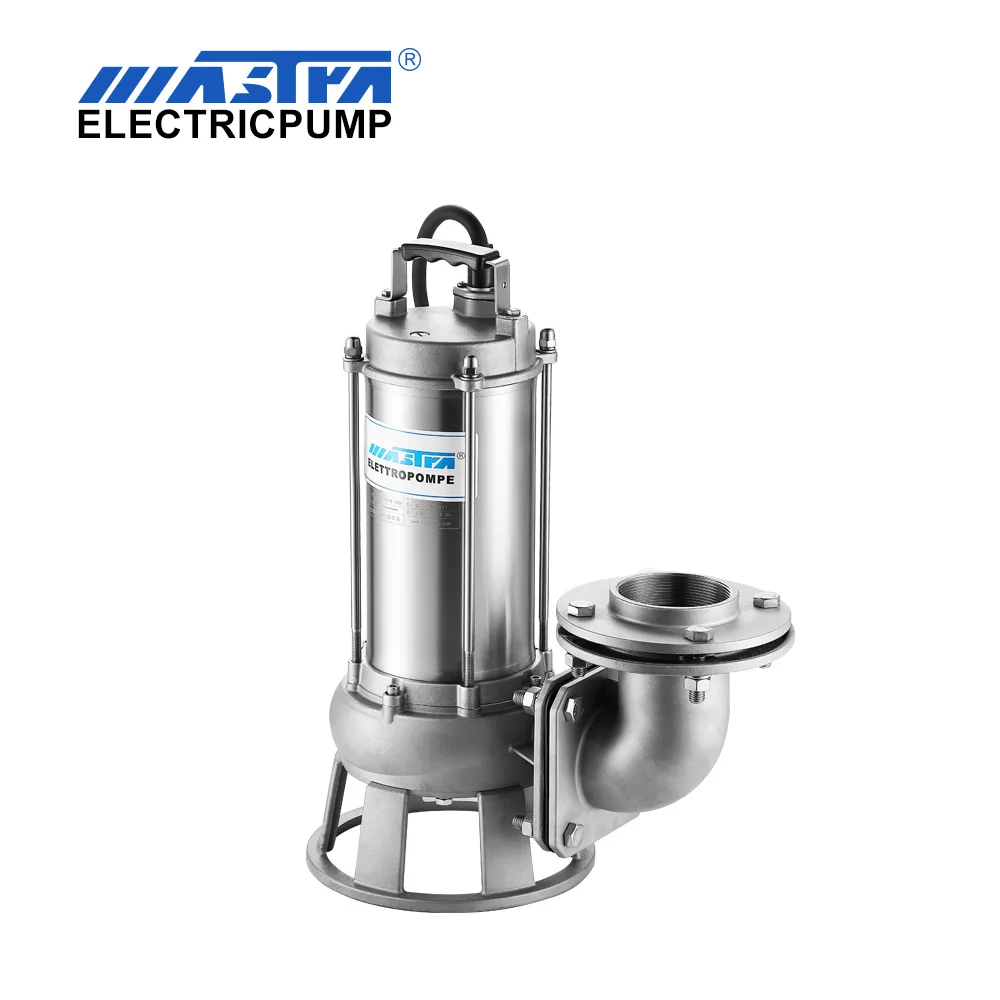

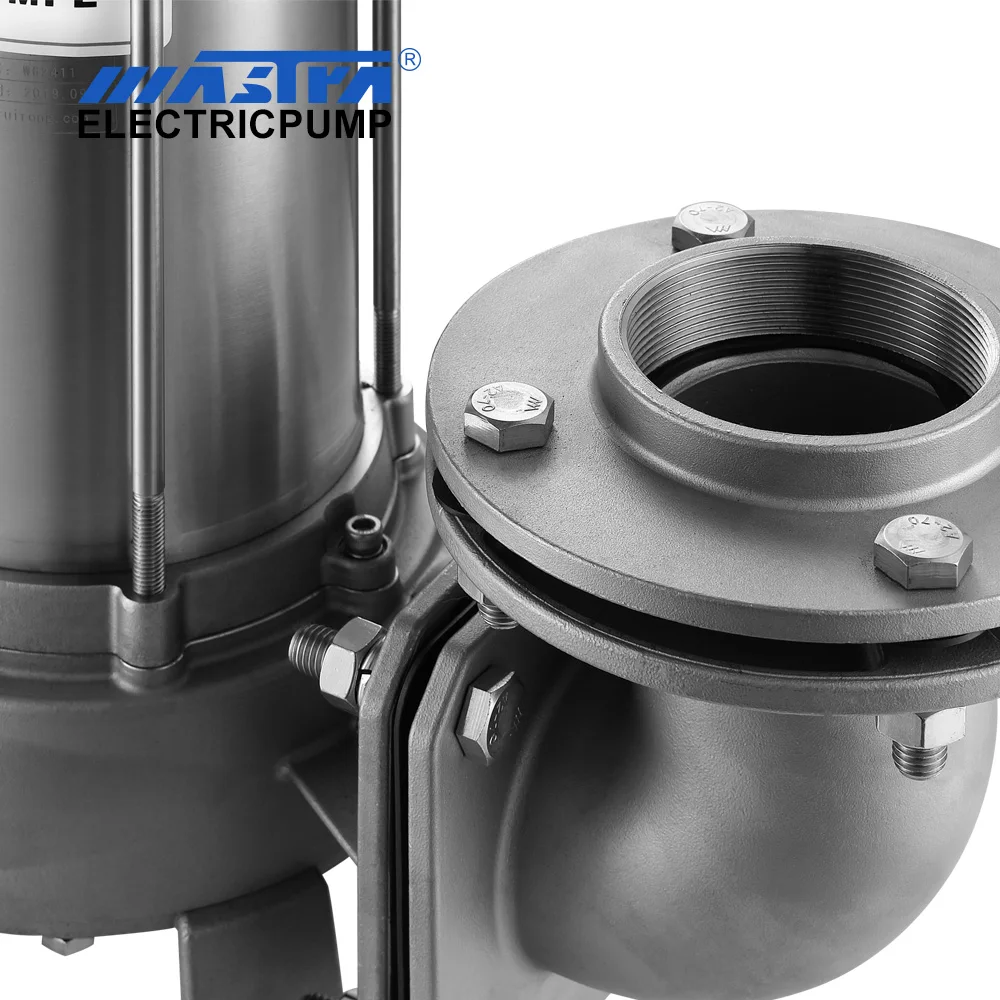

MASTRA 220/380V big power dirty water stainless steel deep pumps submersible sewage water pump

Product Overview

Description

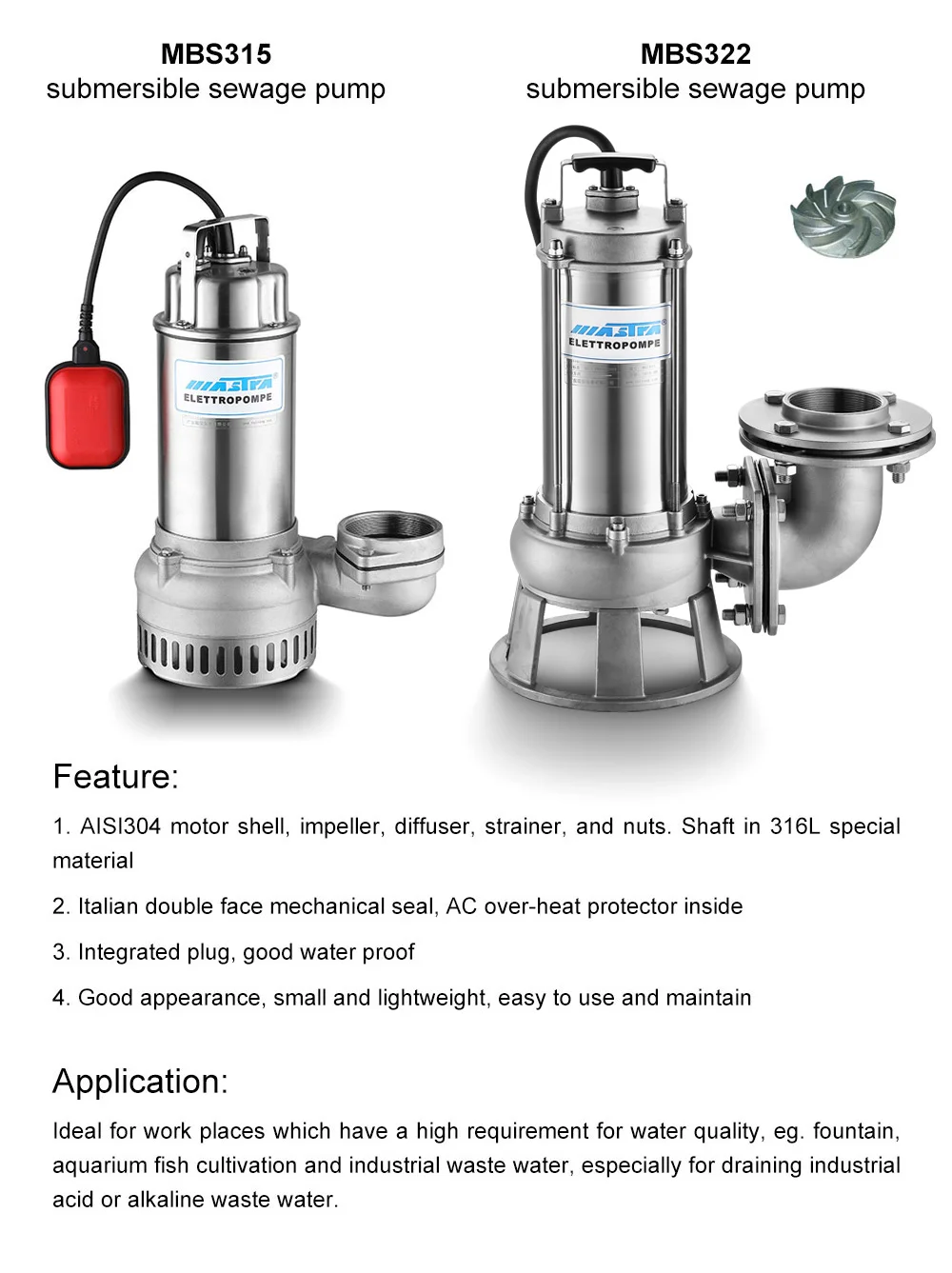

Feature:

1. AISI304 motor shell,impeller,diffuser,strainer,and nuts.Shaft in 316L special material.

2. Italian double face mechanical seal, AC over-heat protector insible.

3. Integrated plug, good water proof.

4. Good appearance, small and light, easy to use and maintain.



Application:

Especially for work places which have a high requirement for water quality,eg.fountain, aquarium fish cultivation and industrial waste water,especially for draining industrial acid or alkaline waste water.

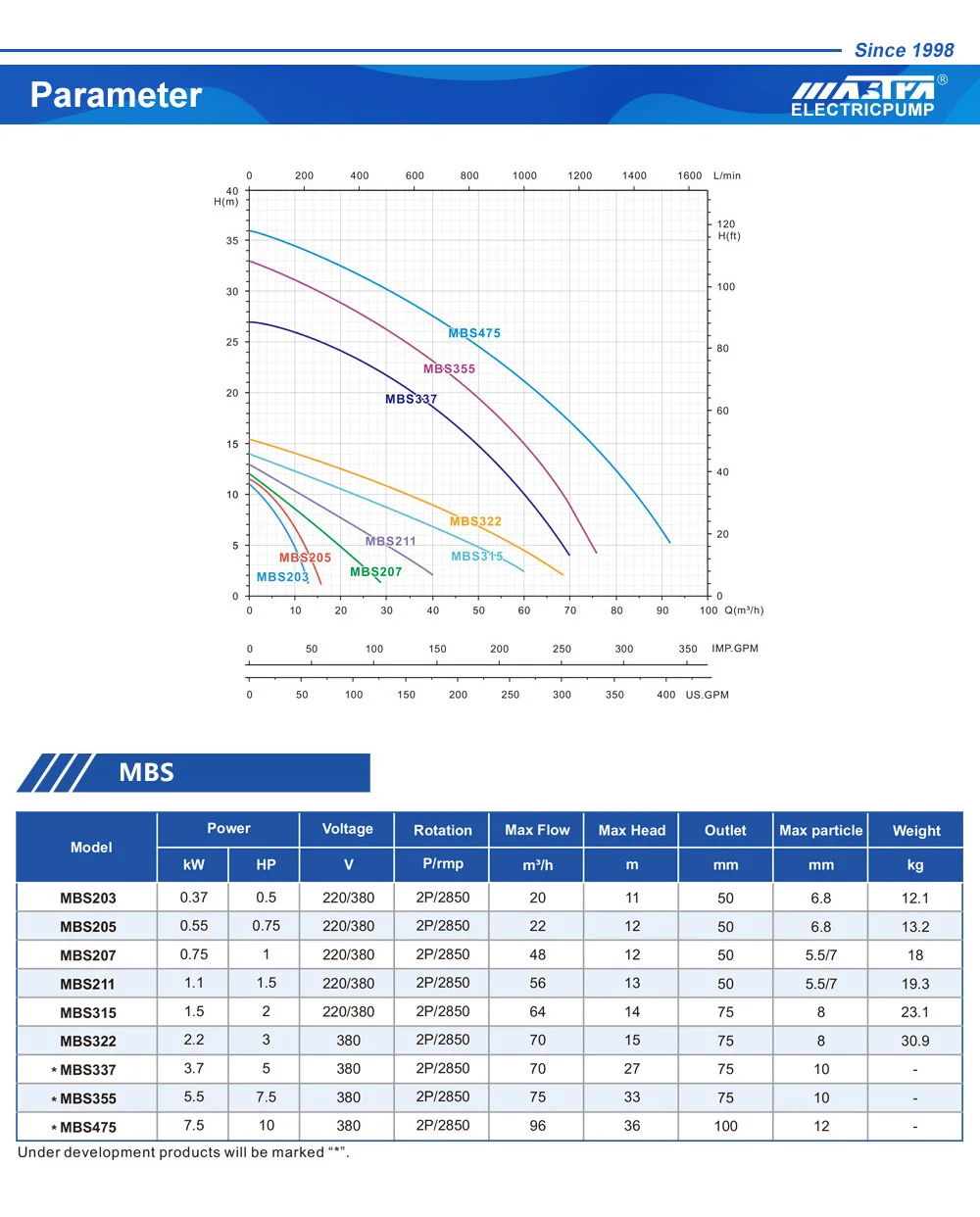

Model (50HZ)	Power		Voltage	P/RPM	Max Flow	Max Head	Outlet	Max Particle
	KW	HP	V	P/rpm	m³/h	m	mm	mm
MBS203	0.37	0.5	220/380	2P/2850	20	11	50	6.8
MBS205	0.55	0.75	220/380	2P/2850	22	12	50	6.8
MBS207	0.75	1	220/380	2P/2850	48	12	50	5.5/7
MBS211	1.1	1.5	230/380	2P/2850	56	13	50	5.5/7
MBS315	1.5	2	230/380	2P/2850	64	14	75	8
MBS322	2.2	3	380	2P/2850	70	15	75	8
MBS337	3.7	5	380	2P/2850	70	27	75	10
MBS355	5.5	7.5	380	2P/2850	75	33	75	10
MBS475	7.5	10	380	2P/2850	96	36	100	12
