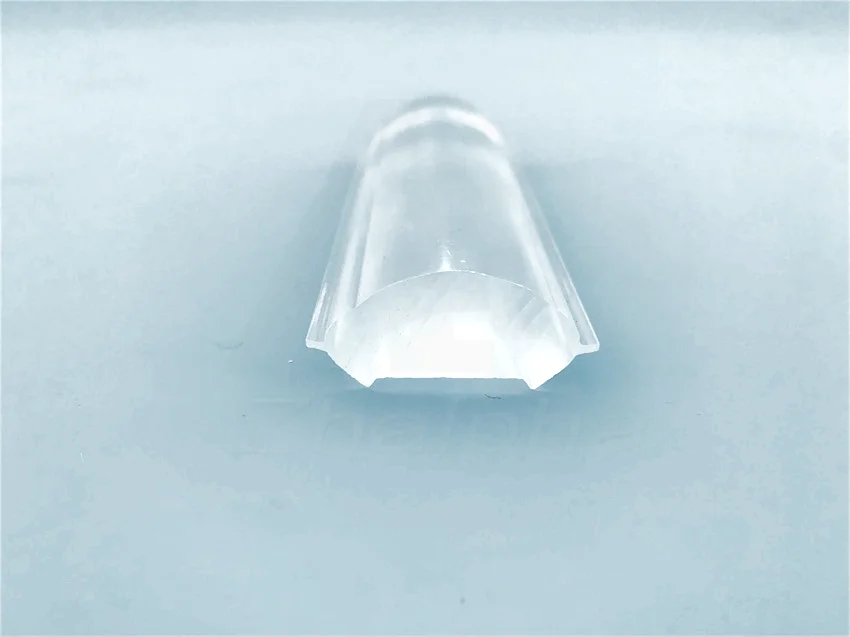

90 degree beam 20Mm Width Double Row Pcb Board Lamp Extruded Clear Pmma Led Light Linear Lens
90 degree beam 20Mm Width Double Row Pcb Board Lamp Extruded Clear Pmma Led Light Linear Lens
90 degree beam 20Mm Width Double Row Pcb Board Lamp Extruded Clear Pmma Led Light Linear Lens
90 degree beam 20Mm Width Double Row Pcb Board Lamp Extruded Clear Pmma Led Light Linear Lens
90 degree beam 20Mm Width Double Row Pcb Board Lamp Extruded Clear Pmma Led Light Linear Lens
90 degree beam 20Mm Width Double Row Pcb Board Lamp Extruded Clear Pmma Led Light Linear Lens
90 degree beam 20Mm Width Double Row Pcb Board Lamp Extruded Clear Pmma Led Light Linear Lens

90 degree beam 20Mm Width Double Row Pcb Board Lamp Extruded Clear Pmma Led Light Linear Lens

Share on (1600190834953):


Price:$0.50 - $0.80

Quantity:


Product Overview

Description



90 degree beam 20Mm Width Double Row Pcb Board Lamp Extruded Clear Pmma Led Light Linear Lens




Product name
TIR Lens
Processing method
Plastic extrusion
Raw material
ACRYPET VH001
Transmittance
> 90%
UV resistence
Yes
Thermal Deformation Temperature
90°C
Cutting Length
Customized length
Beam angle

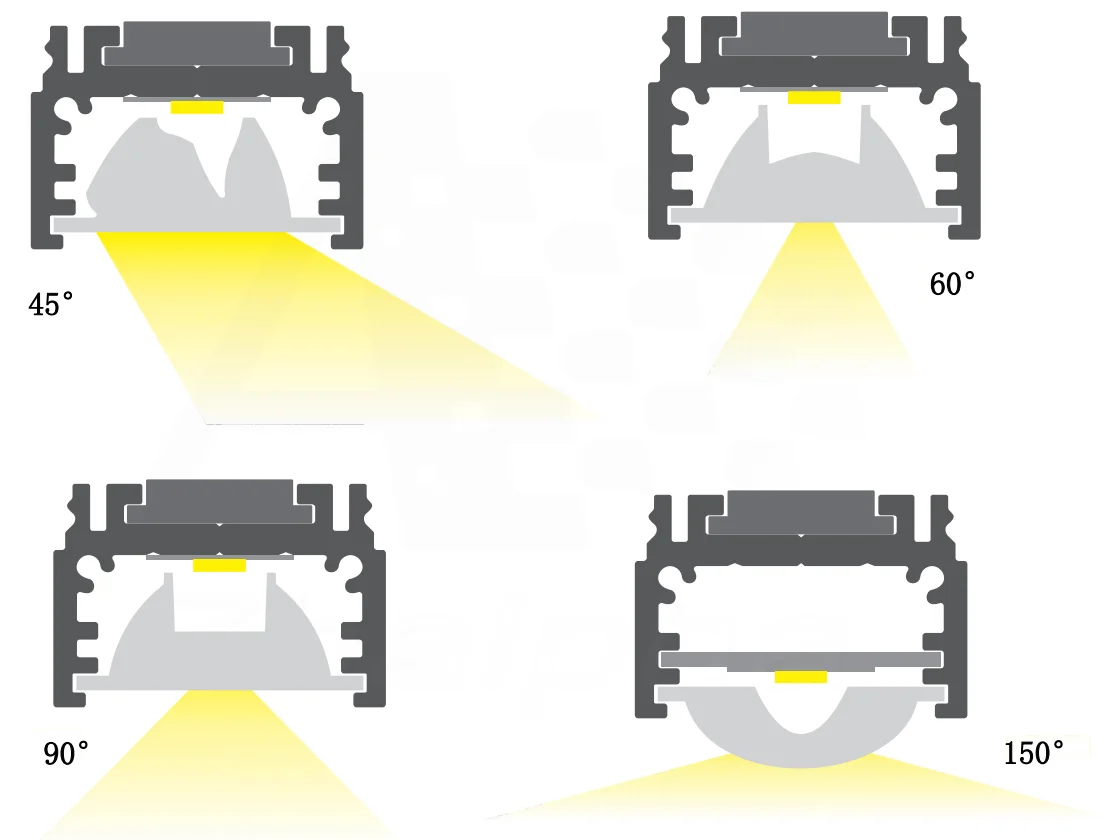

30°, 45°(asymmectric), 60°, 90°, 150°



We are offering 5 public mold models in TIR Lens, which is without any tooling costs, and beam angle 30°, 45°(asymmectric), 60°, 90°, 150°. Aluminum profile is also available for fitment.

If you currently have a need and an idea, or would you like to learn more about our public mold model? Please contact with us~





60 °
90°
150°







No model is suitable for your project? Please contact with us.

We would like to support you to find the optimal solution for your needs. We work with the lighting manufacturers early in the design process, who use custom linear lens and diffuser in industrial, commercial and architectural applications. What`s more, our engineer would guide your team from consultation, design, production and testing for your light fixture.








Below are some profiles we designed and produced in PC(Polycarbonate), PMMA(Polymethyl Methacrylate, also known as acrylic, plexiglass). Some drawings illustrated in this page are for displaying only, since to be property and of exclusive use of specific Alpha customers, on request technical modifications are possible.







If you need help with your design, our engineers, sales team and project managers are available to help you optimize your material, finalize your profile shape, add features, specify tolerances and design linear prisms. Feel free to share your design with Alpha and get one-on-one technical design support.




Application


Alpha provides standard and custom extrusion profile to manufacturers for a wide range of applications, including the Office lighting, Greenhouse Lighting, UV Transmit Lighting, Architectural Lighting, Transportation Lighting, Building Engineering, Industrial Lighting, General Lighting, furniture, refrigeration equipment, aerospace, etc.
