  • Terminal Connectors plug type 3.50mm 3.81mm Pitch 6 pin screw terminal connector

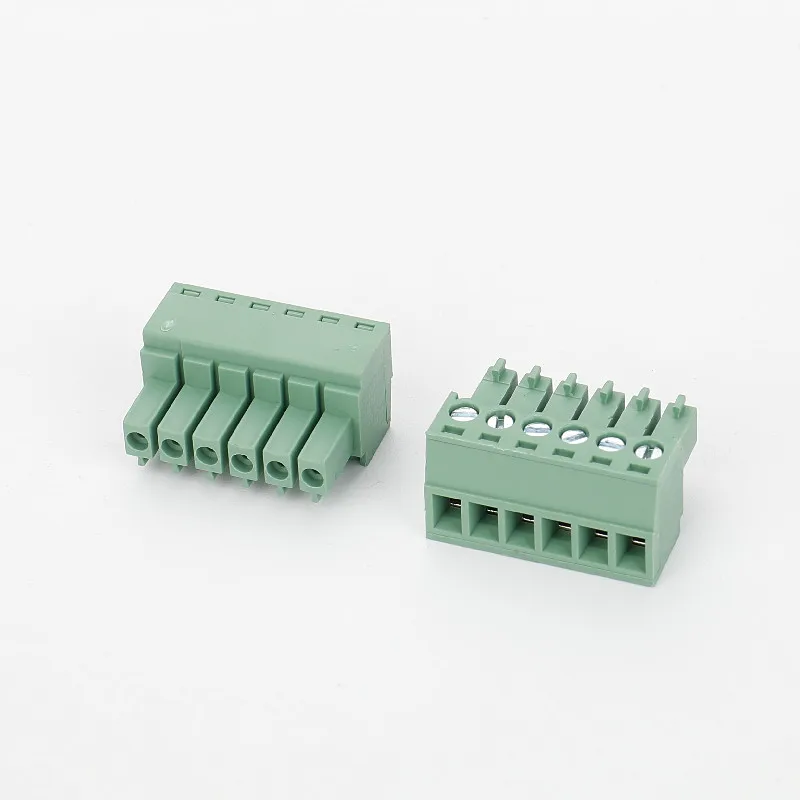

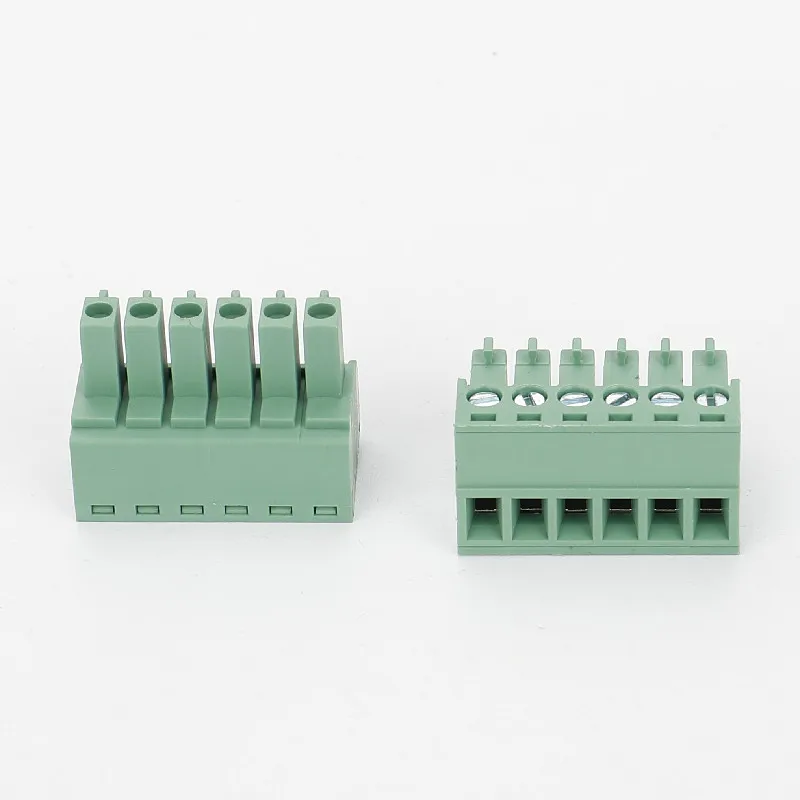

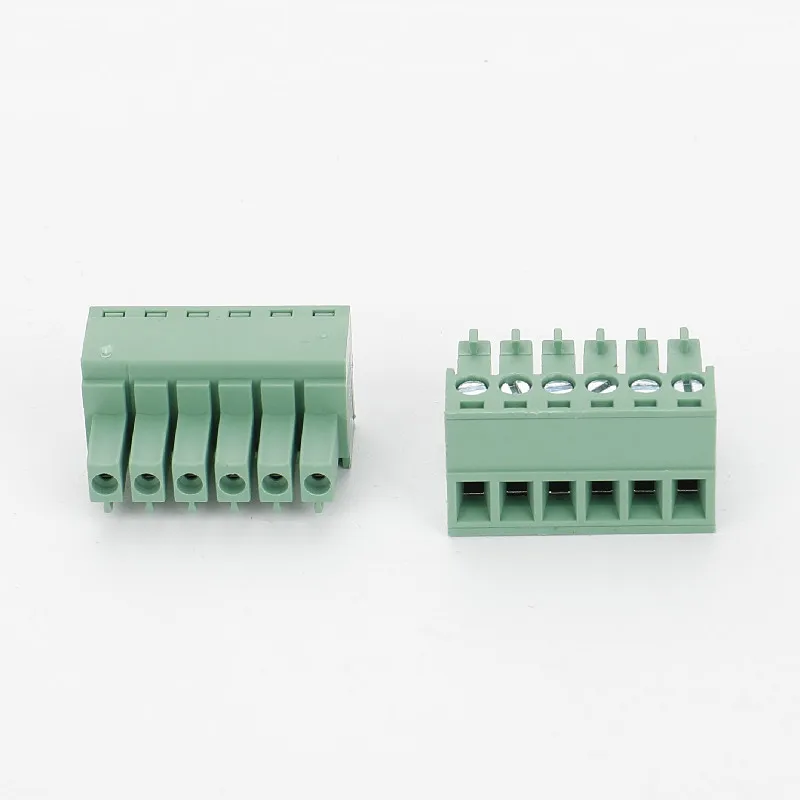

Terminal Connectors plug type 3.50mm 3.81mm Pitch 6 pin screw terminal connector
Terminal Connectors plug type 3.50mm 3.81mm Pitch 6 pin screw terminal connector
Terminal Connectors plug type 3.50mm 3.81mm Pitch 6 pin screw terminal connector
Terminal Connectors plug type 3.50mm 3.81mm Pitch 6 pin screw terminal connector
Terminal Connectors plug type 3.50mm 3.81mm Pitch 6 pin screw terminal connector
Terminal Connectors plug type 3.50mm 3.81mm Pitch 6 pin screw terminal connector
Terminal Connectors plug type 3.50mm 3.81mm Pitch 6 pin screw terminal connector

Terminal Connectors plug type 3.50mm 3.81mm Pitch 6 pin screw terminal connector

Share on (1600190846627):


Price:$0.28 - $0.35

Quantity:


Product Overview

Description













Contact Resistance:
20m Ω Max
Insulation Resistance:
5000m Ω Min
Contact Material:
Brass
Insulation Material:
Polyester PA66+30%GF White
Contact Plating:
Tin Plating
Insulation Standard:
94-V0
Screw:
Steel
Operating Temperature:
-40°C to +105°C
Current Rating:
8.0AMP
Mounting Type:
Plug
No. of Row:
1
Packing:
Original Packing
No. of Positions:
5P
Pitch:
3.50mm/3.81mm
