Dental Lab Porcelain Furnace vacuum Oven With Touch Screen
- Category: >>>
- Supplier: Tianjin Anjamie Trade Co. Ltd.
Share on (1600190852925):
Product Overview
Description
Product Description
The entire press process takes 20-40 minutes. Efficient, Convenient, Fast , Low cost ,Compatible with all casting porcelain
blocks. Build in numbers of programme and can be used as a ceramic furnace .
blocks. Build in numbers of programme and can be used as a ceramic furnace .
THE FUNCTIONS OF PHOENIX Porcelain furnace PRESS:
1.High quality of the function of temperature adjustment
automatically,ensure the actually temperature error within +/-1.
2.Easy to operate,compact size,the smallest size in the world at present.
3.Precision stepper motor drive, the smooth and jitter-free functioning,
noise-free,Speed programmable.

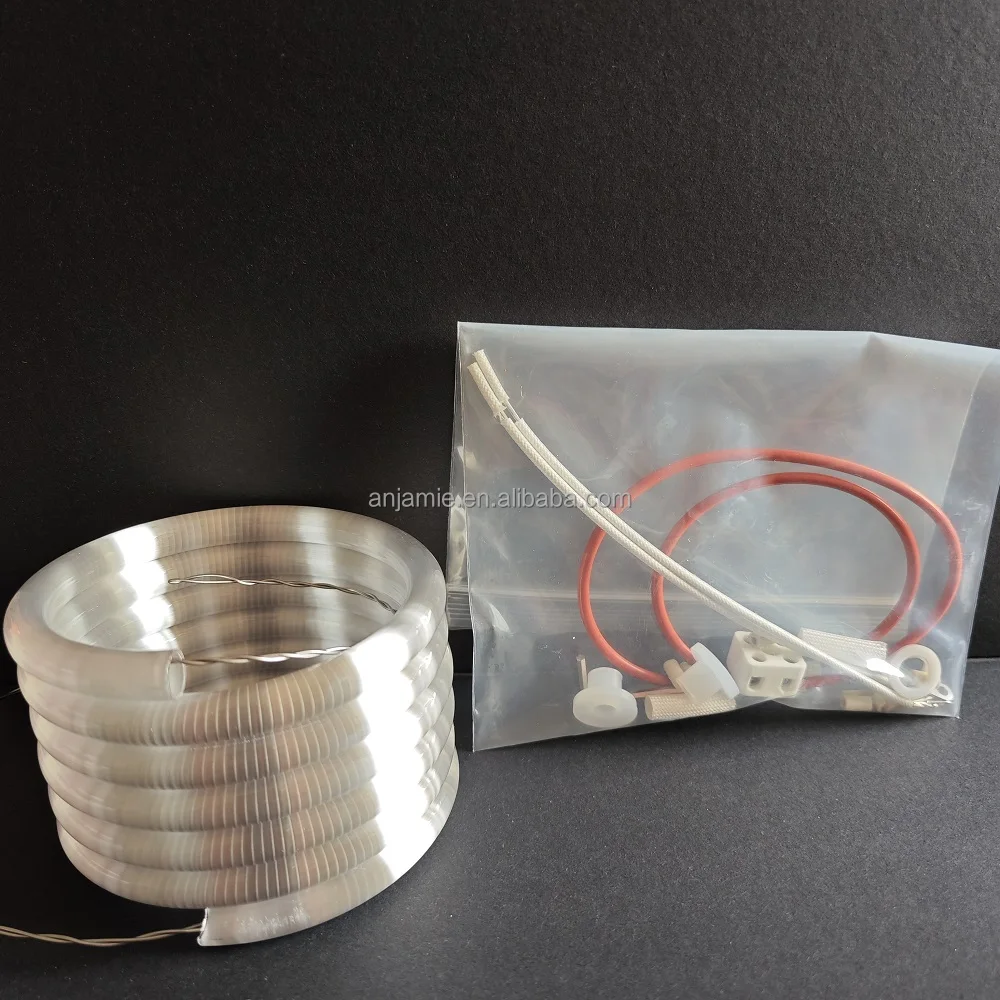

4.Spiral quartz chamber of furnace
5.Temperature adjustment automatically before every firing procedure.
6.True color touch screen, the operation is simple and convenient.
7.USB port can easily connect to the computer service program.
8.Built in 99 program.
9.Optical status display.
THE INTRODUCTION OF SPECIFICATIONS:
OPERATION:
The velocity of temperature increasing: 200℃/min max.
(392°F /minute)
The max temperature: : 1200℃ max
(2283°F)
The time which can be kept at the max temperature: 2 H
Vacuum level:1-101%
ELECTRIC POWER:
Operation range:100-120V 50/60HZ 230V 50/60HZ
Electric current:14.5ampere@110V 7.0ampere@230V
Power:max 1500w
TYPICAL SPECIFICATION:
WXDXH :width 27cm Depth 36cm Height 70cm
Usable measure (firing chamber)::9cm(3.5”)
Net weight:45Kg
packing size :48*42*90cm
ELECTRIC POWER | TYPICAL SPECIFICATION |
Operation range:100-120V 50/60HZ 230V 50/60HZ | WXDXH :width 27cm Depth 36cm Height 70cm |
Electric current:14.5ampere@110V 7.0ampere@230V | Usable measure (firing chamber)::9cm(3.5”) |
Power:max 1500w | Net weight:45Kg |
packing size :48*42*90cm |

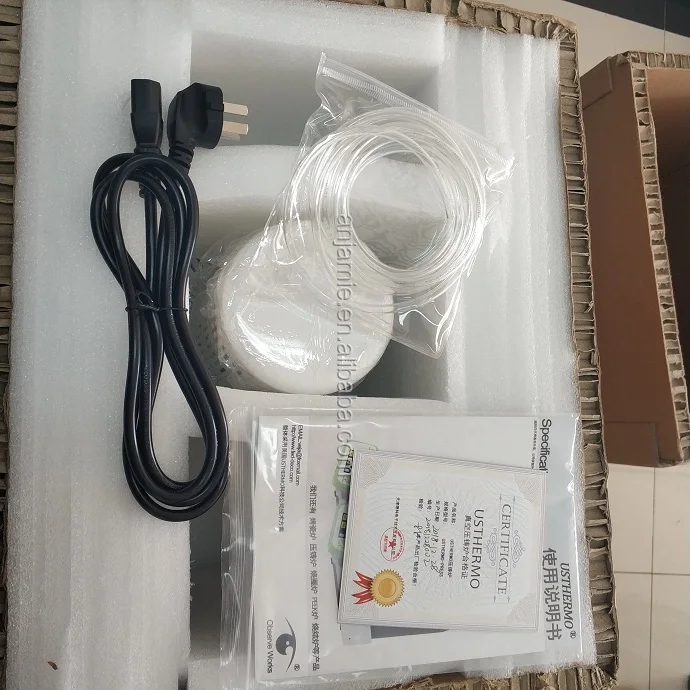

Parts included :
• 1 furnace
• 1 firing pan
• 1 connection cable for the mains power supply
• 1 furnace tweezers
• 1 Tongs
• 1 Press rod
• 1 Embedding ring100g
• 1 Cooling rack
