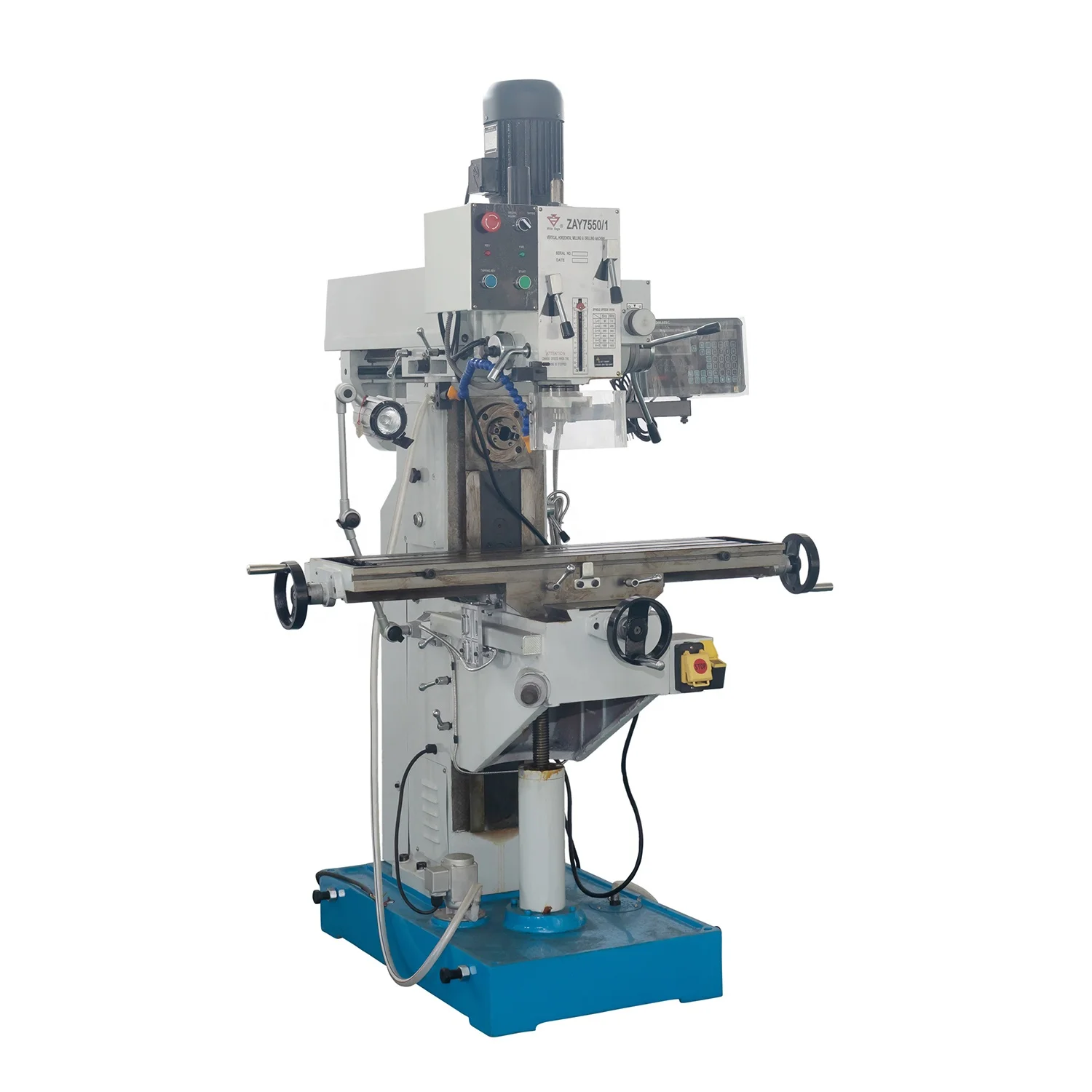

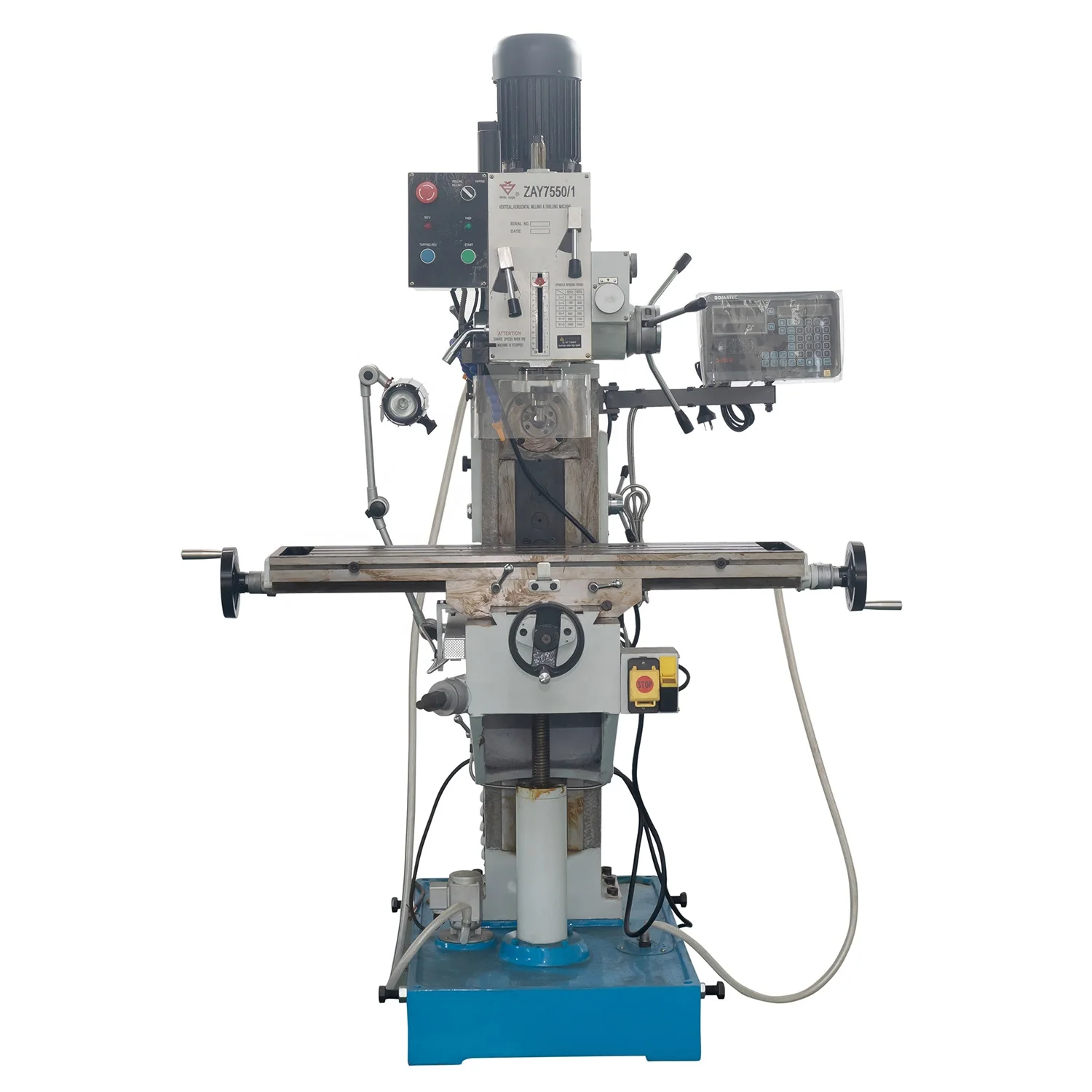

Вертикальное и горизонтальное фрезерный станок Zay7550/1
- Category: >>>
- Supplier: Anhui Chizhou Household Machine Tool Co. Ltd.
Share on (1600190860423):
Product Overview
Description
Product Description
Features
Vertical milling head can be moved forward or backward
Vertical milling head can swivel ±90° vertically and ±360°Horizontaly
Adjustable stops on table
Manual quill feed
High tensile casting iron elevative table
Double motor with powerful force
Vertical milling head can swivel ±90° vertically and ±360°Horizontaly
Adjustable stops on table
Manual quill feed
High tensile casting iron elevative table
Double motor with powerful force
Model | ZAY7550-1 | ||
Max. drilling capacity | 50mm | ||
Max. face milling capacity | 100mm | ||
Max. end milling capacity | 32mm | ||
Swivel angle of head-stock (End milling) at perpendicular direction | ±90º | ||
Spindle travel (End milling) | 130mm | ||
Distance between spindle nose and table | 80-480mm | ||
Sliding arm travel | 500mm | ||
Spindle taper (Horizon milling) | MT4 | ||
Spindle taper (End milling) | MT4 | ||
Spindle feed | 0.12, 0.18, 0.25 | ||
Spindle speed (1400r/1280r/min Double speed motor) r/min | 4pole | 38,67,110,216,380,640 | |
2pole | 76,134,220,432,760,1280 | ||
T-solt | |||
Forward and backward travel of table | 300mm | ||
Left and right travel of table | 785mm | ||
Travel of table on perpendicular direct | 400mm | ||
Table size | 1000mm×240mm | ||
Motor (Double speed) | 400V/ 50 Hz 1.5 kW / 1.8 kW | ||
Net weight | 920 kg | ||

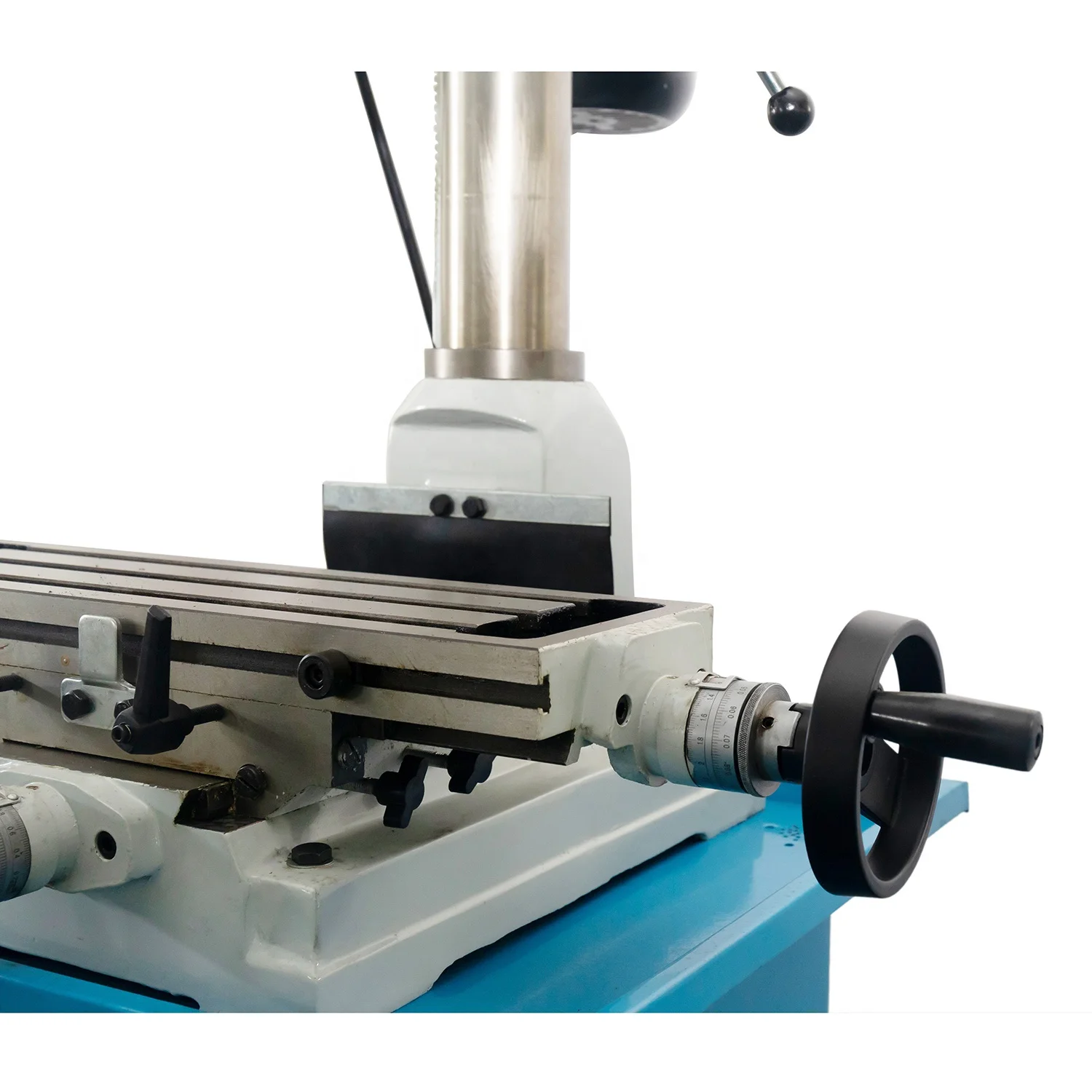

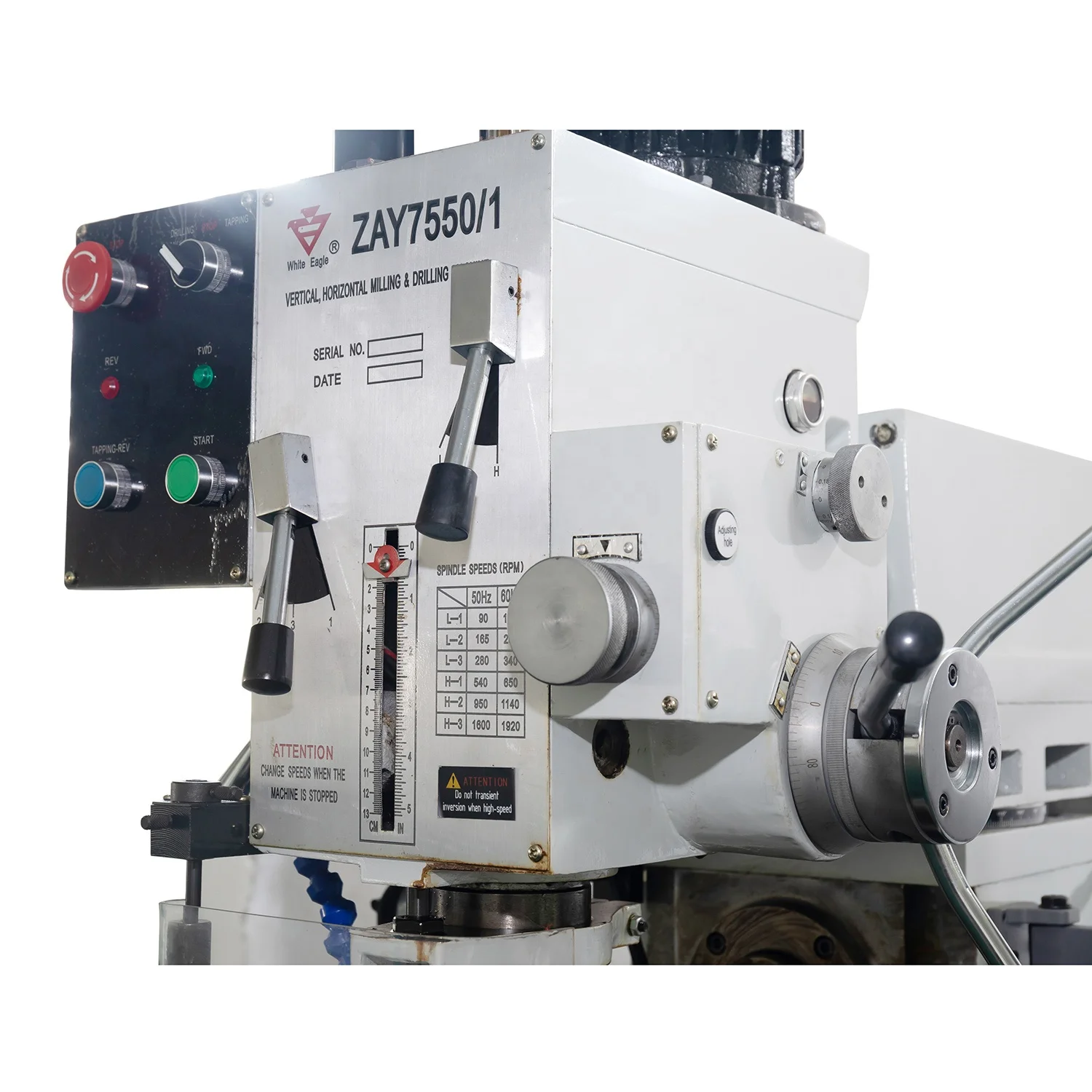

Main Parts Photo and details instruction
Standard And Optional
Standard: Allen wrench, Wedge-Wrenches, Drill chuck arbor, screw, draw bar and washers.
Optional: Stand /oil, tripPower feed Attachment, 90mm parallel vise,125mm parallel vise, Drill chuck, Milling holder dia. 63mm, Changing sleeve, Milling chuck, Boring bar, Auto-tapping system, Work light, Coolant system, DRO.
Packing&Shipping
main machine packing size ：
1420*1230*1850mm
N.G./G.W.：
900/1000Kg
machine stand packing size ： 500*400*450mm
N.G.weight：70/75 Kg
N.G.weight：70/75 Kg
Our nearest port is Shanghai，and we are available to any port in the world.
Certifications
Our Workshop
Company brief introduction
Anhui Chizhou Household Machine Tool Co., Ltd. founded in 1994.covers a land area of 355,000 m2and building area of 180,000 m2.There are more than 500 sets of various production equipments, such as the imported Gantry Type Pentahedron Machining Center,Precision Guideway Grinders, CNC Gantry Milling Machine, Vertical Machining Center, Horizontal Machining Centers, CNC lathes, CNCuniversal grinding machine and CNC milling machine, etc, more than 40 high-tech advanced equipments. Products are sold at home and abroad and International market network were established in more than 140 countries and regions. Products are widely used in aerospace, automotive, shipbuilding, electric power, mold manufacturing, textile, information industry, general machinery and other fields.
We In Fairs
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
FAQ
Q：Can you provide customzied machines?A：Yes, we can design and manufacture according to your specific requirements
Q：Do you have professional engineers?
A：Yes.we have professional engineers and designers.We can provide OEM services.
A：Yes.we have professional engineers and designers.We can provide OEM services.
Q：How about your quality?
A：We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 Intemationl occupational health and safety management system and Social Accountalility 8000(SA8000).Most products have been approved the Europe and American safety standard, including CE,GS,EMS&UL,90% of our products are exported to more than 60 countries and regions around the world,especially to Europe and America market and always win high reputation.So you can rest assured on our quality products and our best services.
A：We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 Intemationl occupational health and safety management system and Social Accountalility 8000(SA8000).Most products have been approved the Europe and American safety standard, including CE,GS,EMS&UL,90% of our products are exported to more than 60 countries and regions around the world,especially to Europe and America market and always win high reputation.So you can rest assured on our quality products and our best services.
Q：What's the MOQ?
A：One set only.
A：One set only.
Q：Do you have a stock?
A：Sorry,most of our machines don't have stock,we always produce according to order,However,if during fairs months,maybe have few samples back from fairs.
A：Sorry,most of our machines don't have stock,we always produce according to order,However,if during fairs months,maybe have few samples back from fairs.
Q：Can we visit your factory before order?
A：Sure.All new and old friends are welcomed to visit us at our factory. Besides, wecan pick up you at station or airport if
needed.We will be very honored to help with tickets and accomodation booking.
A：Sure.All new and old friends are welcomed to visit us at our factory. Besides, wecan pick up you at station or airport if
needed.We will be very honored to help with tickets and accomodation booking.
Q：How is warranty?
A：Warranty time is 13 months after BL date.
A：Warranty time is 13 months after BL date.
