DTG 20/11 bucket elevator/ rice elevator for rice mill plant
Product Description
Introduction
DTG 20/11 bucket elevator/ rice elevator for rice mill plant is designed to work together with silo, which adopts special belt as the traction components.
DTG 20/11 bucket elevator/ rice elevator for rice mill plant specially equipped with 2 kinds of bucket, steel bucket or plastic bucket as an option, to adapt to the transportation of various materials.
DTG 20/11 bucket elevator/ rice elevator for rice mill plant is especially suitable for lifting materials with small particle size and loose density less than1t/m3.
DTG 20/11 bucket elevator/ rice elevator for rice mill plant is widely used for conveying powder, granular and non-small-block mill and grinding of small materials, such as coal, cement, stones, sand, clay, ore and so on.
Advantages and Features
1. Superior design-Low power required, effective inflow feeding & guiding discharge, steady operation, and compact structure.
2. Vast range of application- Almost no limitation for lifting material forms and properties.
3. Free from pollution- Good sealing condition could effectively reduce the environmental pollution.
4. Advanced technology-Excellent design & reliable manufacturing way has greatly ensured the overall machine.
5. Designed to fit your operation-Silo bucket elevator can be customized to meet different capacity and working site.
6. Customized driving unit-Domestic or Imported brand can be chosen as per client’s requirement.

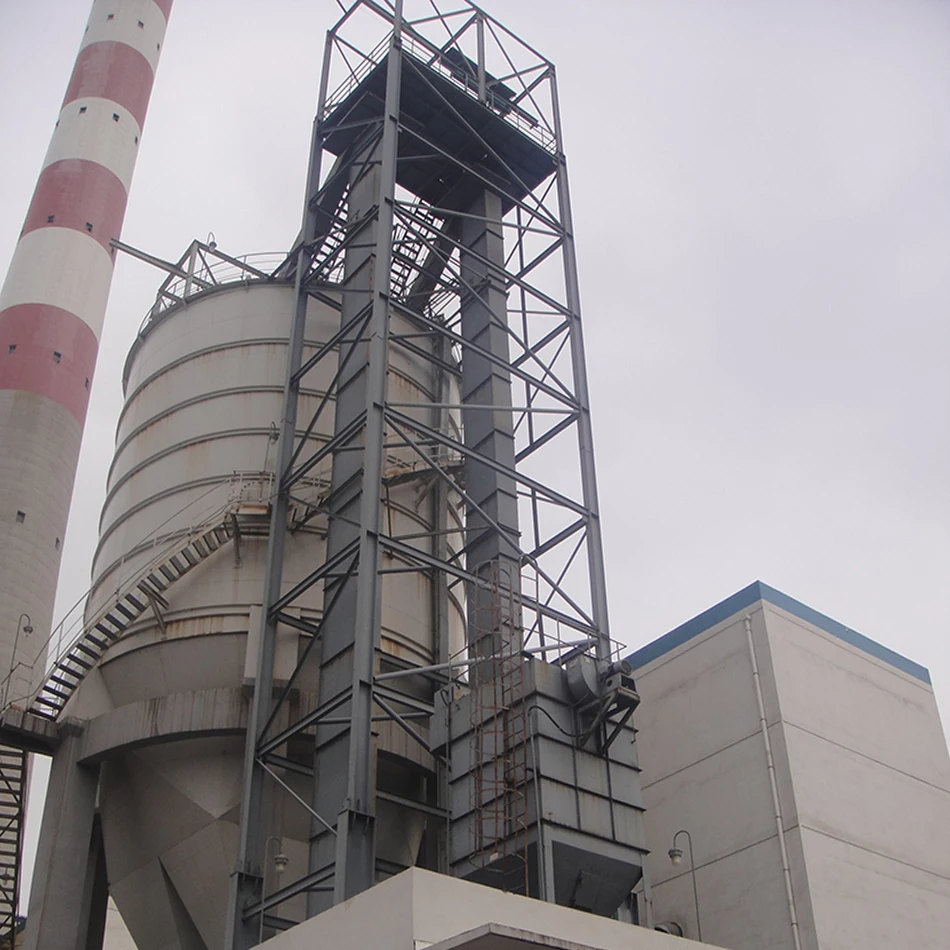

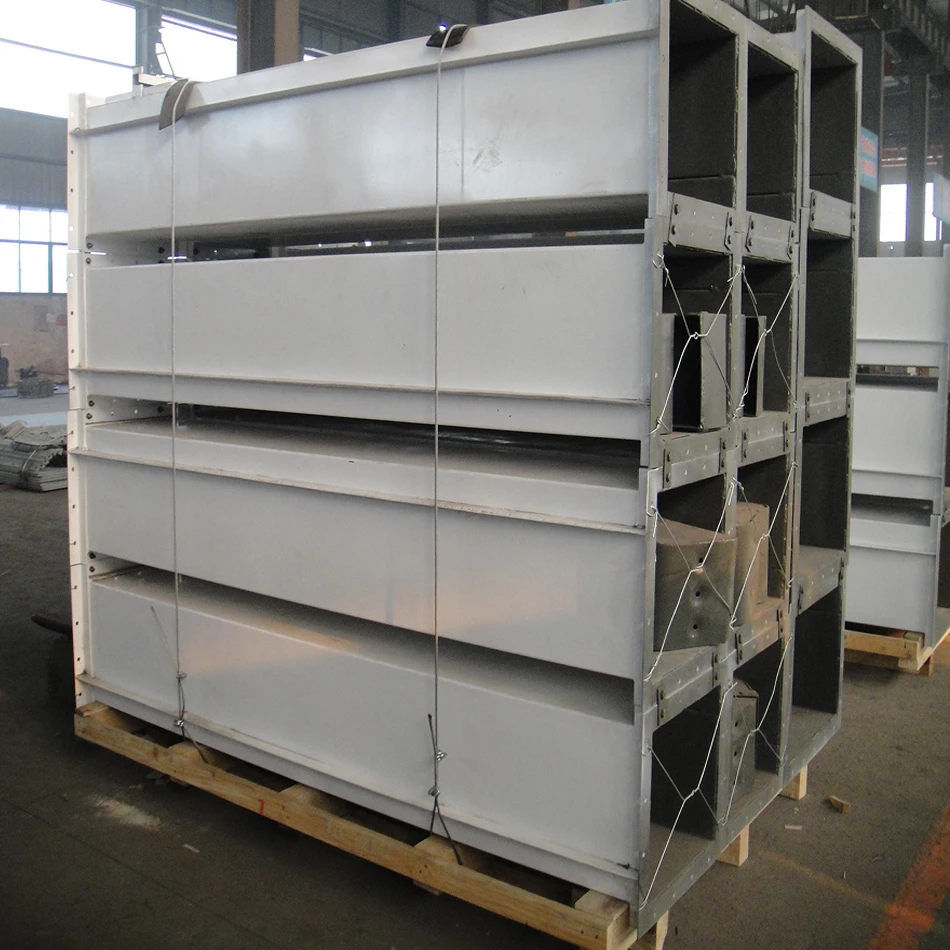

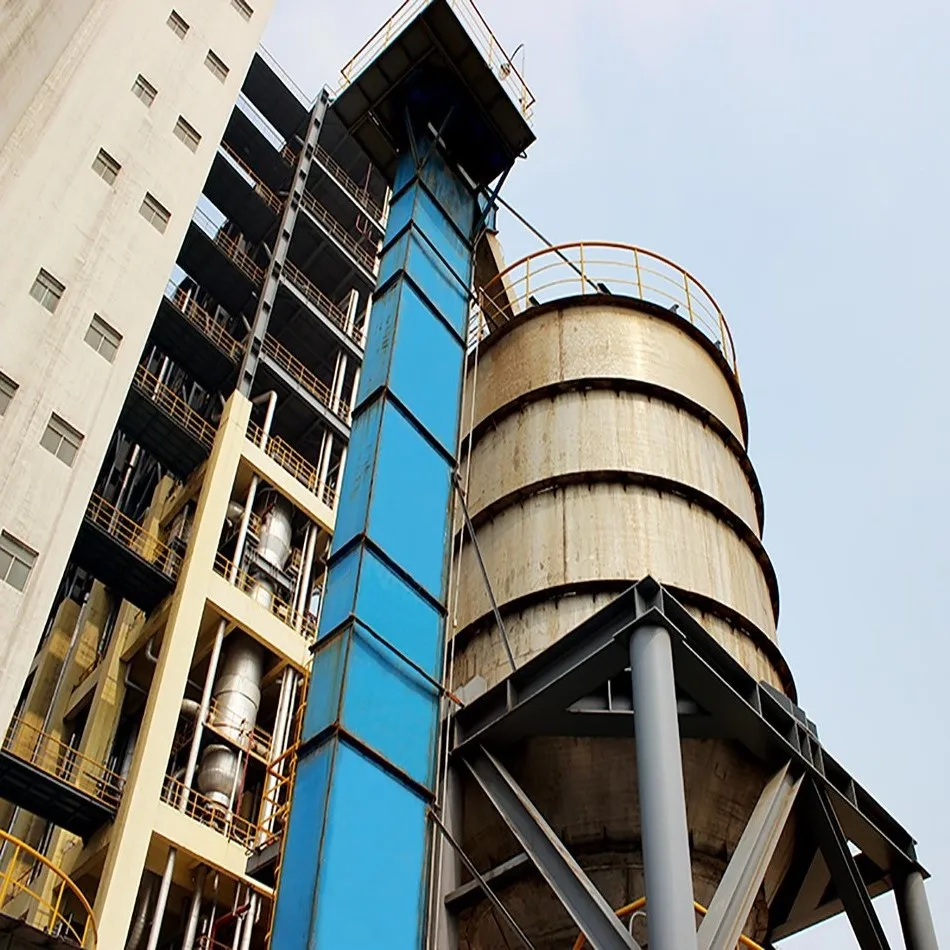

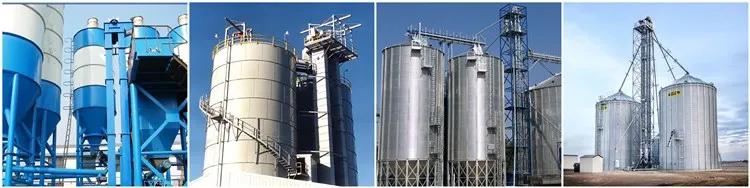

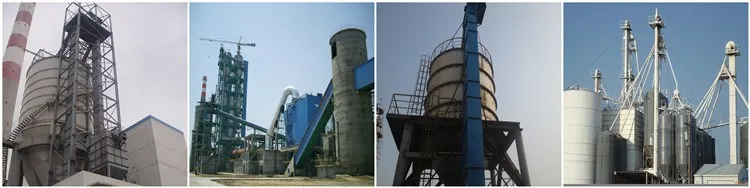

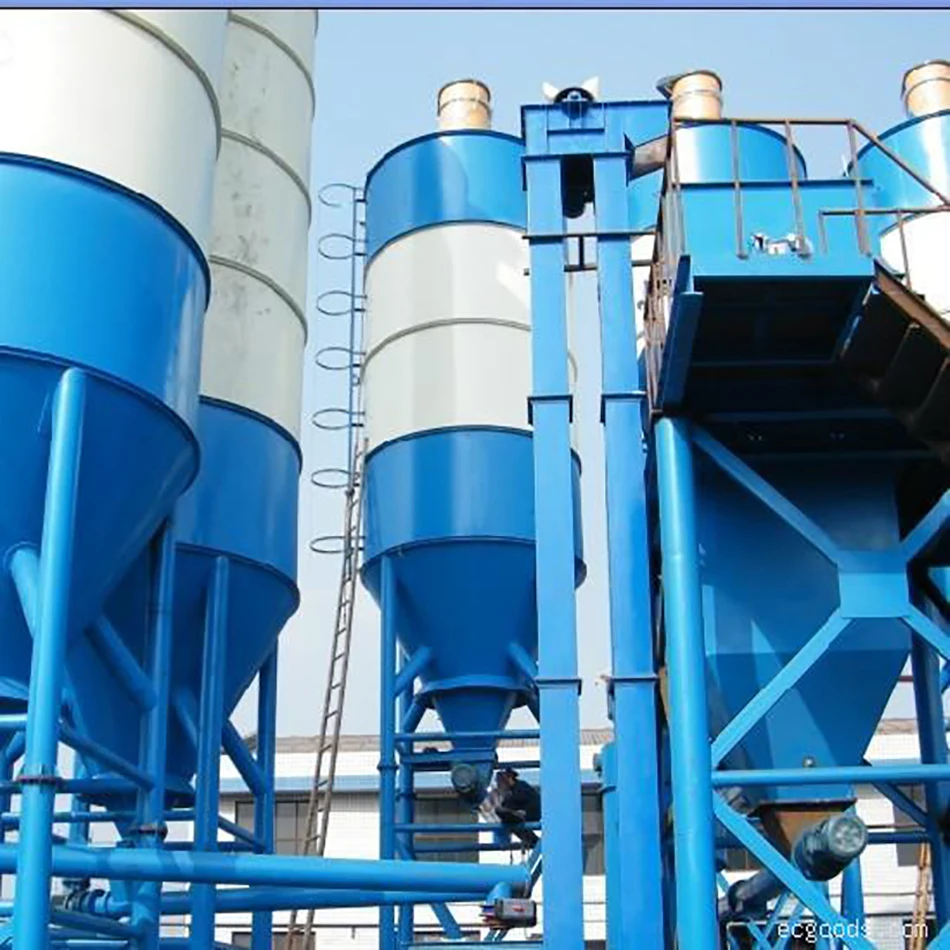

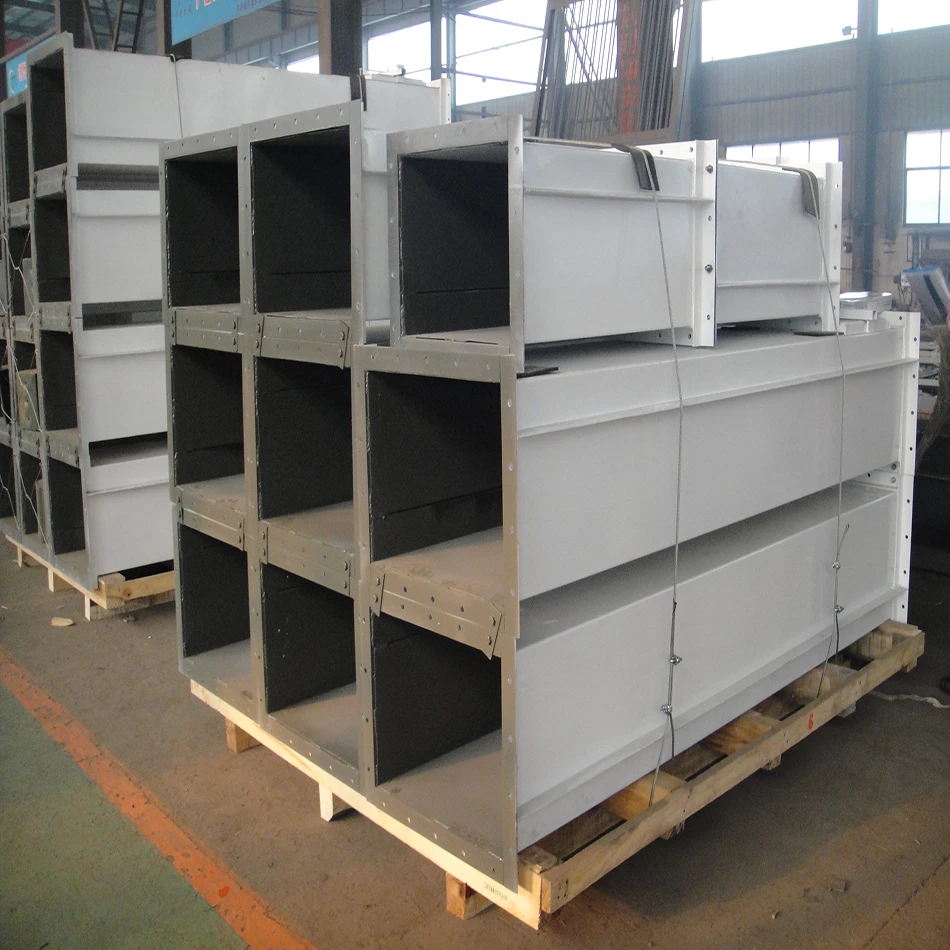

Detailed Images
Technical Parameters
Technical Parameter:
TZD type Silo Bucket Elevator | |||||||||||
Model | Belt Width (mm) | Head Pulley Diameter (mm) | Tail Pulley Diameter (mm) | Bucket Speed (m/s) | Head Shaft Rotation Speed (r/min) | Steel Bucket Volume (L) | Steel Bucket Spacing (mm) | Steel Bucket Capacity (t/h) | Plastic Bucket Volume (L) | Plastic Bucket Pitch (mm) | Plastic Bucket Capacity (t/h) |
TZD200 | 200 | 630 | 500 | 1.76 | 53.5 | 1.21 | 300 | 10 | 1.21 | 300 | 10 |
1.76 | 53.5 | 150 | 20 | 150 | 20 | ||||||
2 | 60 | 125 | 30 | 125 | 30 | ||||||
2.75 | 83.3 | 105 | 50 | 105 | 50 | ||||||
TZD250 | 250 | 630 | 500 | 1.76 | 53.3 | 2.35 | 150 | 30 | 2.35 | 150 | 30 |
1.76 | 53.3 | 125 | 50 | 125 | 50 | ||||||
2.42 | 73.5 | 125 | 80 | 125 | 80 | ||||||
3 | 91.9 | 125 | 100 | 125 | 100 | ||||||
TZD300 | 300 | 710 | 565 | 1.93 | 52.5 | 6 | 215 | 80 | 3.1 | 145 | 50 |
2.2 | 60 | 215 | 100 | 145 | 80 | ||||||
3.05 | 82.2 | 215 | 150 | 145 | 100 | ||||||
TZD400 | 400 | 710 | 565 | 1.93 | 52.5 | 8.4 | 215 | 100 | 6.1 | 195 | 80 |
2.2 | 60 | 215 | 150 | 195 | 100 | ||||||
3.05 | 82.2 | 215 | 200 | 195 | 150 | ||||||
TZD500 | 500 | 800 | 655 | 1.97 | 47 | 10.9 | 215 | 150 | 11.5 | 255 | 100 |
2.2 | 52.8 | 215 | 200 | 255 | 150 | ||||||
3.1 | 74 | 215 | 300 | 255 | 200 | ||||||
TZD650 | 650 | 800 | 655 | 2.2 | 52.8 | 2X6 | 215 | 200 | 2X3.1 | 145 | 150 |
2.76 | 66 | 215 | 300 | 145 | 200 | ||||||
3.87 | 92.5 | 215 | 400 | 145 | 300 | ||||||
TZD800 | 800 | 1140 | 930 | 2.5 | 41.6 | 2X8.4 | 215 | 400 | 2X6.1 | 195 | 200 |
3.15 | 52.5 | 215 | 500 | 195 | 300 | ||||||
3.94 | 66 | 215 | 600 | 195 | 400 | ||||||
Note: All the parameters are for reference only, we can design and manufacture as per your requirements.

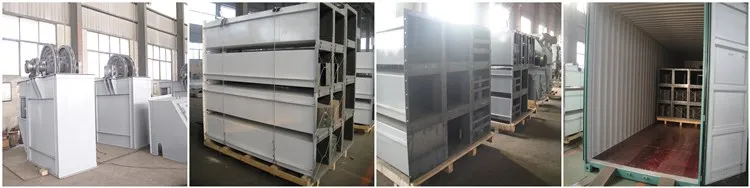

Packaging & Shipping
1.We can deliver DTG 20/11 bucket elevator/ rice elevator for rice mill plant timely .

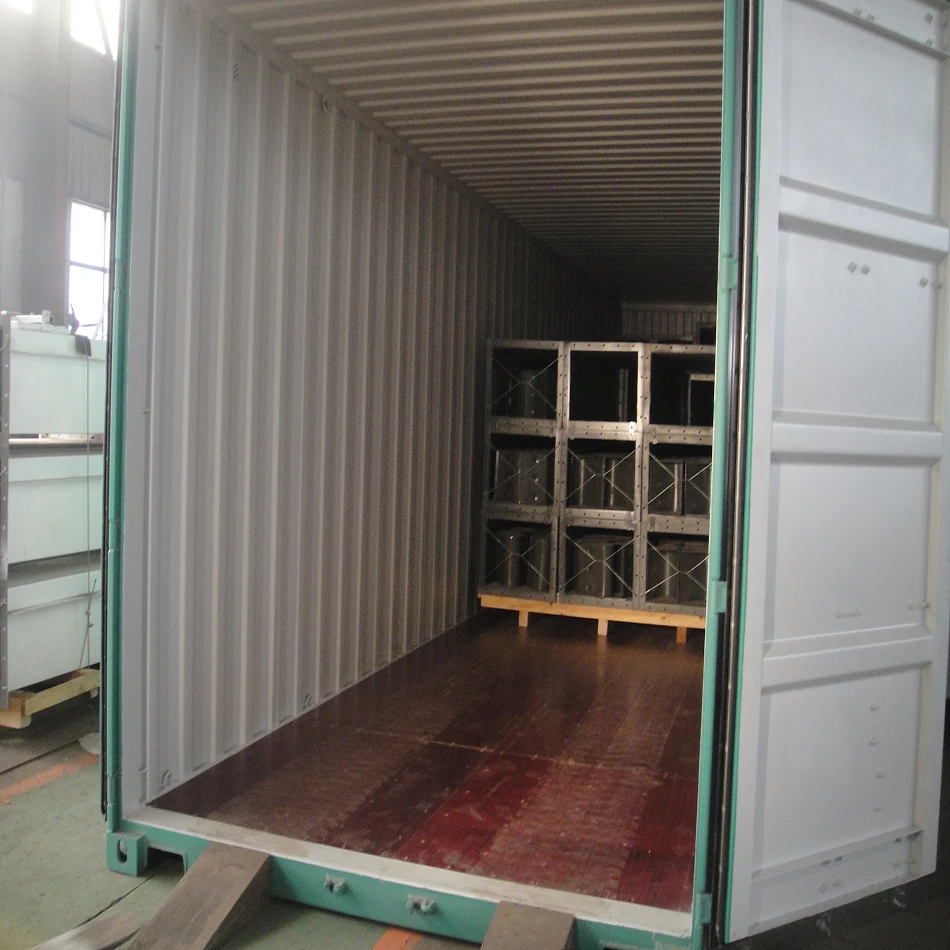

2.Standard sea shipping packaging.
Our Services
1.Reply your enquiry in 24working hours ,anytime you can contact us .
2.Provide good before-sale / after -sale services.
3.Provide Professional &technical support.
4.View our factory ,sincerely treat per customer's requirement .
Company Information
Henan Pingyuan Mining Machinery Co.,Ltd (PKmachinery) had earned many certificates about the whole strength and had cooperated with many group companies in the whole world. There is a systematized program in our company, every order will strictly according to the standard system to show our customer the best immediately.
PK machinery offers a full range of screening and conveying equipment,which involves vibrating screen,belt conveyor,bucket elevator,screw conveyor,scraper conveyor and related spare parts.What's more,PK Machinery is always cooperating with the world-class suppliers to ensure the product's high quality,including ABB,SEW,SIEMENS,etc.
Certifications
Certification---ISO9001:2015, BV, SGS, CE certification
