Factory Automatic Coconut/Cooking/Edible/Olive/Soybean/Sunflower Oil Filling Machine Price,Oil Filling Production Line
- Category: >>>
- Supplier: Yoho Industrial (Shanghai) Co. Ltd
Share on (1600190865685):
Product Overview
Description
Product Overview

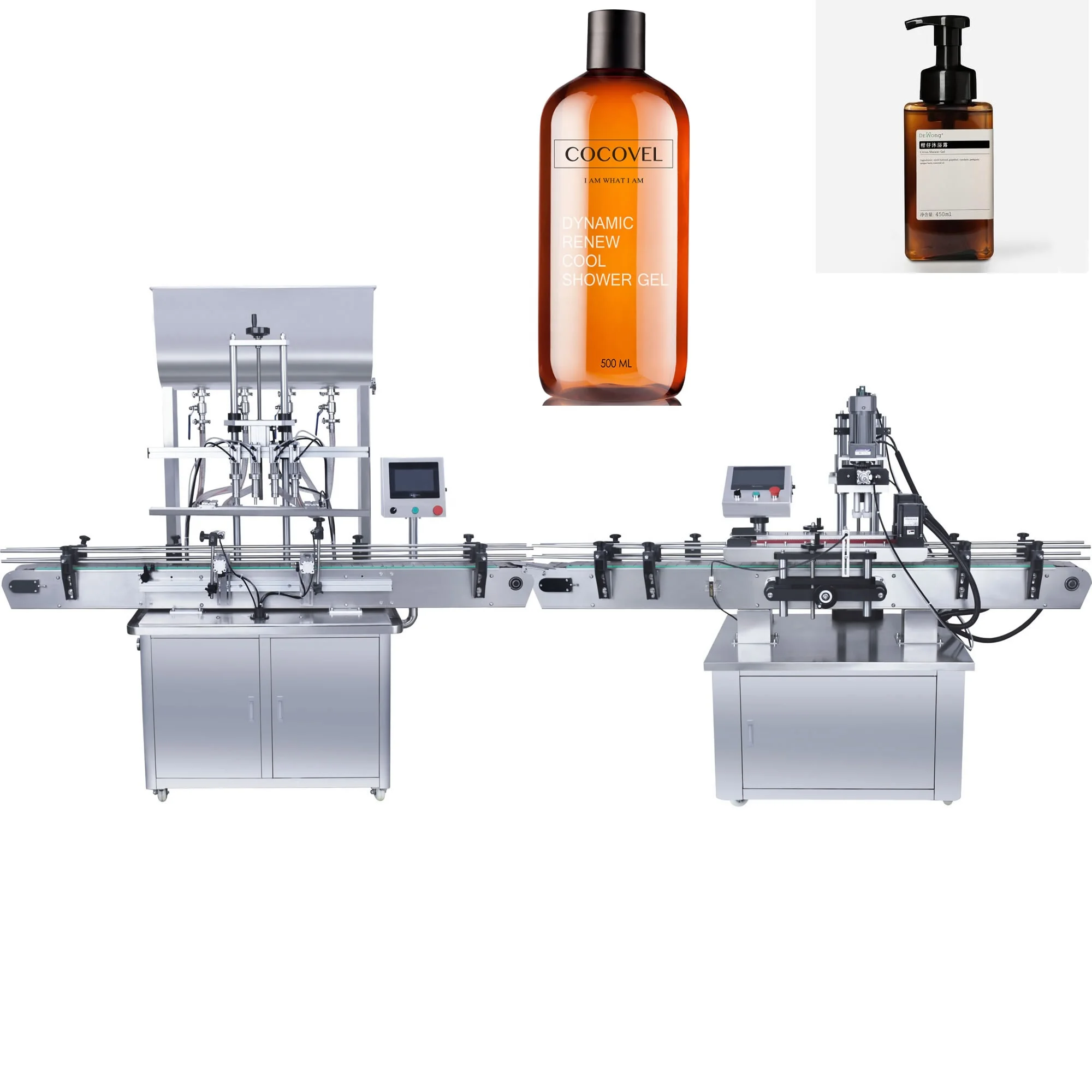

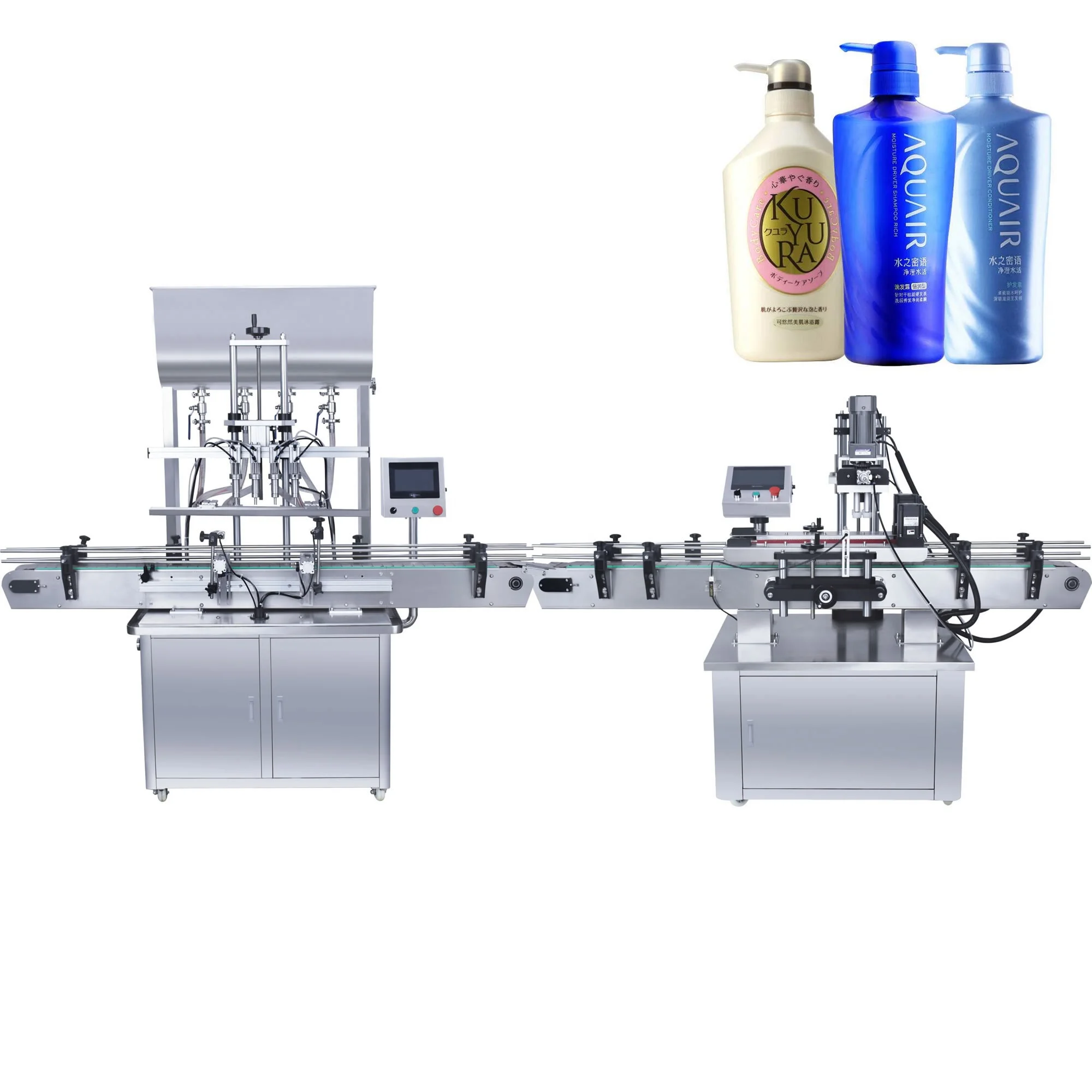

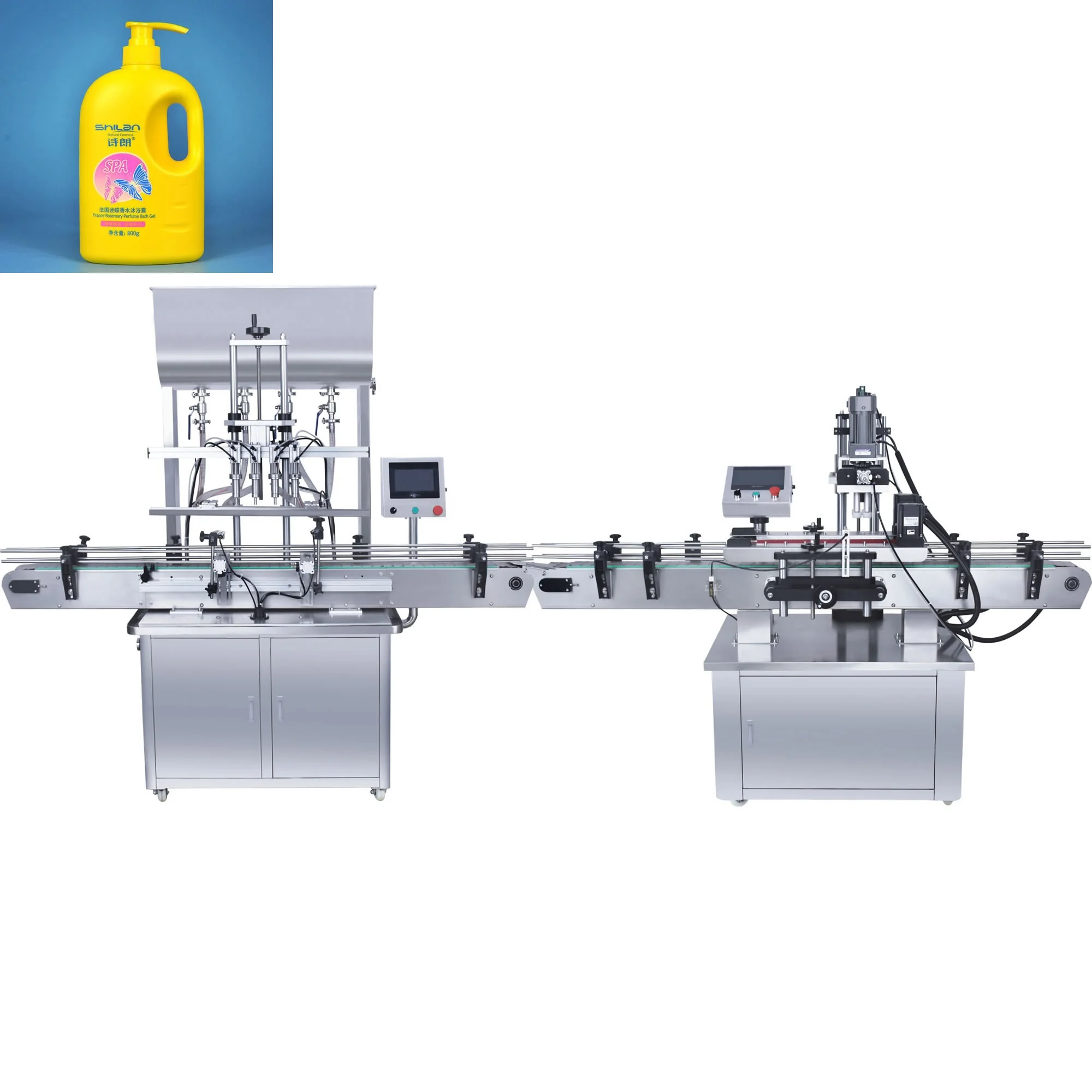

The working principle of the filling machine
The bottle unscrambler arranges the bottles into rows and then enters the position of the aliquot tray in turn, passes through the gap of the aliquot tray, and when the bottle stops, the filling head drops into the bottle for filling, filling 2 bottles at a time. The halving plate moves intermittently. Each time the turntable rotates through 2 stations, two bottles are sent forward, and then it stops to enter the gap of the halving plate. The lids are arranged in rows by the electromagnetic oscillation hopper, and the mouths all go up into the cover channel. In the rail, the lower mouth of the falling cover rail is directly opposite to the center of the gap of the dividing plate. After the bottle enters the gap of the dividing plate, it rotates with the dividing plate, so that the bottle mouth of each bottle can take away the bottle at the lower end of the bottle cover rail. Cap and put it on the mouth; when the bottle with the cap on enters the sealing position with the rotation of the aliquot disk, the sealing seat will drop, and the cap and the bottle mouth will be screwed tightly. The sealed bottle will be sent to the bottle through the rotation of the aliquot disk In the bucket.
Filling is the use of high-precision cam structure to complete the filling and capping process, touch screen operation, program setting production speed, stainless steel pump filling, high filling accuracy, easy adjustment of filling volume, can realize no bottle no filling, safety protection Good performance. Scientific design, compact structure and convenient operation.
The capping head is designed with a constant torque and the torque is adjustable. When the cap is tightened, the capping head will automatically slip, effectively protecting
The working principle of the labeling machine
＊Core working principle: the bottle separating wheel separates the products and puts them on the conveyor belt, the sensor detects the product passing, and sends back a signal to the labeling control system. At the appropriate position, the control system controls the corresponding motor to send out the label and attach it to the product to be applied. At the label position, the product flows through the labeling device, the labeling drive drives the product to rotate, the label is rolled, and the attachment of a label is completed;
＊Operation process: put the product (put it in the blanking box) -> separate the product and put it on the conveyor belt (equipment automatic realization) -> product delivery (equipment automatic realization) -> labeling (equipment automatic realization) -> covering Labeling (automatically realized by equipment)—>Collect labeled products.
Filling is the use of high-precision cam structure to complete the filling and capping process, touch screen operation, program setting production speed, stainless steel pump filling, high filling accuracy, easy adjustment of filling volume, can realize no bottle no filling, safety protection Good performance. Scientific design, compact structure and convenient operation.
The capping head is designed with a constant torque and the torque is adjustable. When the cap is tightened, the capping head will automatically slip, effectively protecting
The working principle of the labeling machine
＊Core working principle: the bottle separating wheel separates the products and puts them on the conveyor belt, the sensor detects the product passing, and sends back a signal to the labeling control system. At the appropriate position, the control system controls the corresponding motor to send out the label and attach it to the product to be applied. At the label position, the product flows through the labeling device, the labeling drive drives the product to rotate, the label is rolled, and the attachment of a label is completed;
＊Operation process: put the product (put it in the blanking box) -> separate the product and put it on the conveyor belt (equipment automatic realization) -> product delivery (equipment automatic realization) -> labeling (equipment automatic realization) -> covering Labeling (automatically realized by equipment)—>Collect labeled products.
FEATURES AT A GLANCE
Main products
Apply area
Part of products
Machine overview
PRODUCT SPECIFICATIONS
Features:
Automatic turntable capping machine
The XG-300 capping machine is mainly composed of several parts such as rational cap, capping, bottle conveying, capping, lifting, conveyor belt, and rejection mechanism. The bottle conveying is controlled through the man-machine interface. The capping speed is fast, as fast as 300 bottles/min. , Strong adaptability, can be screwed tightly for bottle caps of different shapes, and has the advantages of good tightness and consistency. Its big advantage is that each transmission part is controlled by a separate motor, which is easy to adjust, durable and reliable. Other similar products adopt synchronous belt or sprocket transmission mode, which is easy to be damaged or not tightly screwed.
Host equipment:
Cap arranging part: the pneumatic distribution method only needs to adjust the air pressure value of each part for different bottle caps, the replacement time is short, and the outer diameter of the bottle cap (such as the outer diameter of 30-50mm) does not need any adjustment.
The part of the cap drop: adopts the slideway flip mode, the action of the upper cap mechanism is controlled by the optical fiber switch, and the bottle sleeve is tightened on the bottle with the Tai spring.
Bottle conveying part: the timing belt speed can be adjusted steplessly, directly digitally set on the man-machine interface, with simple and intuitive speed adjustment, the bottle conveying timing belt speed should be adjusted to be consistent with the production line speed.
Capping part: Three groups of capping wheels are used to rotate the cups. The three groups of capping wheels are controlled by 6 motors with frequency conversion, which can independently and steplessly adjust the speed, and directly set the value on the man-machine interface.
Lifting part: automatic lifting to adapt to different production lines, different bottle heights and different bottle shapes.
Transmission belt part: adopts plastic flat-top conveyor chain transmission, stepless speed regulation through frequency converter, and the conveyor belt speed and height match the conveying speed of the cover machine.
Rejection device: It is controlled by optical fiber electric eye and electromagnetic induction switch, which can reject unqualified products such as feeding cover and no cover.
Automatic turntable capping machine
The XG-300 capping machine is mainly composed of several parts such as rational cap, capping, bottle conveying, capping, lifting, conveyor belt, and rejection mechanism. The bottle conveying is controlled through the man-machine interface. The capping speed is fast, as fast as 300 bottles/min. , Strong adaptability, can be screwed tightly for bottle caps of different shapes, and has the advantages of good tightness and consistency. Its big advantage is that each transmission part is controlled by a separate motor, which is easy to adjust, durable and reliable. Other similar products adopt synchronous belt or sprocket transmission mode, which is easy to be damaged or not tightly screwed.
Host equipment:
Cap arranging part: the pneumatic distribution method only needs to adjust the air pressure value of each part for different bottle caps, the replacement time is short, and the outer diameter of the bottle cap (such as the outer diameter of 30-50mm) does not need any adjustment.
The part of the cap drop: adopts the slideway flip mode, the action of the upper cap mechanism is controlled by the optical fiber switch, and the bottle sleeve is tightened on the bottle with the Tai spring.
Bottle conveying part: the timing belt speed can be adjusted steplessly, directly digitally set on the man-machine interface, with simple and intuitive speed adjustment, the bottle conveying timing belt speed should be adjusted to be consistent with the production line speed.
Capping part: Three groups of capping wheels are used to rotate the cups. The three groups of capping wheels are controlled by 6 motors with frequency conversion, which can independently and steplessly adjust the speed, and directly set the value on the man-machine interface.
Lifting part: automatic lifting to adapt to different production lines, different bottle heights and different bottle shapes.
Transmission belt part: adopts plastic flat-top conveyor chain transmission, stepless speed regulation through frequency converter, and the conveyor belt speed and height match the conveying speed of the cover machine.
Rejection device: It is controlled by optical fiber electric eye and electromagnetic induction switch, which can reject unqualified products such as feeding cover and no cover.
SALES AND SERVICE NETWORK
Successful Project
FAQ
Q:Are you Trading company or manufacture?
A:We are both manufacture and trading company.
Q: Where is your factory? How can I visit your factory?
A: Our factory is located In Songjiang District Shanghai. We are warmly welcome you visit our Factory if you have a travel plan.
Q: How can I know your machine is designed for my product?
A: If you don't mind, you can send u sample and we test it on the machine. During that time, we will take video and clearer
picture for you. If chance, we can take video online and show u.
Q: How can I trust you for the first time business?
A: Please note our above business license and certificate. And if you don't trust us, then we can use Alibaba Trade Assurance
service. it will protect your money during the whole stage of the transaction.
Q: How about the after service and guarantee period?
A: We make the guarantee time 12 months from the machine's arrival in buyer's facility and we have a professional team with an
experienced technician to serve abroad and do the best after service to assure the machine whole life usage.
Q: How do we contact you?
A: Please leave a message and click "send" to send us an inquiry.
A:We are both manufacture and trading company.
Q: Where is your factory? How can I visit your factory?
A: Our factory is located In Songjiang District Shanghai. We are warmly welcome you visit our Factory if you have a travel plan.
Q: How can I know your machine is designed for my product?
A: If you don't mind, you can send u sample and we test it on the machine. During that time, we will take video and clearer
picture for you. If chance, we can take video online and show u.
Q: How can I trust you for the first time business?
A: Please note our above business license and certificate. And if you don't trust us, then we can use Alibaba Trade Assurance
service. it will protect your money during the whole stage of the transaction.
Q: How about the after service and guarantee period?
A: We make the guarantee time 12 months from the machine's arrival in buyer's facility and we have a professional team with an
experienced technician to serve abroad and do the best after service to assure the machine whole life usage.
Q: How do we contact you?
A: Please leave a message and click "send" to send us an inquiry.
