robotic arm with arduino control auto selling machine auto vending machine automatic arm
- Category: >>>
- Supplier: Dongguan Runma Intelligent Technology Co. Ltd.
Share on (1600190869969):
Product Overview
Description
Product Description
Product Application

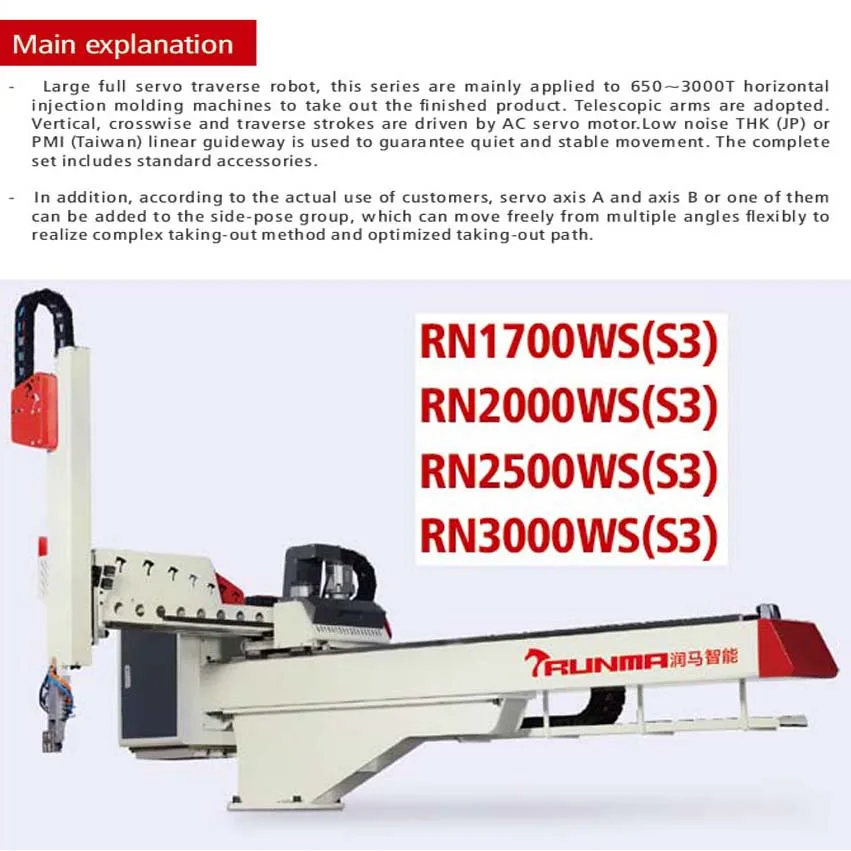

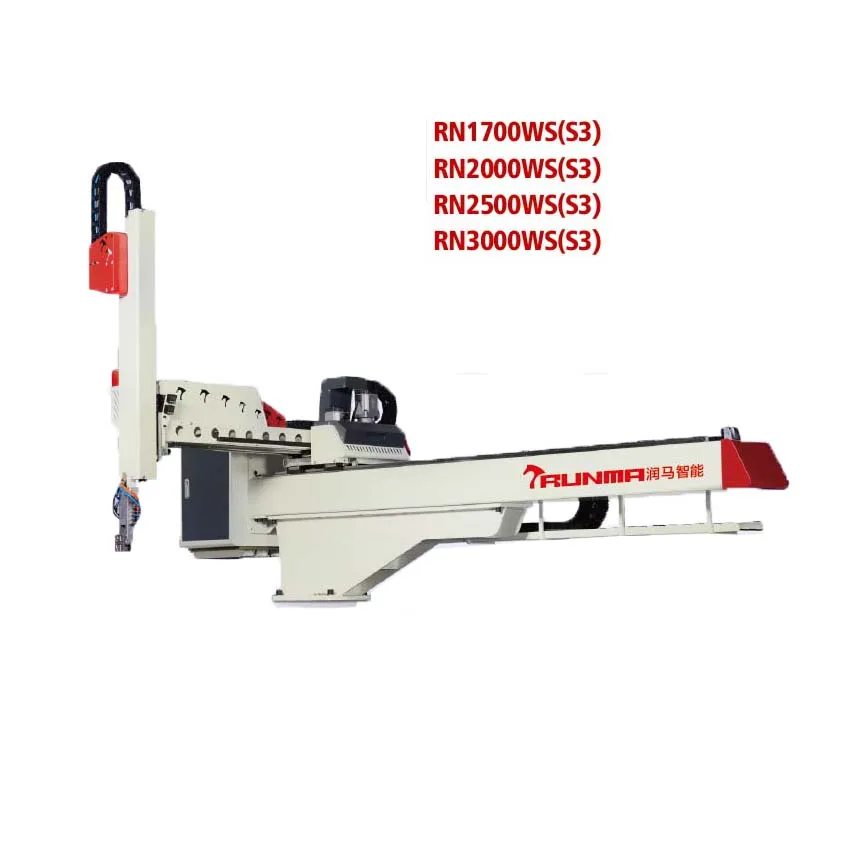

Large open full-servo cross-traveling robot series is mainly applied to take-out of finished products from 650-4000T Horizontal injection molding machine, it uses double-cut arm, three axes of X,Y,Z has AC servo motor driven mode, it is equipped with Japan THK low noise sliding track, quiet and smooth, and has standard configuration.
Based on actual customer usage, side posture group can add servo axis A and B or one of them, capable of flexible multi-degree freed motion, and realize complex take-out methods and optimized take- out paths.

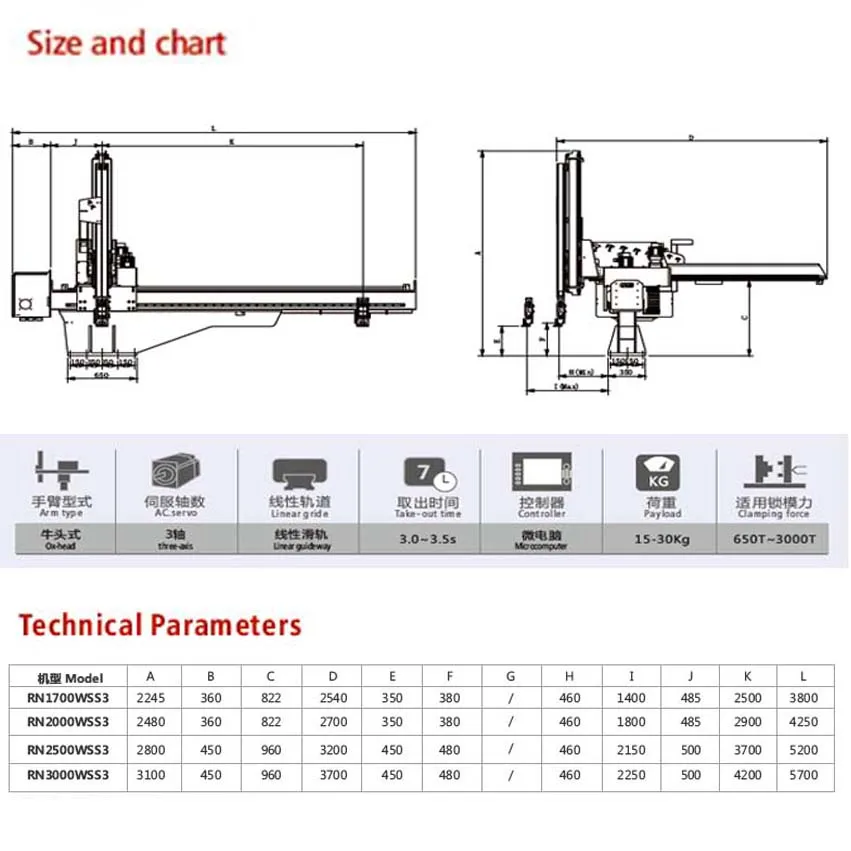

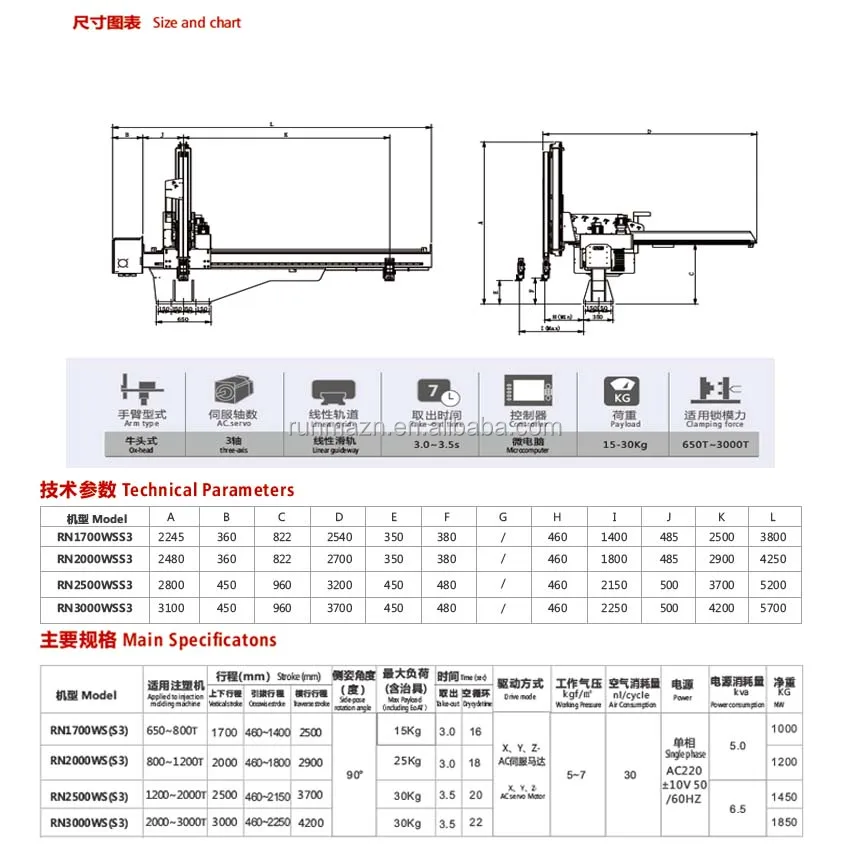

SPECIFICATIONS | ||||||
Applied to injection molding machine | ton | 1200~1600 | ||||
Travel | Up and down | mm | 2000 | |||
Pull out | mm | 200~1800 | ||||
Cross traveling | mm | 2200 | ||||
Side posture angle (degree) | ° | 90 | ||||
Max load (including ceiling fixture) | 7 | |||||
Time | Take out | sec | 3 | |||
Circle time | sec | 15 | ||||
Driven way | X/Y/Z - AC servo motor | |||||
Working pressure | kgf/cm*2 | 5~7 | ||||
Air consumption | nl/cycle | 20 | ||||
voltage | V | 220V | ||||
Power consumption | kva | 5 | ||||
NW | Kg | 820 | ||||
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization.
5) Low noise, save energy, long use life, no pollution.
Detailed Images
Drive
Name: AC servo motor
Brand: DELTA
Original: Taiwan,China
Domestic famous engines, strong driving force, low fuel consumption, high economic benefits 12F+4R sliding sleeve shift.
Accessory

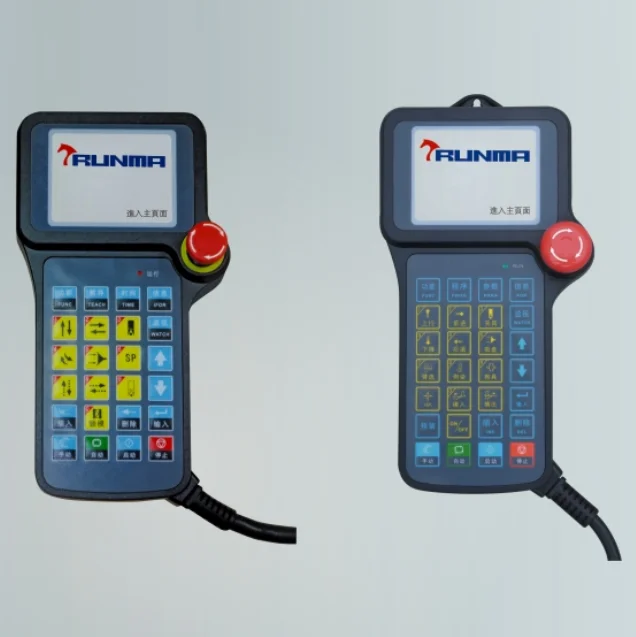

Name: Controller
Brand: RUNMA
Original: China
-Color screen, single-sheet multi-line display, making it easy for users to set parameters and signal monitoring
-32-bit double-CPU control, fast action response, smoother page switching
-Open program teaching mode, easy to learn, provide common fixed programs, users can also self teach a variety of complex mold processes.
-Ac servo direction can have multi-point placement, up to 99 sets.
Accessory
Name: Linear guideway
Brand: PMI
Original: Taiwan,China
High precision and good repeatability.
Low friction resistance, long time maintenance accuracy.
Easy to assemble and interchangeable.
Main Features
Name: Bliwing Cylinder
Brand: RUNMA
Original: China
-8-inch color touch screen hand controller, more simle, convenient, and user-friendly
-Open teaching way can easily realize embedding, stacking and other process requirements, and has assisting action with auxiliary equipment
-3-axis linkage function can plan a variety of complex take-out paths.
-Position setting can be accurately set with knob pulse spinner
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging | ||
Size | 2170 (L) x 1500 (W) x 1550mm (H) | |
Weight | 180 Kg | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Packaging | ||
Size | 2170 (L) x 1500 (W) x 1550mm (H) | |
Weight | 210 Kg | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
