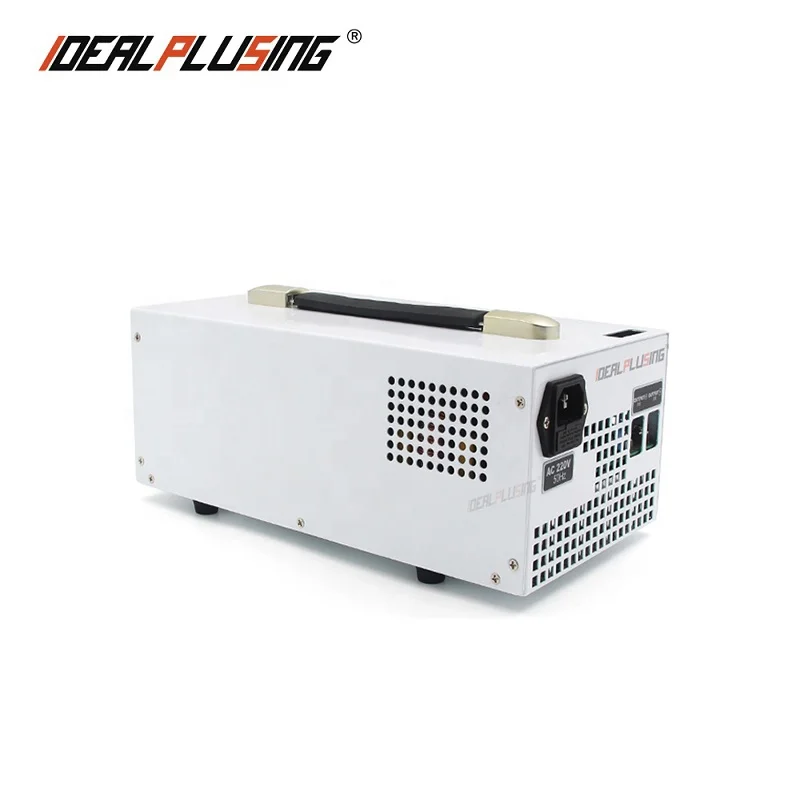

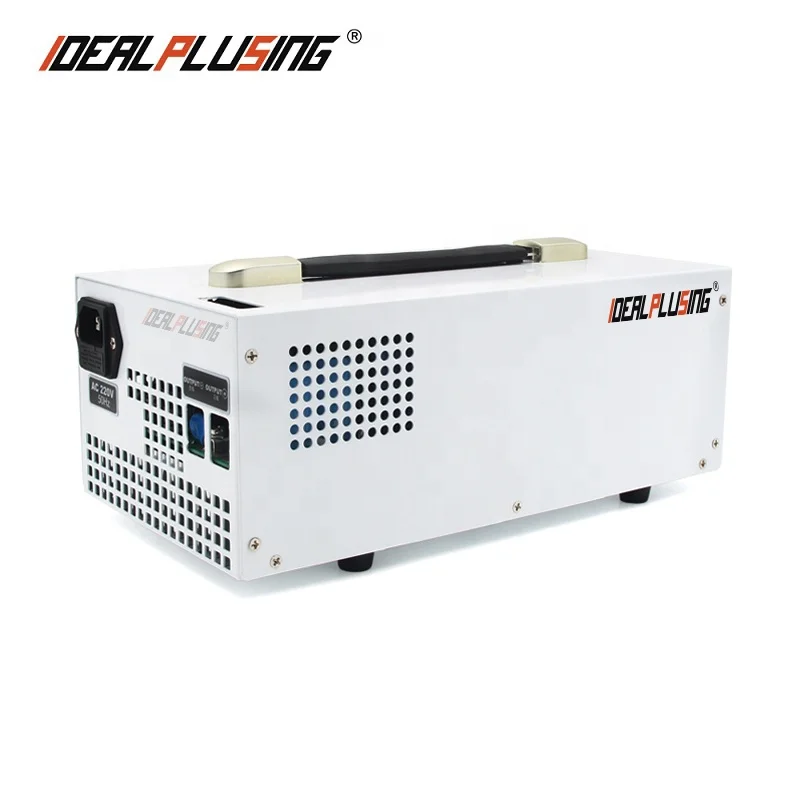

With over voltage and over current protection customization ac 220v to dc 12v 100a led regulated transformer power supply 1200w
- Category: >>>
- Supplier: Guangzhou Idealplusing Information Technology Co. Ltd.
Share on (1600190870170):
Product Overview
Description
TECHNICAL PARAMETRIC
AC Input | Single phases 220VAC/120VAC (Optional) |
Input Voltage Range | 220VAC±15% or 120VAC±15% (Optional) |
Input frequency | 50Hz/60Hz |
Output voltage | 0~12VDC |
Output current | 0.1~100A |
Output Power | 1200W |
Voltage Stabilization | ≤0.3%+10mV |
Load Stabilization | ≤0.5%+30mV |
Ripples and Noises | ≤0.5%+10mVrms |
Voltage Display Accuracy | 3-digit Accuracy: ±1%+1 word |
Display Format | 0.000V-9.999V; 0.00V-99.99V; 0.0V-999.9V |
Current Display Accuracy | NO current display |
Output Over Voltage Protection | Built-in O.V.P. protection, protection limited value is rated +5% |
Output Over Load Protection | Overload, current limit, constant current output |
Over Temperature Protection | Built-in O.T.P. protection, Protection value 85℃±5% heat sink temperature |

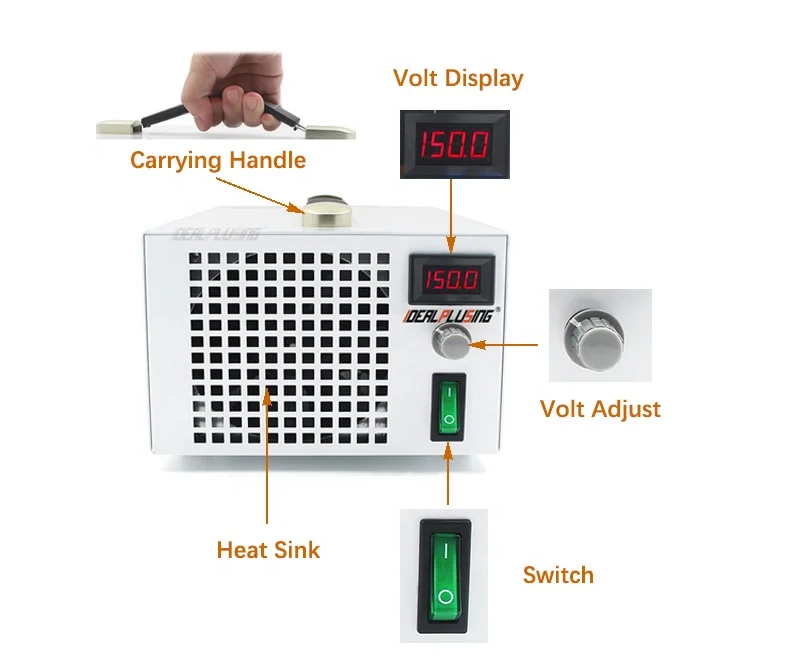

Voltage Setting | 10-turn precision potentiometer |
Current Setting | 1NO current display potentiometer |
Output Polarity | Output Positive(+) negative(- ) Can be grounded at will |
Heat Dissipation Way | Forced fan cooling |
Work Conditions | Indoor use design,Temperature:0℃~40℃; Humidity: 10%~85%RH |
Storage Conditions | Temperature:-20℃~70℃;Humidity: 10%~90%RH |

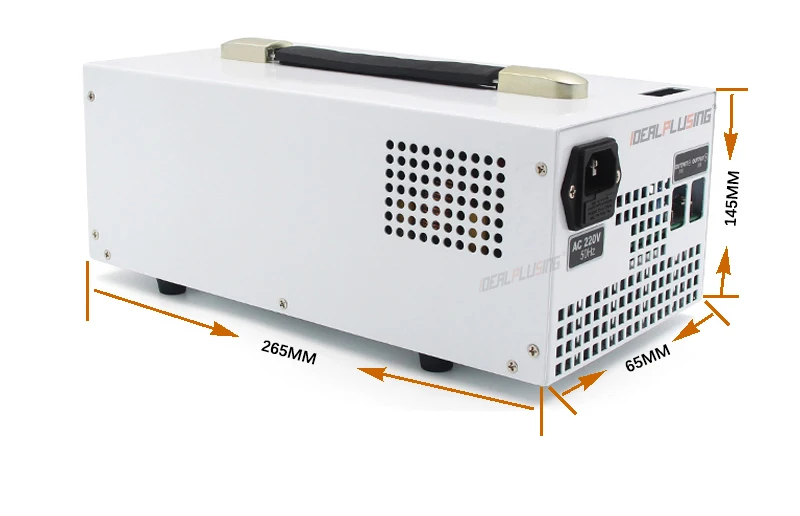

Packaging Dimension | L295*W150*H108(MM) |
Gross Weight | 6.5KG |
Related information
Factory Display
FAQ
Q1. Can I have a sample order?
A: Yes, sample order is acceptable to test and check quality for the first cooperation
Q2. What about the lead time?
A: Most of the model in the stock, sample lead time after receive payment 1-3 working days
Q3. Do you have any MOQ limit?
A: Low MOQ, 5 pieces for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We often ship by DHL, UPS, FedEx, or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.
Q5. How to proceed with an order?
A: Initially, let us know your requirements or application. Besides, We quote according to your requirements or our suggestions. Thirdly, customers confirm the samples and places deposit for formal order. Finally, We arrange production.
Q6. Is it acceptable to print the buyer logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: How to deal with the flaw?
A: Our products are produced in a strict quality control system and the percent of pass is often maintained over 99.8%.
Q8: Do you offer a guarantee for the products?
A: Yes, we offer a 1-year warranty for all power supply.
