70 W DC build in brushless Micro Anticorrosion Abrasion resistance Gear Pump I0.60T70W

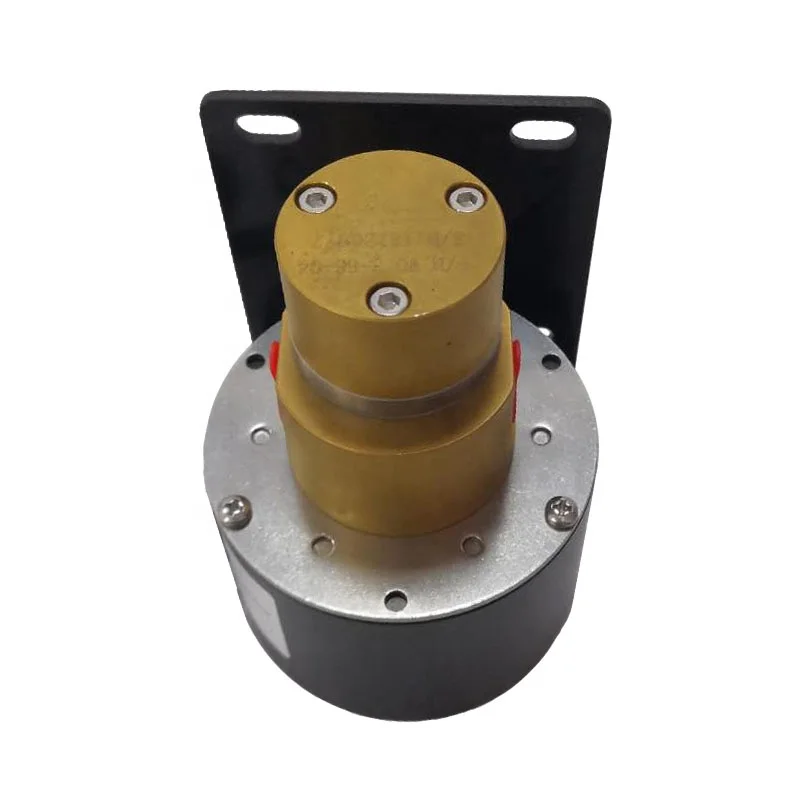

Product Overview

Description

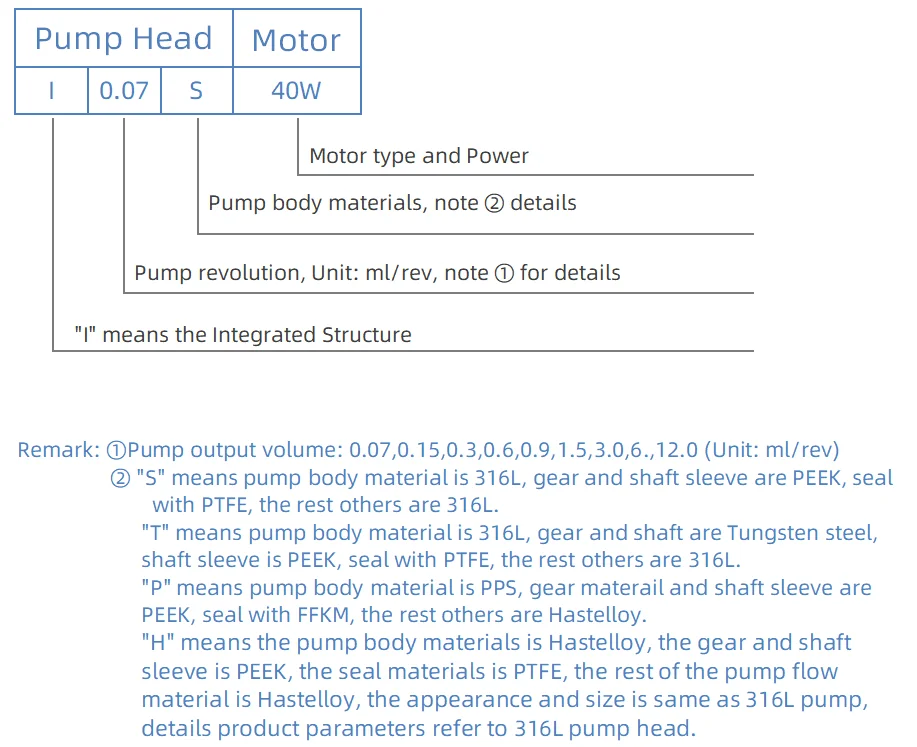

Product Model Description


Product instruction:

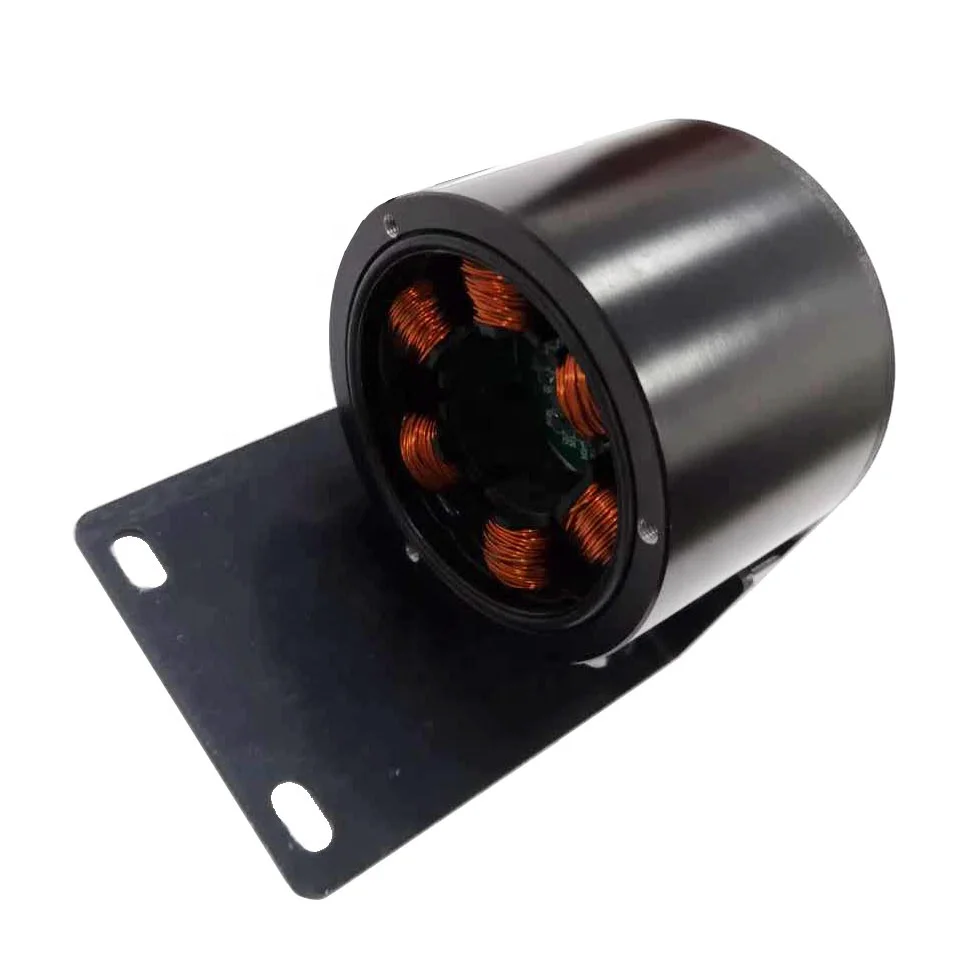

The pump head and motor are integrated, and the brushless driver is integrated in the motor tail, which makes the product structure compact and more suitable for the occasions with narrow installation space.


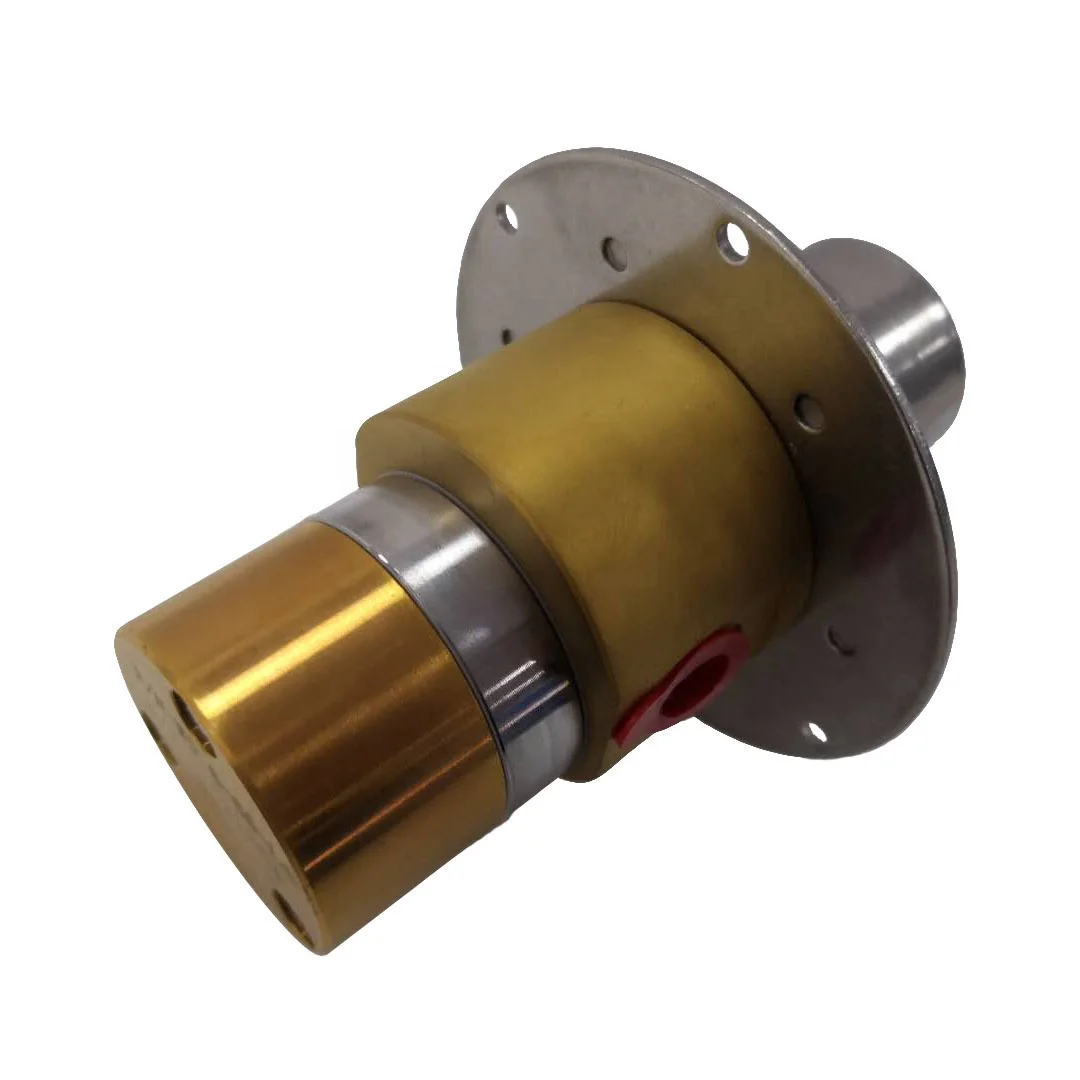

The gear of the gear pump is made of tungsten steel, and the surface of the pump body is hardened by tin coating, so that the pump can provide excellent pumping performance and longer service life in the application of abrasive liquid (such as pigment paint and pigment ink).



Attentions:

1.400 Mesh filter shall be installed at the inlet of gear pump.

2.This gear pump is suitable for continuous operation for a long time and can not be used under the condition of frequent start and stop.

3.Before using, squeeze in a small amount of medium to lubricate the gear from the gear pump inlet.

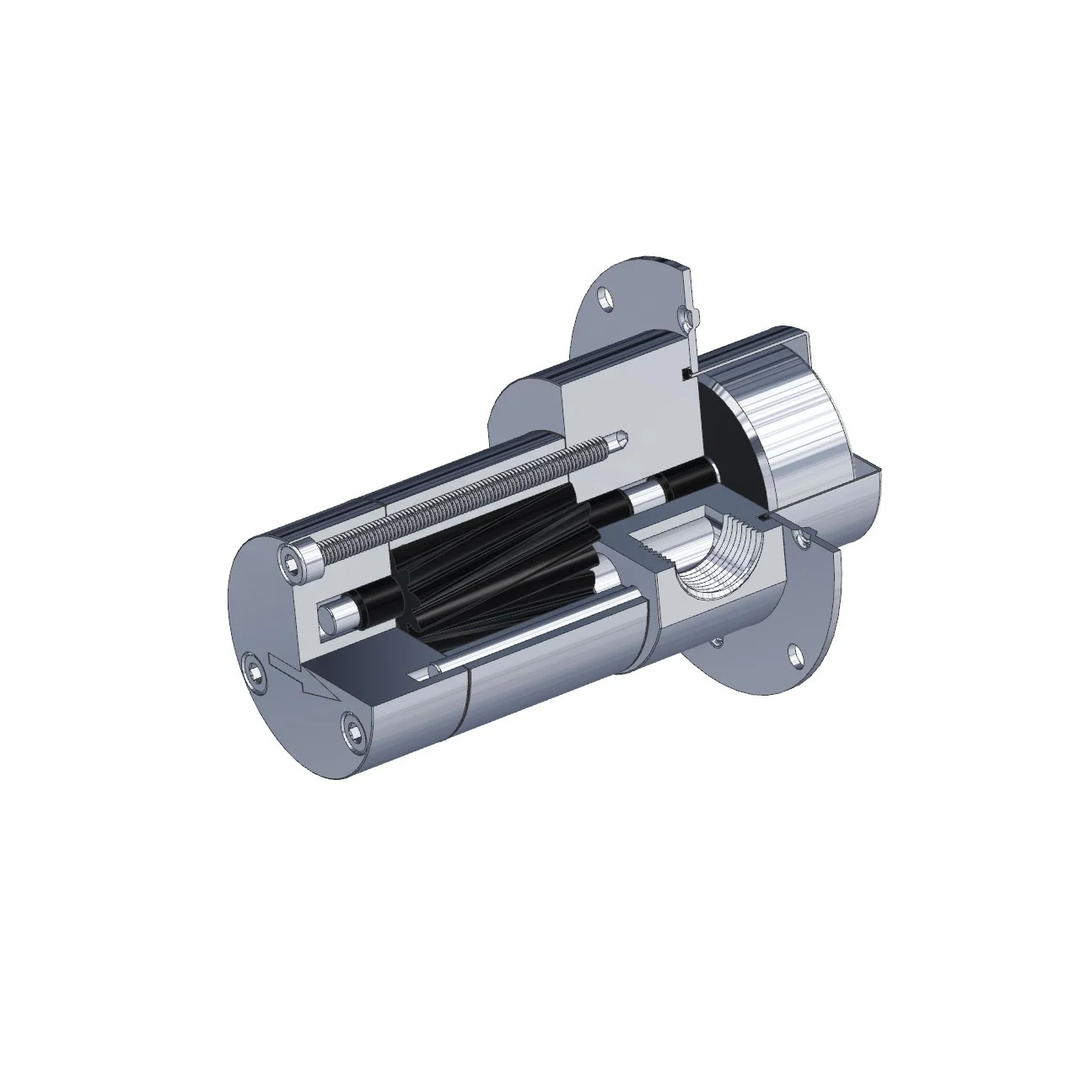

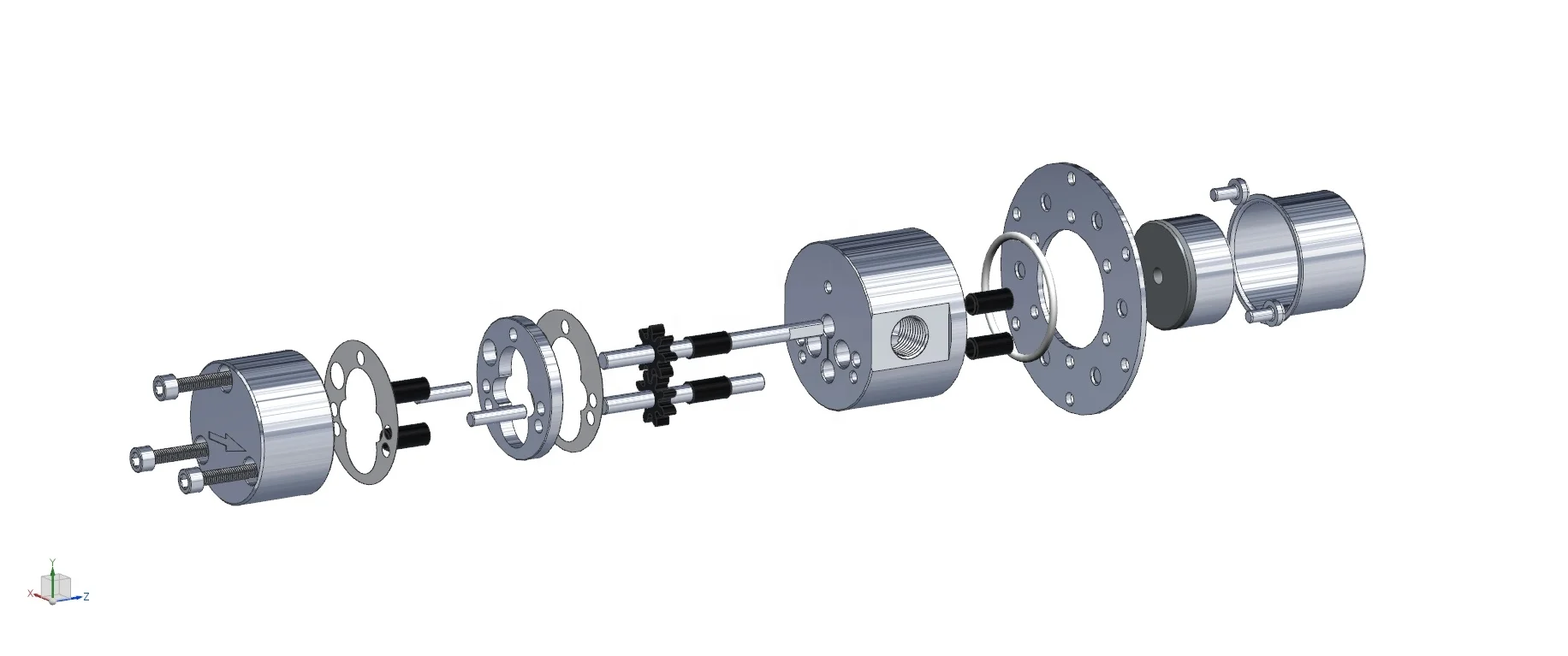

Product Diagram:

 Product Parameters:



Pump Model	Motor Type	L1(mm)	L2(mm)	Pressure(bar)	Weight(kg)	Rated Current(A)	Imp.&Exp. Size	Flow(L/H)
I0.15T	40W	95.4	32.8	8	0.77	2.5	G1/8	4.5~45
I0.30T		95.4	32.8		0.77			9~90
I0.60T		95.8	36.9	4	0.77			18~180
	70W	108.1	36.9	8	0.78	3.3		18~180

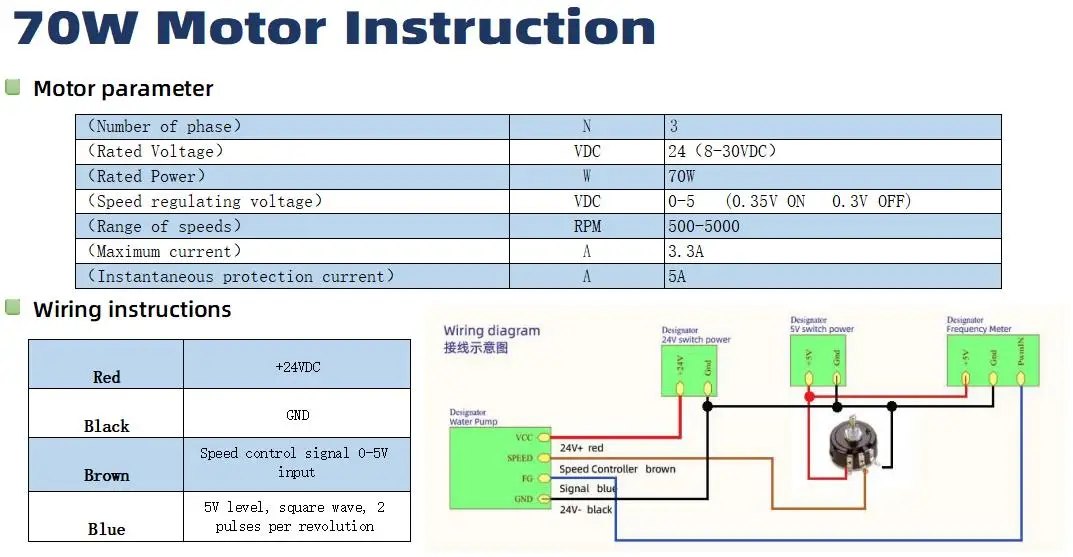

Pump Head Parameters		Motor Parameters		Motor wiring definition
Fluid Viscosity	0.2-1500cps	Drive Type	Built in drive DC brushless	Red	+24V
AAmbient TemperAture	-40℃-70℃	Rated Voltage	24V	Black	0
Static sealing	PTFE	Speed regulating voltage	0-5 (0.35V ON 0.3V OFF)	Brown	Speed control signal 0-5V input
Pump Body	Stainless steel with Titanium nitride coating	Speed rpm	500-5000rpm	Blue	5V level, square wave, 2 pulses per revolution
Gear	Gear and gear shaft are WC	Working system	Continuous



The values in this table are for reference only.





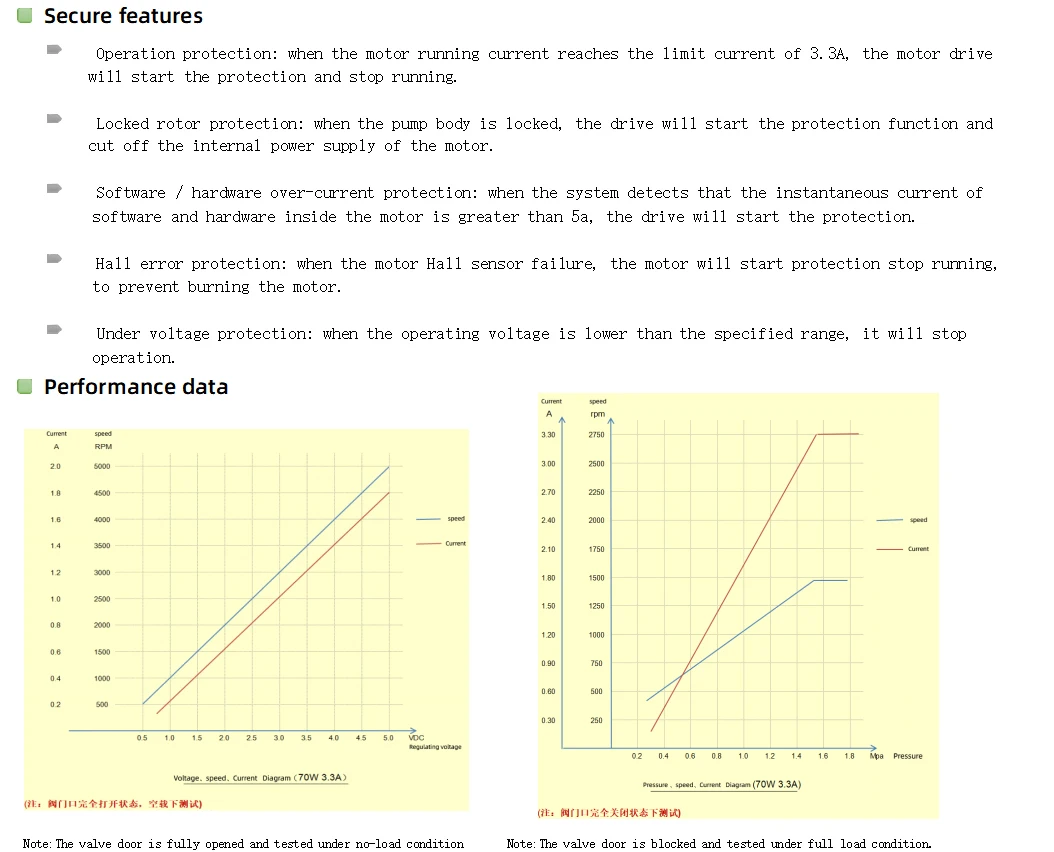

Product Characteristics:
1.Smooth transmission, no pulse, accurate measurement;
2.Use magnetic drive structure, static seal, truly achieve zero leakage;
3.Diversified drive, wide application in the industry, complete models;
4.High efficiency and energy saving, easy maintenance, low installation cost and long service life.

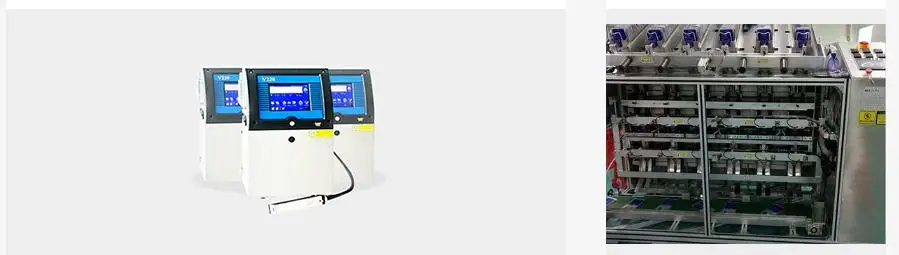

Applications:
