High speed oral liquid filling machine/pharmaceutical chemical liquid filling machine line

Product Overview

Description

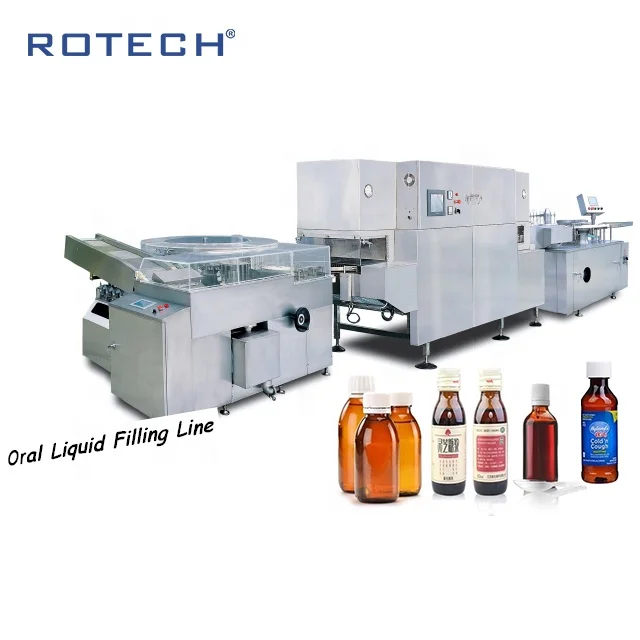

RT-16 (5-30mI) High Speed Oral Liquid Filling Line

Main usage

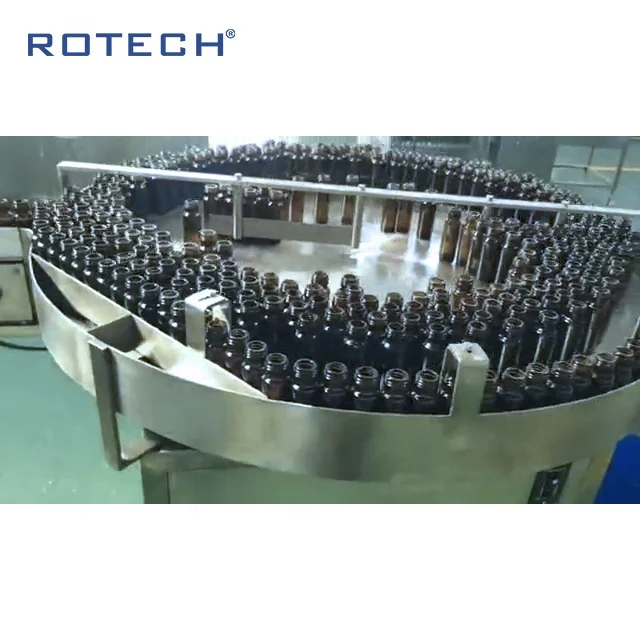

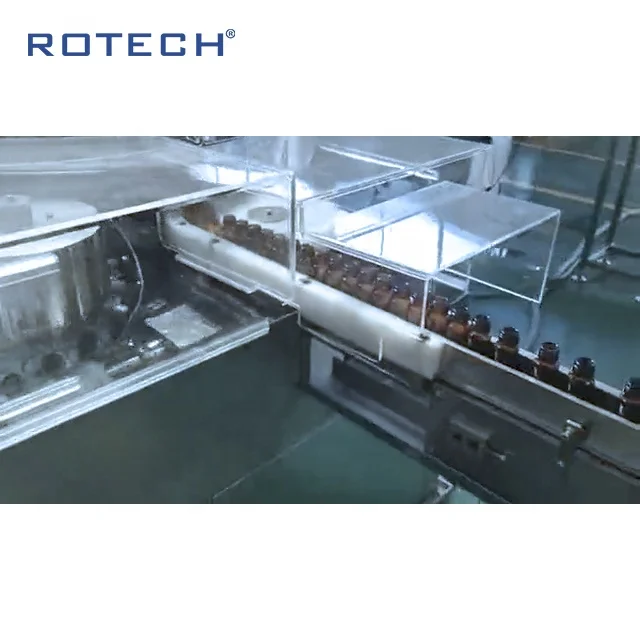

Automatic oral liquid filling production line production line is made up of ultrasonic washing, sterilizing machine, filling & capping machine, which can complete the following functions of ultrasonic washing, flushing, air charging, drying& sterilizing, filling and capping.

It is suitable for oral liquid and other injectable.

It can be fitted with labeling machine to be ideal production line .



Characteristics

1.It adopts advanced ultrasonic washing, alternating washing with multiple-head washing with water, air separately and quartz tube ultraviolet hot radiation sterilizing with high temperature, advanced technology of multiple-head filling and sealing. It is characterized by compact structure, small occupying area.



2.It adopts photoelectric technology and PLC and color touch LCD screen for the control system, with high automation.



3.It is characterized by strong compatibility, few specification parts, easy to exchange.

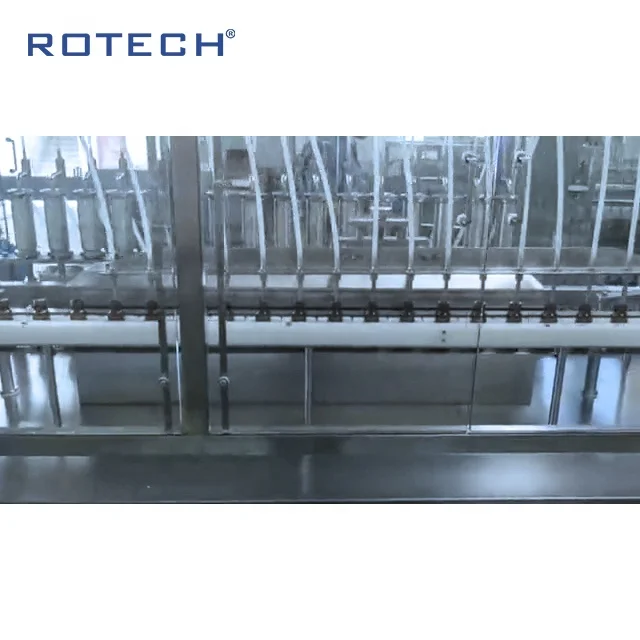

4.The syrup filling and capping machine adopts piston pump to do filling, by adjusting the position pump, it can fill all of the bottles in one filling machine, with quick speed and high precision and the speed can adjust according to your requirements.

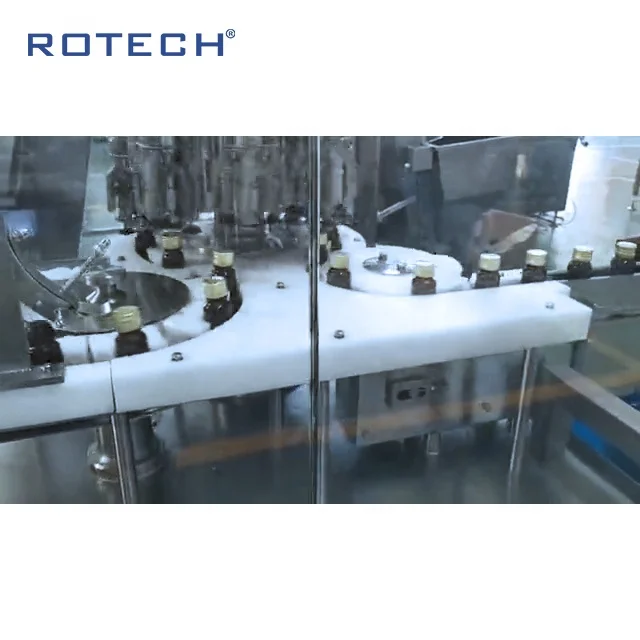

5.The filling and capping machine is a product that combines the filling and the capping parts into one. The advantage is that the occupied area is extremely small, the structure is compact, and the investment is small.



6.The transmission of the machine adopts mechanical transmission, the transmission is accurate and stable, and there is no air source pollution and no errors in the cooperation of various mechanisms.



7.When working, the noise is small, the loss is low, the work is stable, and the output is stable, which is especially suitable for the production of small and medium batches.



Technical parameters

Model	RT-16
Applicable bottle specifications	5~30ml
Production capacity	300-400 bottles/min
Power supply	380V/220V 50Hz
Total power	80Kw
Purified water pressure and consumption	0.25 -0.35MPa 1m3/h
Compressed air pressure and consumption	0.6~0.8Mpa 75m3/h
Filling accuracy	≤1%
Total weight	7500Kg
Total length of production line	12000*2500*2400mm
