HuaxiaMaster Rock splitter,stone splitting wedge,darda hydraulic rock splitter for sale
- Category: >>>
- Supplier: Shandong Master Machinery Group Co. Ltd.
Share on (1600190878866):
Product Overview
Description
Product Description
HuaxiaMaster Rock splitter,stone splitting wedge,darda hydraulic rock splitter for sale
1. Brief introduction of YPJ series static explosion hydraulic splitting machine

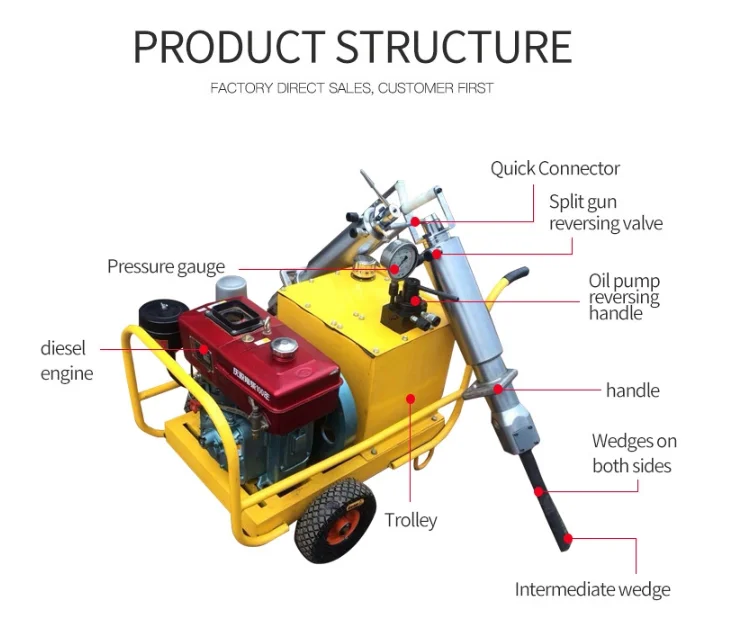

Hydraulic splitting machine, also known as hydraulic splitting gun, rock splitting machine, mountain cutter, hydraulic splitter, etc., is a static explosion hydraulic splitting equipment produced by Shandong Master Machinery Group. The static explosion hydraulic splitting machine consists of a hydraulic pump station, a splitter, a high-pressure tubing and a splitting gun.
According to the different power of hydraulic pump station, it can be divided into hydraulic splitting machine for electric motor station and hydraulic splitting machine for diesel station. The hydraulic splitting machine is designed using the principle of wedge. The hydraulic pump station outputs ultra-high pressure hydraulic oil. The middle wedge in the wedge group is driven forward by driving the oil cylinder, the reverse wedges are propped up to both sides, so as to quickly split the rock and separate the hard ore from the mountain. The equipment has been widely used in open-pit quarrying, roadway excavation, concrete demolition, and demolition operations in narrow sites and other fields.
2. Features of YPJ series static explosion hydraulic splitting machine
* Compared with the traditional operation method, the hydraulic splitting gun has the characteristics of safety and environmental protection, silent and dust-free, simple structure, convenient operation, strong controllability, high efficiency and low cost.
* Adopt modular design, easy to assemble and disassemble.
* Small size, light weight, easy to carry, and can be dismantled in a narrow place.
* The hydraulic pump station is easy to start, flexible in operation, strong in power and reliable in performance.
* The hydraulic splitting gun is made of high-quality steel, the wedge is wear-resistant and impact-resistant, and is durable.
* The hydraulic tubing is resistant to high pressure, has good toughness and is not easy to burst.
Hydraulic splitting machine, also known as hydraulic splitting gun, rock splitting machine, mountain cutter, hydraulic splitter, etc., is a static explosion hydraulic splitting equipment produced by Shandong Master Machinery Group. The static explosion hydraulic splitting machine consists of a hydraulic pump station, a splitter, a high-pressure tubing and a splitting gun.
According to the different power of hydraulic pump station, it can be divided into hydraulic splitting machine for electric motor station and hydraulic splitting machine for diesel station. The hydraulic splitting machine is designed using the principle of wedge. The hydraulic pump station outputs ultra-high pressure hydraulic oil. The middle wedge in the wedge group is driven forward by driving the oil cylinder, the reverse wedges are propped up to both sides, so as to quickly split the rock and separate the hard ore from the mountain. The equipment has been widely used in open-pit quarrying, roadway excavation, concrete demolition, and demolition operations in narrow sites and other fields.
2. Features of YPJ series static explosion hydraulic splitting machine
* Compared with the traditional operation method, the hydraulic splitting gun has the characteristics of safety and environmental protection, silent and dust-free, simple structure, convenient operation, strong controllability, high efficiency and low cost.
* Adopt modular design, easy to assemble and disassemble.
* Small size, light weight, easy to carry, and can be dismantled in a narrow place.
* The hydraulic pump station is easy to start, flexible in operation, strong in power and reliable in performance.
* The hydraulic splitting gun is made of high-quality steel, the wedge is wear-resistant and impact-resistant, and is durable.
* The hydraulic tubing is resistant to high pressure, has good toughness and is not easy to burst.
Specification
HuaxiaMaster Rock splitter,stone splitting wedge,darda hydraulic rock splitter for sale
Model | YPJ-250 | YPJ-350 | YPJ-450 | ||
Spearhead length（mm） | 250 | 350 | 450 | ||
Required aperture (mm) | 42 | 46 | 50 | ||
Required hole depth (mm) | 500 | 600 | 700 | ||
Effective splitting force (T) | 600 | 1000 | 1000 | ||
Split gun weight (kg) | 29 | 30 | 31 | ||
Equipped with pump station pressure (Mpa) | 63 | 63 | 63 | ||
Motor station | Power (kw) | 4 | 4 | 4 | |
Diesel station | Horsepower (hp) | 8 | 8 | 8 | |

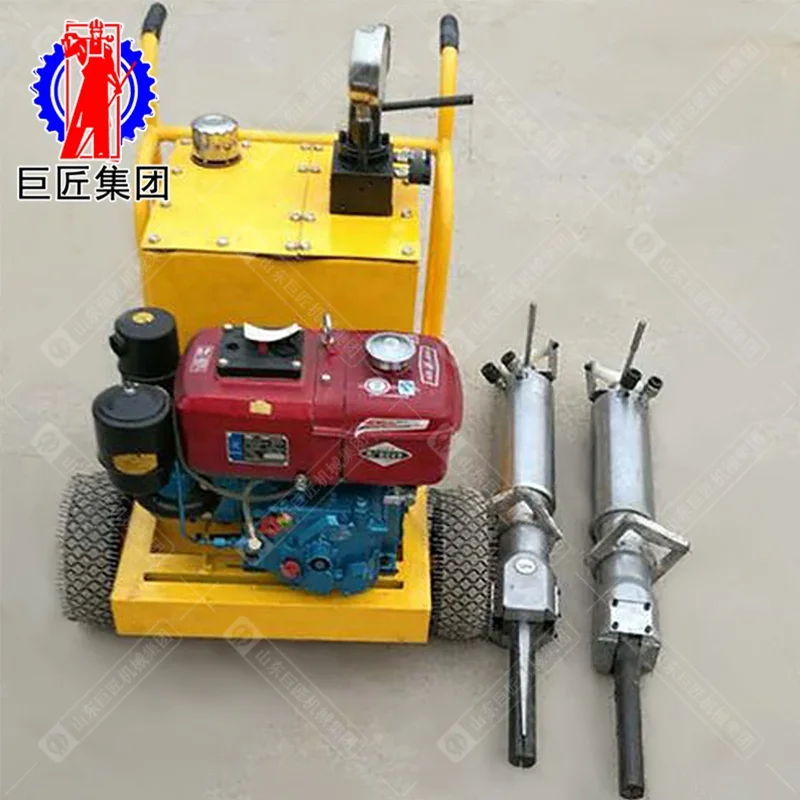

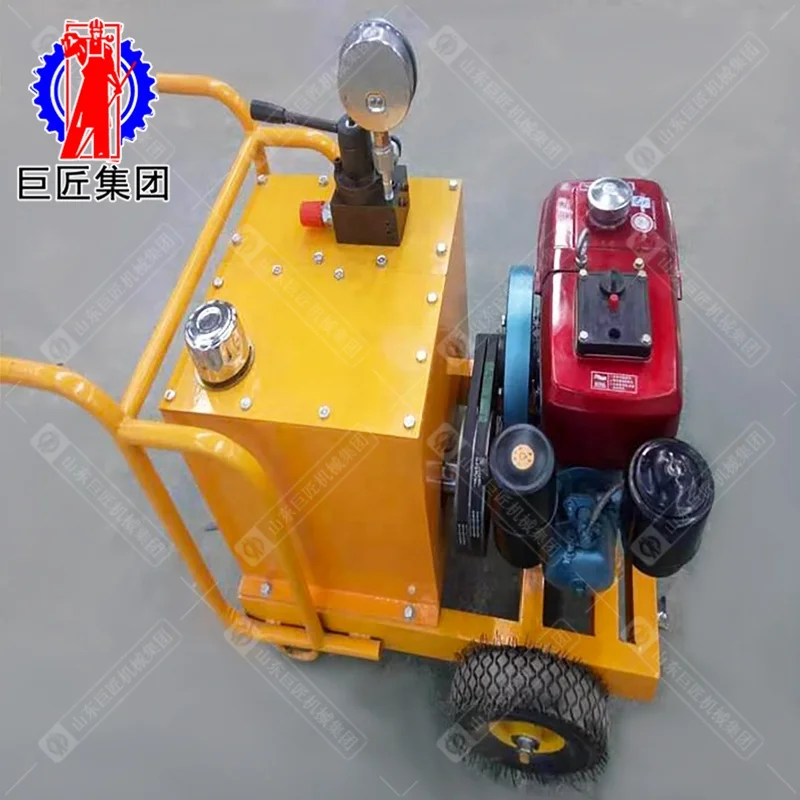

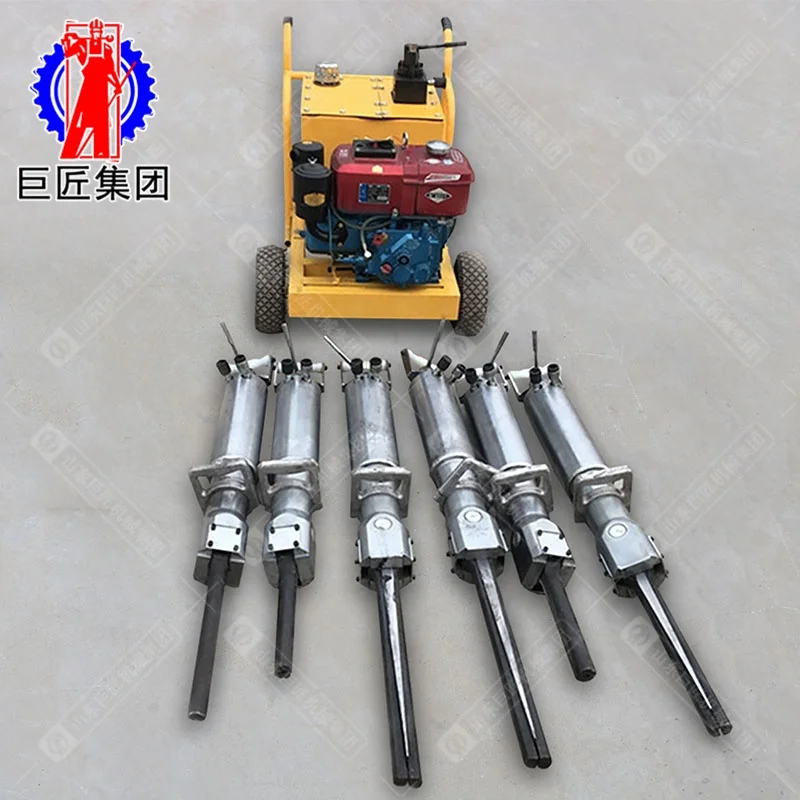

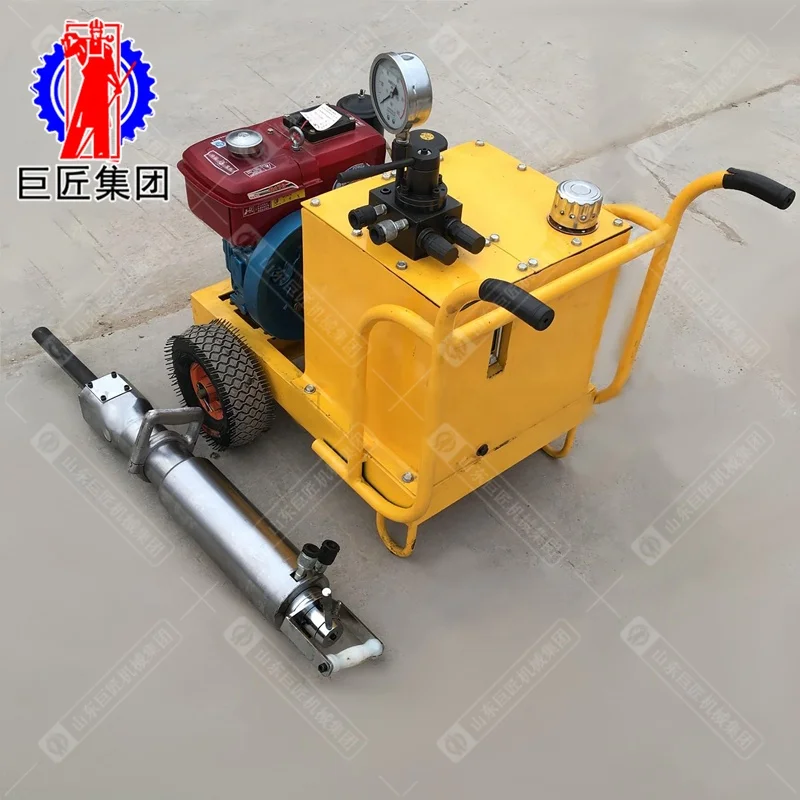

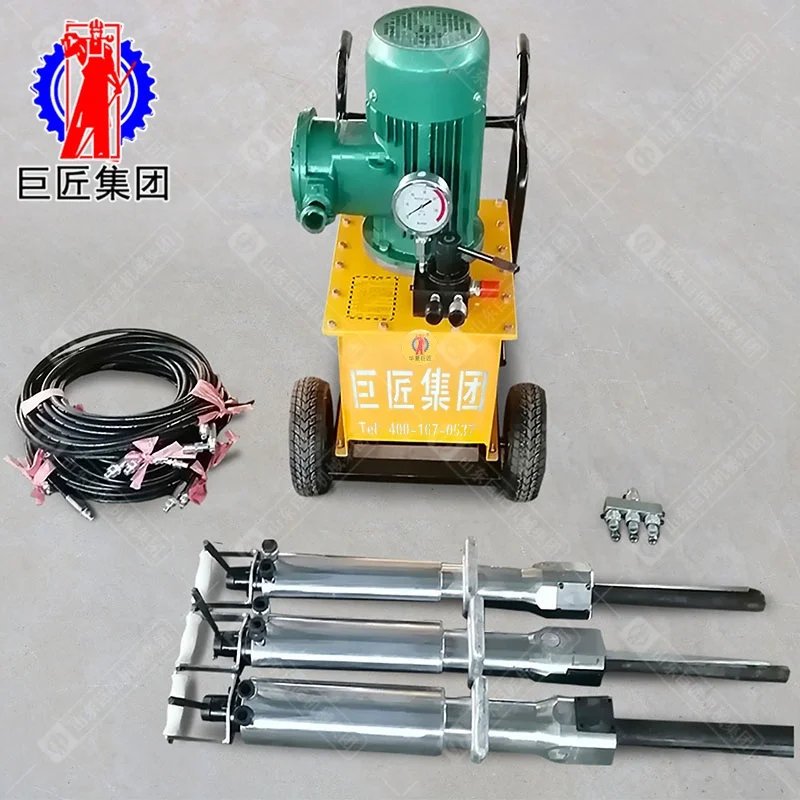

Product display
HuaxiaMaster Rock splitter,stone splitting wedge,darda hydraulic rock splitter for sale
Packing & Delivery
Packing Details : Full Container Load or Export Wooden Box Packing
Delivery Details : 3-15 days after order
As a active response to the Belt and Road Initiative, we have took numerous efforts to go abroad. Our products have been sold to Europe, Central Asia, Southeast Asia, Africa and dozens of countries and regions. Master Group's independent trademark "huaxiamaster" has become a well-known brand for customers.
Delivery Details : 3-15 days after order
As a active response to the Belt and Road Initiative, we have took numerous efforts to go abroad. Our products have been sold to Europe, Central Asia, Southeast Asia, Africa and dozens of countries and regions. Master Group's independent trademark "huaxiamaster" has become a well-known brand for customers.
Related product
FAQ
1. Who are we?
We are based in Shandong, China, start from 2014,sell to South Asia(12.00%),North America(10.00%),Southeast Asia(10.00%),Mid East(10.00%),Southern Europe(10.00%),Domestic Market(6.00%),Eastern Europe(6.00%),South America(6.00%),Eastern Asia(5.00%),Africa(5.00%),Northern Europe(5.00%),Central America(5.00%),Oceania(5.00%),Western Europe(5.00%). There are total about 501-1000 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. What can you buy from us?
Water well drilling rigs, Geological exploration drilling rigs, Core drilling rigs, Mine drilling rigs, Engineering drilling rigs and so on.
We are based in Shandong, China, start from 2014,sell to South Asia(12.00%),North America(10.00%),Southeast Asia(10.00%),Mid East(10.00%),Southern Europe(10.00%),Domestic Market(6.00%),Eastern Europe(6.00%),South America(6.00%),Eastern Asia(5.00%),Africa(5.00%),Northern Europe(5.00%),Central America(5.00%),Oceania(5.00%),Western Europe(5.00%). There are total about 501-1000 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. What can you buy from us?
Water well drilling rigs, Geological exploration drilling rigs, Core drilling rigs, Mine drilling rigs, Engineering drilling rigs and so on.
4. Why should you buy from us not from other suppliers?
The group company mainly provides solutions for engineering and mine construction.With high quality products, good service and honest reputation,our company has established a solid material supply relationship with several universities.
5. What services can we provide?
Accepted Delivery Terms: FOB, CIF, EXW；
Accepted Payment Currency: USD;
Accepted Payment Type: T/T, L/C, Cash;
Language Spoken:English, Chinese
5. What services can we provide?
Accepted Delivery Terms: FOB, CIF, EXW；
Accepted Payment Currency: USD;
Accepted Payment Type: T/T, L/C, Cash;
Language Spoken:English, Chinese
