Automatic pla drinking straw making machine

Product Overview

Description

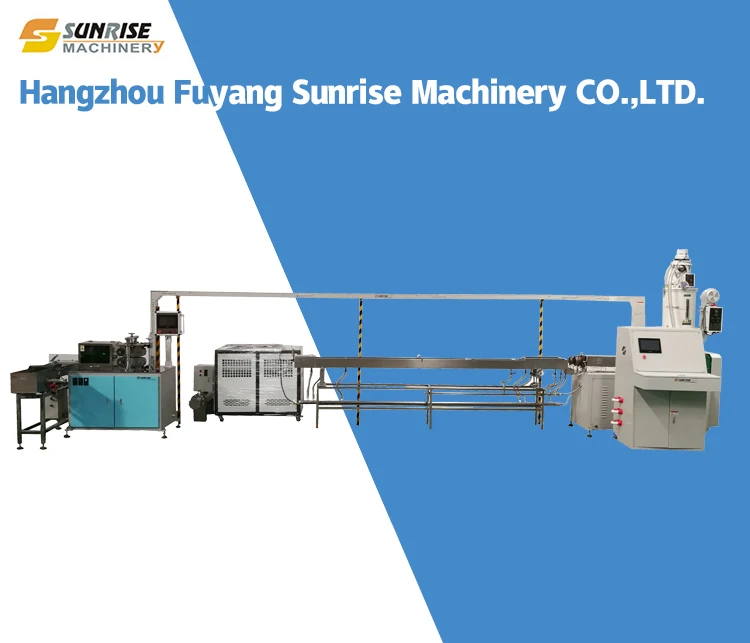

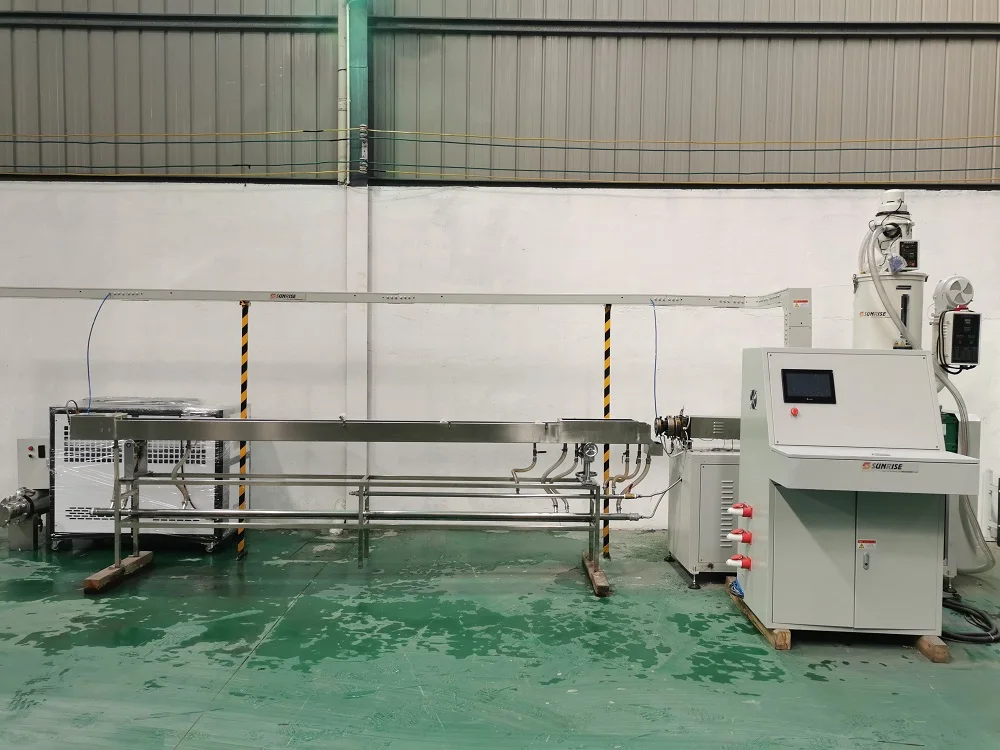

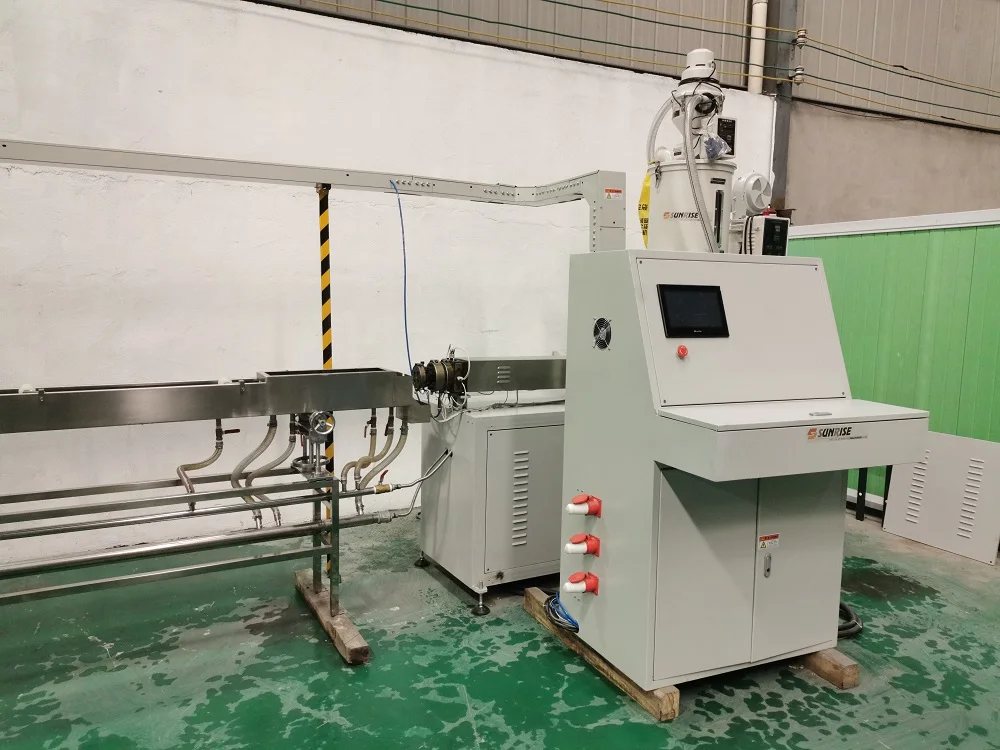

Servo PLC Full Automatic Straw Making Machine LG-A Series

it is our most advanced machines for making the PLA straw.We have applied a lot of new technologies,such as PLC control system ,water constant temperature system, nanometre infrared heater ,automatic air regulator,keep it full automatically,high speed,and saving the power.

Features:

1-Full automatic adjust the length and diameter of straw (set on PLC screen)

2-Water constant temperature system keep the quality of PLA straw

3-Fast heating and saving the power

4-Most advanced PLA straw extrusion machine.

Our advantages

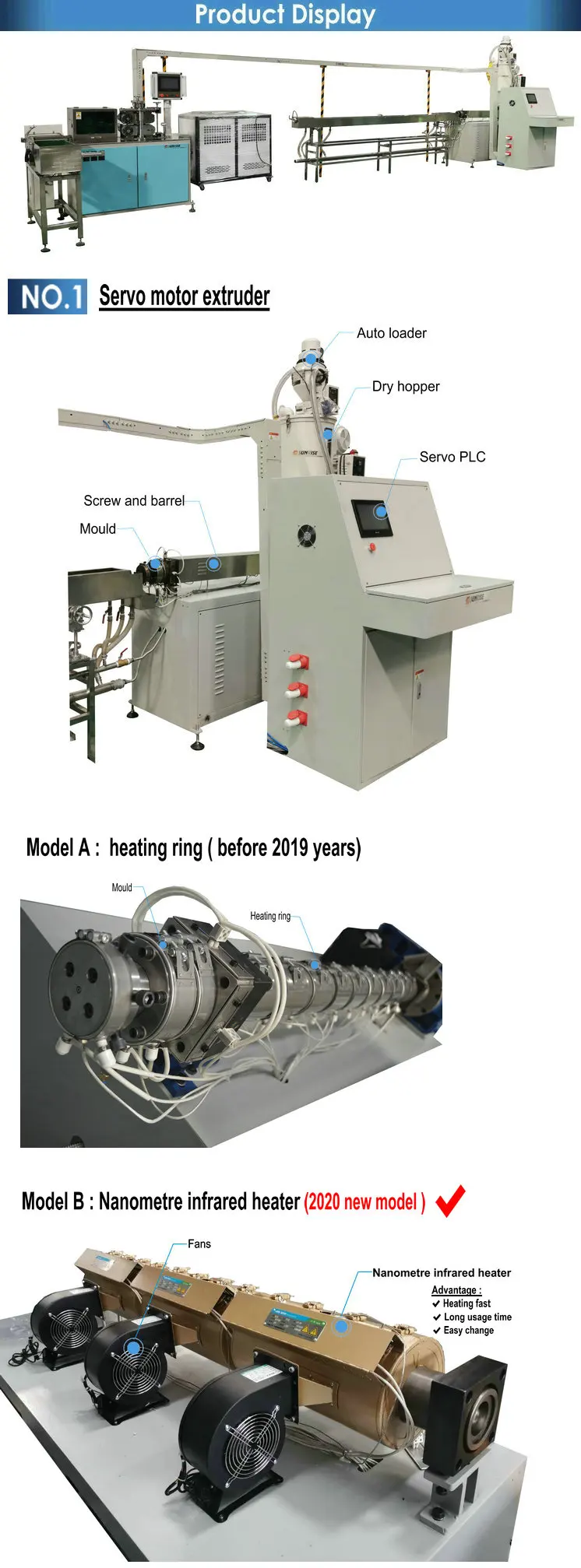

1-We use the PLC and servo motor to control the whole lines of extrusion speed ,air regulation,cutting speed.

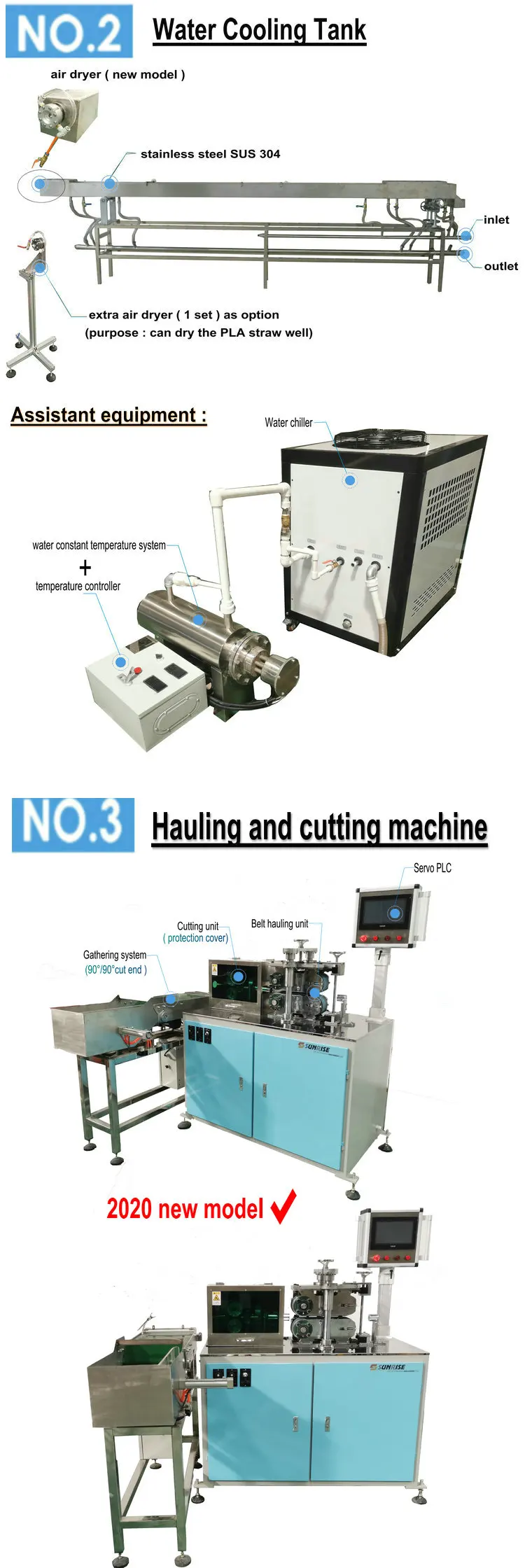

2-We use the heater and chiller to make a water constant temperature system

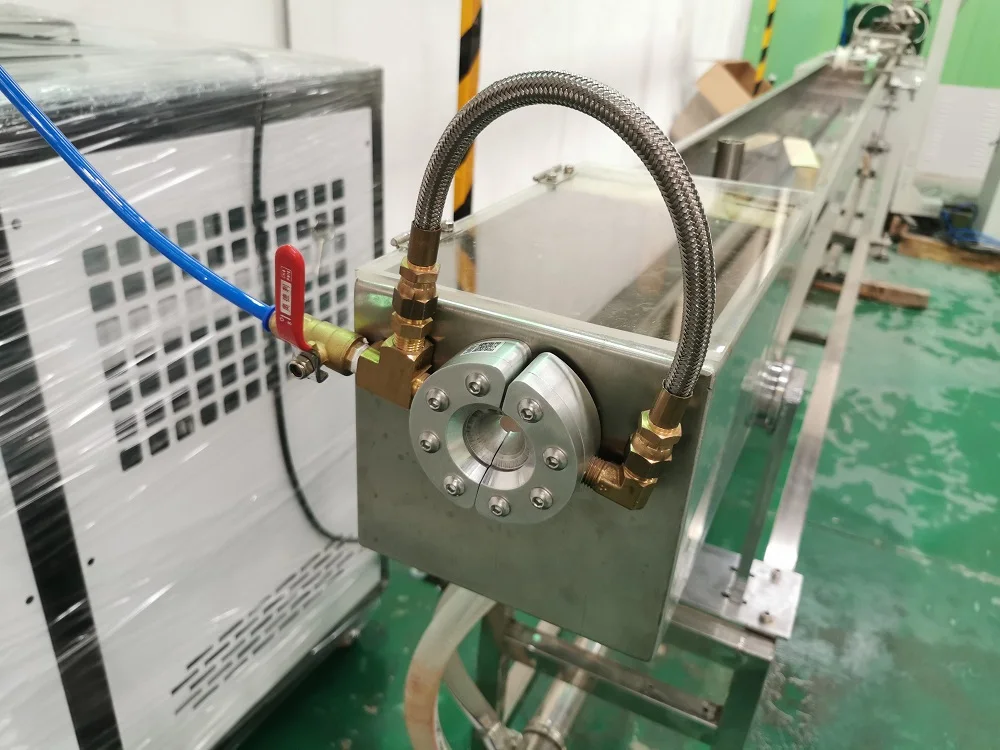

3-We use 2 sets Super Air Knifes dry the straw (drying rate ≥96%)

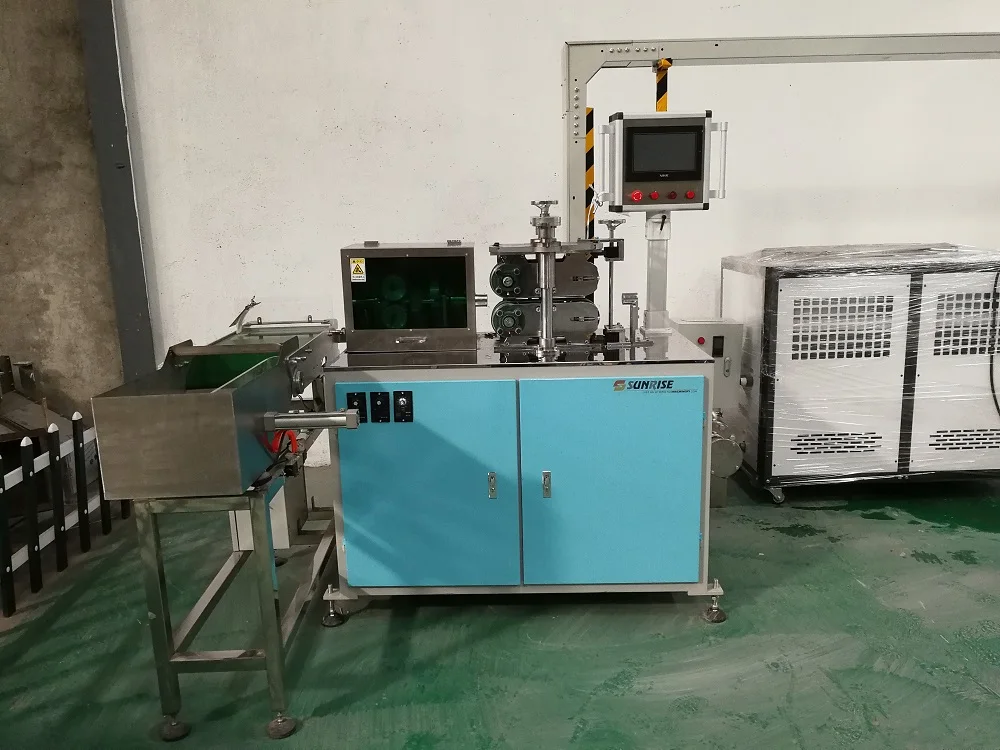

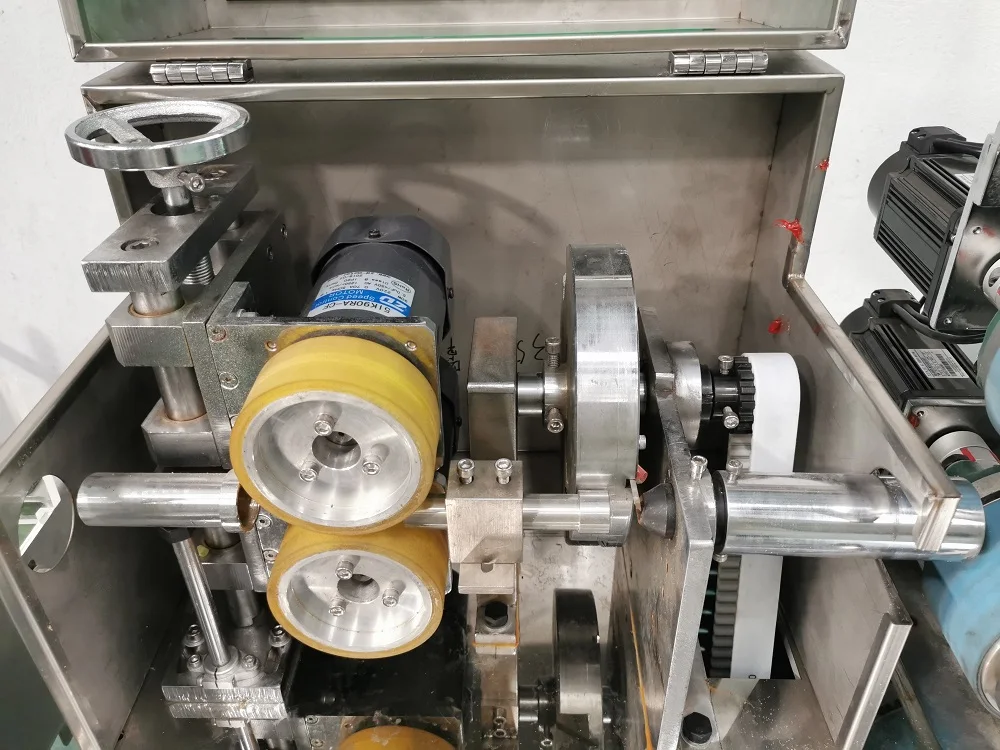

4-We use a high-precision straw hauling and cutting machine.





 Technical data :



Colour	single
Diameter of screw:	50mm
L:D	28:1
Max. extrusion capacity	32-35kgs/h
Material	PLA / PP
Specification of straw	Inner Diameter.:φ3- φ 12mm
	Length tolerance:± 0.1 -1mm
	Thickness:0.05-1mm
Capacity	800-1200pcs/min
Power of extruder	11kw  servo motor
Air dryer	Super Air Knifes dry ( > 96% )
Power of hauling machine	0.75kw,380v,50hz
straw hauling and cutter	0.75KWx2pcs +1.5KW (All Servo motor)
cutting speed	> 12000/min
hopper dryer	50kgs
auto loader	1.1kw
air compressor	5HP
total power	25kw
Layout dimension (LxWxH)	12x2.5x3m
