TIG welding rod,ER70s 6 CCMS copper coated mild steel welding wire,ER50 6 AWS A5.18 ER70S 6 SG2 BS A18 JIS YGM12 weld wire

Product Overview

Description

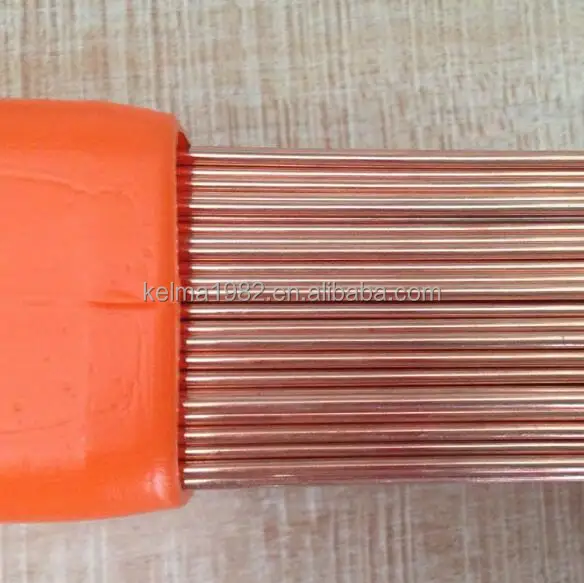

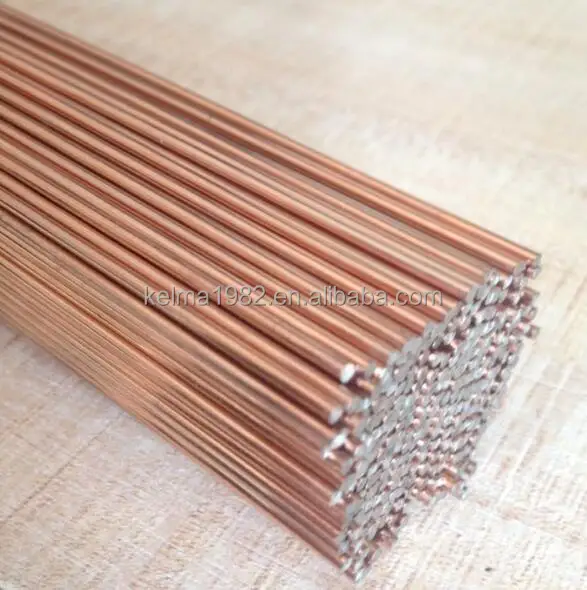

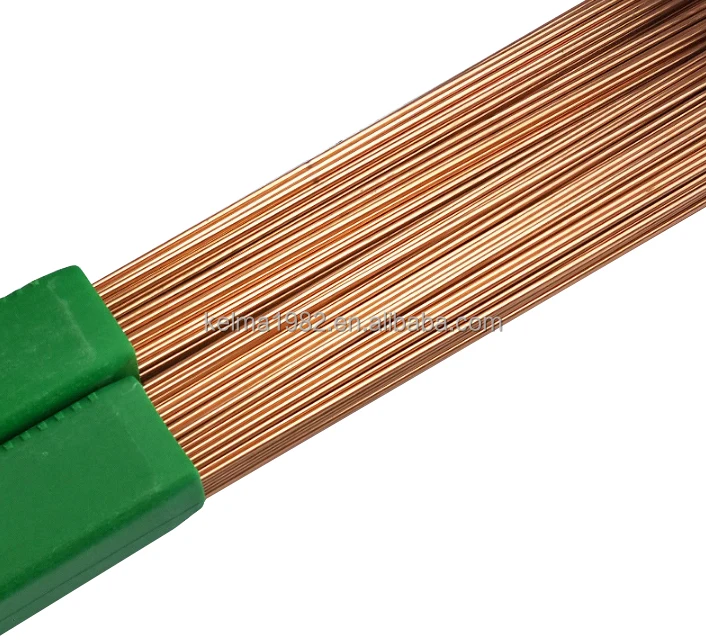

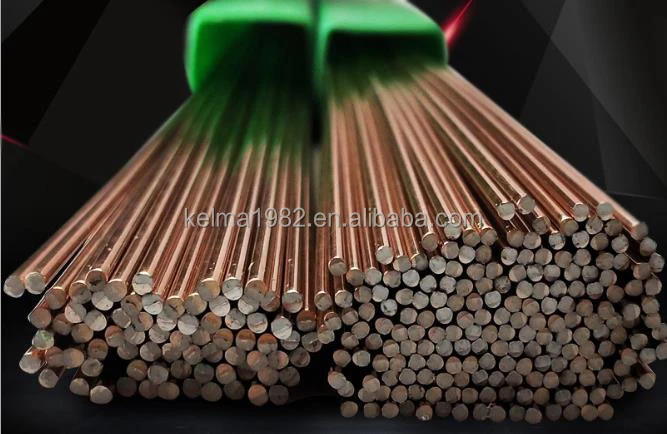

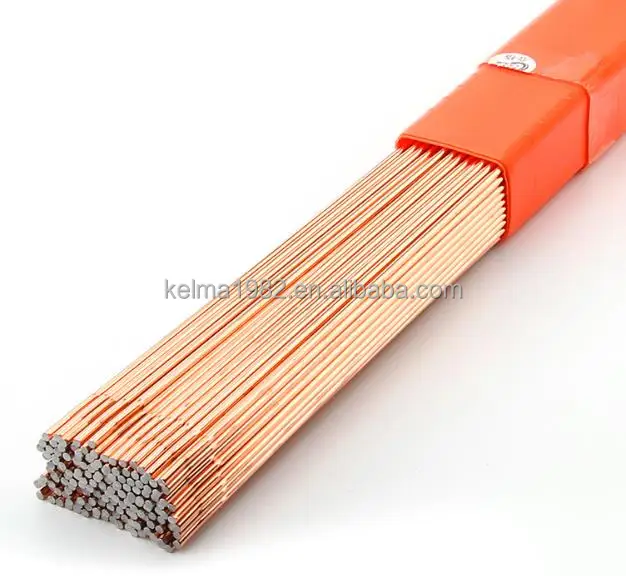

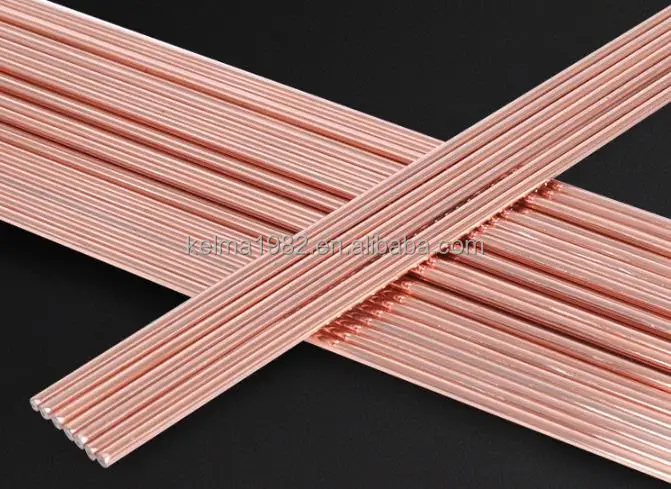

ER70s-6 CCMS copper coated mild steel welding wire, TIG welding rod,
ER50-6 AWS A5.18 ER70S-6 SG2 BS A18 JIS YGM12 weld wire

Standards:
GB/T ER50-6/ DIN SG2/ JIS YGN12,AWS ER70S-6/ BS A18/ EN G3Si1

Available size and weight:

Diameter:1.6mm/2.0mm/2.5mm/3.2mm/4.0mm
Length: 1meter per piece

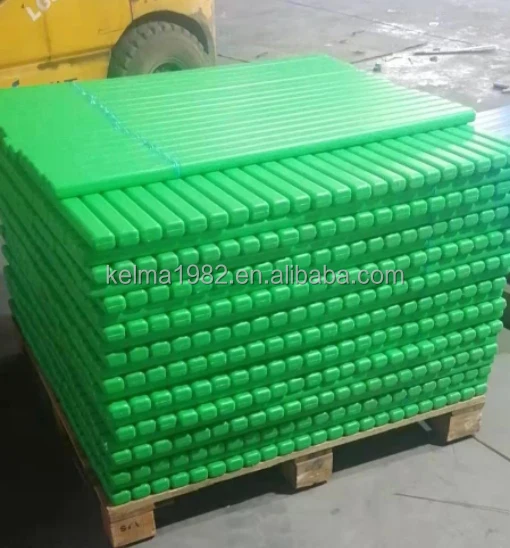

Weight: 5KG/10KG/20KG per box

Description:
ER70S-6 (SG2) TIG  Welding Wire is CCMS copper coated mild steel wire shielded by 100% CO2 with all position welding. The wire has a very good welding performance and higher efficiency in welding. The weld metal on the base metal. It has low blowhole sensitivity.



Specification:
Chemical Compossition of Deposited Metal(%)

	C	Mn	Si	S	P	Ni	Cr	Cu
Guaranteed Value	0.06-0.15	1.40-1.85	0.8-1.15	≤0.030	≤0.030	≤0.15	≤0.15	≤0.5
Typical Value	0.08	1.52	0.89	0.019	0.018	0.013	0.016	0.15

Mechanical Properties of Deposited Metal:

	Rm(Mpa)	ReL(Mpa)	A(%)	AKV(J)
Guaranteed Value	≥480	≥400	≥22	≥27(-30℃)
Typical Value	568	461	23-30	126



Diameter & Recommended Current(AC/DC):

Diameter	Φ0.8	Φ0.9	Φ1.0	Φ1.2	Φ1.6
Welding Current(A)	50-100	50-110	50-220	80-350	170-550
CO2 Flow Rate(L/min)	15	15	15-20	15-25	20-25



Application:



TIG Welding Wire ER70S-6(SG2) is mainly used for butt and fillet welding structures made by shipping steels and low alloy steels. Such as ships, containers, vehicles, engineering & industry machinery, bridges and so on.

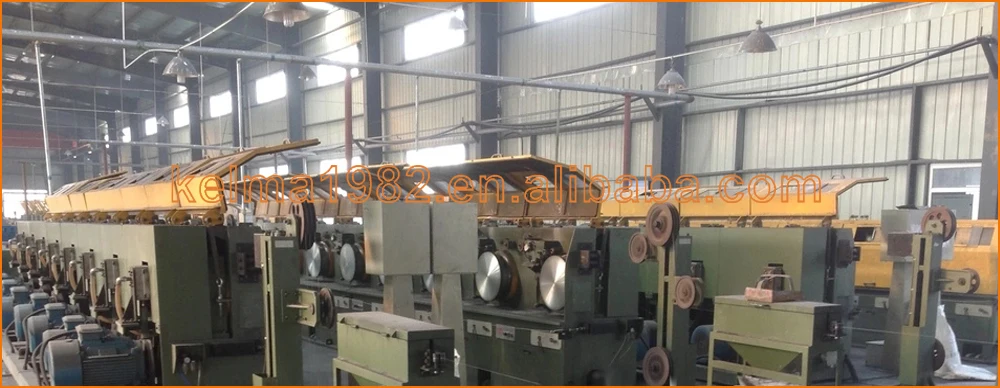

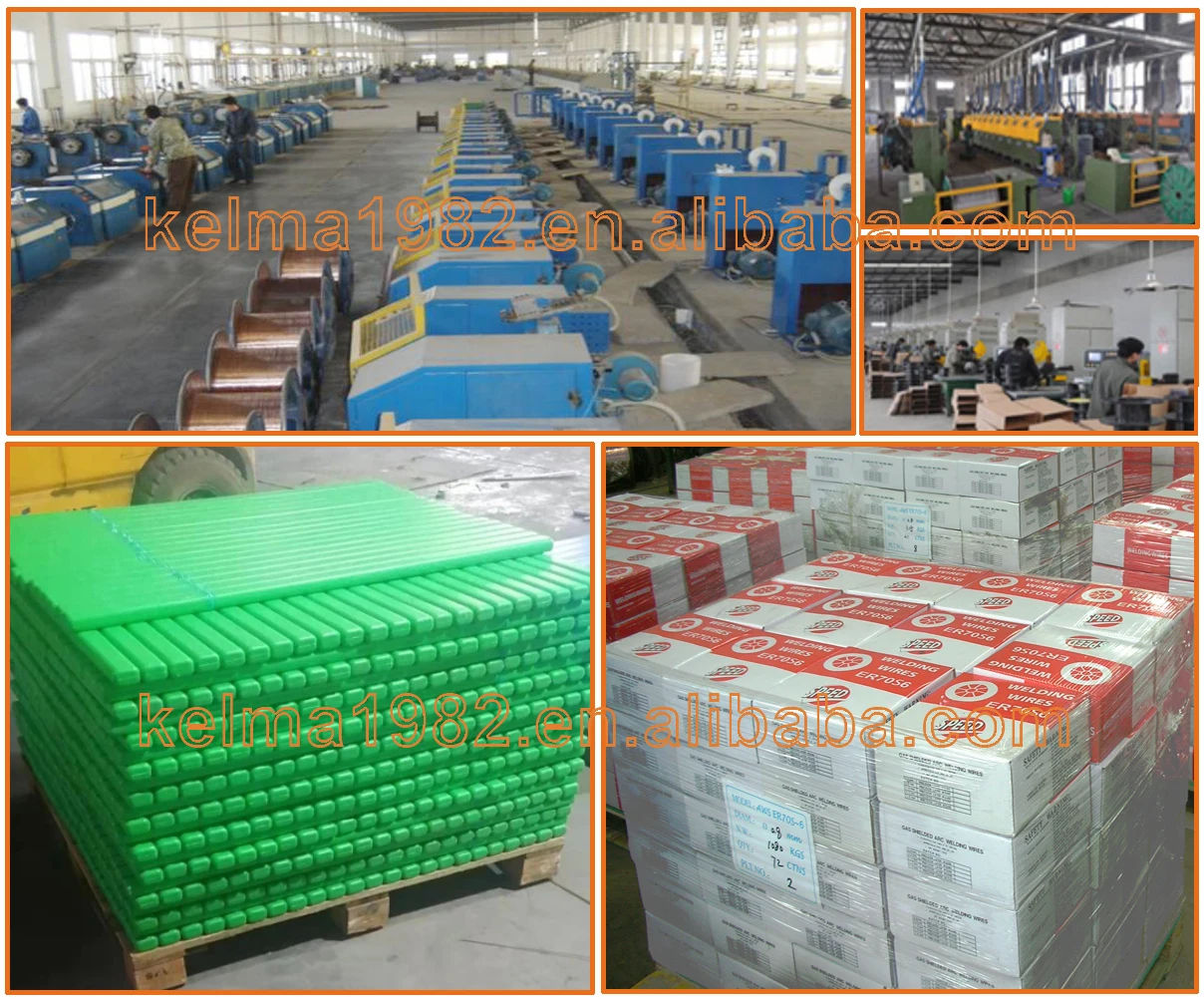

As a company with more than 18 years export history, Good reputation and good products are our tenet.
