Beacon machine electronic equipment YLD-42T Automotive crankshaft pulley water pump plate dynamic balancing instrument
Features
General hard bearing dynamic balancing machine strictly according to GB/T 4201-2006 to produce, using semi hard bearing, belt driven, screen display structure, industrial control computer processing the data. 19 inches LCD screen display unbalance amount, phase angle and real-time rotating speed.
It is widely used in paper making machine, textile machine, agriculture machine, electric motor, blower fan, etc, can measuring balance on single interface, suited for plate work-piece, center of gravity overhung rotor.
Main technical index:
One-time permanent calibrationMore humanized,more powerful.
The permanent calibration brings high accuracy.
Real time display imbalanced value,phase angle,the real time speed of workpiece,real time measurement
of vibration signal strength and the vector trajectory diagram, etc.
Data input, storage, printing, realize one click work.
Workpiece clamping is convenient;fixture automatic compensation,higher precision.
Only need to replace the fixture can be adapted for disc rotating workpiece’s balance calibration.
The measurement system is provided with a clamp compensating function,with professional fixture,
the hardware and software really match,improve the accuracy.
Only need to replace the fixture can be adapted for disc rotating workpiece’s balance calibration.
The measurement system is provided with a clamp compensating function,with professional fixture,
the hardware and software really match,improve the accuracy.
techanical parameter of the YYQ series
Machine model | YLD-5A | YLD-16A | YLD-42A | YLD-100A | YLD-200A | YLD-400A |
Max.mass of workpiece(kg) | 0.1-5 | 0.5-16 | 3-42 | 5-100 | 10-200 | 30-400 |
Max. diameter of workpiece(mm) | Φ500 | φ500 | φ800 | φ800 | φ800 | Φ800 |
Balancing speed min(r/min) | 900 | 250-2500 | 250-1500 | 250-1500 | 250-1200 | 250-1500 |
Min.achievable residualun balance(g.cm/kg) | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 |
Unbalance reduction ration(%) | ≥90% | ≥90% | ≥90% | ≥90% | ≥90% | ≥90% |
Drive Power | 0.37 kw | 1.1 kw | 1.5 kw | 4kw | 4kw | 5.5kw |
Distance between two support bearing(mm) | ||||||
Range of Journal Diameter(mm) | Φ | Φ10-140 | Φ10-180 | Φ20-240 | Φ15-300 | φ10-80 |
Range of Application
The balancing machines are widely used in motors, fans, pumps, cars, houses, chemicals, agricultural machinery, petroleum machinery, paper machinery, printing machinery and other industries, the maximum reduction in the mechanical parts work vibration and noise, to help users improve the accuracy of the product and life, praised by users.

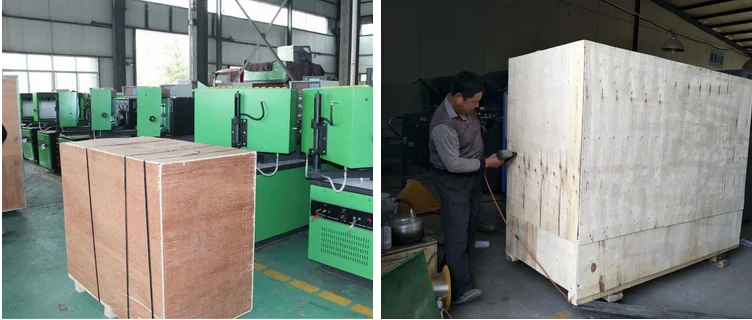

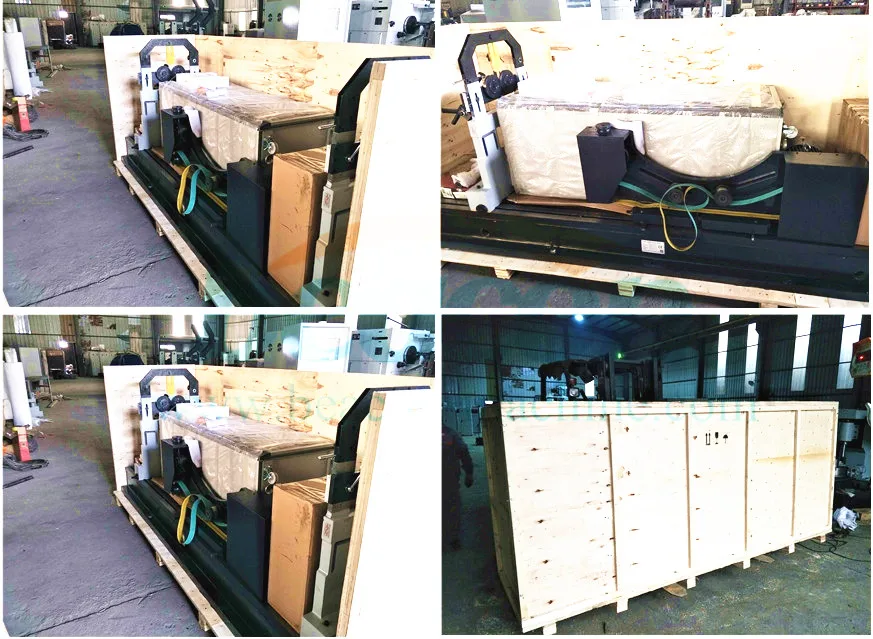

Packing & Delivery

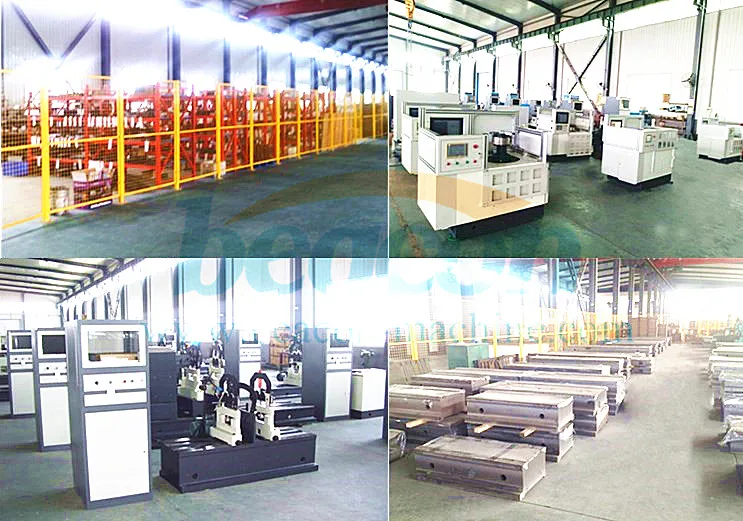

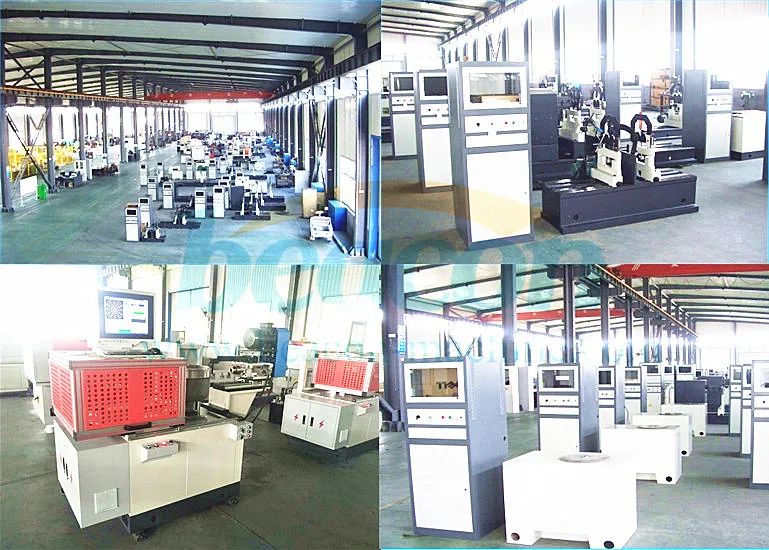

Our Company
