24V 500w Brush Motor Speed Controller Pedal For Electric Scooter go kart quad E SCOOTER MY1020
- Category: >>>
- Supplier: Zhejiang Shanshan Trading Co. Ltd.
Share on (1600191314492):
Product Overview
Description
Feature
For electric scooter, mini bike quad and Go-Kart. It may also work for bicycle.

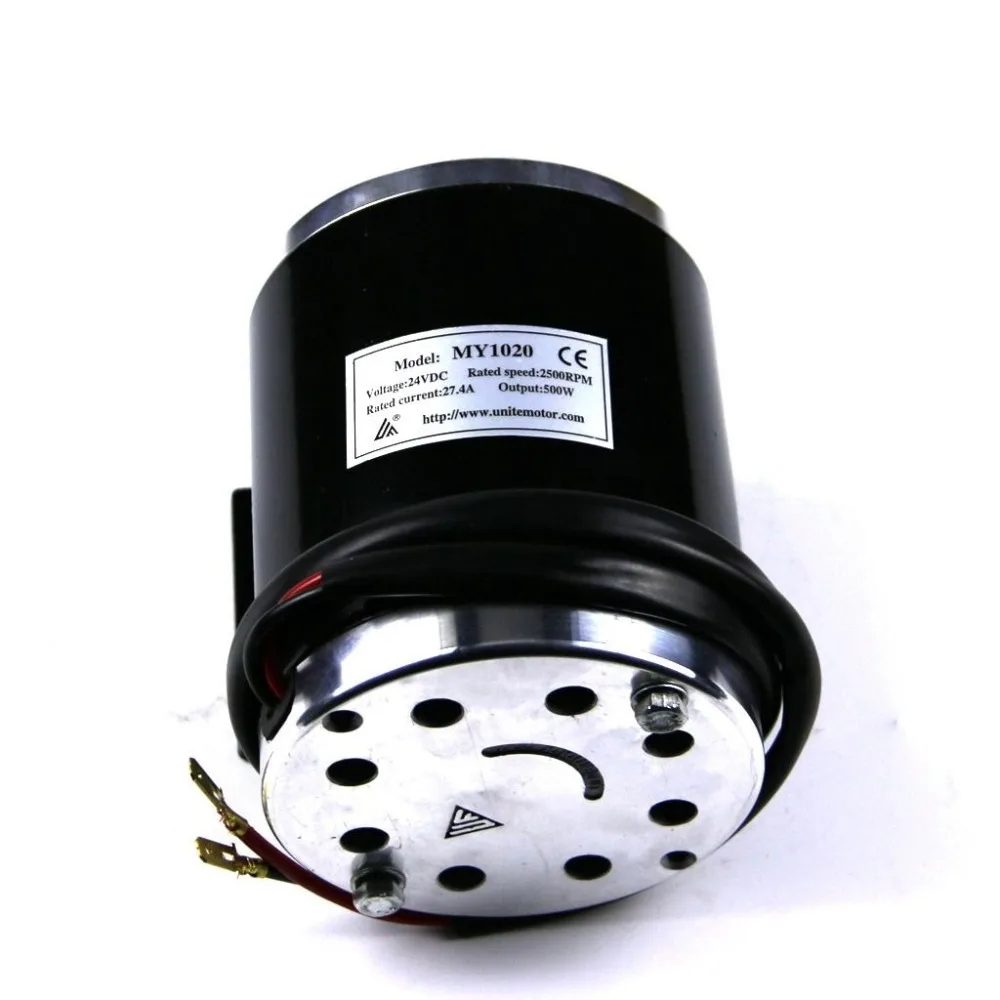

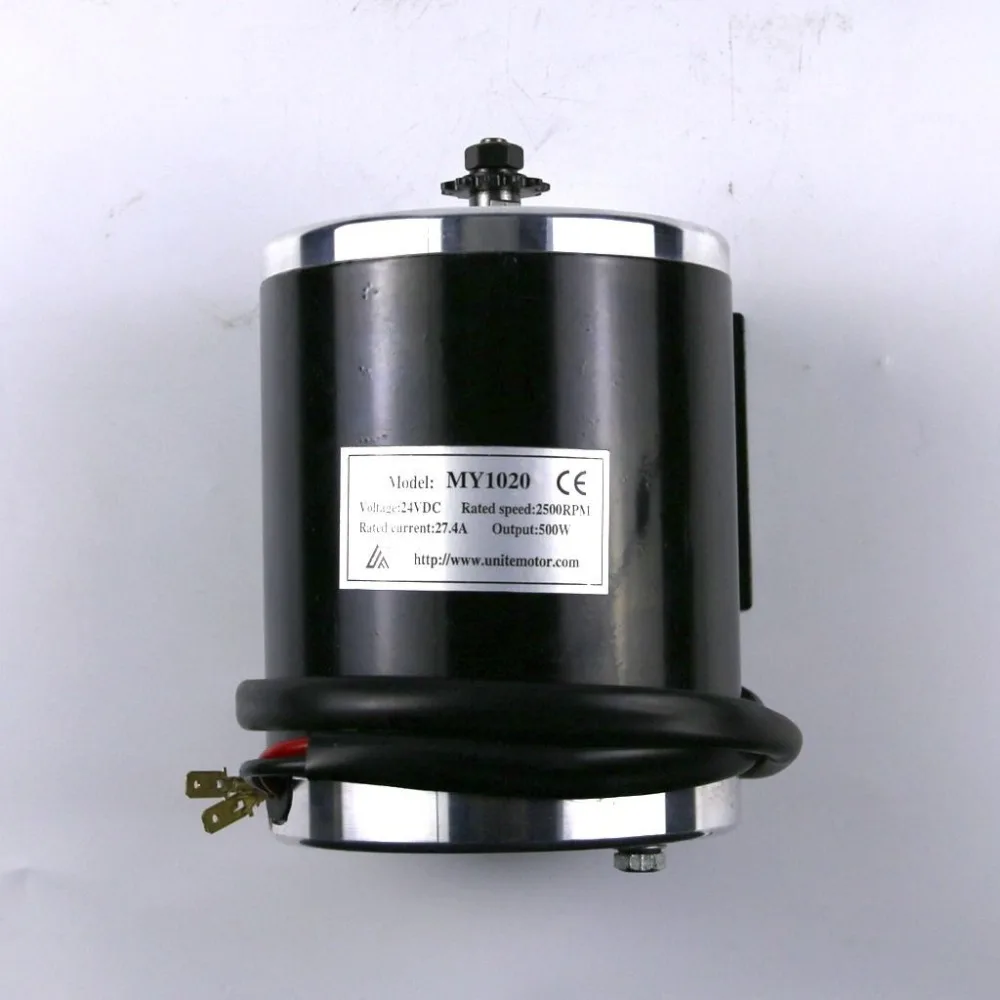

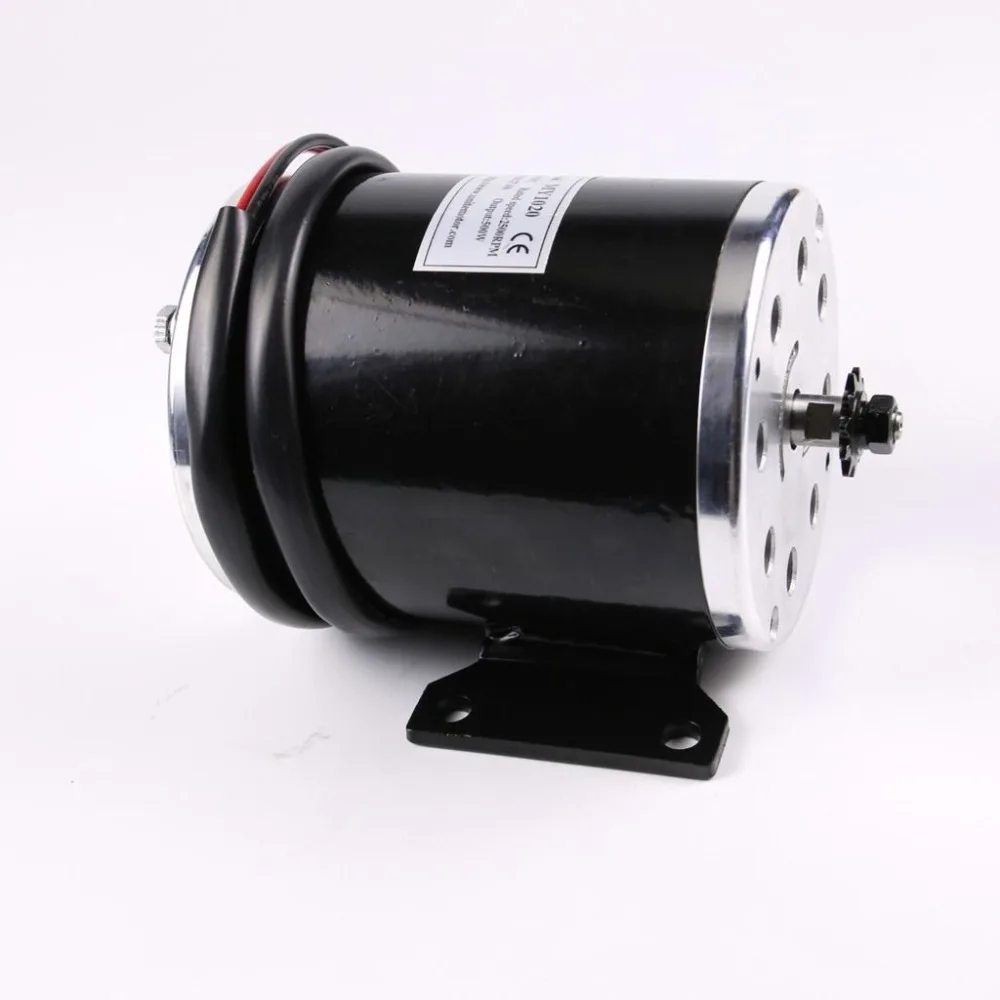

Specs:
- 24V DC
- Max 500 Watt, 26.7 amps
- Max 2500 RPM

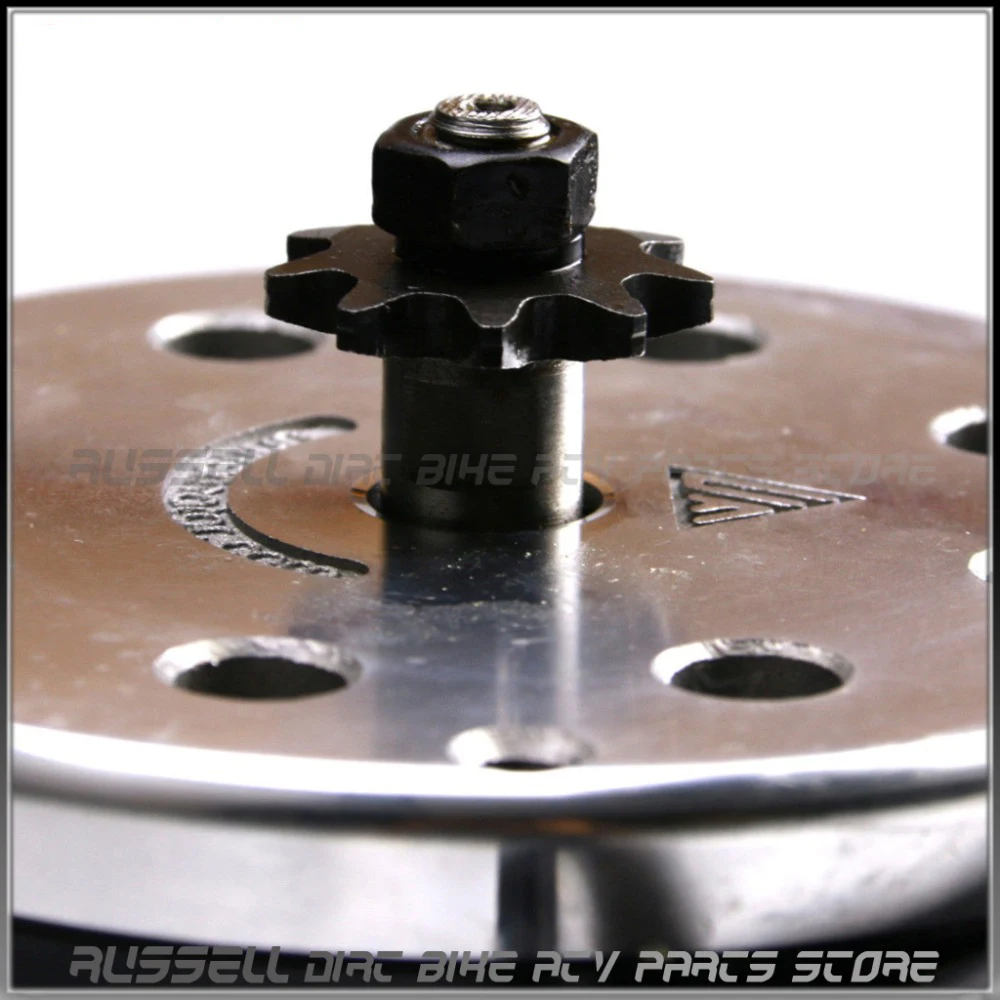

- Chain drive (11 teeth sprocket) #25H chain
- Type of motor: DC, Brush
- Reversible
- 12 gauge leads
- Permanent Magnet

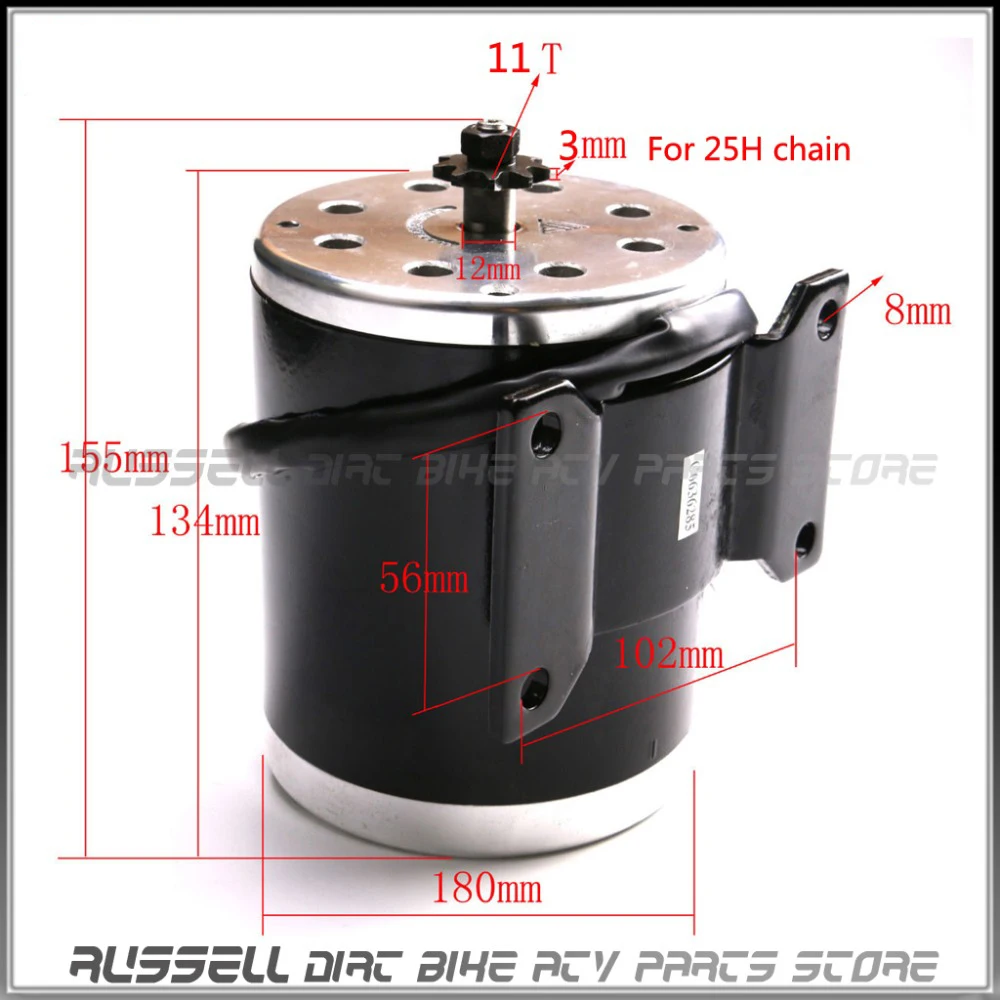

Dimensions: as picture shows
This motor should work with some Xtreme or Razor electric scooter, mini bike or go-kart using a 500W motor. Should also work with any other brand with similar specs in motor
Please check connector type and motor size and specs. before buying as replacement.
Controller:
Ted Voltage: 24Volts
Rated power: 500 watts
Under Voltage Protection: 20V±0.5V
Current Limit:28±1A
Usable Motor: 24V500 Watts
Speed Regulator 1-4 V(Throttle )
Operating Conditions: -25--45
Function:
This item Suitable for electric bike & scooter
his is brush motor controller.

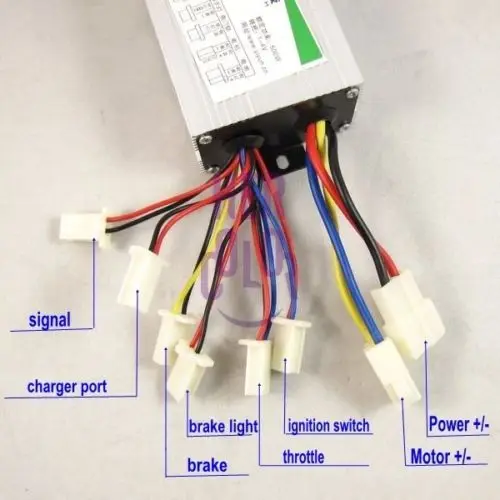

Plug :
1.Red & Black (large cable) : Battery connections
2.Yellow & Blue : Motor connections
3.Red & Blue : Key Switch(power lock)
(If there is no power door locks,red connection to blue)
4.Yellow & black : brake
5.Red & Yellow: Brake light
6.Red&Black(small cable) : indicator light
7.Red, Black & Blue: Speed Regulator 1-4 V(Throttle )
(Red:+5v,Black: - ,Blue :Signal Wire)
8.Red & Black (small cable): Charger

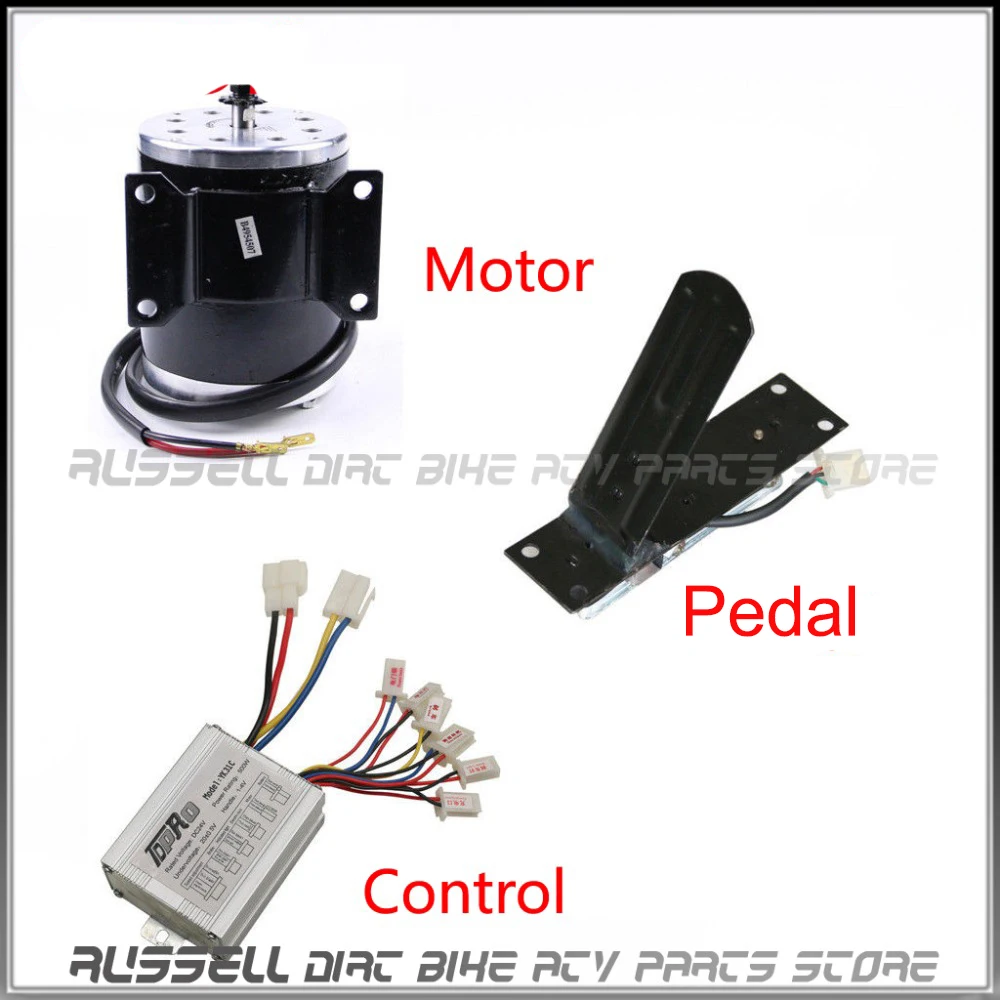

package includes 1x motor+ 1x controller +1x ped
Specs:
- 24V DC
- Max 500 Watt, 26.7 amps
- Max 2500 RPM
- Chain drive (11 teeth sprocket) #25H chain
- Type of motor: DC, Brush
- Reversible
- 12 gauge leads
- Permanent Magnet
Dimensions: as picture shows
This motor should work with some Xtreme or Razor electric scooter, mini bike or go-kart using a 500W motor. Should also work with any other brand with similar specs in motor
Please check connector type and motor size and specs. before buying as replacement.
Controller:
Ted Voltage: 24Volts
Rated power: 500 watts
Under Voltage Protection: 20V±0.5V
Current Limit:28±1A
Usable Motor: 24V500 Watts
Speed Regulator 1-4 V(Throttle )
Operating Conditions: -25--45
Function:
This item Suitable for electric bike & scooter
his is brush motor controller.
Plug :
1.Red & Black (large cable) : Battery connections
2.Yellow & Blue : Motor connections
3.Red & Blue : Key Switch(power lock)
(If there is no power door locks,red connection to blue)
4.Yellow & black : brake
5.Red & Yellow: Brake light
6.Red&Black(small cable) : indicator light
7.Red, Black & Blue: Speed Regulator 1-4 V(Throttle )
(Red:+5v,Black: - ,Blue :Signal Wire)
8.Red & Black (small cable): Charger
package includes 1x motor+ 1x controller +1x ped
Notice
1.Don't buy if you don't confirm you can use them, just ask us for detailed drawing to check if they are fit.
2.You will receive the item same as the pictures. maybe some difference on the color as the light during shooting.
3.Import duties, taxes and charges are not included in the item price. It means shipping company will charge these fees from you if you want to get the items.And we will not refund if buyer don't receive package as rejecting to pay these cost.
Combined Shipping Friendship reminder
Buy More ,Save More!All the items are from distant China,We offer combined shipping which will save your shipping cost greatly for your multiple purchases. Item are shipped within 3 business days once full payment is settled. If you can't get your items in time,please contact to us first, we will check and solve it for you soon. We will reply your email within 24 hours normally.
sometimes have a little delay due to the weekend or holiday. If you can't get our mail after 48 hours, please check your spam or contact to us with other mail address.
Return&Warranty
Return:If item DOA (Dead of Arrival), Buyers Can return it in 14 Days, We will Replace it with New item after we receive DOA item.
Please Contact us Before you sent the item back
Warranty:All item Comes with Basic 2 Month Sellers Warranty, if item defective in 3 Month, We will offer replacement
with our extra Charger (including shipping fee) After we Receive the Defective item.
If item Defective after 2 Month, Buyers can still send it back, We will contact suppliers or Manufactory for
Warranty. Buyers Might Need pay the Shipping fee For resend the replaced item.
