Different Types Diesel Stationary Concrete Pump Machine Portable Mobile Concrete Pump For Construction
- Category: Concrete Pumps >>>
- Supplier: Taian,Minle,Machine,Manufacture,Co.,Ltd.
Share on:
Product Overview
Description
Different Types Diesel Stationary Concrete Pump Machine Portable Mobile Concrete Pump For Construction
WhatsApp: 86-15066732025

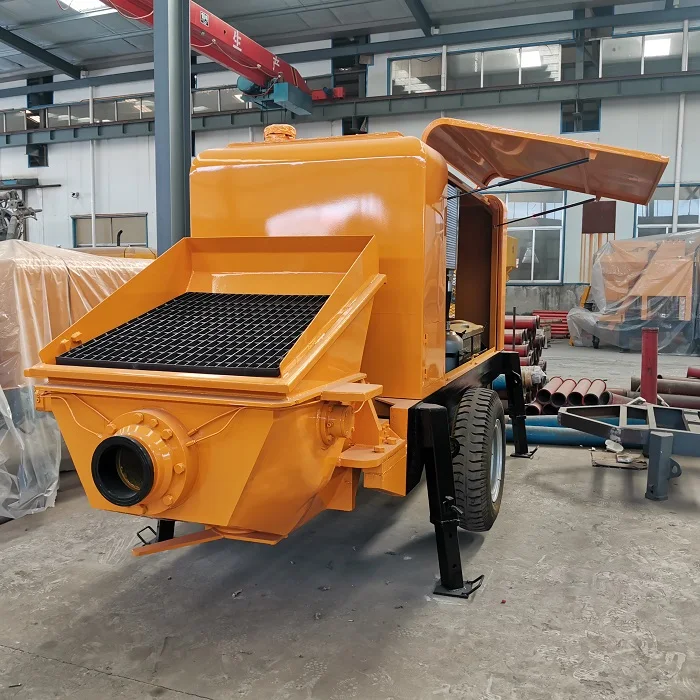

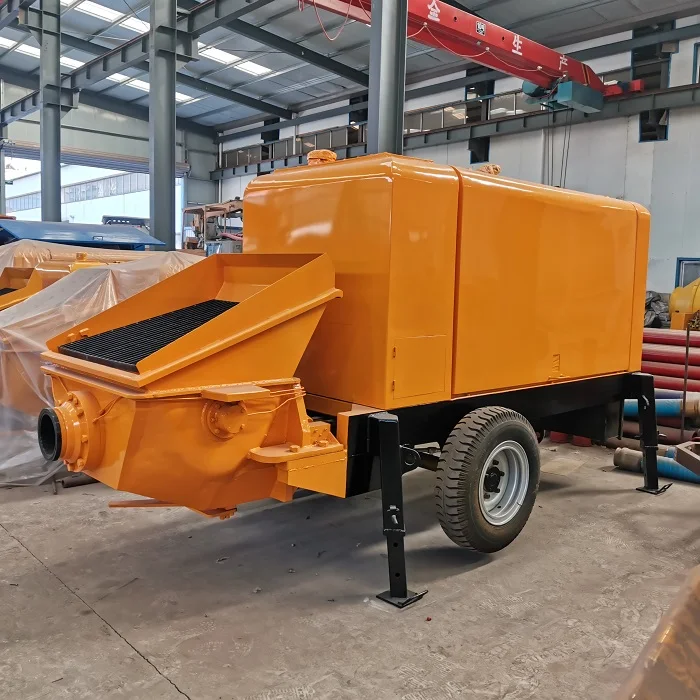

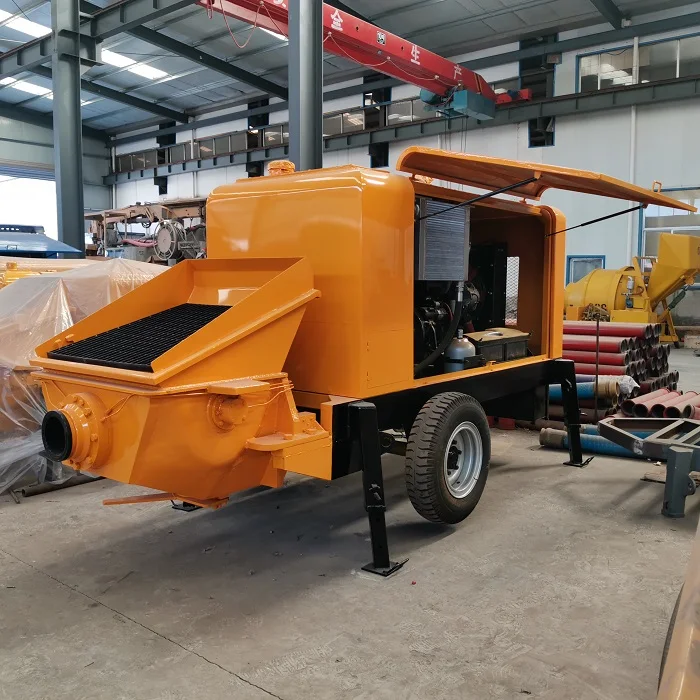

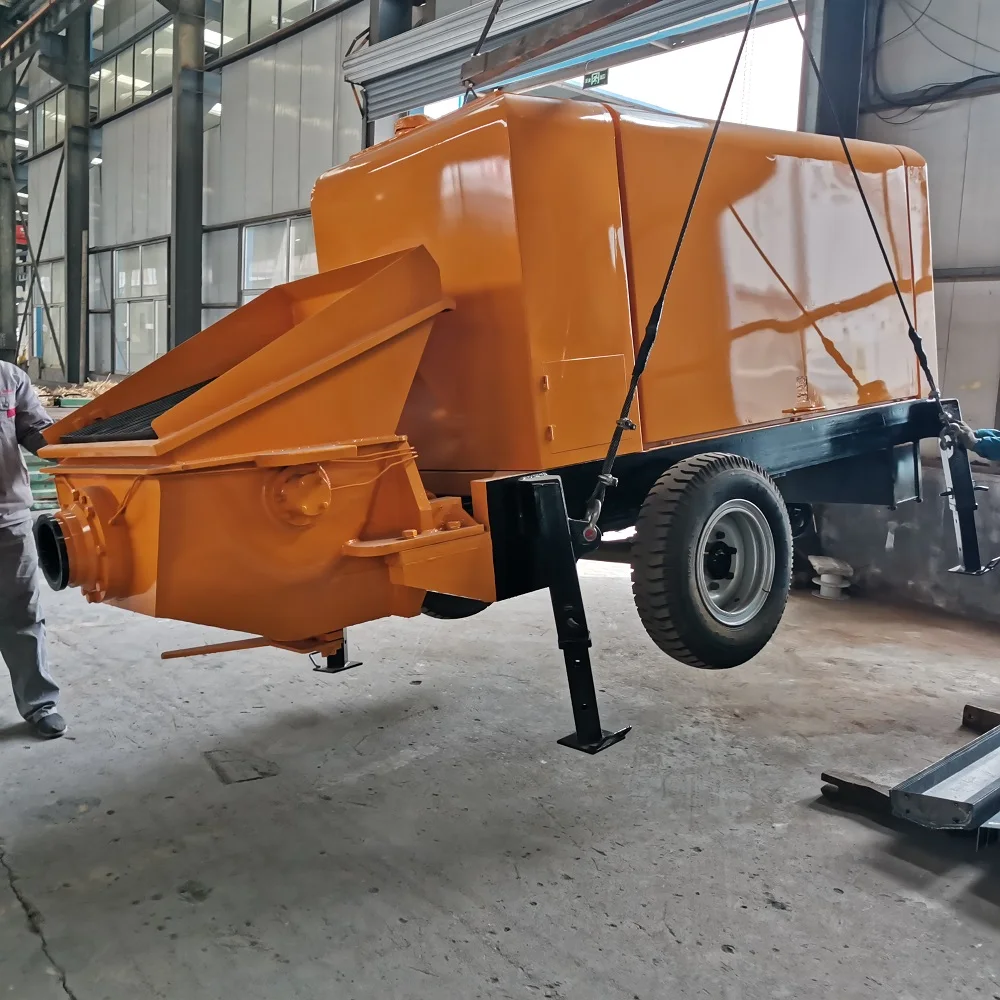

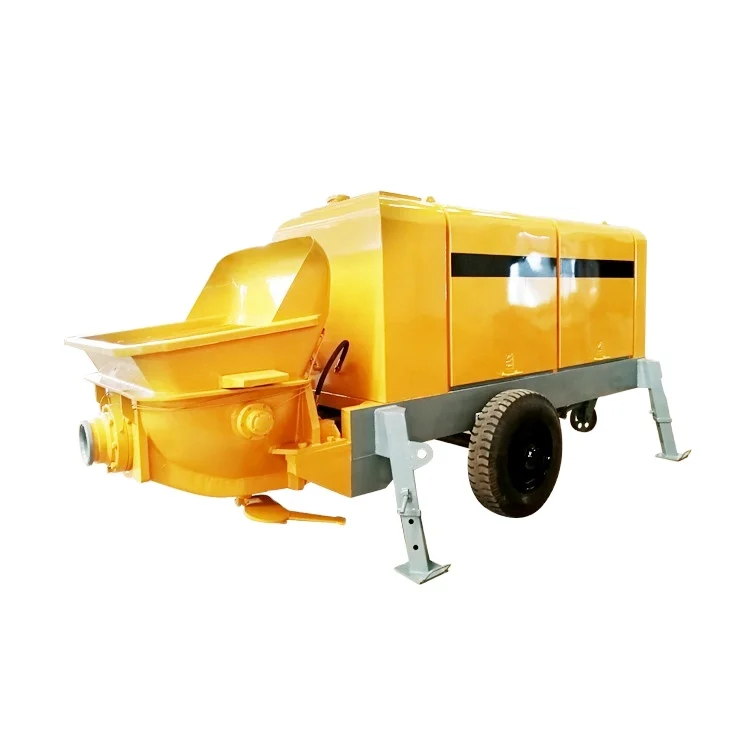

diesel mobile concrete pump also called mobile concrete pump or trailer concrete pump, is the kind of concrete pump mounted on the moveable trailer to to convey concrete to hard to access flexibly. MINLE brand new generation concrete pump trailer is specially designed and engineered with latest differential pressure induction control technology to keep reliability, simplify and efficiency. Our concrete pump trailer main components such as wear plate, piston, cylinder, discharge port and hopper are made with wear resistant high chrome alloy materials, strict welding and heat treatment processes.
Product Description
Item | HBTS15-HBTS90 |
Max Theoretical Concrete Output (m³/h) | 15-90 |
Max Concrete outlet Pressure (Mpa) | 6-16 |
Concrete slump (mm) | 100-200 |
Aggregate Size (mm) | ≤25-40mm |
Powder (KW) | Diesel motor 33kw-176kw |
Speed (r/min) | 2200 |
Conveying Cylinder Diameter (mm) | 100/1000 |
Concrete Cylinder Diameter (mm) | 140/160/180/200*1000-1650 |
Hopper Capacity (m³) | 0.3-0.8 |
Fuel Tank Capacity (L) | 180-500L |
Filling Height (mm) | 1100-1400 |
Max Conveying Distance (vertical Height/Horizontal Distance) (m) | 50m-220/200-1400 |
Pipe Cleaning Mode | Water Washing |
Overall Dimension (mm) | 3300-6500×1500-2200×1600-2500 |
Total Weight (kg) | 1900-6500 |
1.Power system diesel mobile concrete pumps
Hydraulic oil pump: Germany Rexroth or Japan Kawasaki are adjusted.
Diesel power: Germany Deutz, Weichai, Cummins;
2.Electronic control system mobile concrete pumps
Japan Mitsubishi Programmable Logic Controller (PLC) electronic control system.
Main electric elements are imported original Schneider, Siemens, OMRON, LG etc.
3.Hydraulic system diesel stationary concrete pump
The unique open hydraulic system and hydraulic cushion technology contribute to the smaller exchange impact and less heat of the system.
4.Pumping system factory mobile concrete pumps
Pumping displacement variable adjustment: Change the pumping displacement according to the construction to meet the requirement of the condition.
5.Lubrication System portable concrete pumps
The patented central automatic lubrication system comes with a piston grease-pump, features high pressure and reliability, which can realize automatic lubrication of piston. The filters at the outlet and the inlet of oil ports as double protections guarantee the system reliability.
6.Cooling System diesel concrete stationary pump
Compulsory air-cooled heat exchanger keeps the temperature of the hydraulic oil below 60 degree,that ensures the whole hydraulic system works at normal status.
