1,Wide Application:Applicable to both heat transfer printing and cotton cold transfer printing.The transfer printing effects are as good as those of flat hot stamping machines. 2,Good Printing Effects :The main wall panel and all rollers are elaborately made and reinforced. 3,High Equipment Configuration:Pneumatic pressurizing by rollers enables flexible control of the volume of pressure and the use of single or double rollers. 4,Pneumatic Pressurizing: Pneumatic pressure, the pressure size flexible control 5,Placing and taking are integrated into the overall production. Paper and cloth move accurately in parallel without offset. A compact labor-saving device with high overall yields.

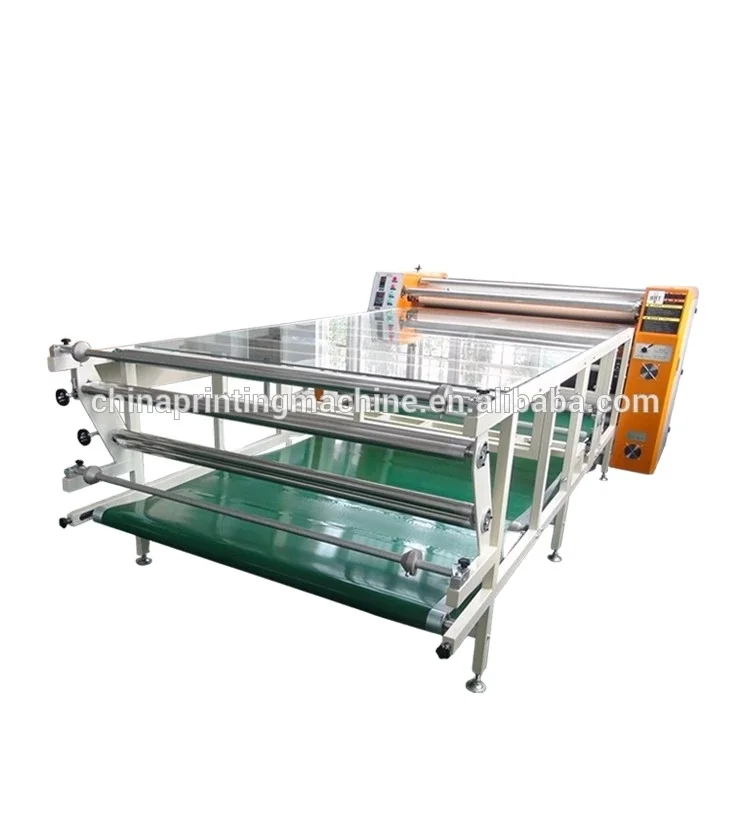

ROLLER HEAT TRANSFER PRINTING MACHINE
Model
HJD-J901
HJD-J902
Roller Diameter(mm)
420
600
Roller Width(mm)
1860
1860
Max. Felt Width(mm)
1730
1730
Max. Cloth Width(mm)
1700
1700
Max. Printing Width(mm)
1650
1650
Printing materials
Cloth/Piece of cloth
Cloth/Piece of cloth
Working Table Length(mm)
1920
2050
Power Supply
380V/50HZ(3phase 4wire)
380V/50HZ(3phase 4wire)
Power
18KW
33KW
Heating Method
Oil-based heating pipe
Oil-based heating pipe
Tem.Range
0-260C°
0-260C°
Printing Speed(m/hour)
100-120
210-230
Oil Weight
50KG
88KG
Machine Sizes(L*W*H)
2905*2450*1320mm
3435*2500*1425mm
Packing Sizes(mm)
2490*1000*1360mm
2550*1000*1360
N.W.
1500KG
2000KG
Packaging & Shipping
Our Services
We are the gold supplier in alibaba,we are manufacturer and make these kinds of machines for many years,we will supply you the best quality machine with lowest price.
roll to roll sublimation heat press machine
