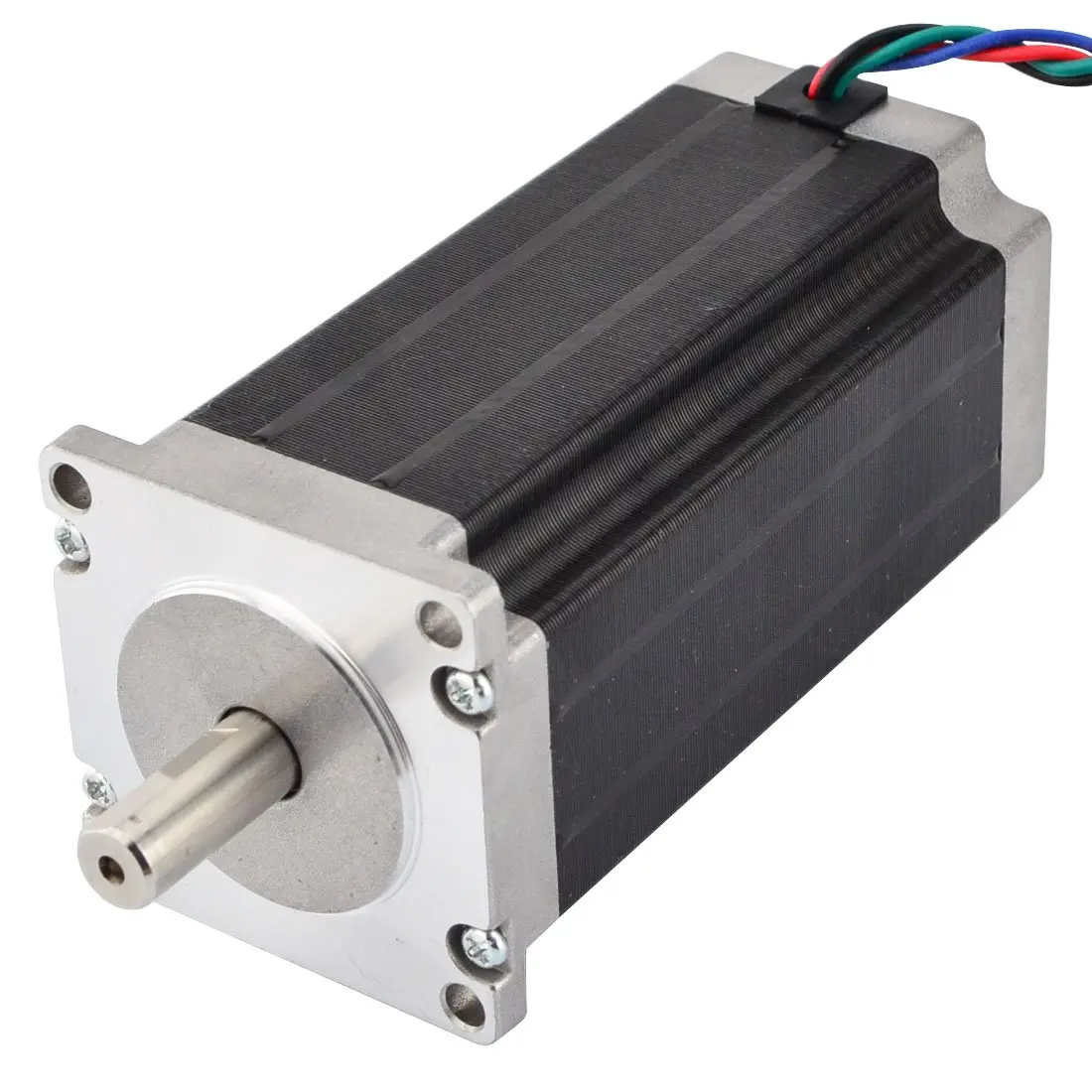

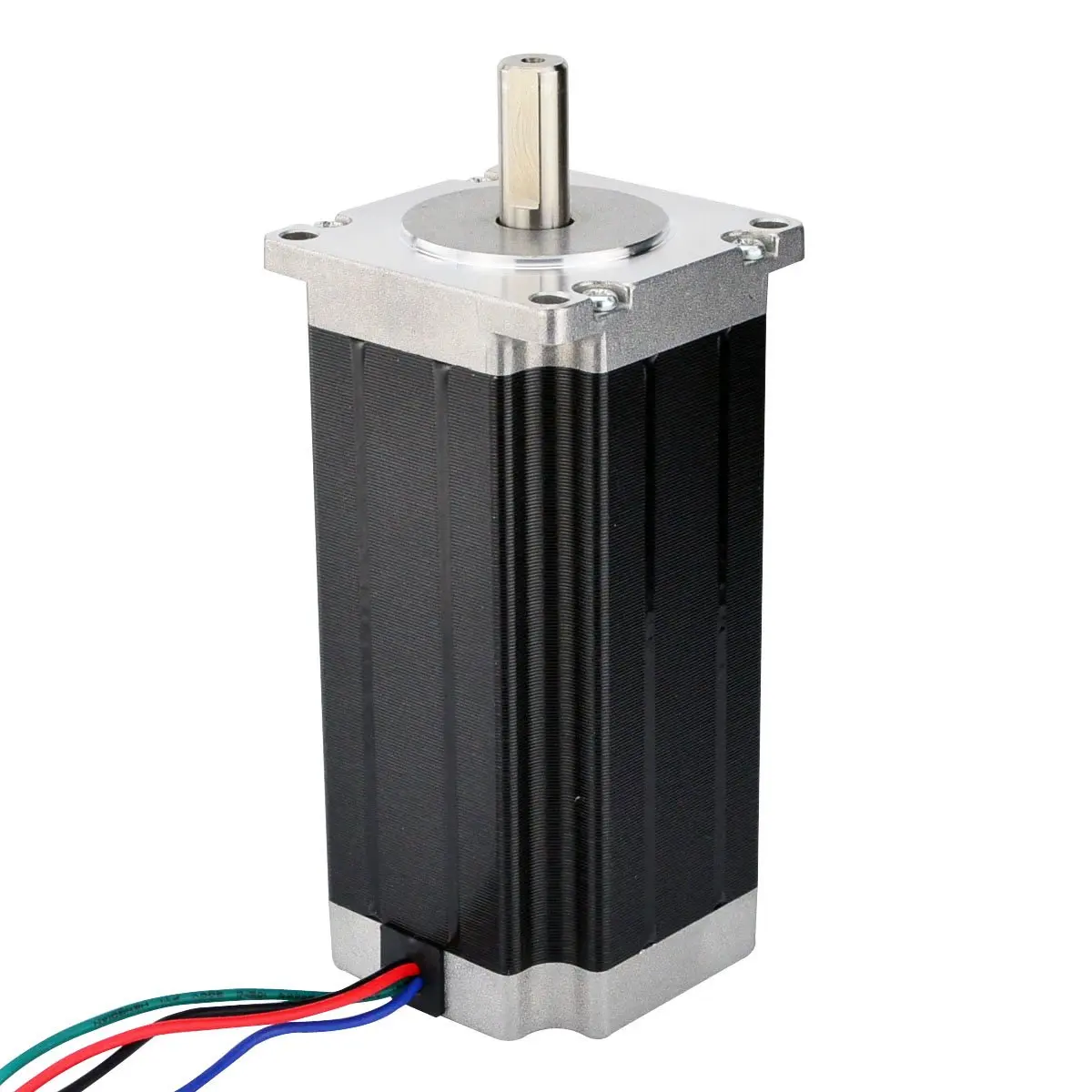

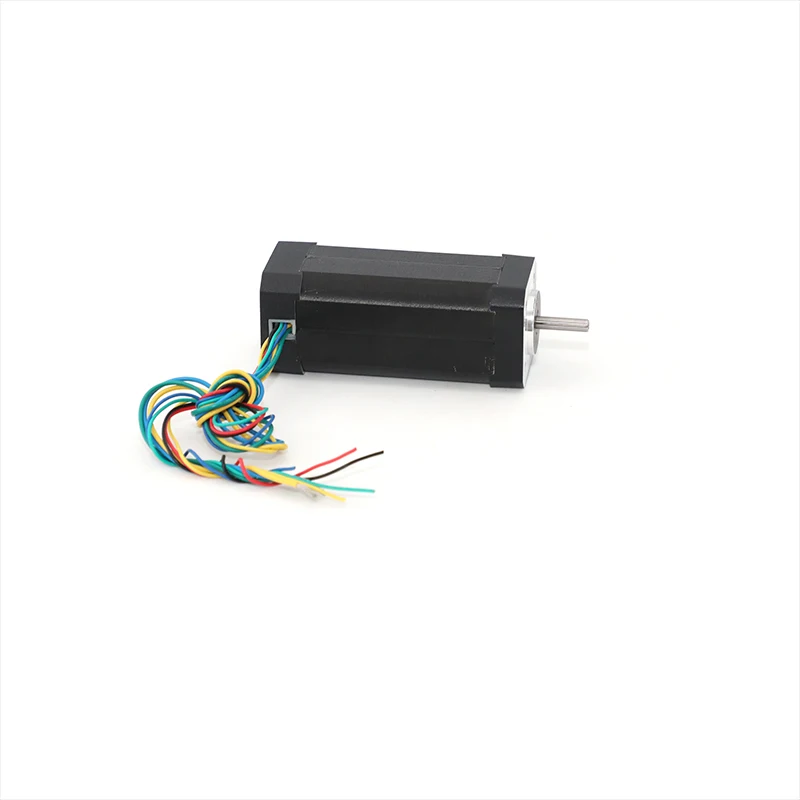

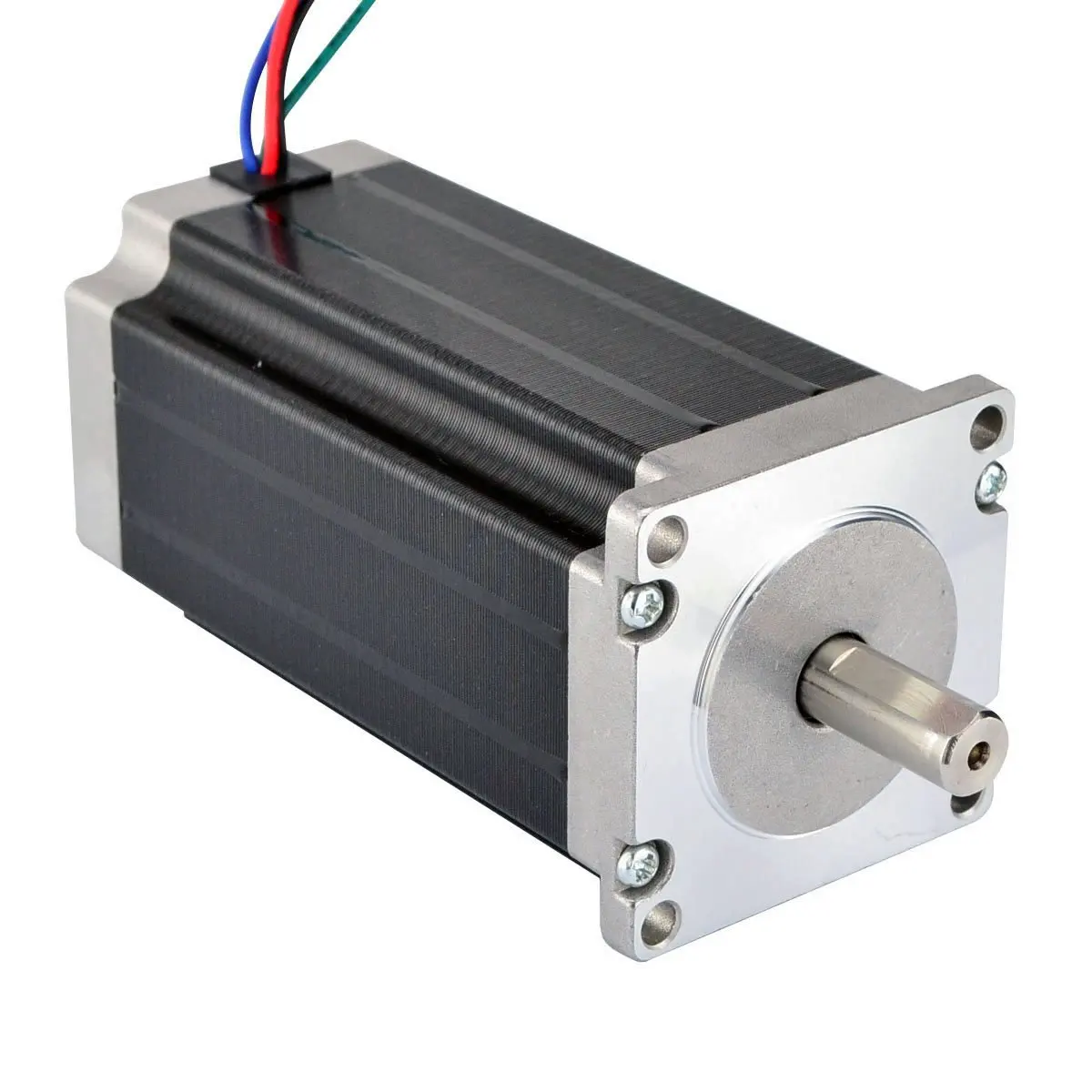

Mask Machine Stepper Motor 2 Phase 4A 2N.m Nema 23 Stepper Motor
- Category: >>>
- Supplier: Changzhou Songya Electromechanical Co. Ltd.
Share on (1600191815156):
Product Overview
Description
Product Description
NEMA 23- 57HS 1.8° 2-phase Hybrid stepper motor
| Model No. | Step Angle (°) | Rated Voltage (V) | Rated Current (A) | Phase Resistance (Ω) | Phase Inductance (mH) | Holding Torque (Kg. cm) | Detent Torque (g.cm Max) | Rotor Inertia (g. cm2) | Motor Length (mm) | Lead Wires No. | Motor Weight (Kg) |
| 57HS76-2004 | 1.8 | 8.6 | 2 | 4.3 | 16.2 | 24 | 680 | 480 | 76 | 4 | 1 |
| 57HS76-3004 | 1.8 | 2.7 | 3 | 0.9 | 3.5 | 20 | 680 | 480 | 76 | 4 | 1 |
| 57HS76-4004 | 1.8 | 2.4 | 4 | 0.6 | 2.2 | 20 | 680 | 480 | 76 | 4 | 1 |
| 57HS112-3004 | 1.8 | 3.9 | 3 | 1.3 | 6.5 | 30 | 1200 | 800 | 112 | 4 | 1.7 |
| 57HS112-3504 | 1.8 | 2.45 | 3.5 | 0.7 | 3 | 28 | 1200 | 800 | 112 | 4 | 1.7 |
Above only for representative products, products of special requirest can be made according to the customer's request.
Company Information
Partner
Packaging & Shipping
FAQ
1. Are you factory?
Yes, we are facotry, and we produce stepper motor/driver, Servo motor/driver.
2. How to select models?
Before purchasing, please contact us to confirm model No. and specifications to avoid any misunderstanding.
3. How do you ship the goods?
Sea and by air, also accept customer appointed.
4. Can I test sample?
Yes, sample charged can be offered for testing.
5. Can we be agent or distributor?
Yes, welcome and we will support you.
6. Can you do OEM or ODM service?
Yes, we have R&D department and accept OEM and ODM service.
