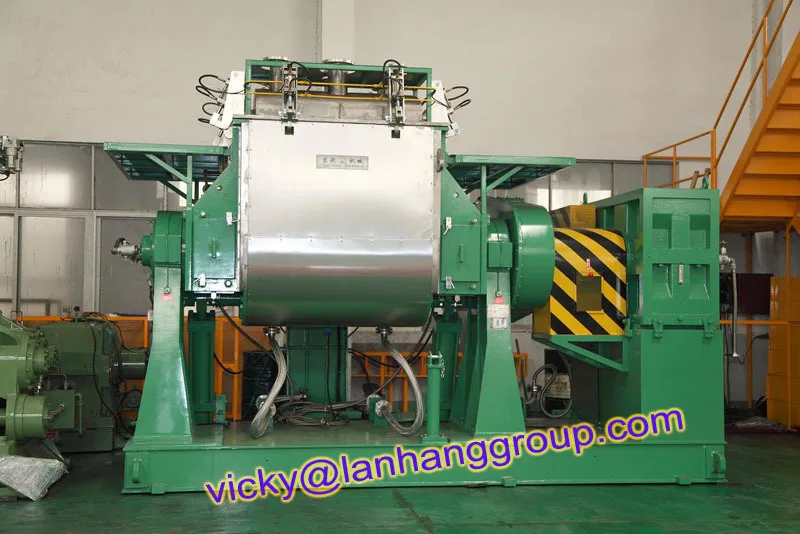

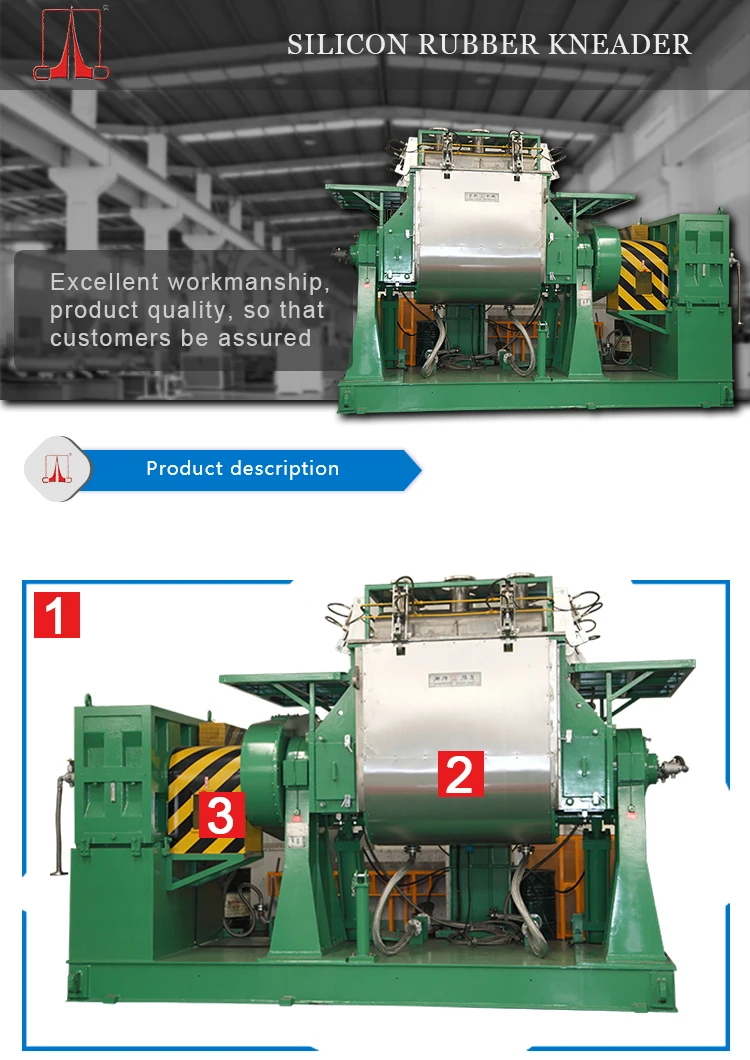

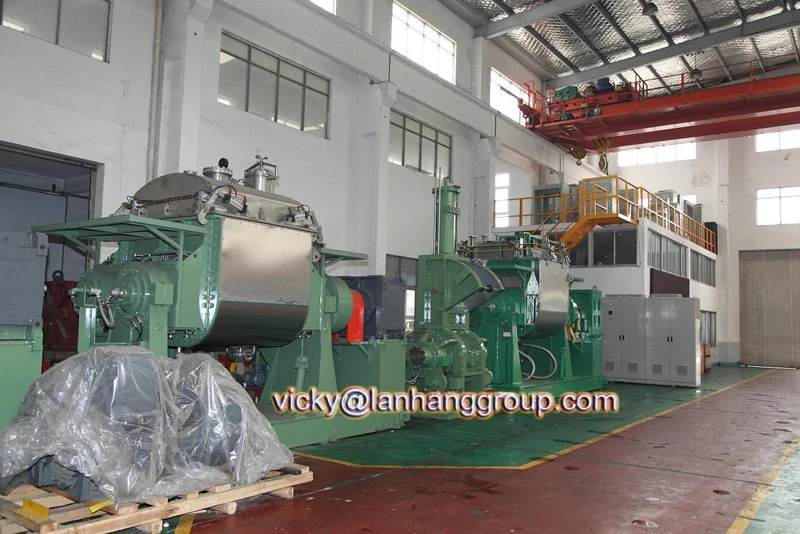

NH 2000 Latest desirable Factory supply Silicone dispersion Rubber Mixer Dispersion Kneader
- Category: >>>
- Supplier: Zhangjiagang Lanhang Machinery Co. Ltd.
Share on (1600191873018):
Product Overview
Description
Why Choose Kneader Products from Lanhang
1. We're founded in 1992, with more than 25 years' professional experience
2. Fourtune global 500 companies' supplier, such as Dow Corning, Shin-Etsu...
3. Overseas service center available (in Europe, Japan, Dubai, etc.)
4. International CE, SGS, IAF, CNAS certification
5. National high-tech enterprise / products
6. We own various National Patent for Inventions Letters for rubber & plastic machinery
7. ISO9001:2008 management
Specifications
1. Volume:25,75,100,200,500 1000, 1500, 2000, 3000,4000L
2. Rotor type:sigma /Z blade ,two wings blade
Breif introduction
This rubber kneader is special used for mixing and kneading high-viscositymaterial. It has a excellent effect for mixing, kneading, crushing and dispersing because of the intense shearing force which produced by two powerful rotary oars.
Type of discharging : bottom discharge or titling discharge.
Heating way:steam heating & oil heating & electric heating.
Main material:Carbon steel,stainless steel.
Cooling methed: Water cooling.
Main Parameters of Our Flour Kneader

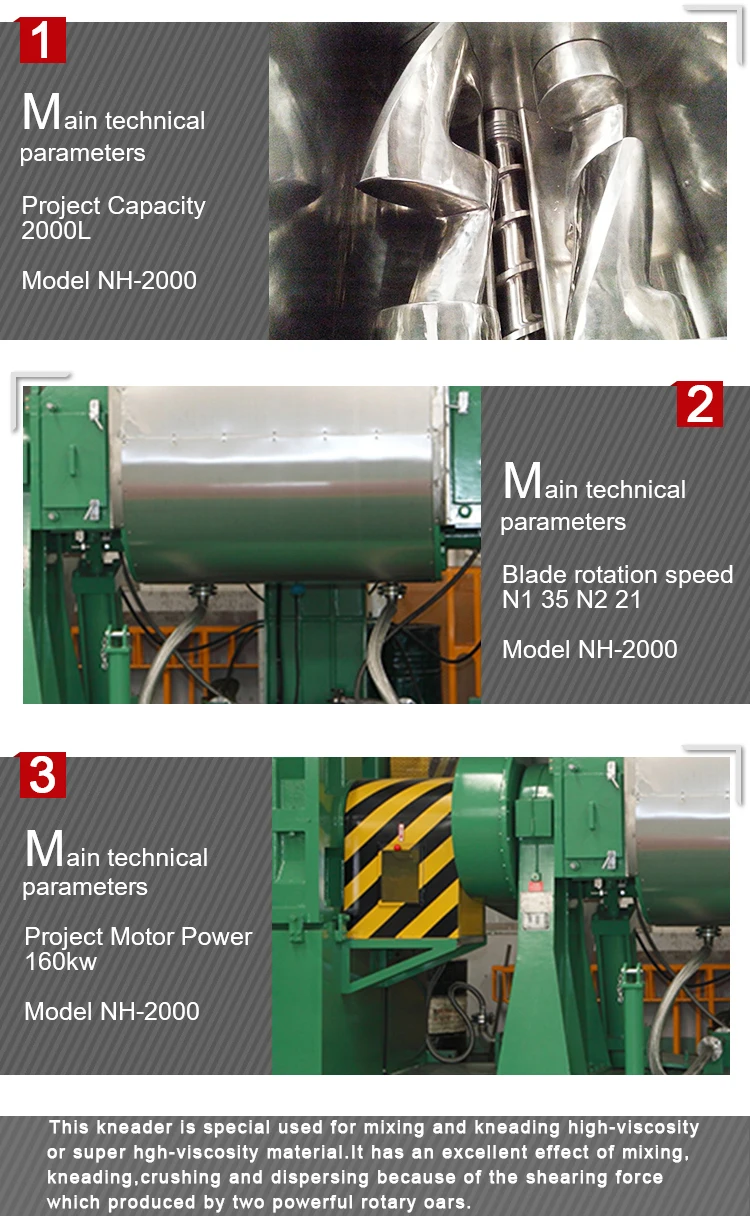

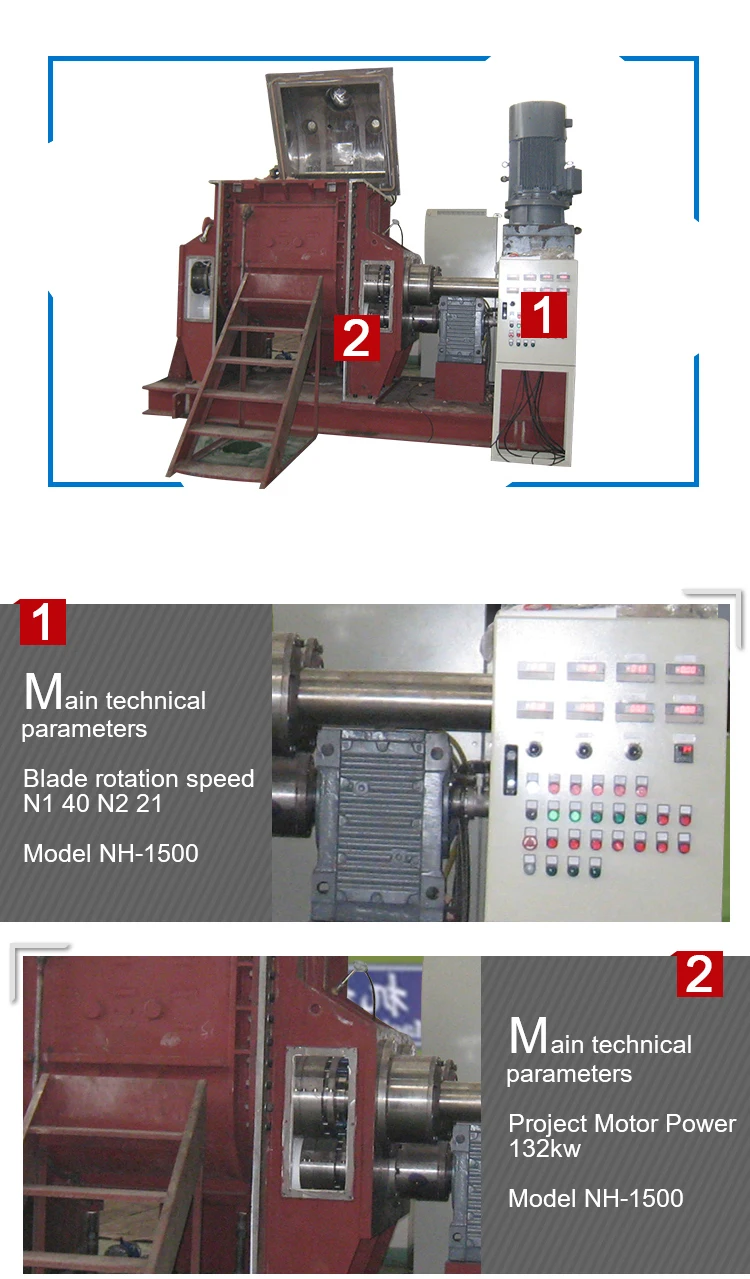

Model | NH-5000 | NH-3000 | NH-2000 | NH-1500 | NH-500 |
Capacity (L) | 5000 | 3000 | 2000 | 1500 | 500 |
Filling Coefficient | 0.6 | ||||
Agitator Blade | Sigma Z Blade Rotor | ||||
Rotating Speed | N1 35r/min N2 21r/min | N1 40r/min N2 21r/min | |||
Jacket Pressure (Mpa) | ≤ 0.3 | ||||
Chamber Pressure (Mpa) | ≤ -0.094 | ||||
Cooling Type | Water Cooling | ||||
Heating Methods | Jacket Steam / Oil / Electricity Heating | ||||
Discharging Types | Hydraulic Tilting / Drop Door / Screw Extruding | ||||
Unique Function | Vacuum and Nitrogen-filled Kneading Available | ||||
Power Supply | AC 380V 50HZ 3P (customized available) | ||||
Motor Power (Kw) | 300 | 220 | 160 | 132 | 90 |
Overall Dimension (mm) | 3400x2400x1900 | 3400x2200x1800 | 3280x2100x1700 | 3200x2000x1650 | 3000x1980x1600 |
Weight (T) | 25 | 15 | 11 | 9 | 6 |
