P3 P5 Store Shop Front Sign Outdoor Billboard Material Digital Signage And Displays Smd Board Led Screens Per Square Meter Price
- Category: >>>
- Supplier: Canbest,Opto-Electrical,Science,&,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Solution Analysis
Product Description
Technical Parameter
Model | AES3 | AES5 |
Pixel Pitch ( mm) | 3.81 | 5.33 |
LEDs | SMD1921 | SMD1921 |
Brightness ( nits) | ≥5500 | ≥6000 |
Pixel Density ( dots) | 68889 | 35200 |
Module Size (mm) | 320x320 | 320x320 |
Module Resolution | 84x84 | 60x60 |
Cabinet Size (mm) | 960x960 | 960x960 |
Cabinet Resolution | 252x252 | 180x180 |
Cabinet Material | Die Casting Magnesuim | Die Casting Magnesuim |
Cabinet Weight ( Kg/panel) | 26.02 | 26.02 |
Refresh Rate | ≥1920Hz | ≥1920Hz |
Viewing Angle | 160°/160° | 160°/160° |
Max.Power Consumption(W/m²) | 600 | 600 |
Ave.Power Consumption (W/m²) | 175 | 175 |
Waterproof Level | IP68 | IP68 |
Optional Accessories

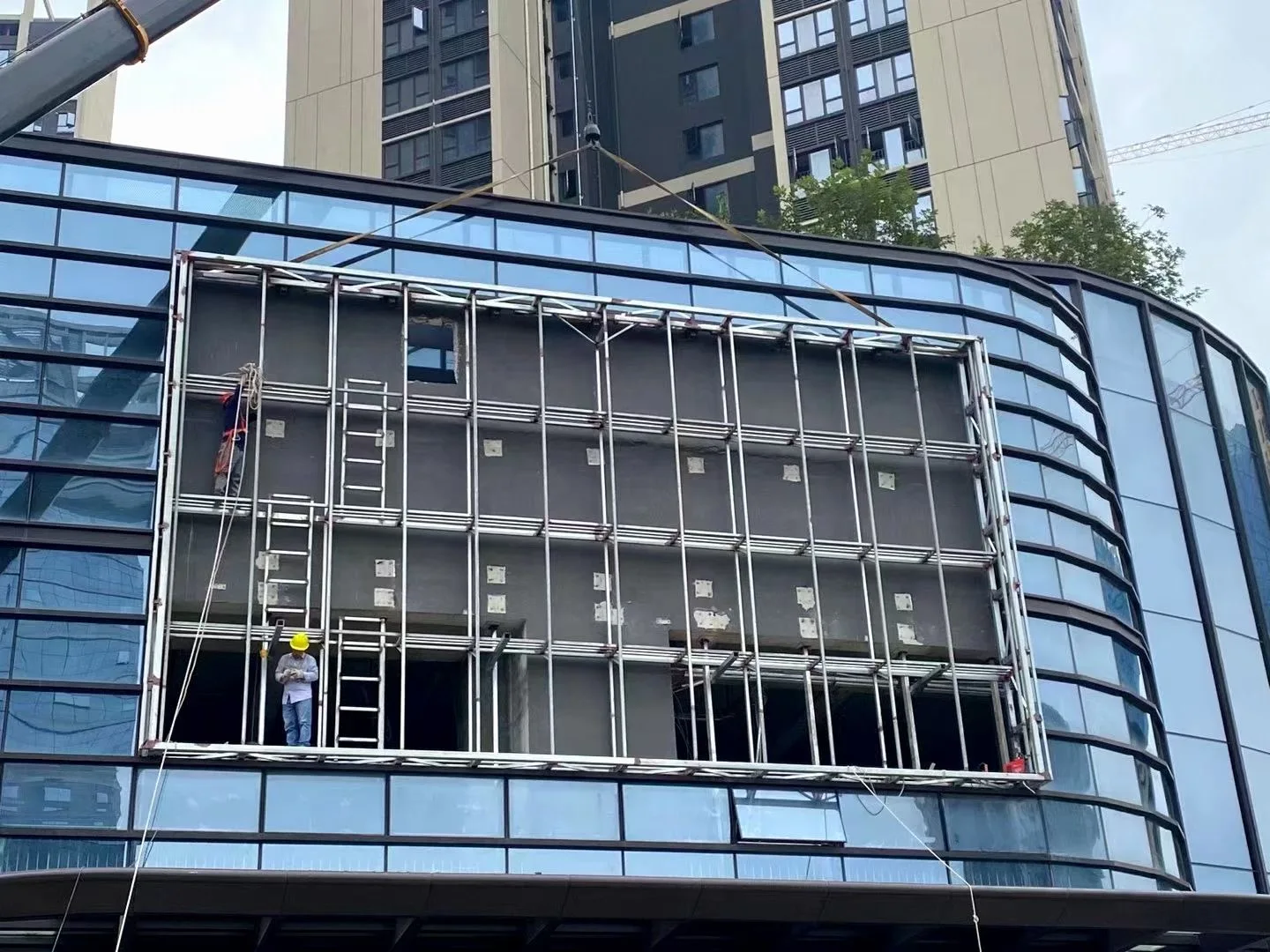

Installation Structure
Installation and steel structure is like these project, need to build the pole and the steel structure to support the whole led screen, reserve back maintenance channel, convenient for future maintenance.
Company Introduction
Packing&Shipping
Warranty
We Recommend
