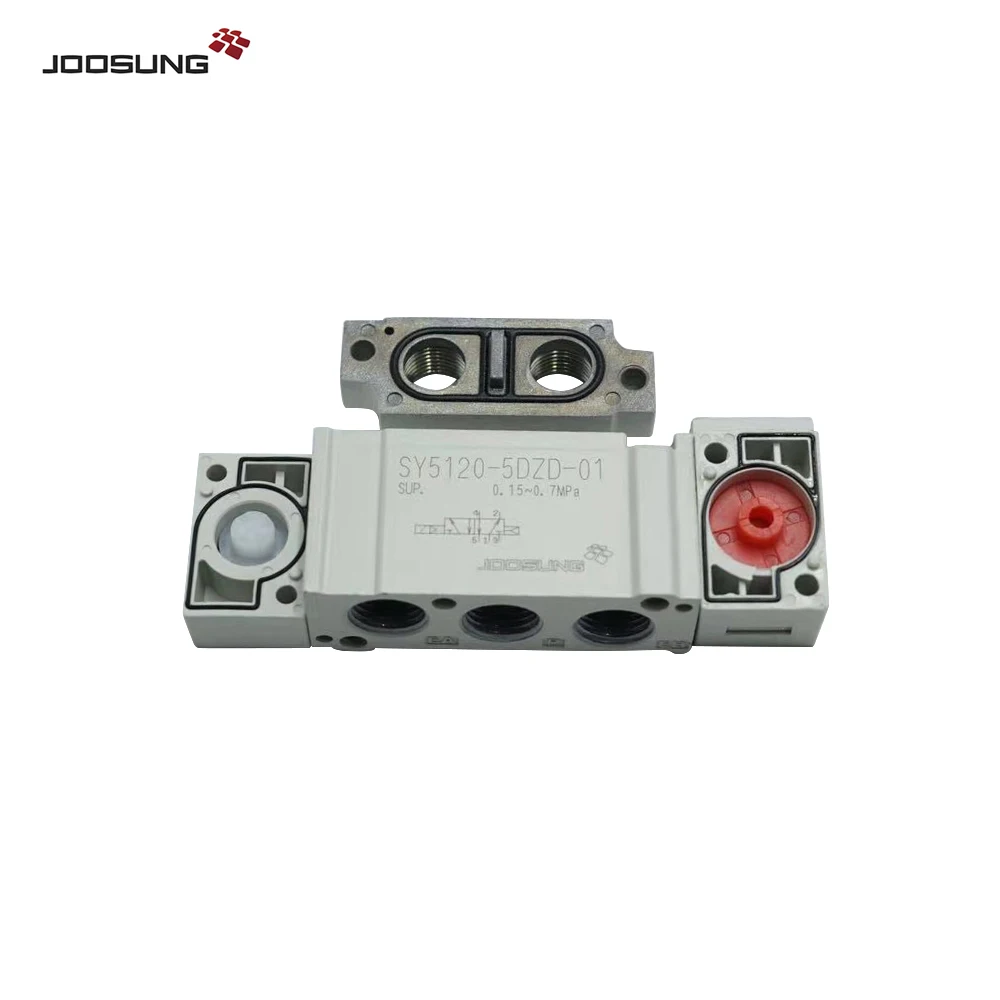

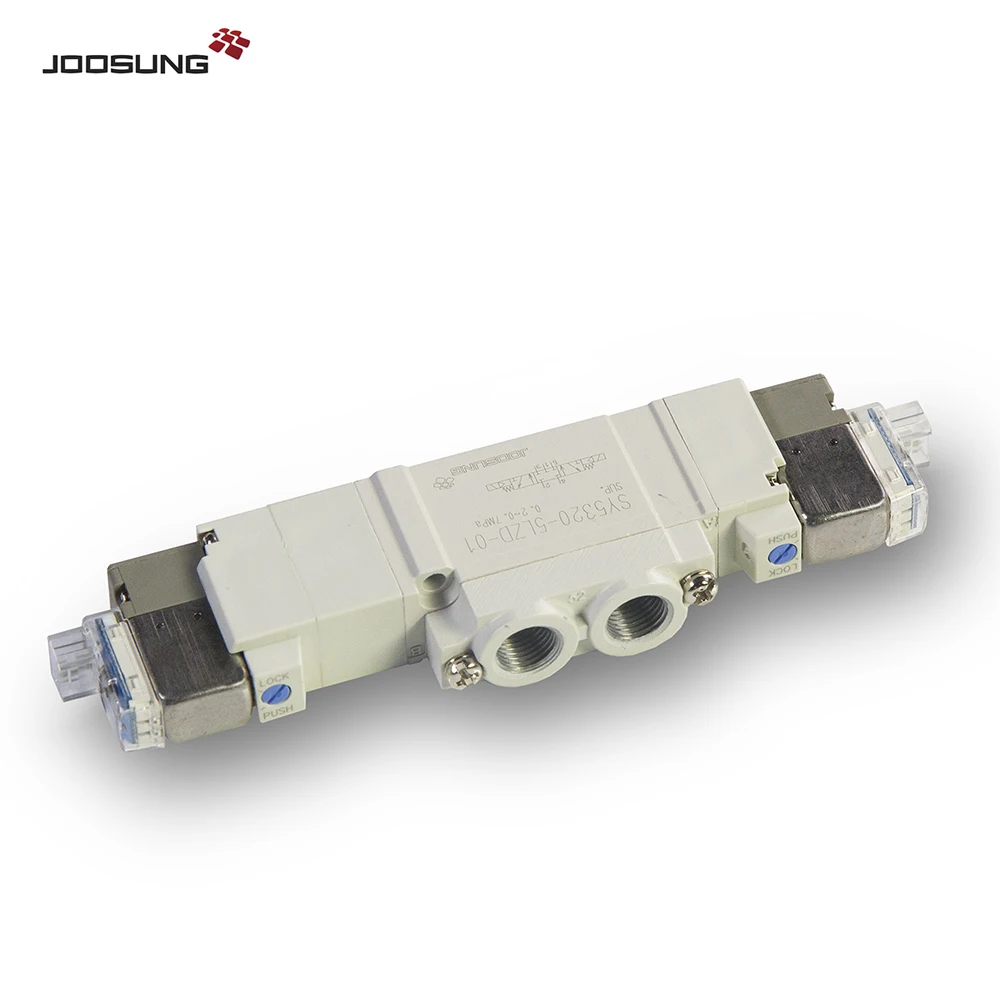

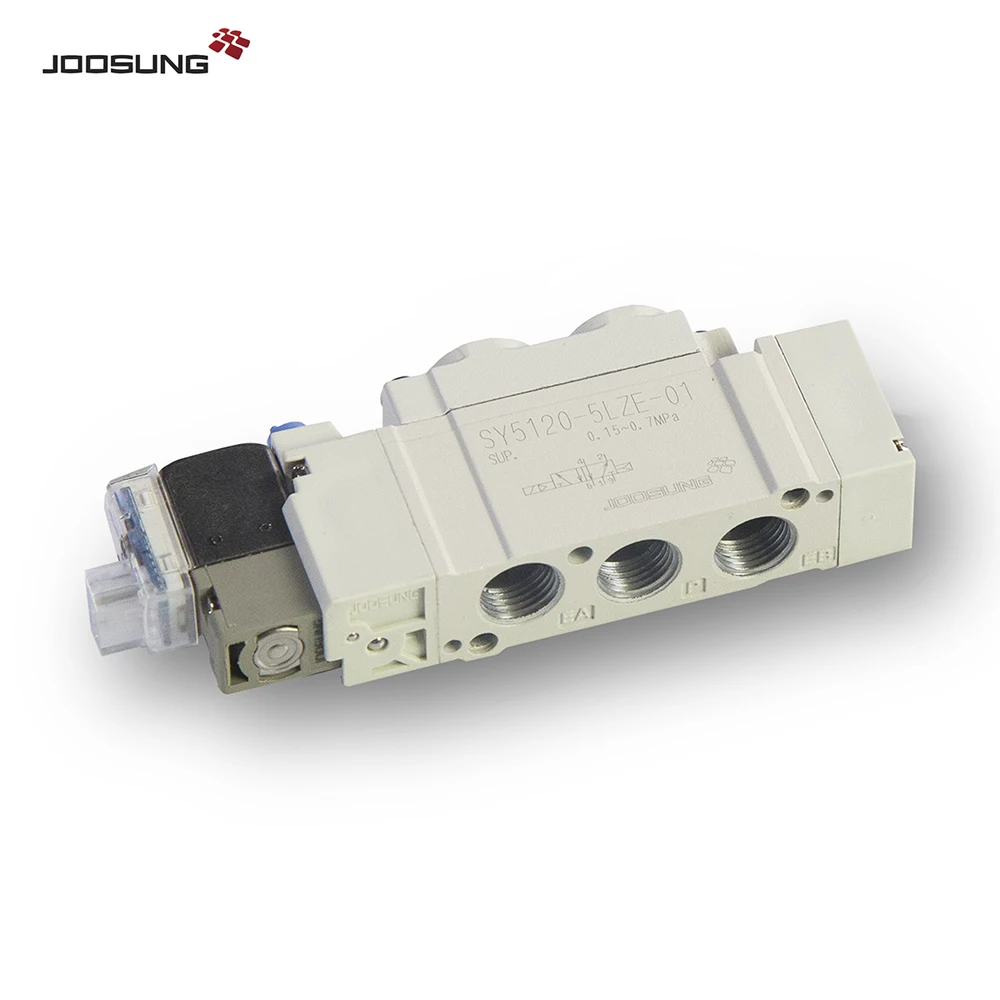

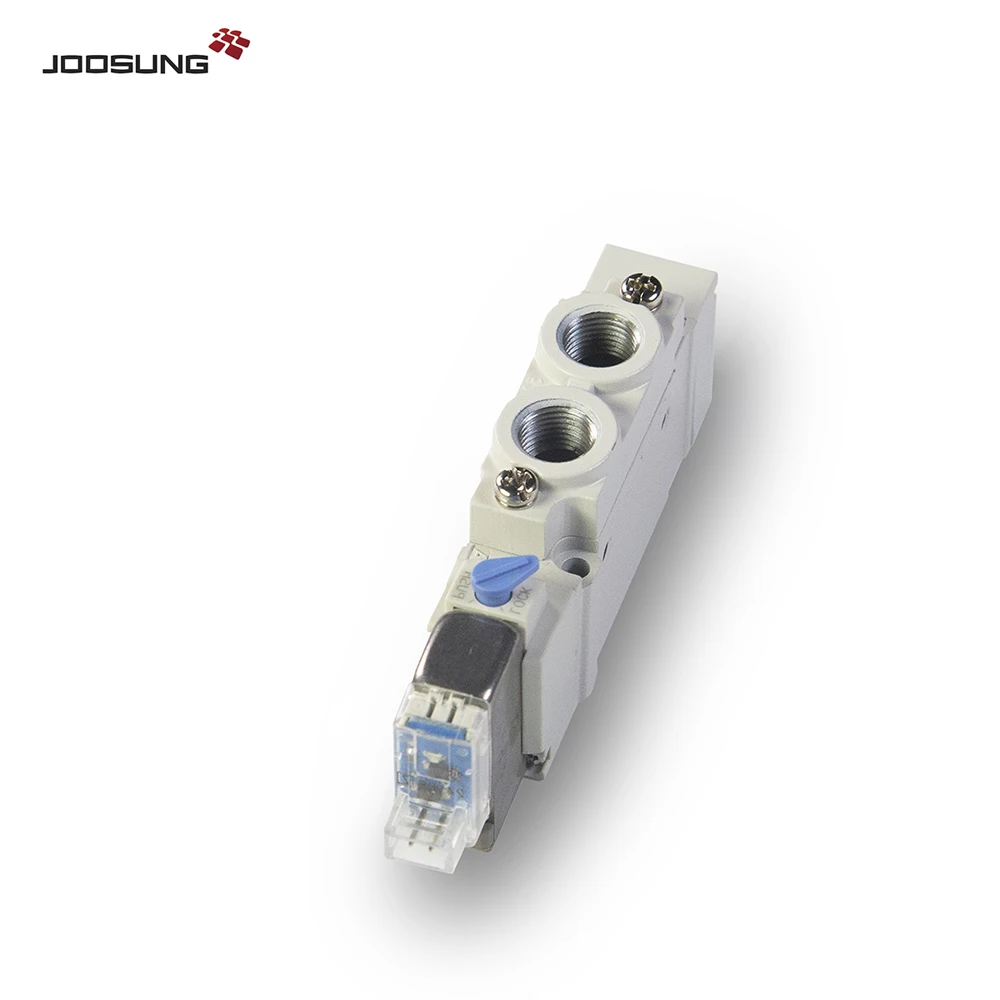

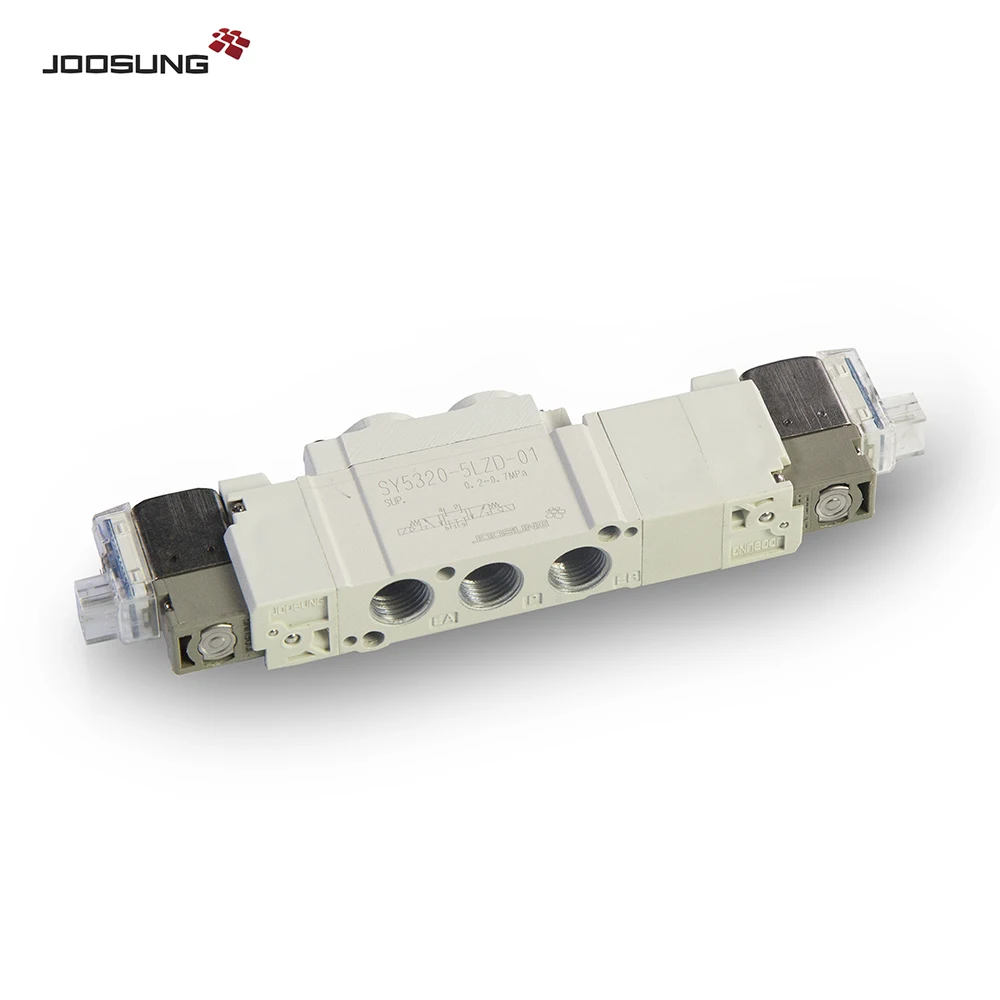

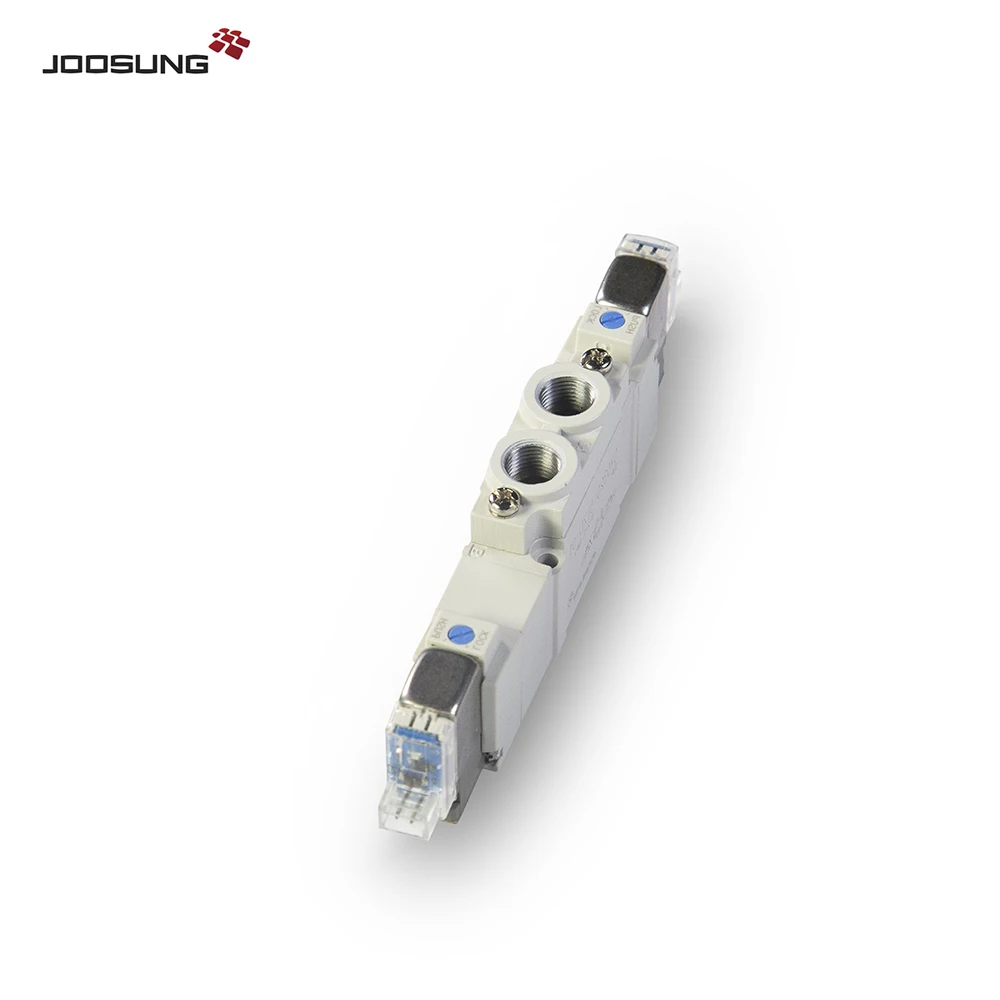

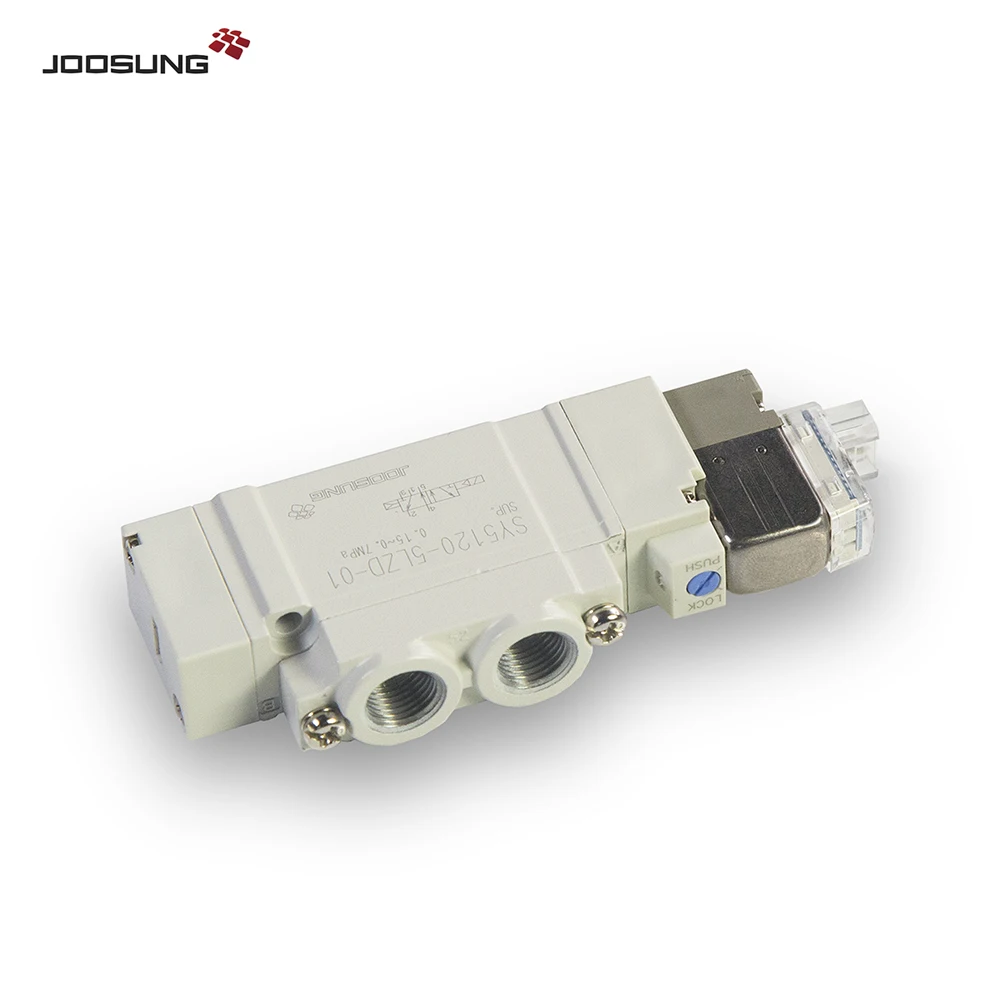

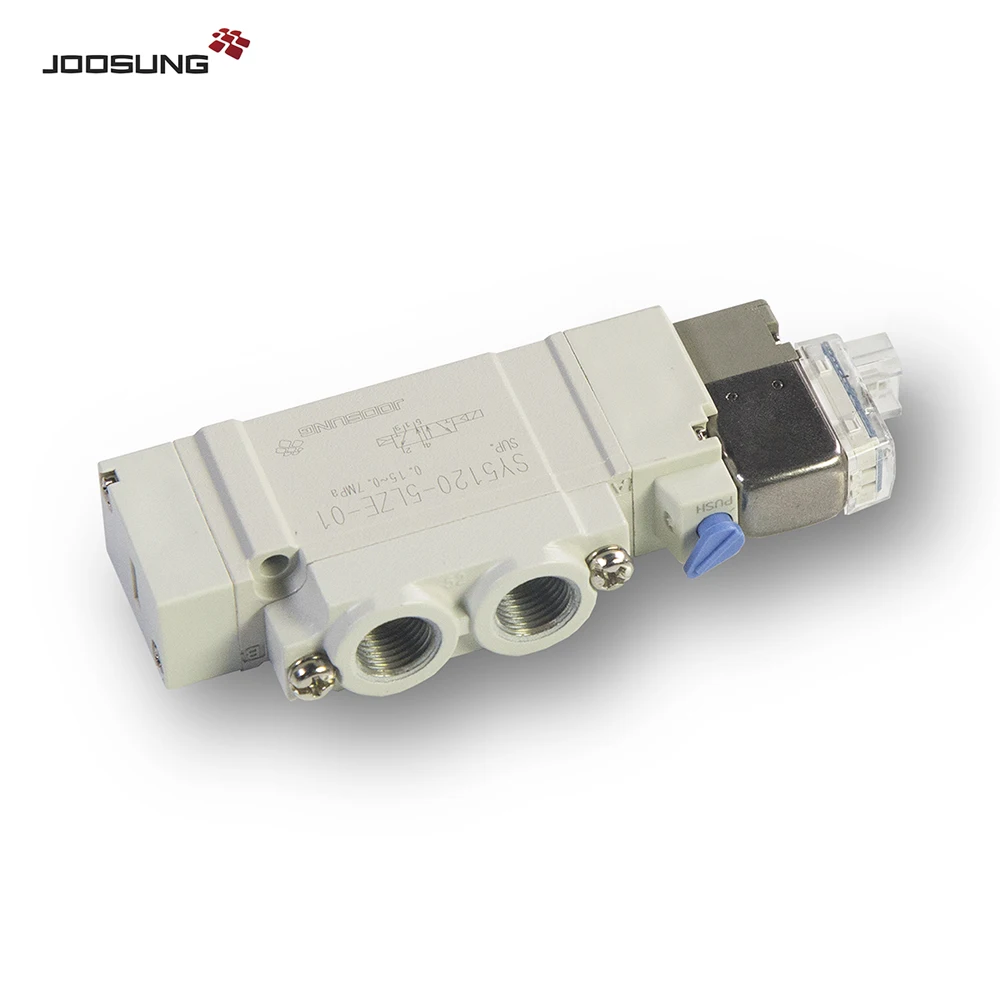

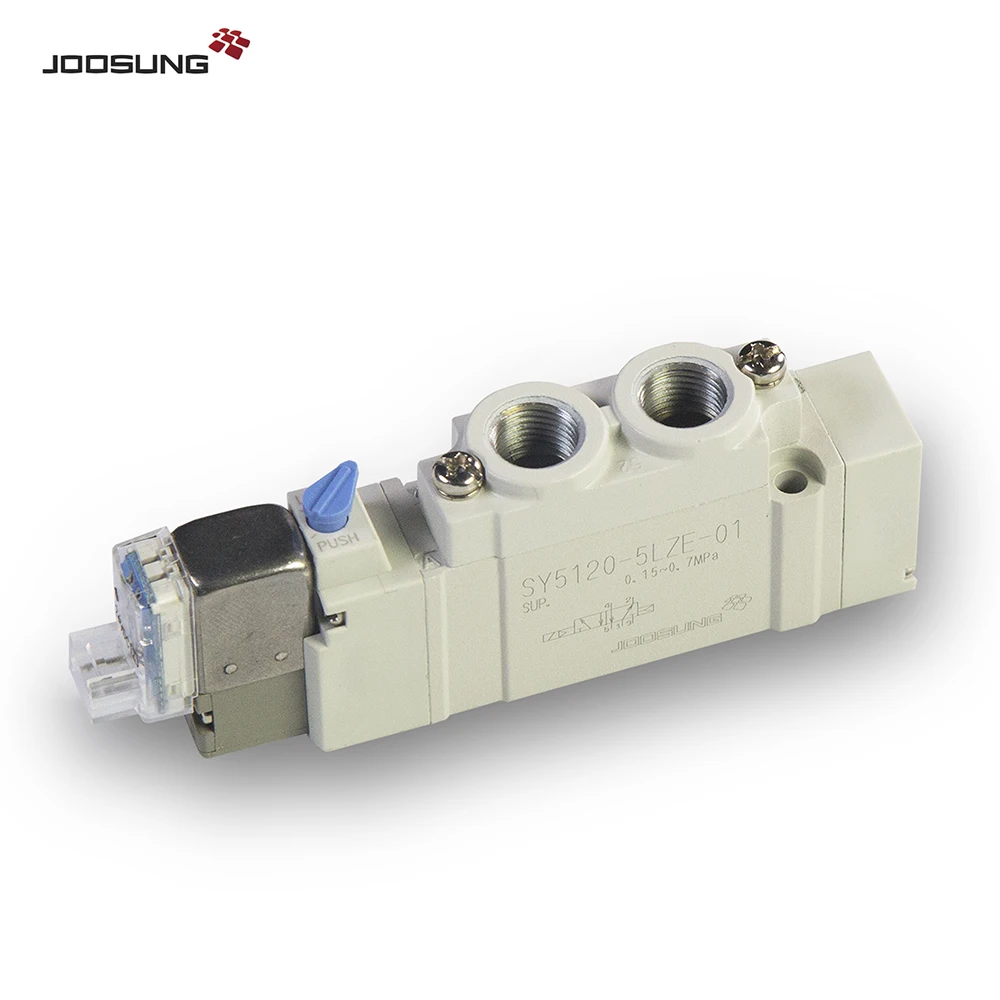

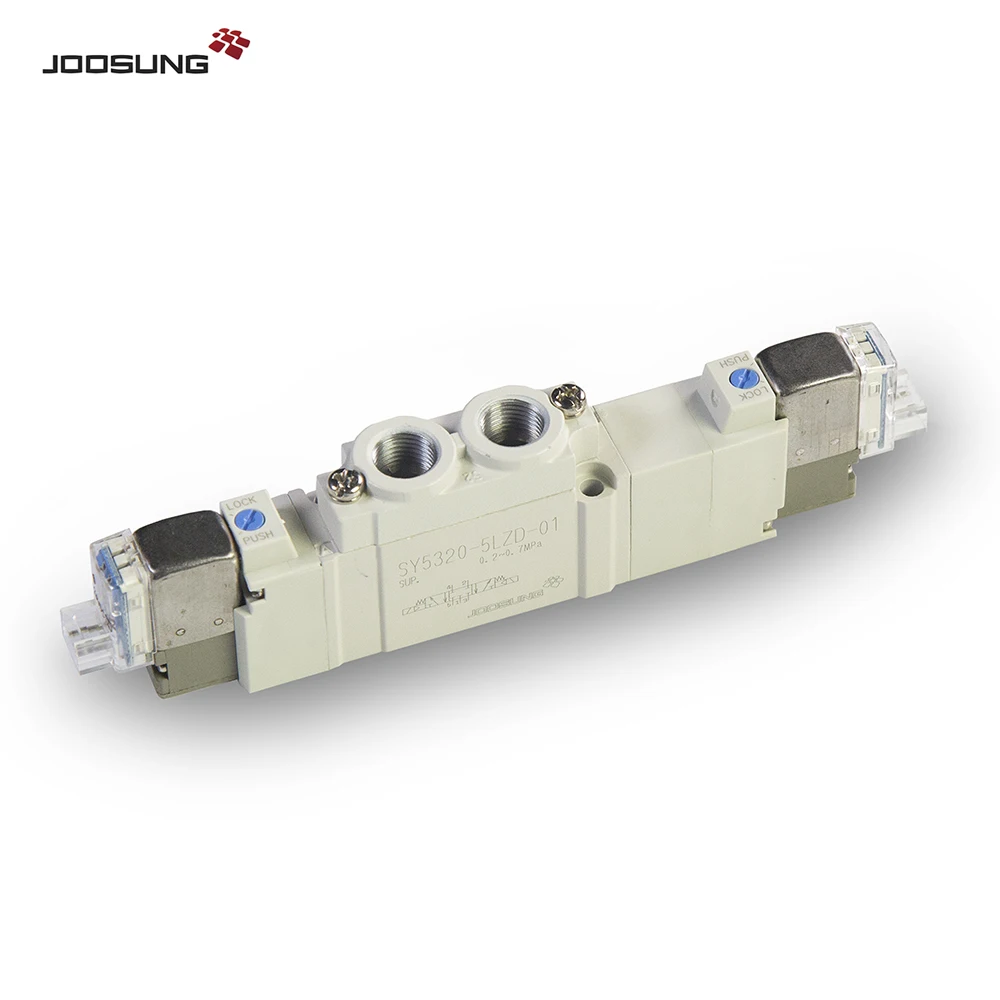

5/2 way high Quality DC 24V SY5120 5LZ C6 SMC Type SY series Pneumatic Solenoid Valves Pneumatic Air Valves
- Category: >>>
- Supplier: Wenzhou Qiaosen Pneumatic Co. Ltd.
Share on (1600192025916):
Product Overview
Description

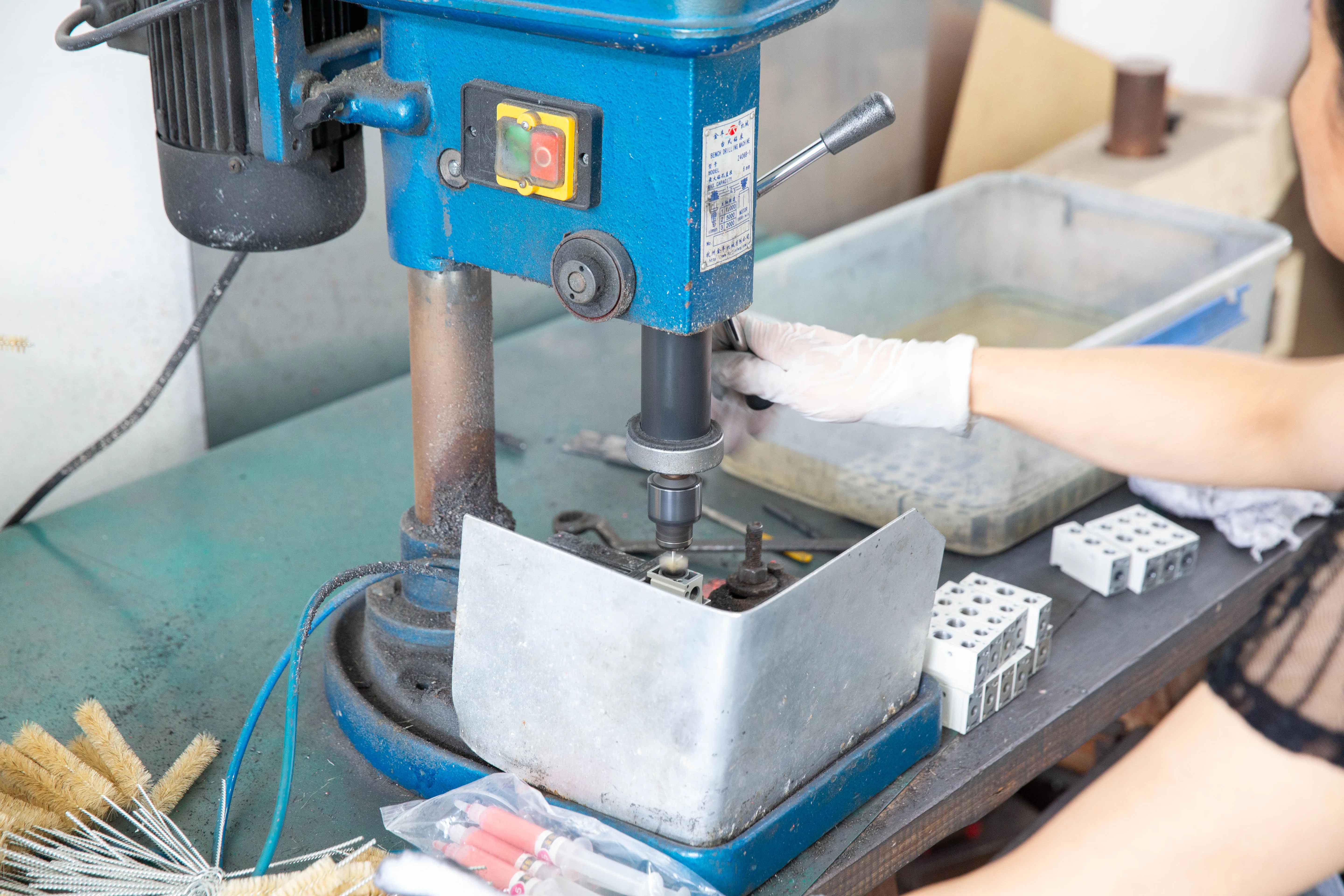

The manufacturing cost of Joosung Pneumatic solenoid valve is very high while the selling price is fair. Each and every product is tested via testing facilities. What's more, all products are manually tested using hairbursh for partially air leakage test. Thus,the service life and using environment is the same as SMC's items.

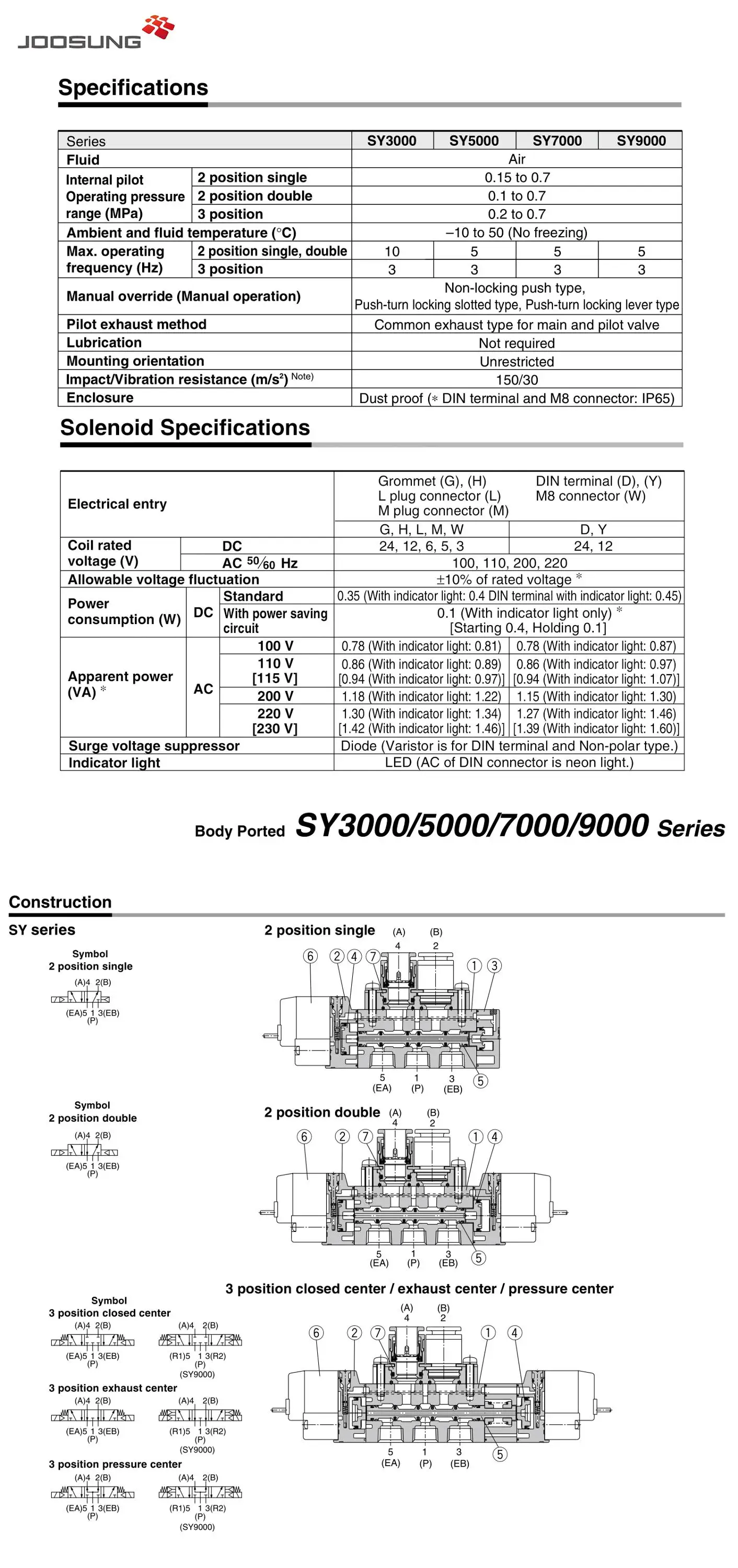

Product Description
Series | SY3000 | SY5000 | SY7000 | SY9000 | |||||
fluid | Air | ||||||||
Internal pilot Operating pressure range(Mpa) | 2 position single | 0.15 to 0.7 | |||||||
2 position double | 0.1 to 0.7 | ||||||||
3 positoon | 0.2 to 0.7 | ||||||||
Ambient and fluid temperature（℃） | -10 to 50 (not freezing) | ||||||||
Max. operating frequency (Hz) | 2 position single,double | 10 | 5 | 5 | 5 | ||||
3 position | 3 | 3 | 3 | 3 | |||||
Manual override(Manual operation) | Non-locking push type, Push-turn locking slotted type Push-turn locking lever type | ||||||||
Pilot exhaust method | Common exhaust type for main and pilot valve | ||||||||
Lubrication | Not required | ||||||||
Mounting orientation | Unrestricted | ||||||||
Impact /Vibration resistance(m/s²） | 150/30 | ||||||||
Enclosure | Dust proof(DIN termianl and M8 connector:IP 65) | ||||||||

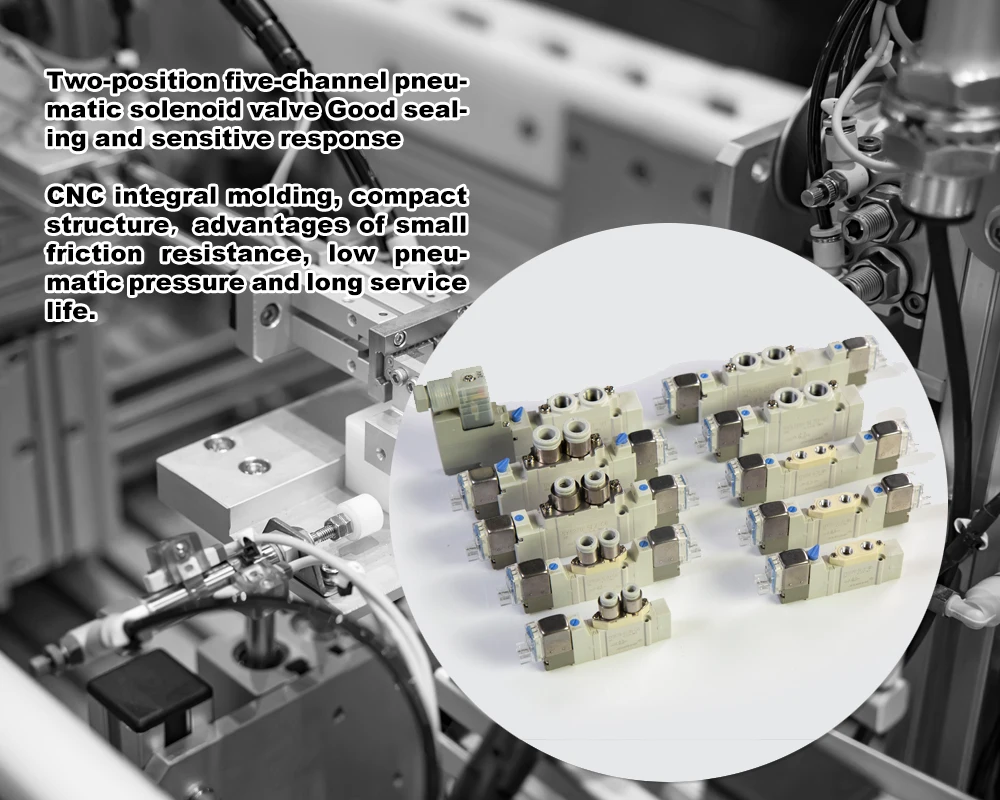

Product Advantages

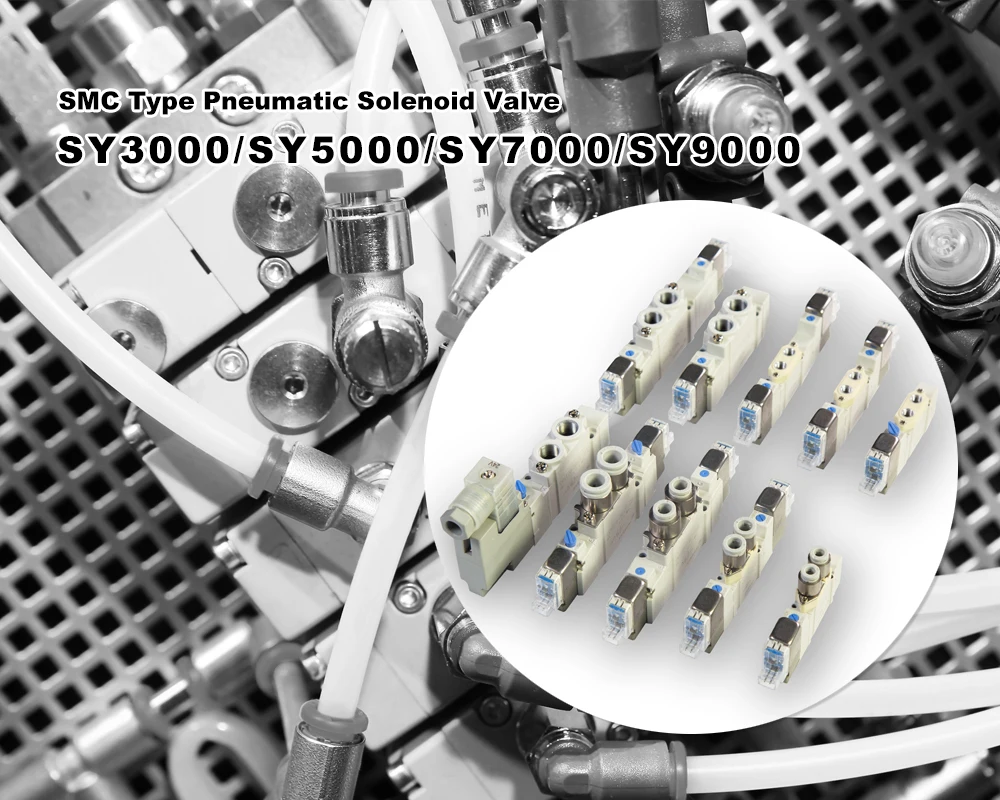

HOT SALES

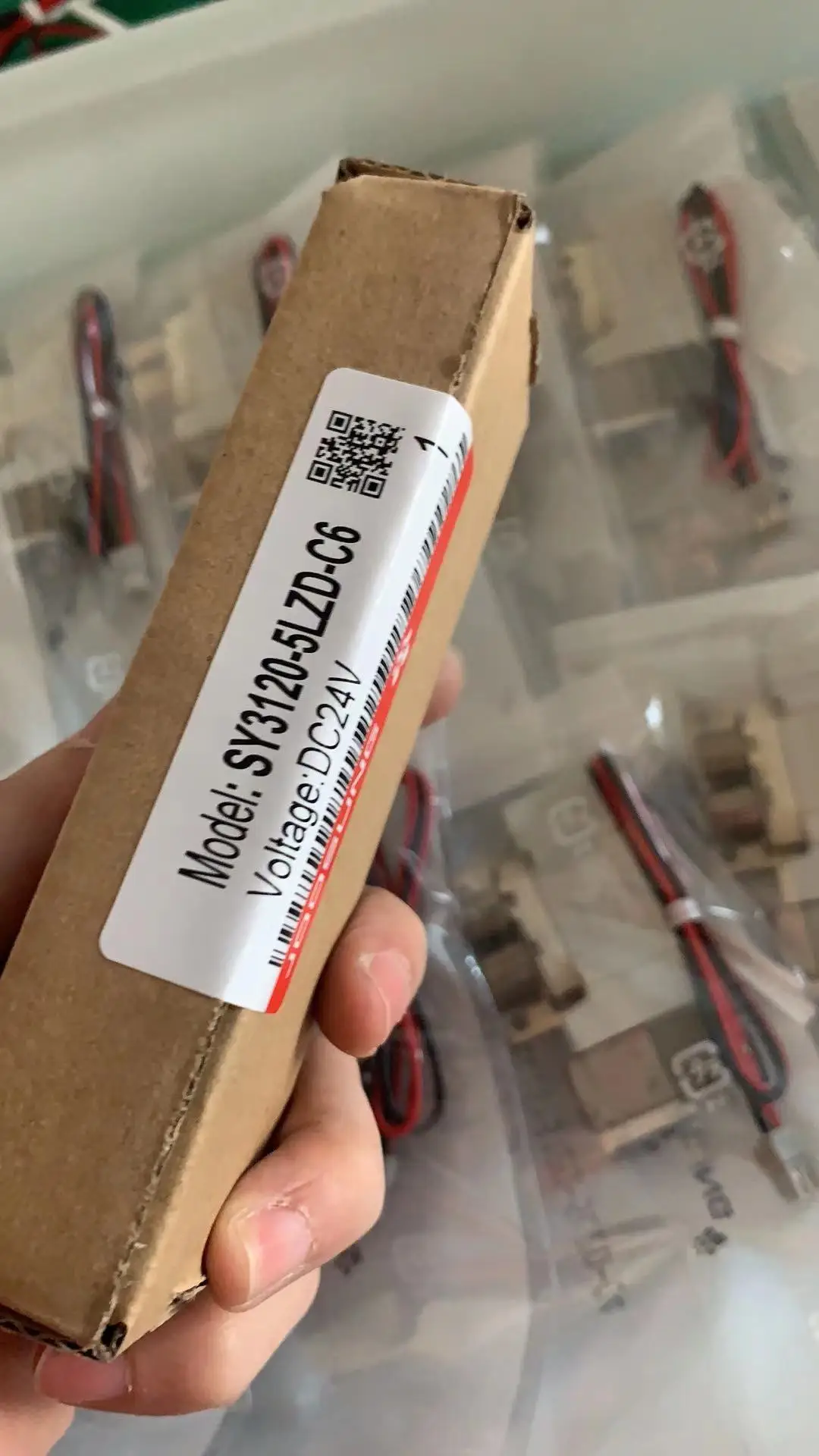

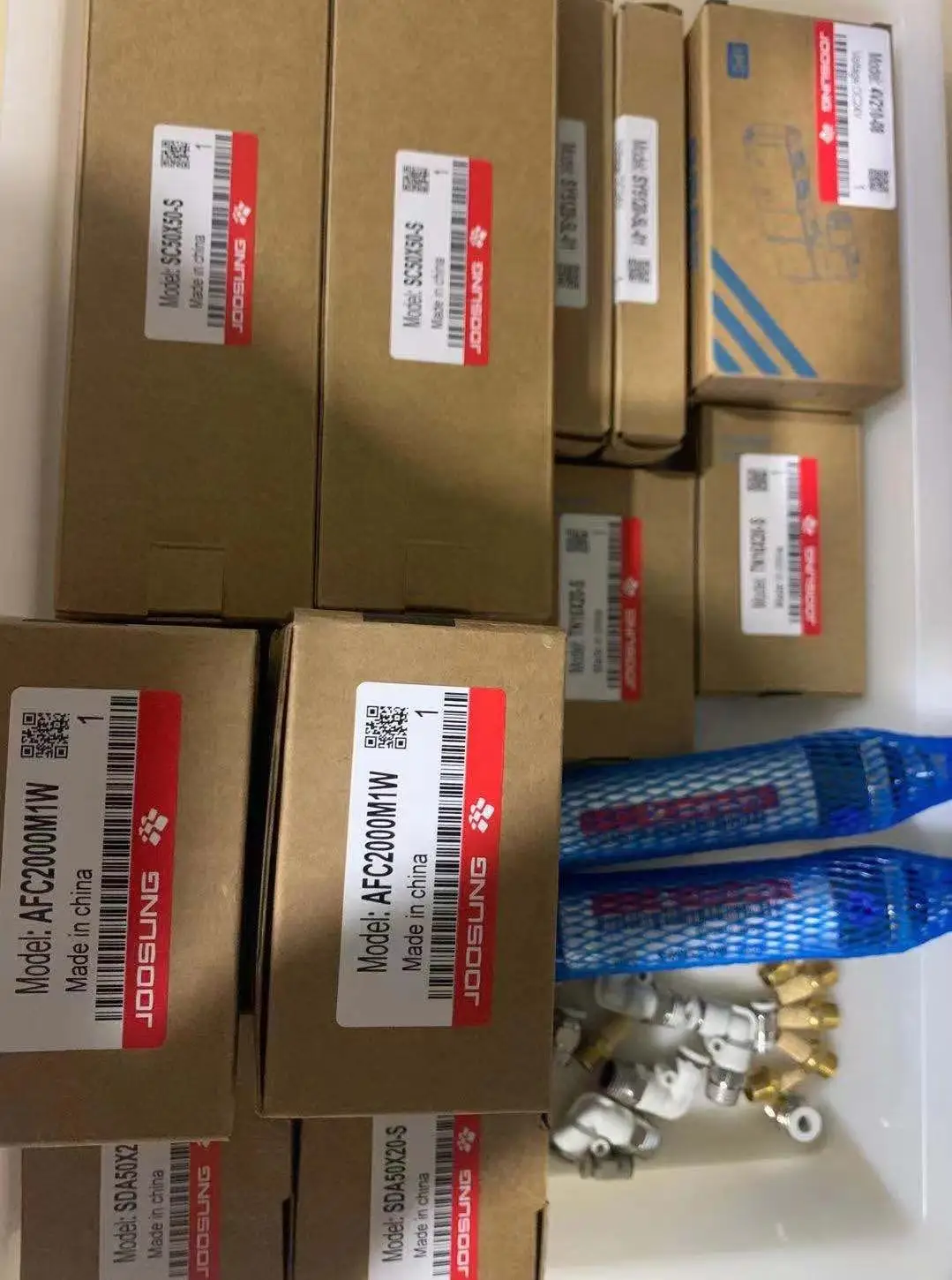

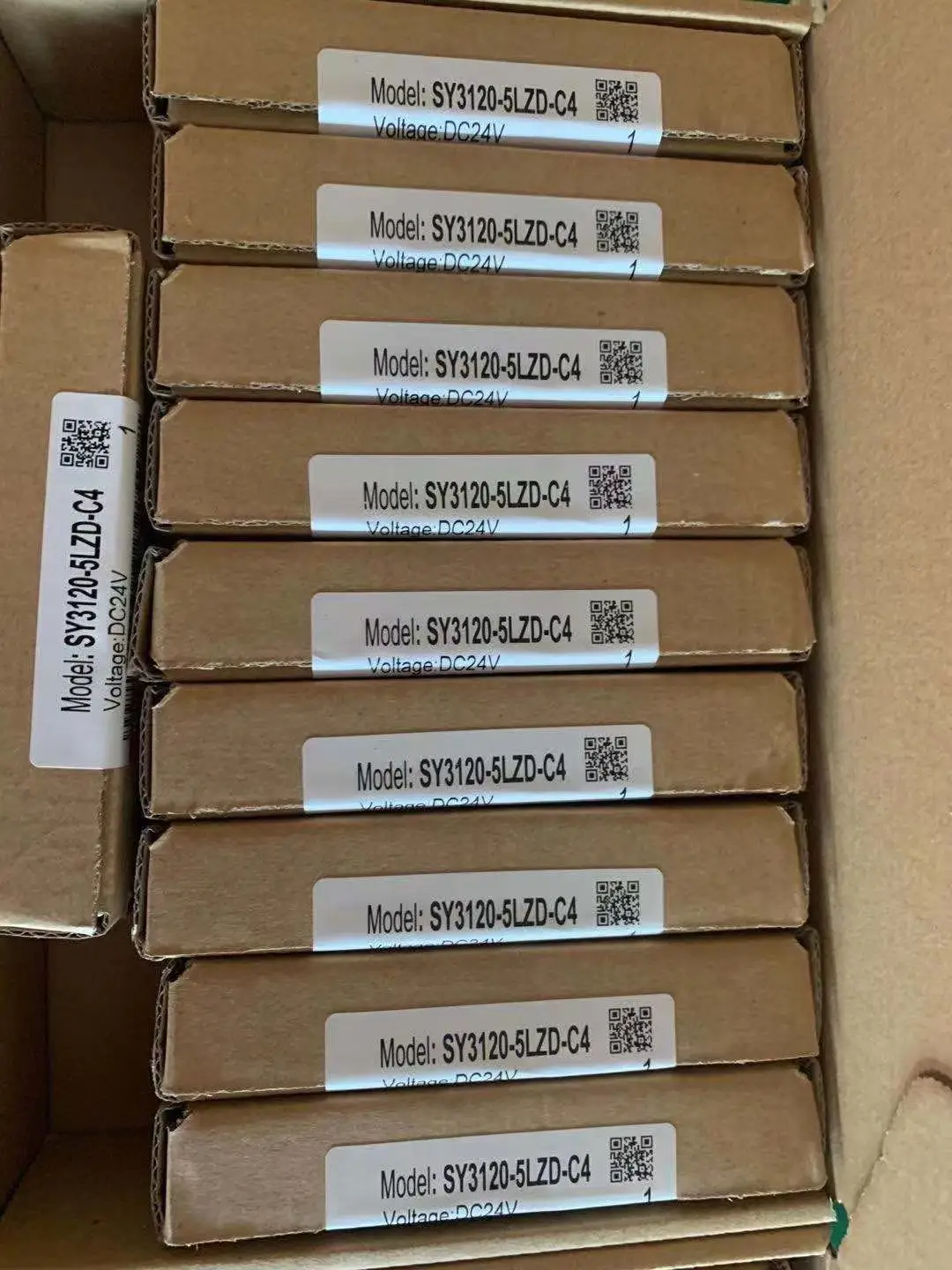

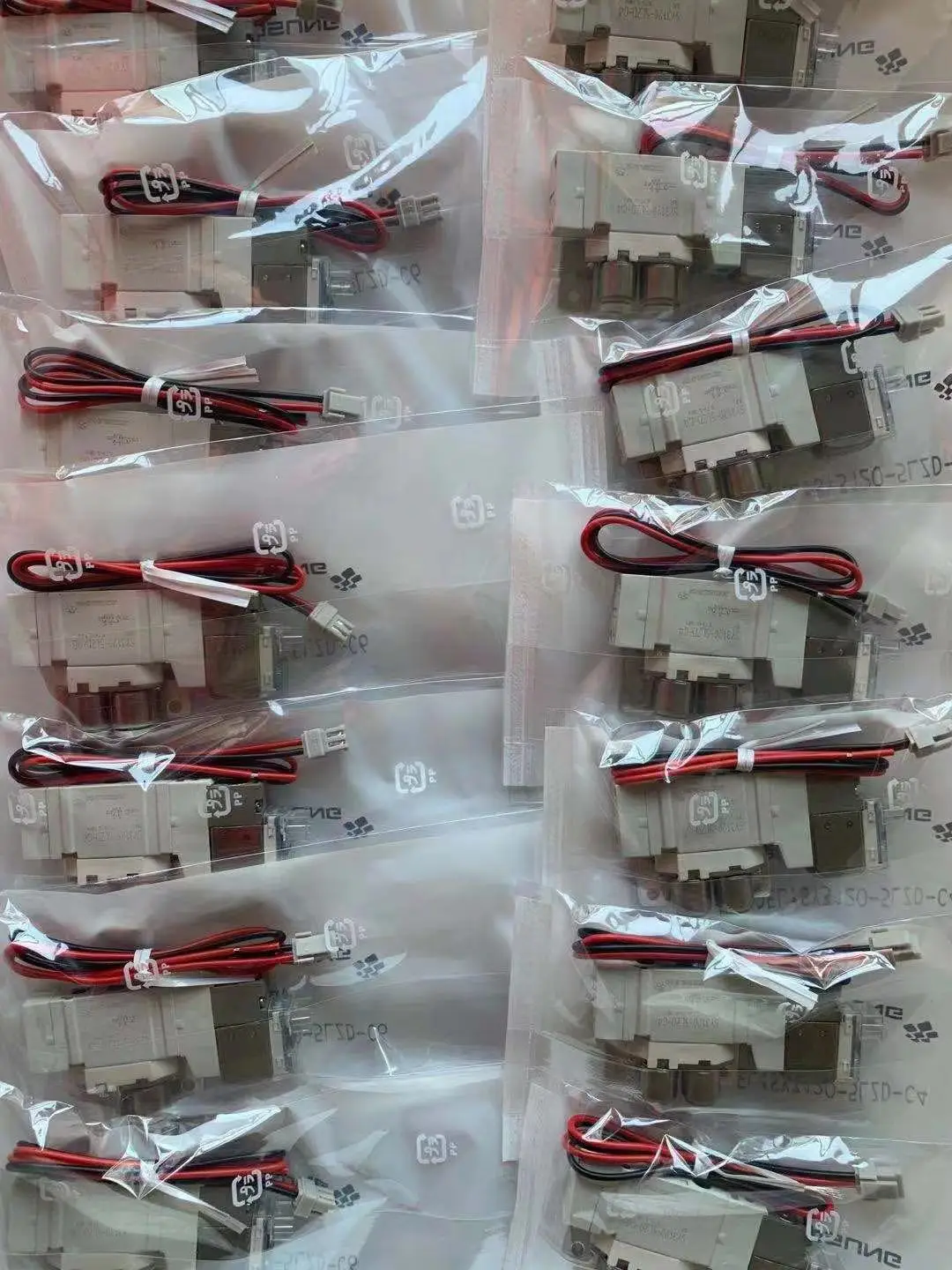

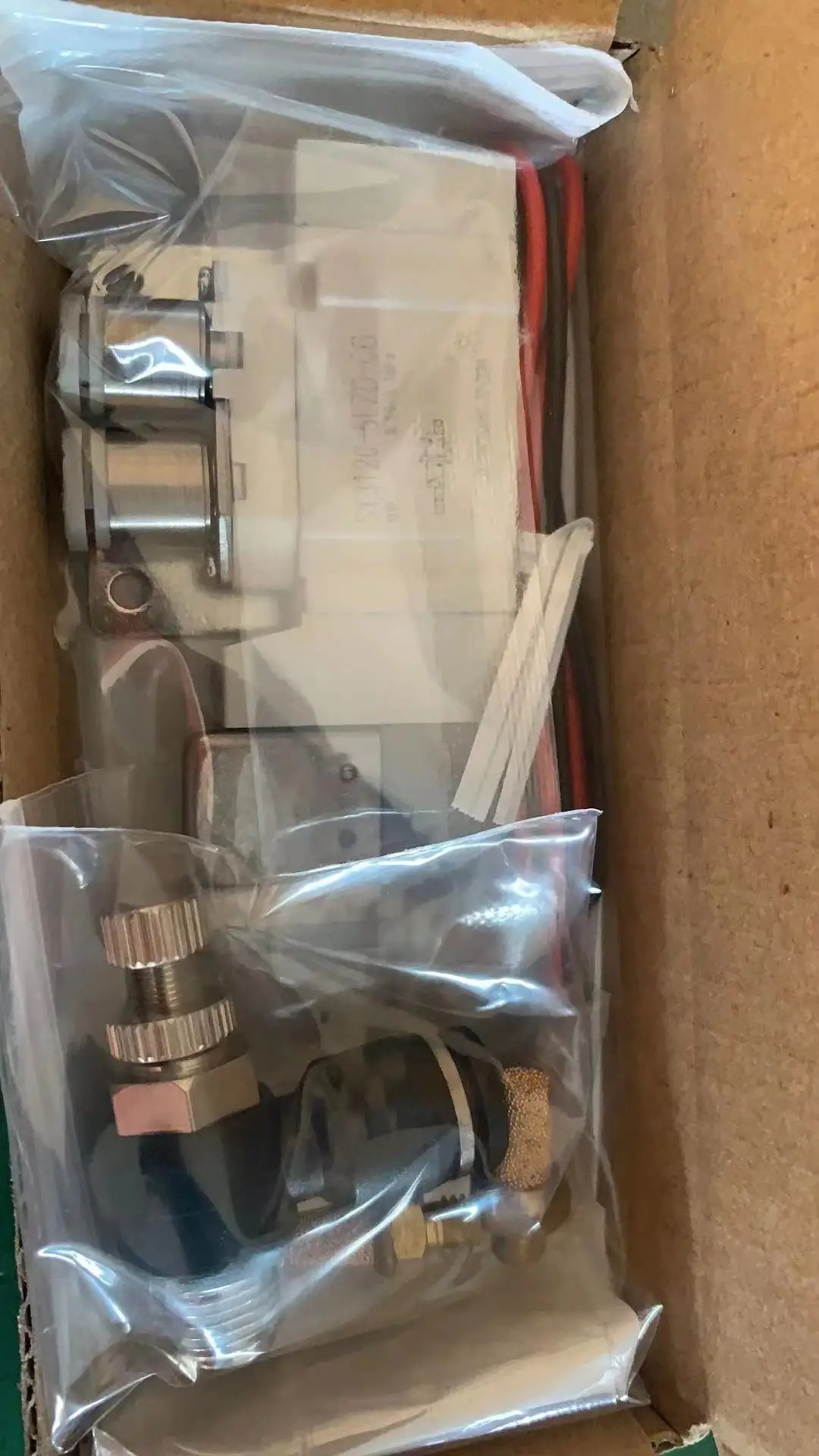

About Packing

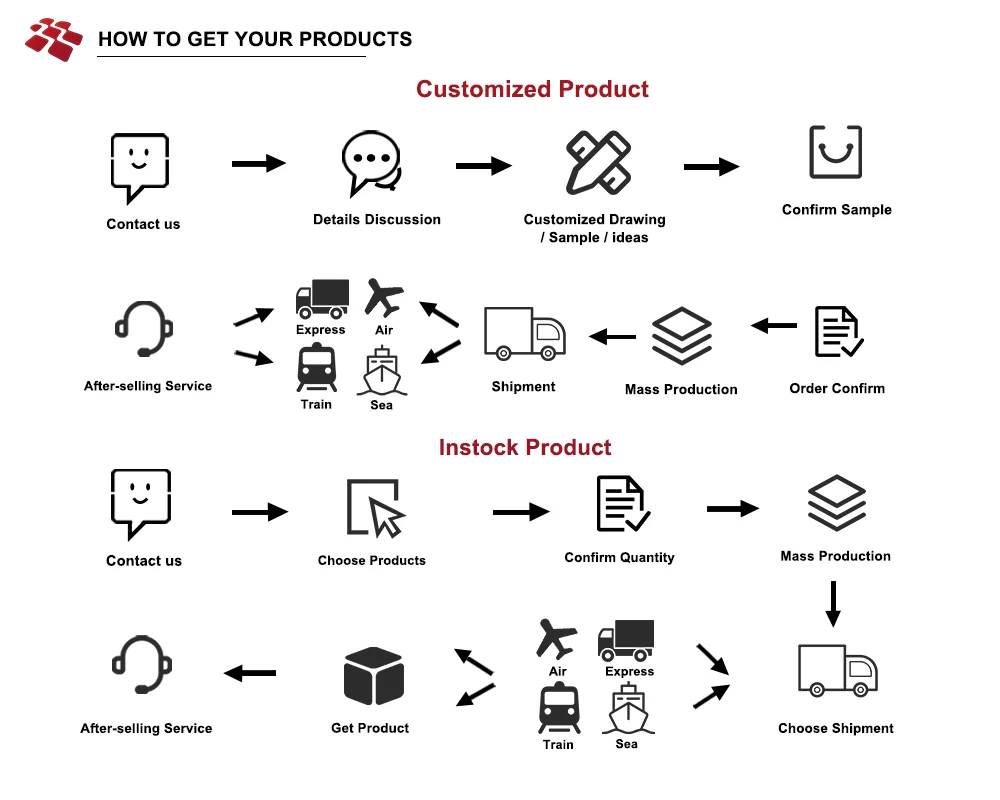

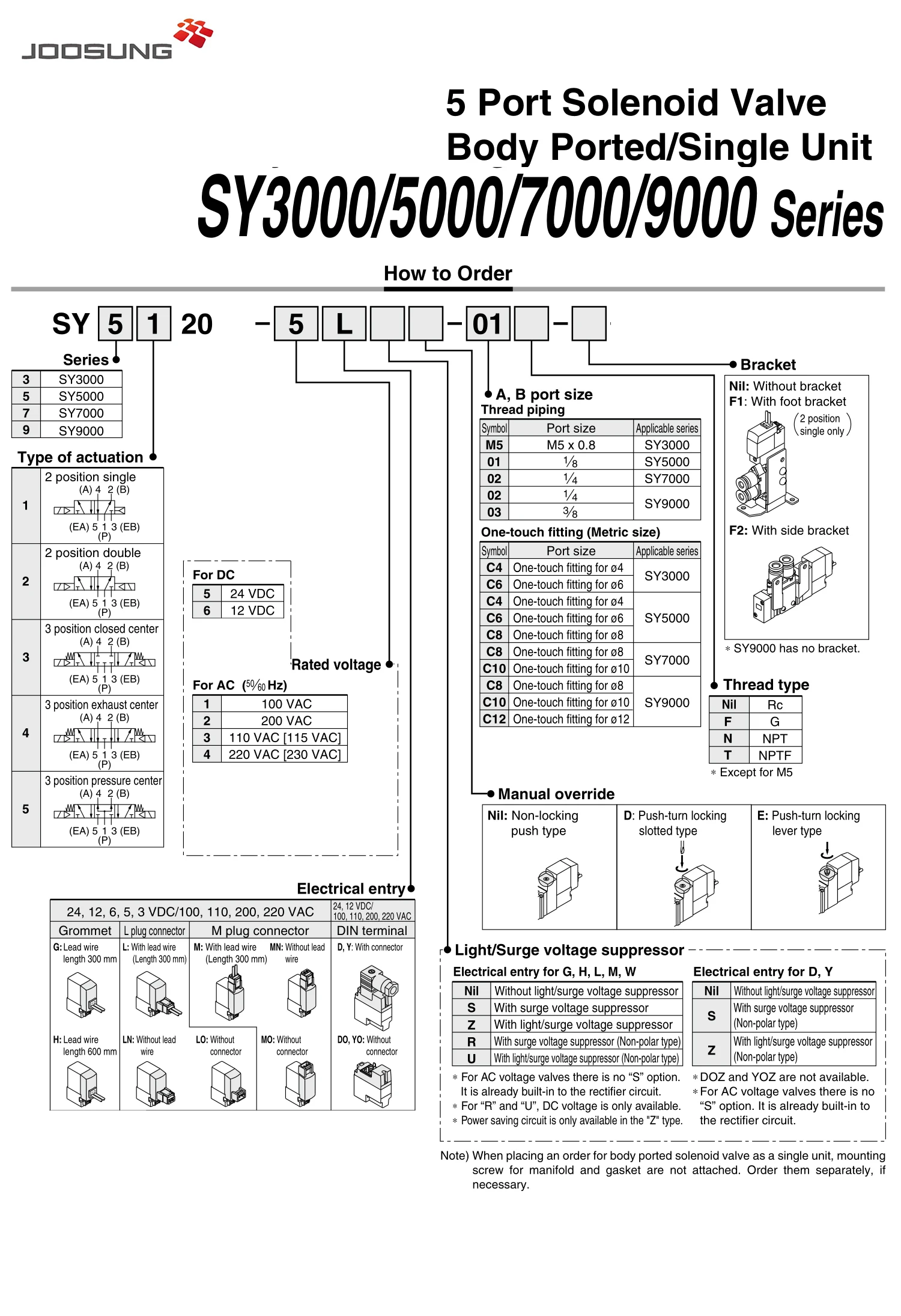

How To Order
Fault analysis
Malfunction | Pneumatic solenoid valve failure reasons |
Blocking | The waterproof tape wound into the piston rod, so that the reversing air produced impurities, causing blockage |
Seal is damaged | Entering high temperature or corrosive fluid, wear or corrosion of the sealing ring |
air leakage | Seal ring damage leads to air leakage, reversing pressure is insufficient, reversing is not in place |
The reversing difficult | Insufficient starting pressure, Vibrations, surrounding magnetic field, dense pallet, dense pallet valve |
Commutation failure | Control signal error |
unable to commutation | Coil burned,internal plugging of valve body |
Coil burned | Voltage mismatch, overload |

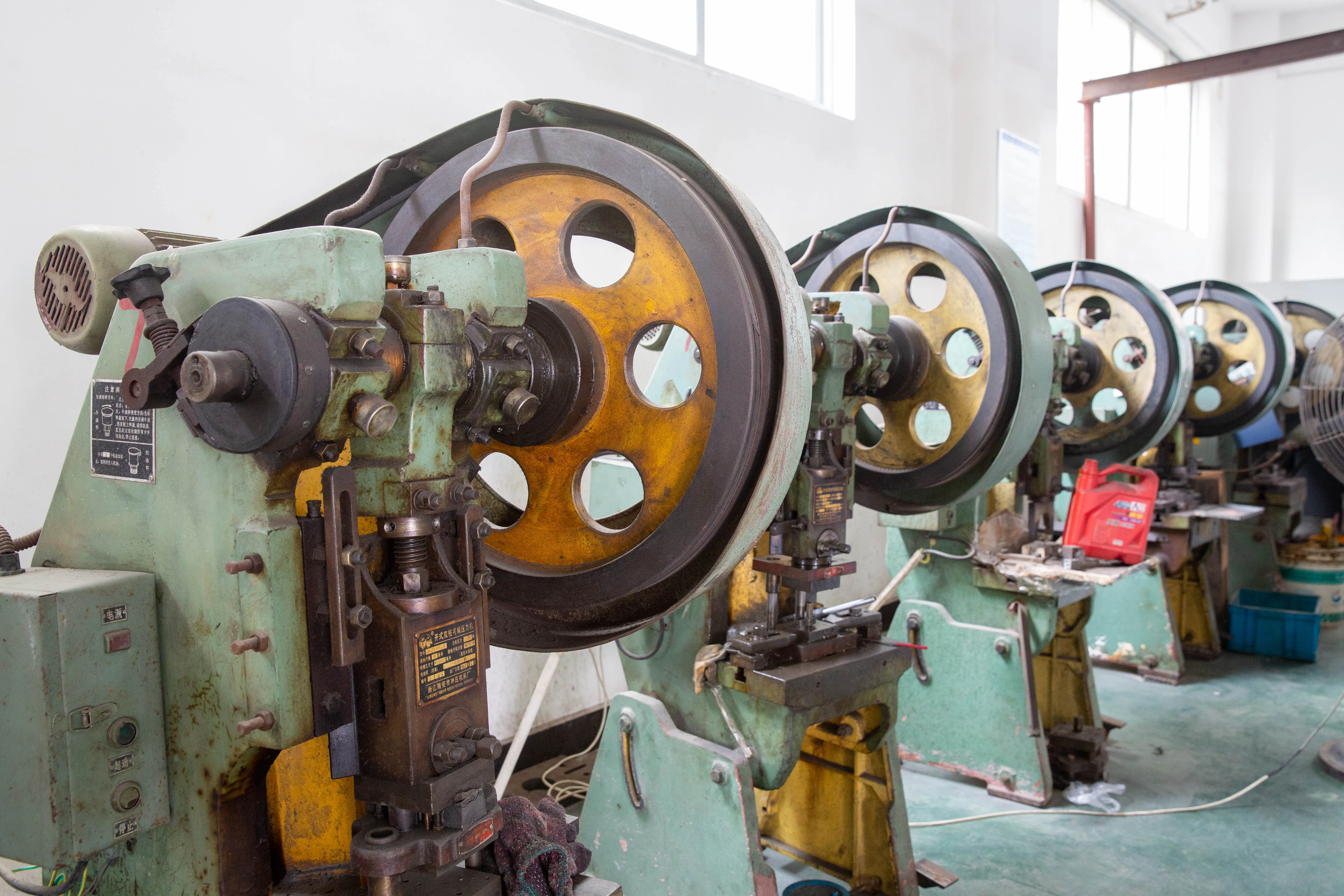

Company Profile

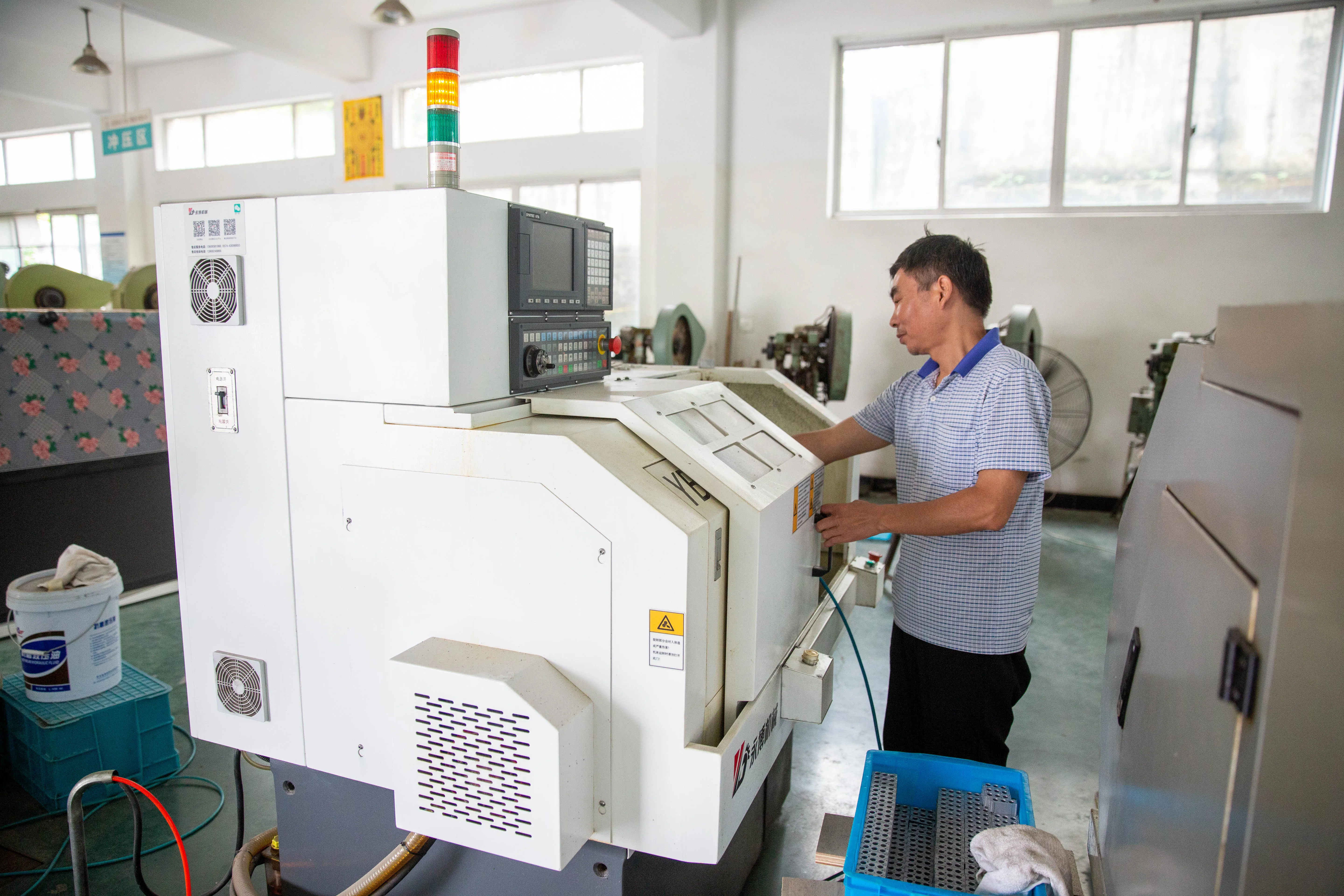

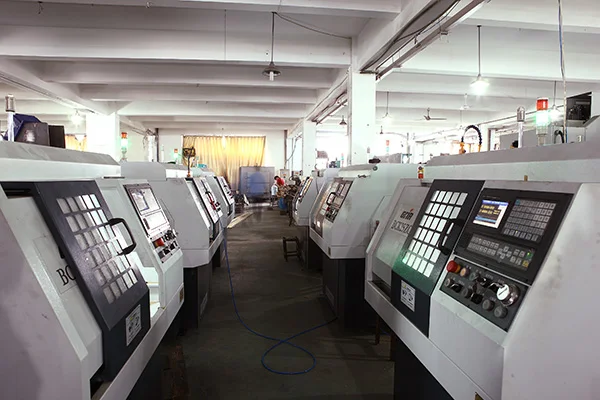

WENZHOU JOOSUNG PNEUMATIC CO. LTD is a professional manufacturer specialized in pneumatic valve and pneumatic parts. Established in 2012 covering 4,700 square meters, the company has 10 years of OEM experience in the area of automation and its certain industries, with technical personnel, production facilities, and testing facilities. Excellent product quality and customer satisfaction are the goal we have been pursuing. Concerning on the quality of each item we produce, the company has gain CE, ISO and other certificates on products. JOOSUNG sincerely hope more friends and guests could get to know, understand and cooperate with us on the basis of equality and win-win. And please feel free to contact us if any request.

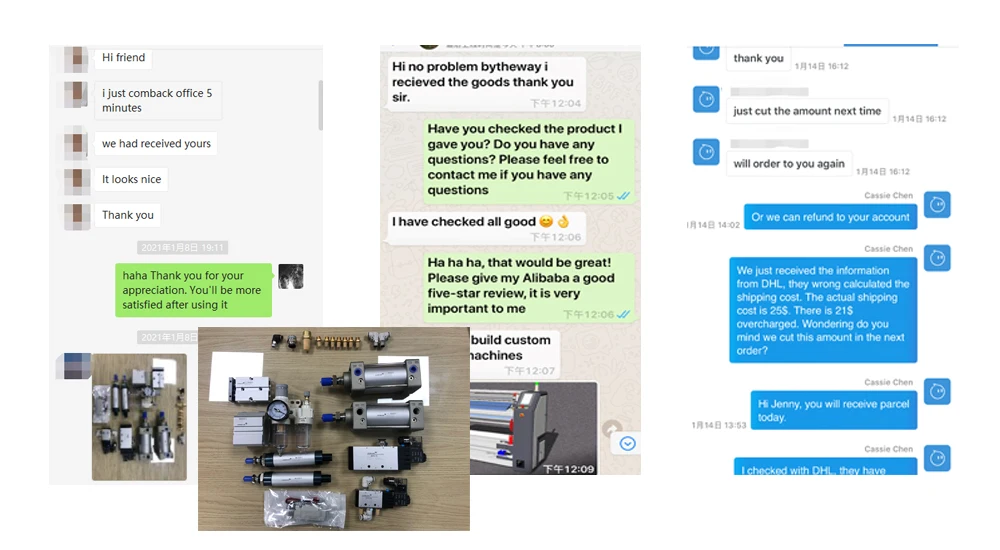

Customers feedback
Joosung pneumatic products have been sold to Vietnam, the Philippines, South Africa, Germany, France, Mexico, Egypt, India,Cambodia, Turkey and other countries.We have carried out a two-year warranty on the solenoid valve. We have received unanimous praise from our customers.
FAQ
1. How to choose logistics and transportation?
Our factory cooperates with TNT,DHL,FEDX and SF.Goods less than 100KG can be sent by international express.
2. What is the transportation cost of international express?
The express cost is reported according to the quotation provided by the express company. Customers can also inquire the express cost via the freight function of Ali International Station.
3. Is your solenoid valve SMC?
We produce SMC type SY series solenoid valve, but we are not SMC, our trademark is JOOSUNG.
4. Are your products as good as SMC's?

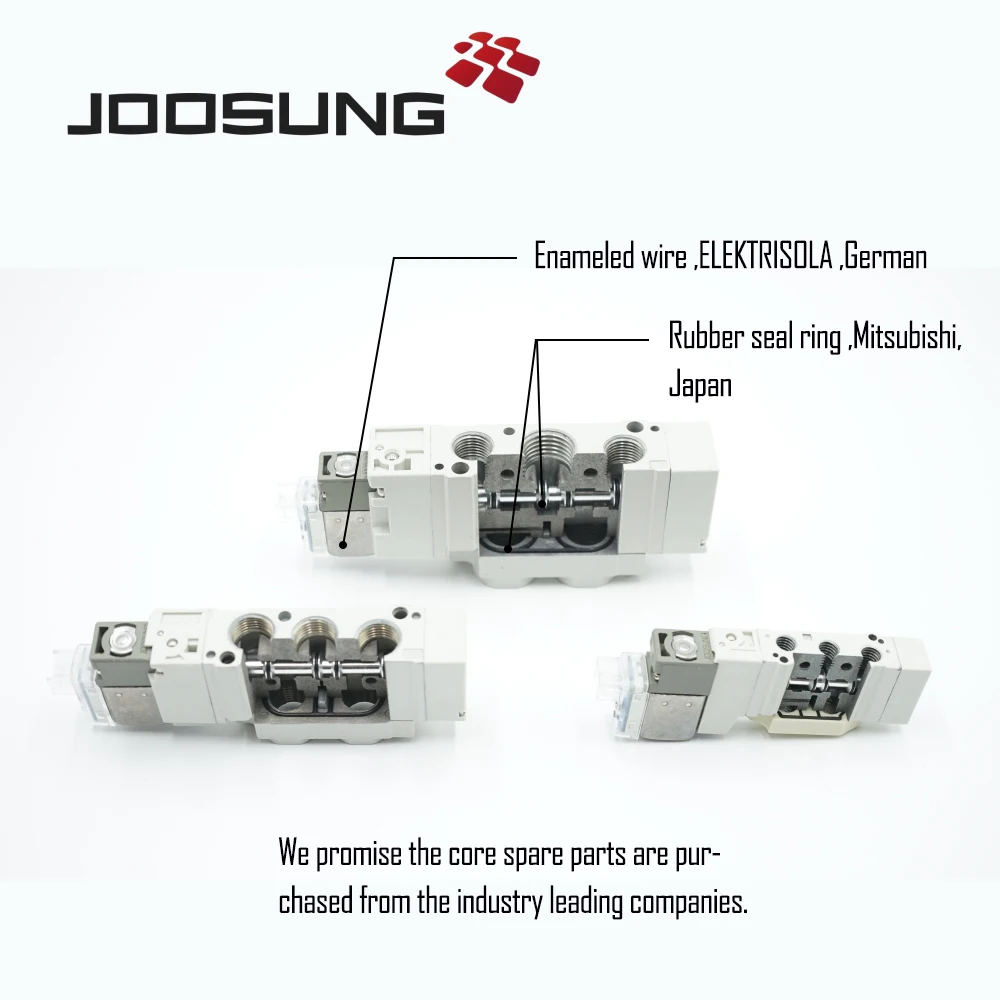

Our products are as good as SMC solenoid valves. We use Mitsubishi seal rings from Japan and enameled wire from Ilizuler from Germany, which are produced by CNC.The service life is the same as SMC.We carry a two-year warranty on SY series solenoid valves(under the condition of pure input air).
5. Can you print the SMC logo?
We can't print the SMC logo.However, we accept OEM, we can produce according to the model required by customers, and reserve the printing space of the trademark for customers.
6. How can I be your agent?
We welcome cooperation with suppliers around the world. For the agents who purchase a large amount, we will give extremely preferential policies to ensure a win-win situation for both sides.
7. Do you have any agents abroad?
Yes, we currently have agents in Mexico and Vietnam.Sales are authorized by Joosung and all products are guaranteed to be produced in Joosung factory in China.
8. ATTENTION PLEASE!
SMC type SY series solenoid valve with high precision requires high purity of the input air source. Please pay attention to your F.R.L working state.
Our factory cooperates with TNT,DHL,FEDX and SF.Goods less than 100KG can be sent by international express.
2. What is the transportation cost of international express?
The express cost is reported according to the quotation provided by the express company. Customers can also inquire the express cost via the freight function of Ali International Station.
3. Is your solenoid valve SMC?
We produce SMC type SY series solenoid valve, but we are not SMC, our trademark is JOOSUNG.
4. Are your products as good as SMC's?
Our products are as good as SMC solenoid valves. We use Mitsubishi seal rings from Japan and enameled wire from Ilizuler from Germany, which are produced by CNC.The service life is the same as SMC.We carry a two-year warranty on SY series solenoid valves(under the condition of pure input air).
5. Can you print the SMC logo?
We can't print the SMC logo.However, we accept OEM, we can produce according to the model required by customers, and reserve the printing space of the trademark for customers.
6. How can I be your agent?
We welcome cooperation with suppliers around the world. For the agents who purchase a large amount, we will give extremely preferential policies to ensure a win-win situation for both sides.
7. Do you have any agents abroad?
Yes, we currently have agents in Mexico and Vietnam.Sales are authorized by Joosung and all products are guaranteed to be produced in Joosung factory in China.
8. ATTENTION PLEASE!
SMC type SY series solenoid valve with high precision requires high purity of the input air source. Please pay attention to your F.R.L working state.
